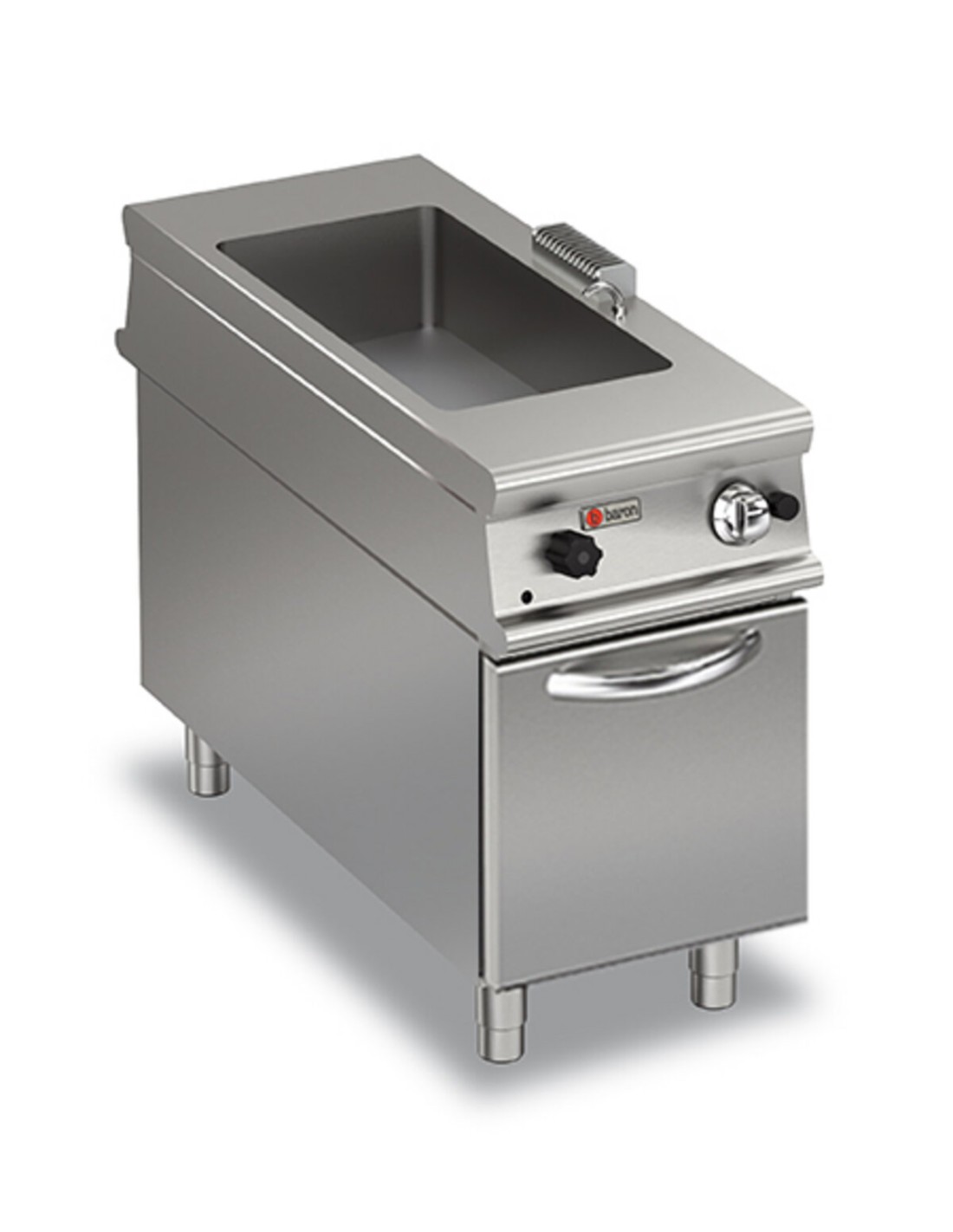

GAS THROUGH-BATH - ON CABINET WITH DOORS

Tipo Alimentazione
Promo
Print
Home , COOKING , SERIE GIANO , BAIN MARIES
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Gastronorm tub size (2x 2/3). Manual water loading by dispenser. Perforated false bottom for supporting containers. Tub equipped with an overflow level. GAS Temperature adjustable from 55°C to 90°C. Burner controlled by thermostatic valves with safety thermocouple. Piezo ignition. ELECTRICAL Temperature adjustable from 30°C to 90°C. Armoured heating elements positioned outside the tank. Heating activity indicator light.
N1100BGVP/G450
CR1010269 - Standard Standard

Data sheet

Certified model
N1100BGVP/G450
Model
N1100BGVP/G450
CE-certified
CE-0085CM0482
CODE
CR1010269
Commercial code
N1100BGVP/G450
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
N1100BGVP/G450 BAGNOMA. GAS M45 A/G C/P
Commercial Line
SERIE 1100
Depth
1100mm
Packaging width
510
Height
870mm
Packaging height
1150
Volume
0.431m3
Width
450mm
Gas power Kw
3,66Kw
Packaging length
1280
Gas power (G25.3/25 mbar)
3,40Kw
Alimentazione
GAS
Gas power Kcal
2924Kcal
III1a2H3B-P
DK
Gross volume
0750
Gas/refrigerant type
GPL 28-30/37 mbar
Net weight
57.8Kg
Gross weight
68Kg
Production site
BELLUNO
Chimney type
A1
II2H3+
ES/GB/GR/IE/IT/PT/SK

Specific References

mpn
N1100BGVP/G450
