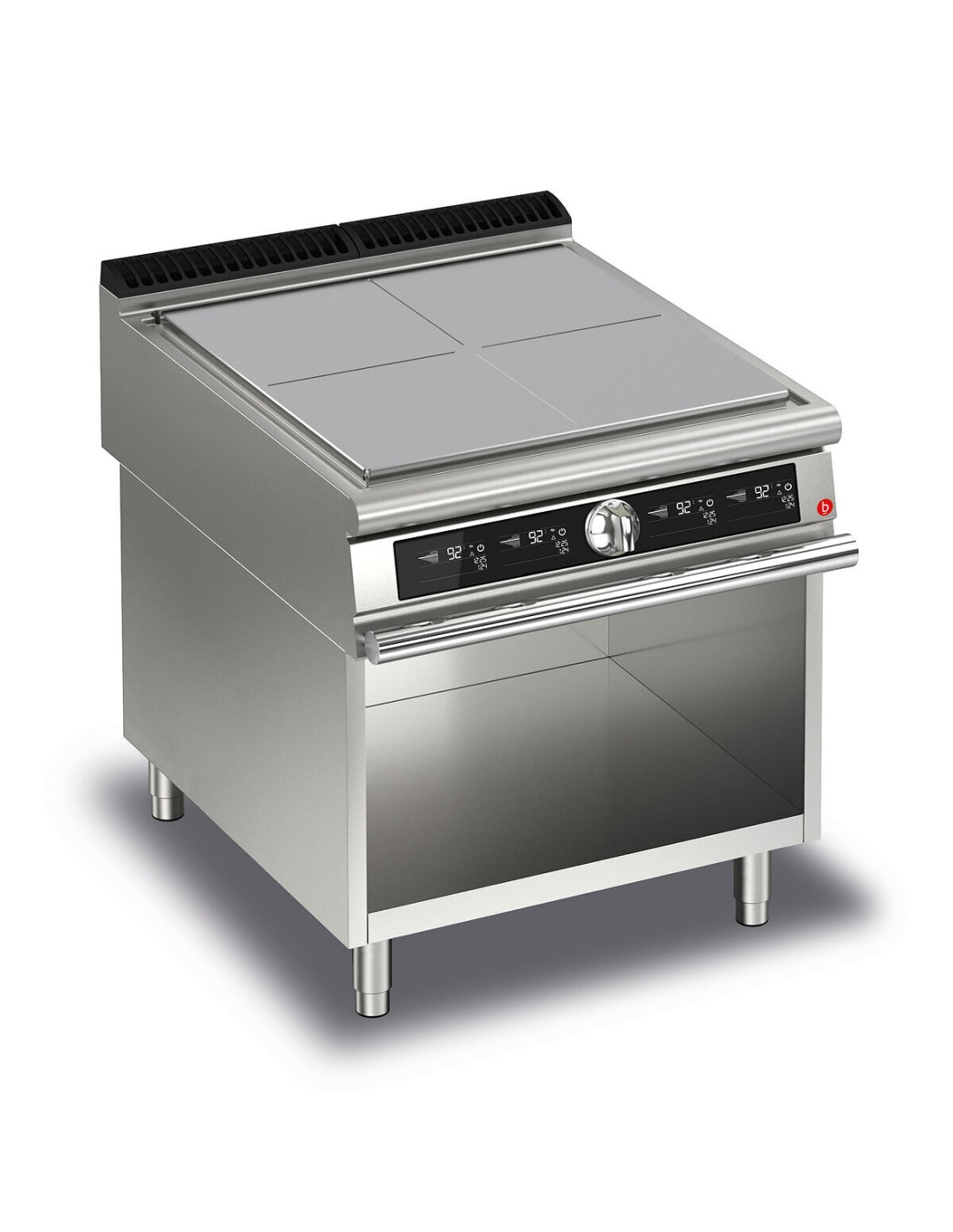

ELECTRIC SOLID TOP ON OPEN BASE

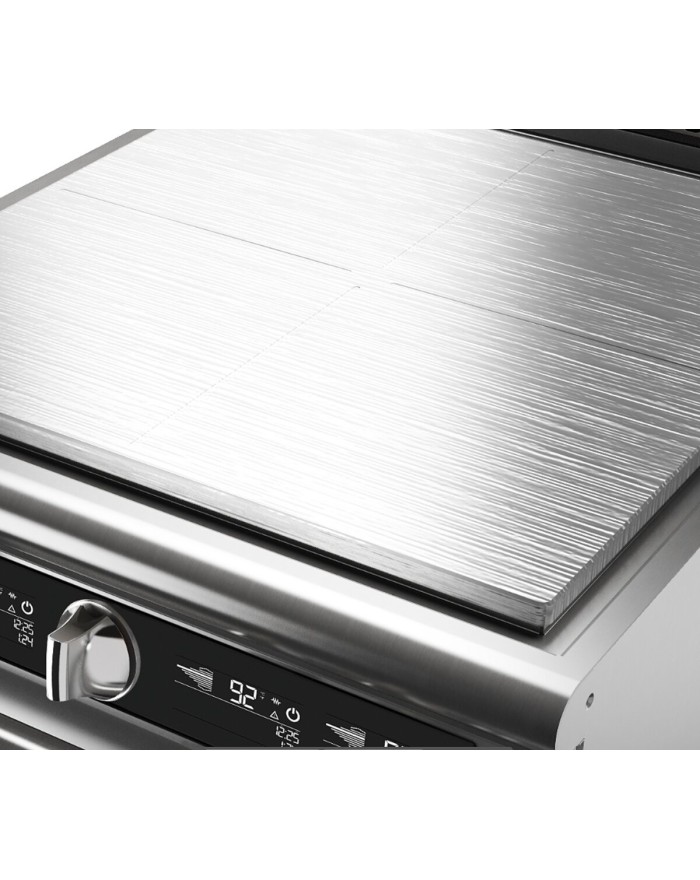

Chrome molybdenum polished steel cooking plate 1.8 cm thick that is crushproof at high temperatures and also suitable for direct cooking. Perimeter grease trap gutter with drain hole. Plate heating (4 zones) by means of 4 kw heating elements. Temperature control of heating elements by thermostat, operated by means of ergonomic recessed and inclined knobs. 4 independent cooking zones. Adjustable temperature Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 ready version.

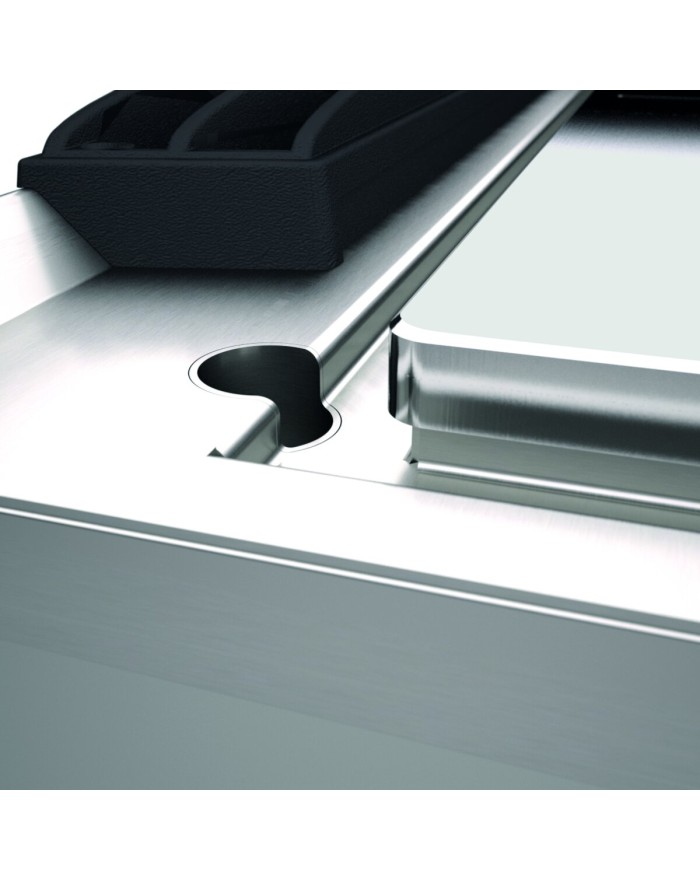

Cantilevered plate with perimeter grease trough with drain hole.



4 independent cooking zones.



Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

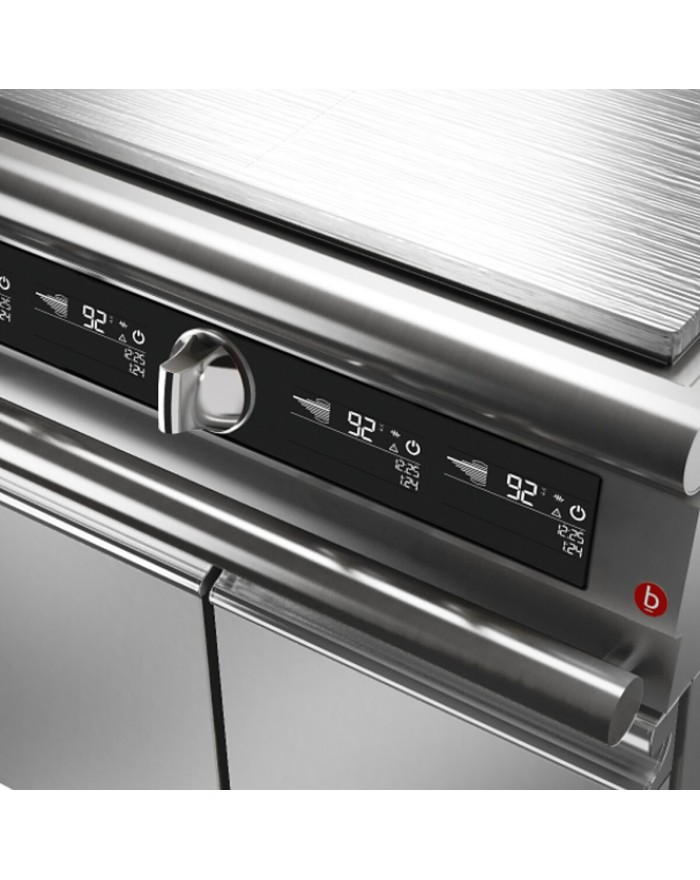

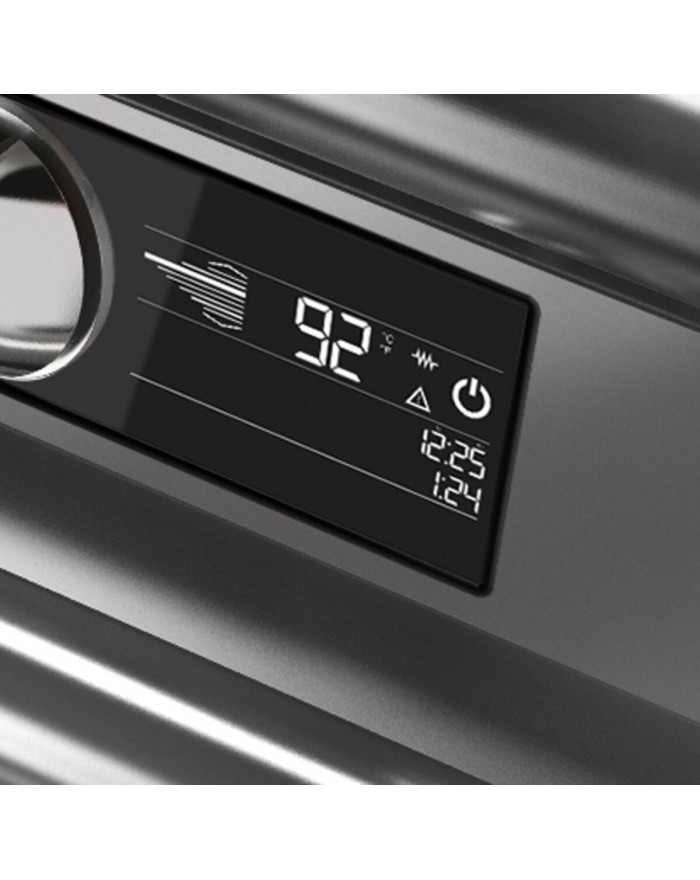

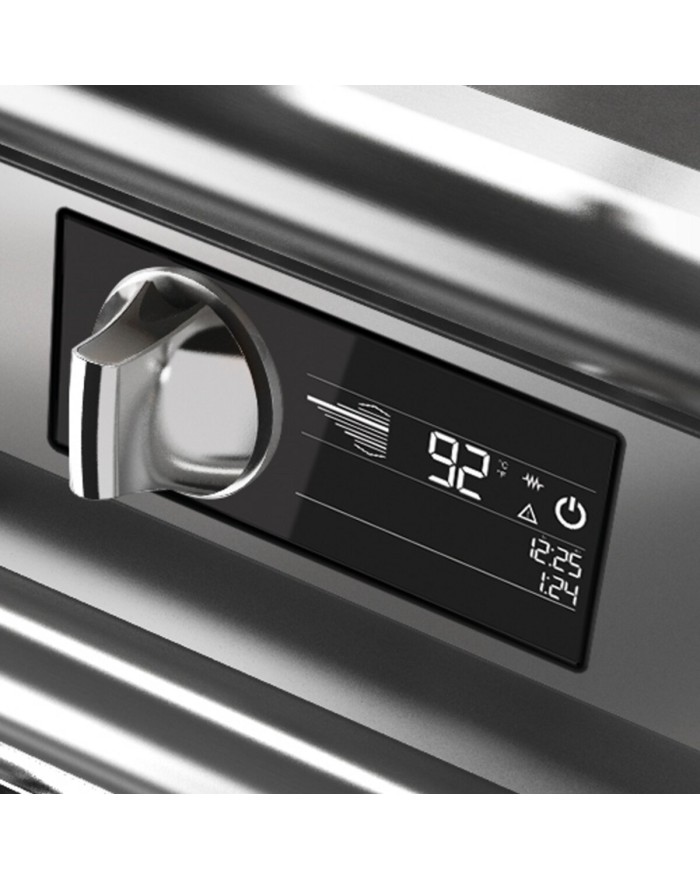

Hotplate temperature control via touch screen and adjustment with ergonomic knob



Temperature regulation from 50 to 400 °C

QT90TPV/E800-T4W
CR1016179T4W - Standard Standard

Data sheet

CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
QT90TPV/E800-T4W
Packaging width
1020
CODE
CR1016179T4W
Packaging height
1150
Commercial code
Q90TPV/E800
Width
800mm
Material type
ZPF
Packaging length
860
Definition
QT90TPV/E800-T4W TUTTAPIASTRA ELETT. A/G
Alimentazione
ELETTRICA
Depth
900mm
Electrical power
16,000Kw
380-415V 3N
Height
870mm
Frequency
50-60 HzHz
Volume
0.626m3
Gross volume
1010
IP grade
IPX5
Net weight
130.8Kg
Configurazione
4PLANCHES
Gross weight
146Kg
Certified model
Q90TPV/E800

Specific References

mpn
QT90TPV/E800-T4W
