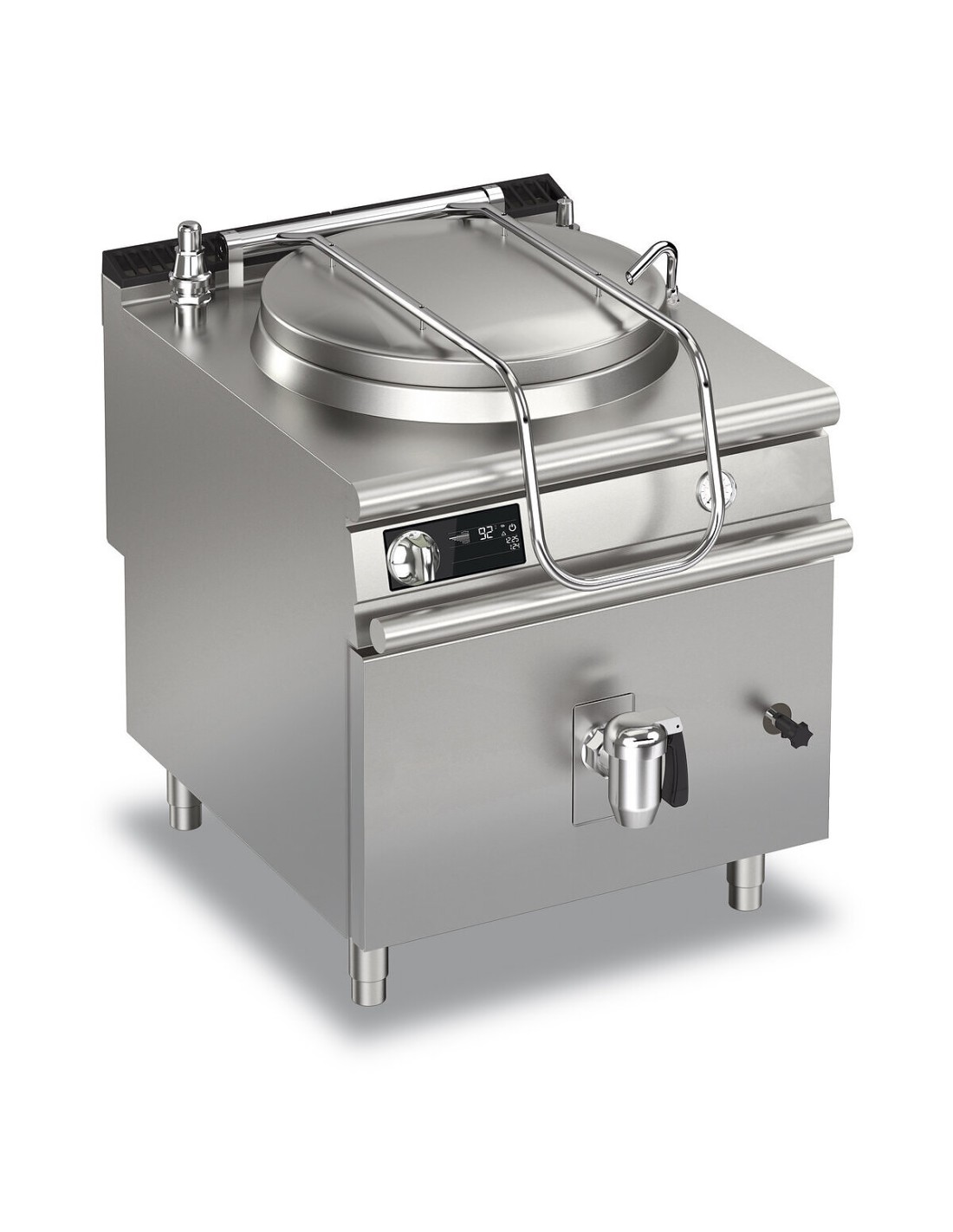

INDIRECT HEATING ELECTRIC BOILING PAN - 100 L - WITH AUTOMATIC CONDENSATE DRAIN VALVE
Stainless steel tank with aisi 318 bottom
Possibility of hot or cold water loading
Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal.
Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme.
Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.
The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with 2 mm thickness
AISI 304 stainless steel tanks with AISI 316 bottom.
Water loading by means of 2 solenoid valves, with the possibility of loading cold or hot water.

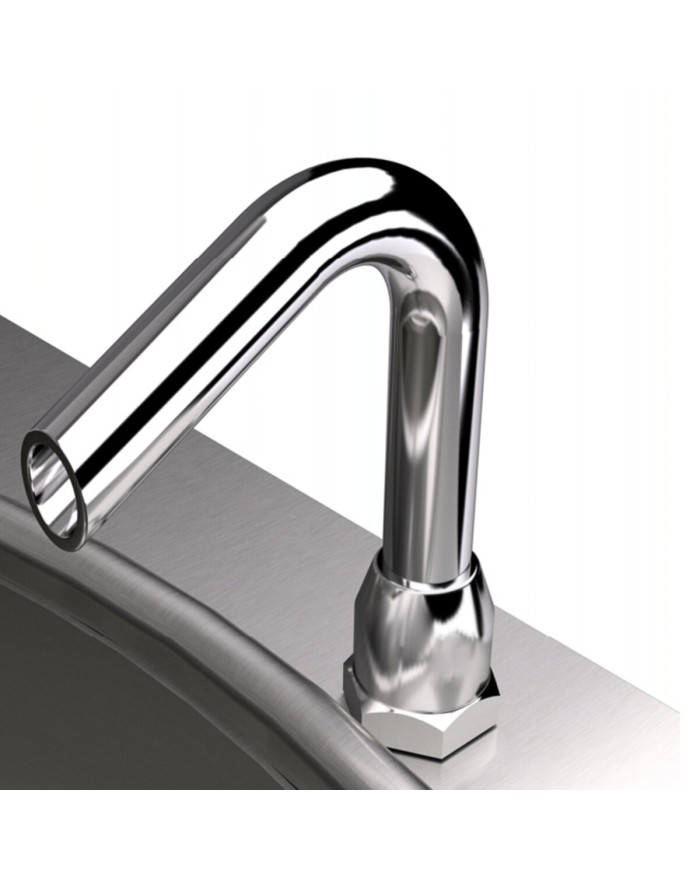

Frontal drain by means of 2" chrome-plated brass faucet.
Indirect electric version: heating with 2 sets of armoured heating elements positioned inside the cavity.
Direct electric version: heating by means of 3 stainless steel heating elements positioned externally on the bottom of the container.
Stainless steel tank with aisi 318 bottom Possibility of hot or cold water loading Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Industry 4.0 ready version.

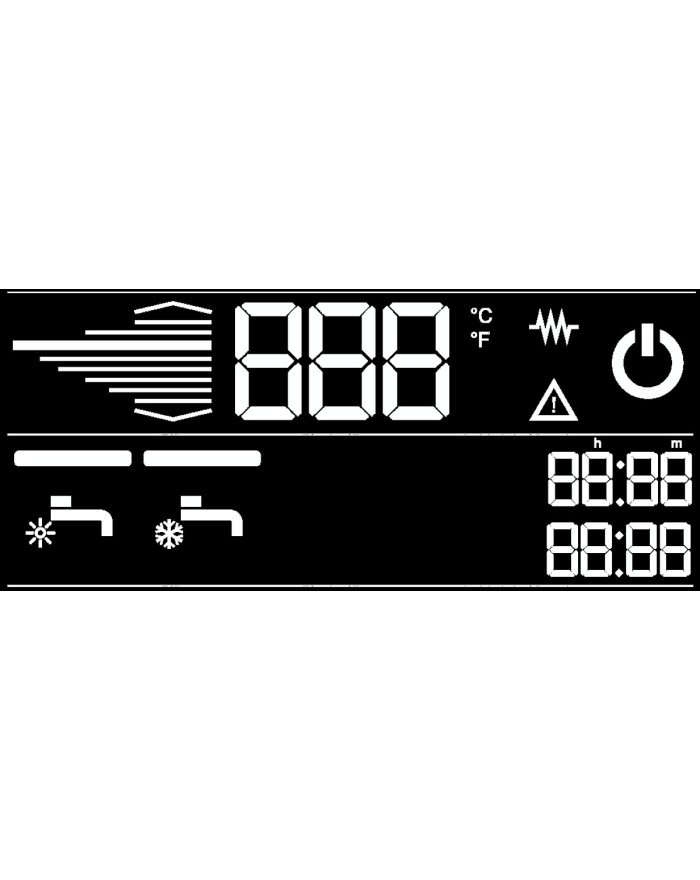

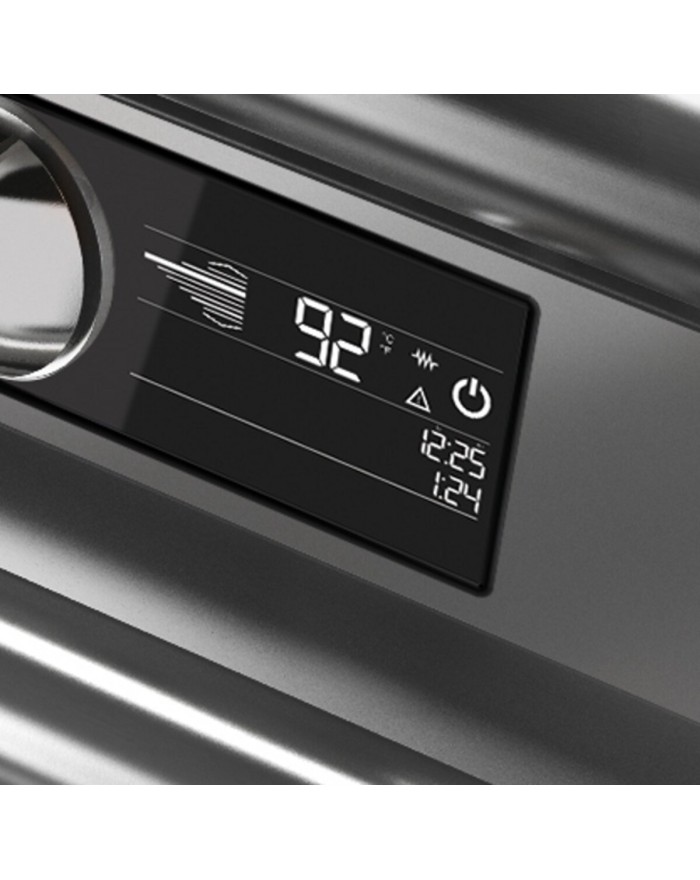

Power level control via touch screen and adjustment with ergonomic knob

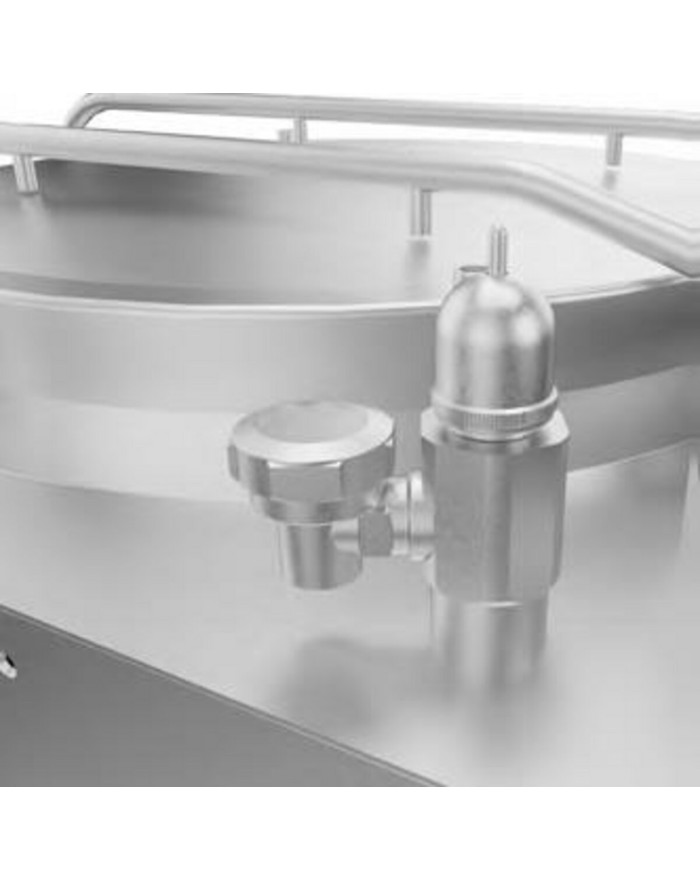

Indirect pots with automatic cavity condensate drain valve The valve has a dual function - recharges the pressure inside the interspace - allows automatic water condensate discharge

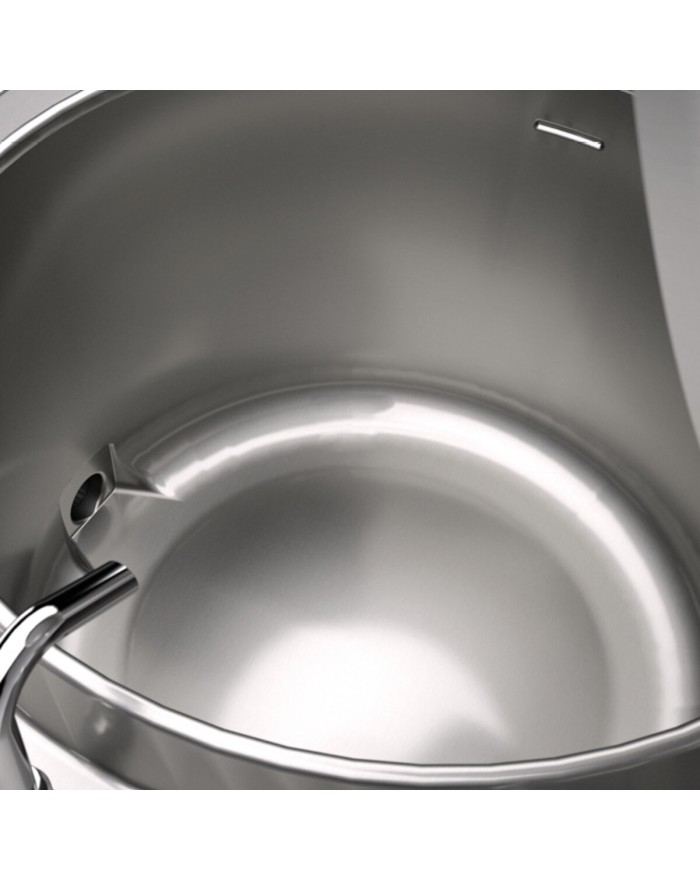

Stainless steel tank with aisi 316 bottom
Possibility of hot or cold water loading
Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.
Possibility of hot or cold water loading
QT90PF/EI100S-T4W
CR1356149T4W
Data sheet
- Model
- QT90PF/EI100S-T4W
- Code
- CR1356149T4W
- Material type
- ZPF
- Definition
- QT90PF/EI100S-T4W P.EL.M80 IND.C/VAL100L
- Width
- 800mm
- Height
- 870mm
- Depth
- 900mm
- Volume
- 0.626m3
- Electrical power
- 21Kw
380-415V 3N - Frequency
- 50-60 HzHz
- Gross volume
- 1140
- Net weight
- 134.8Kg
- Gross weight
- 150Kg
- Capacity
- 100 litri
- IP grade
- IPX5
- Certified model
- Q90PF/EI100
- CE-certified
- -
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 1020
- Packaging height
- 1300
- Packaging length
- 860
- Alimentazione
- ELETTRICA
- Commercial code
- QT90PF/EI100S-T4W
- Production site
- BELLUNO
- Production start year
- 2021
