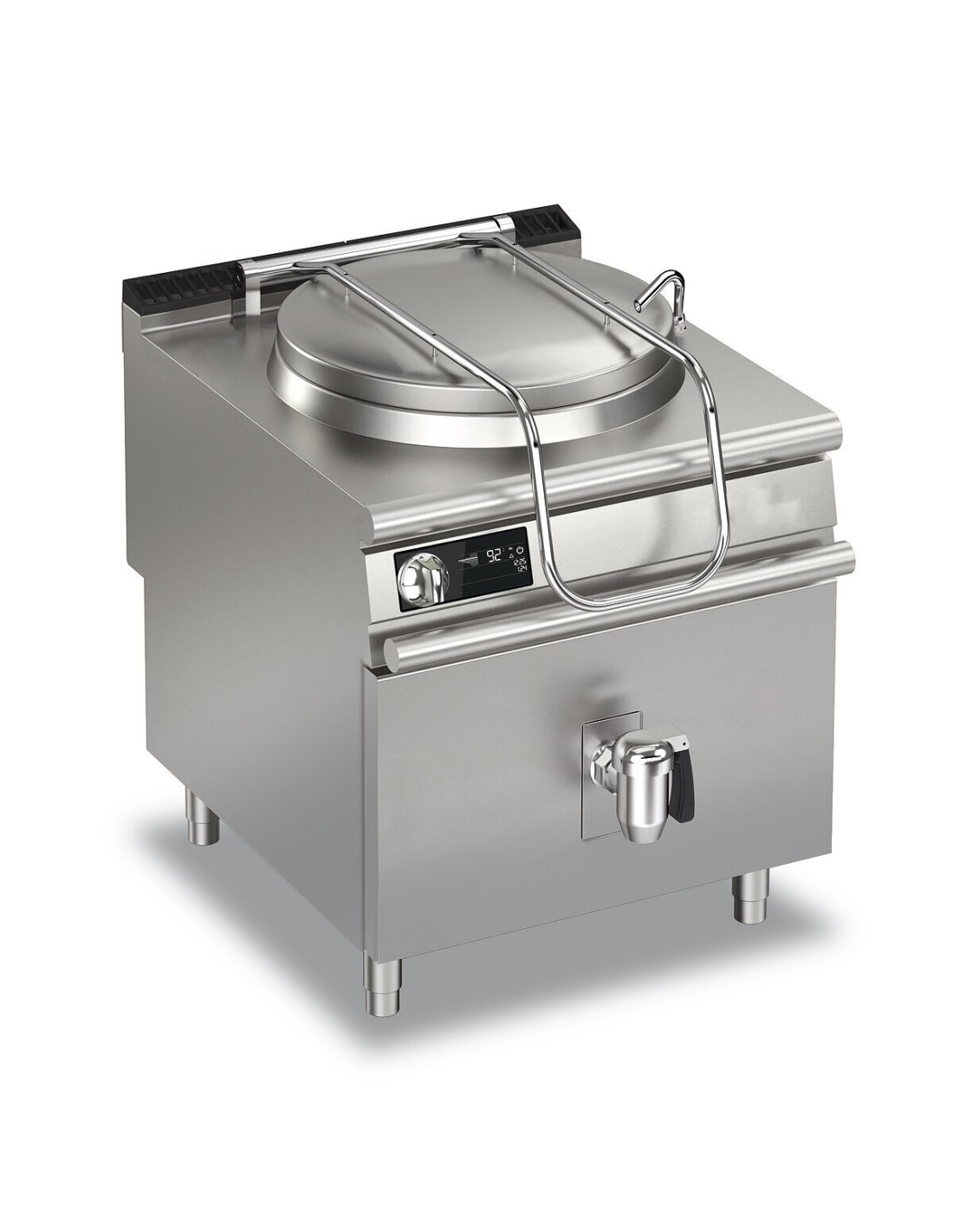

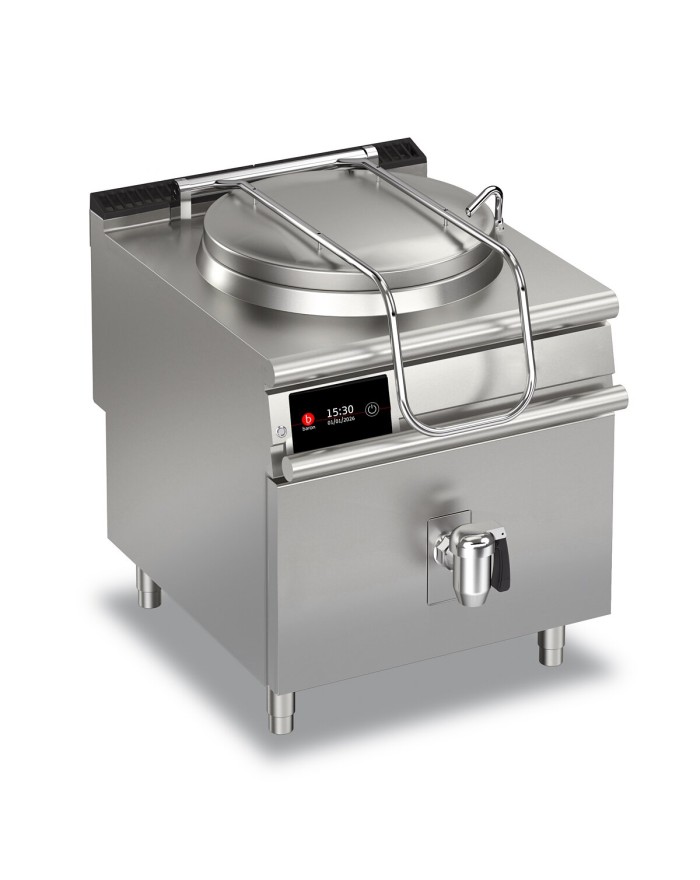

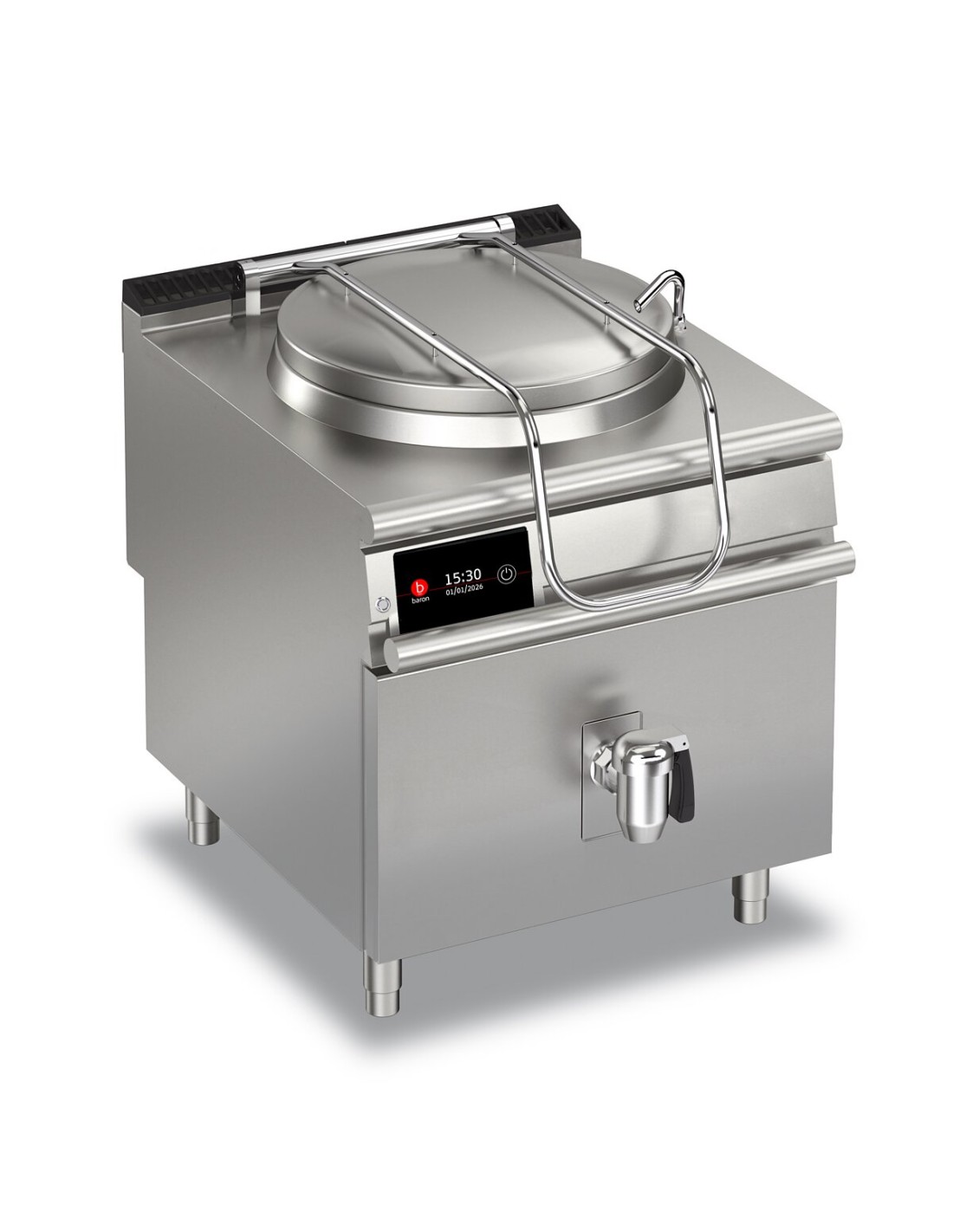

ELECTRIC BOILING PAN DIRECT HEATING - 100 LT

Stainless steel tank with aisi 316 bottom Possibility of hot or cold water loading Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Print
Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with 2 mm thickness AISI 304 stainless steel tanks with AISI 316 bottom. Water loading by means of 2 solenoid valves, with the possibility of loading cold or hot water. Frontal drain by means of 2" chrome-plated brass faucet. Indirect electric version: heating with 2 sets of armoured heating elements positioned inside the cavity. Direct electric version: heating by means of 3 stainless steel heating elements positioned externally on the bottom of the container. Stainless steel tank with aisi 316 bottom Possibility of hot or cold water loading Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 ready version.

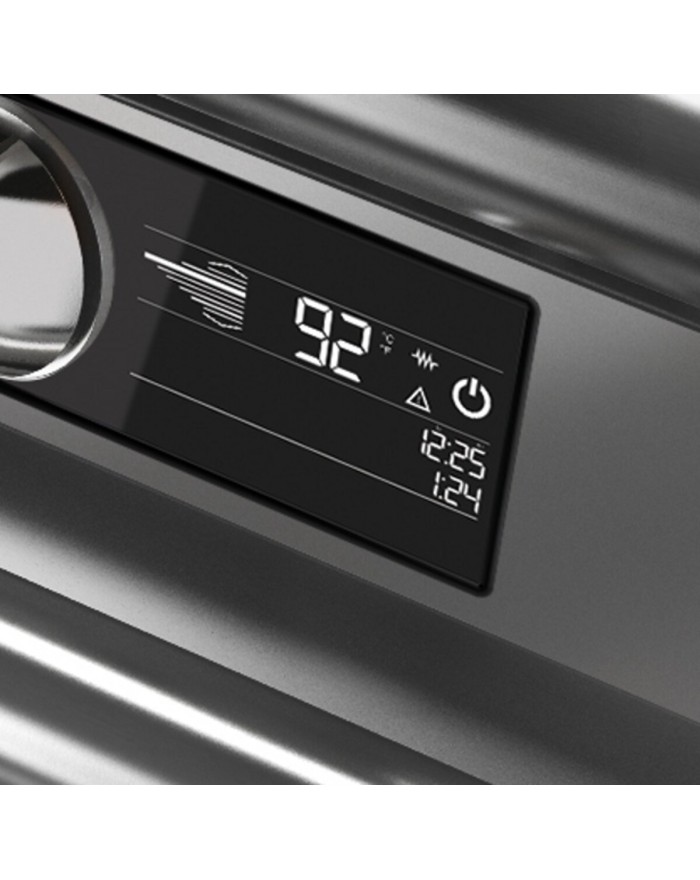

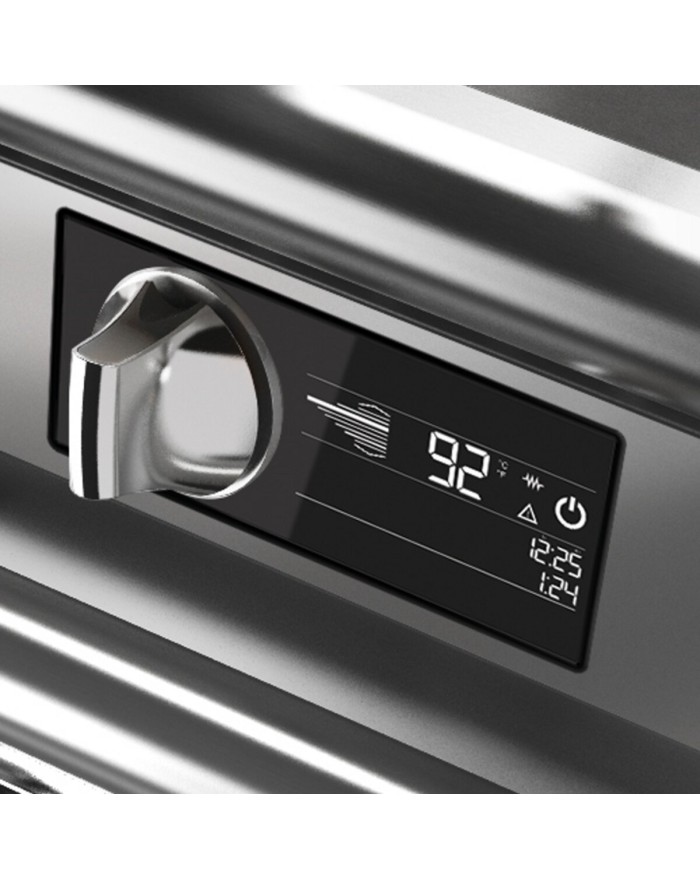

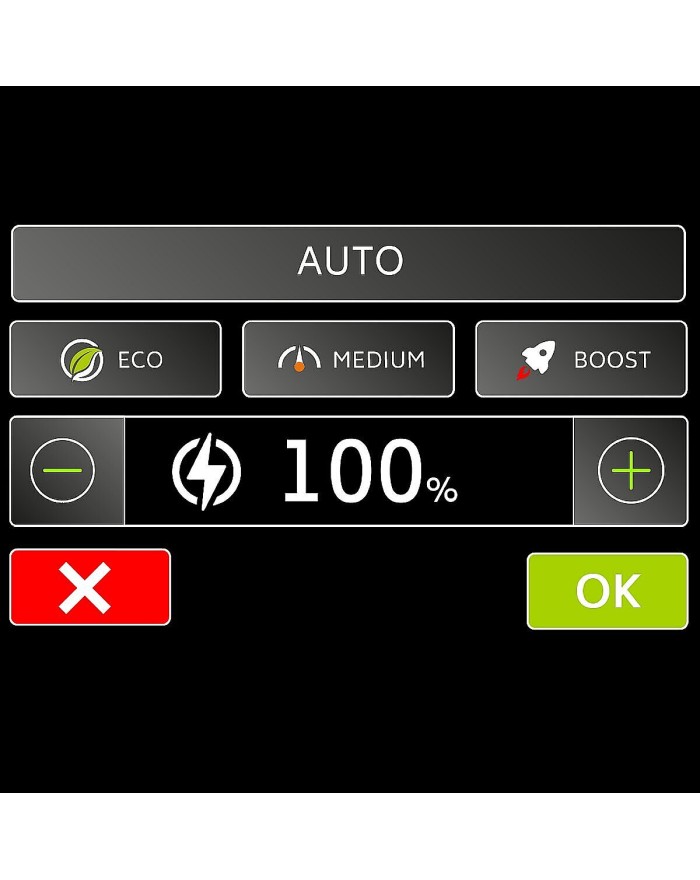

Power level control via touch screen and adjustment with ergonomic knob

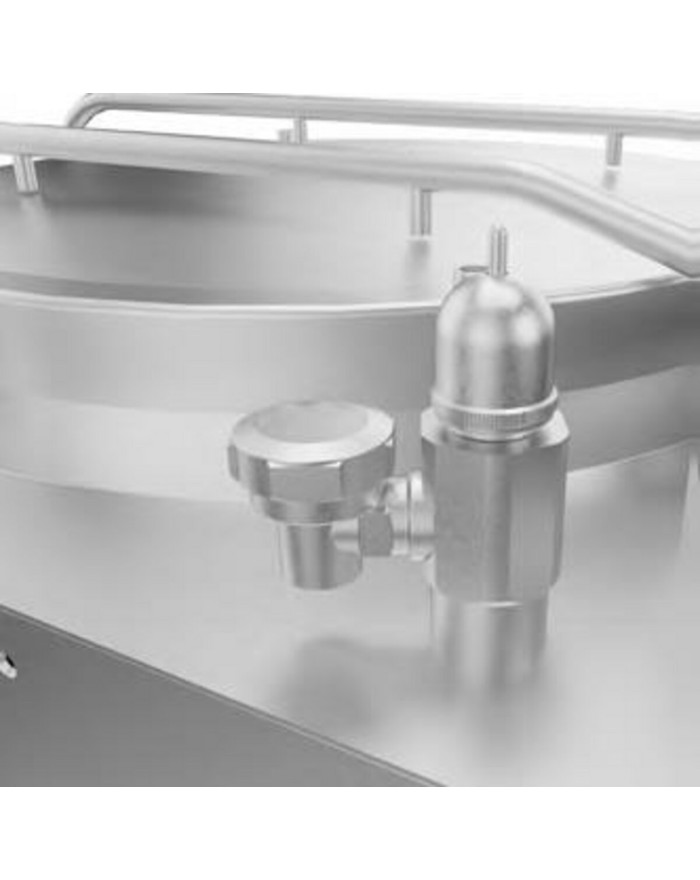

Indirect pots with automatic cavity condensate drain valve The valve has a dual function - recharges the pressure inside the interspace - allows automatic water condensate discharge

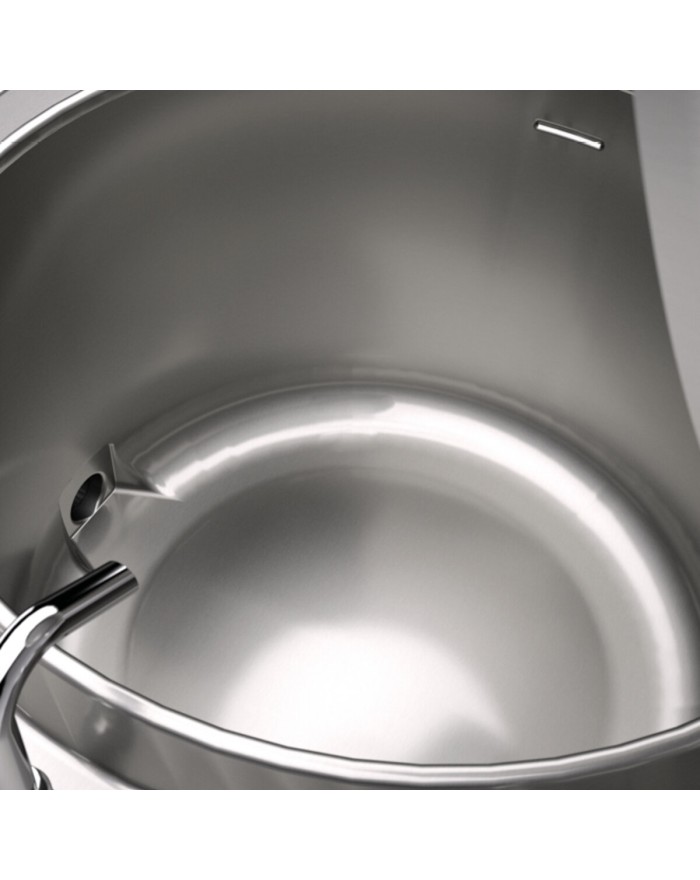

Stainless steel tank with aisi 316 bottom

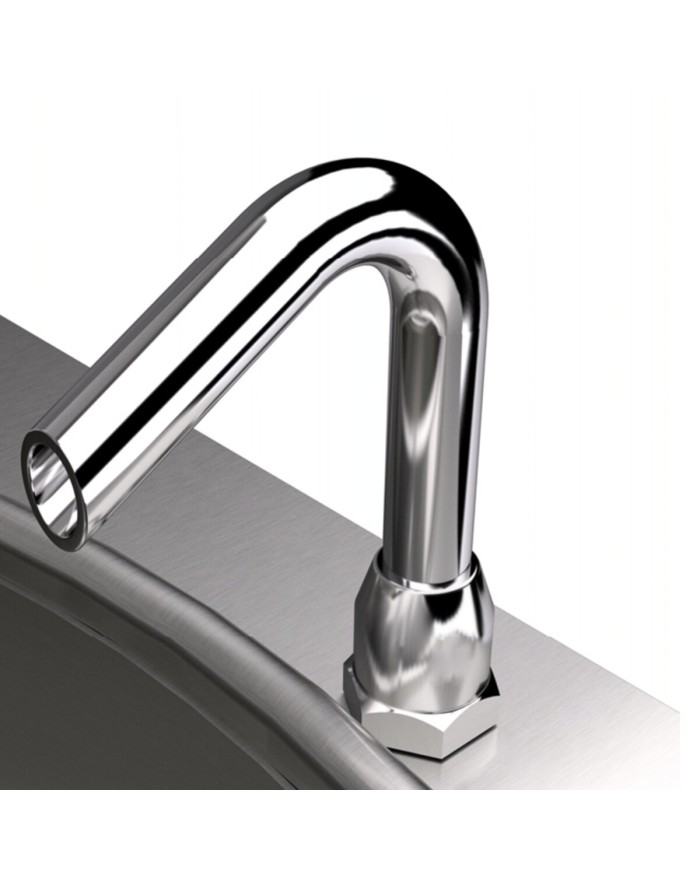

Possibility of hot or cold water loading

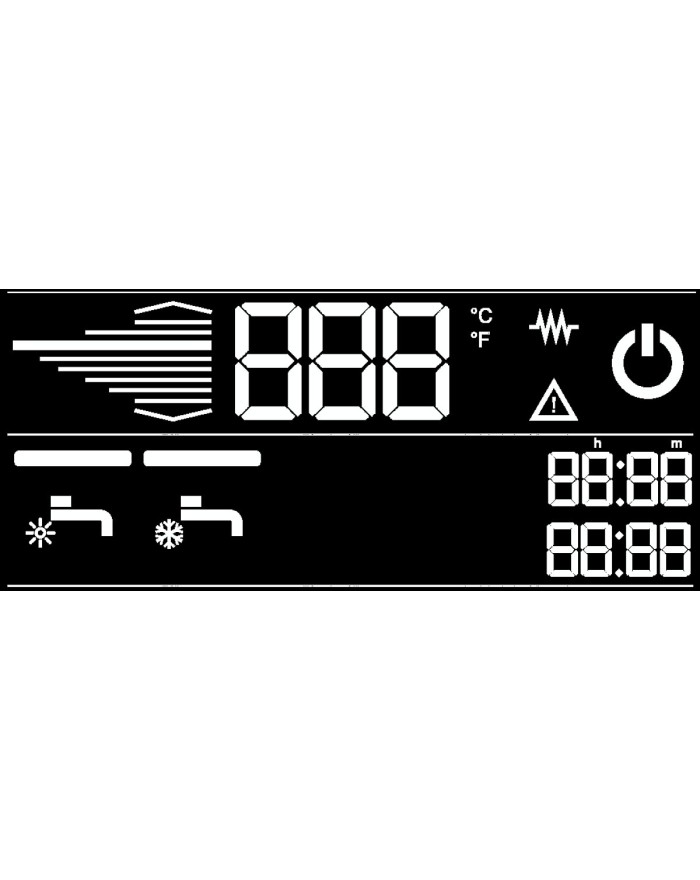

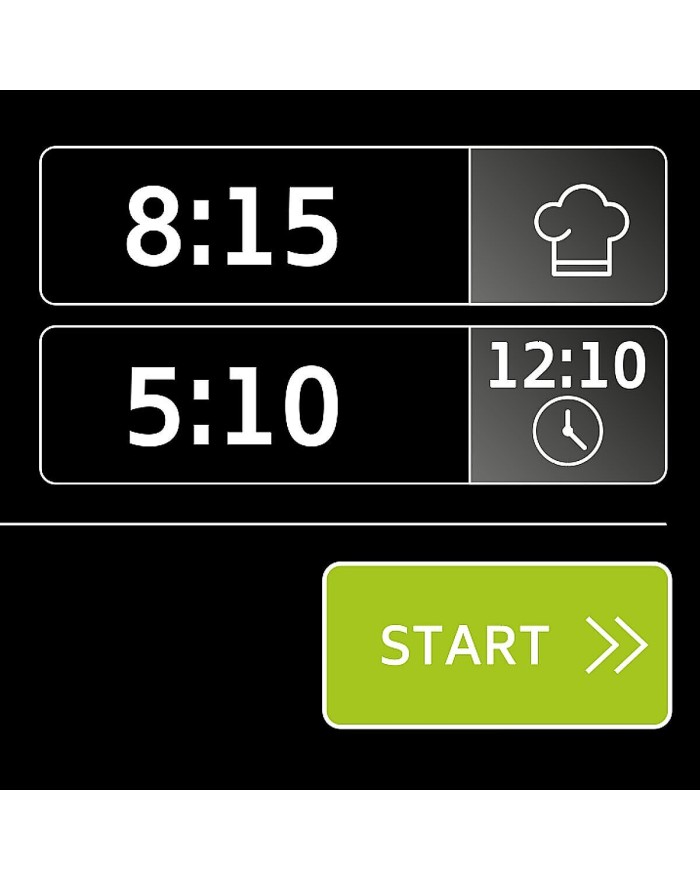

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

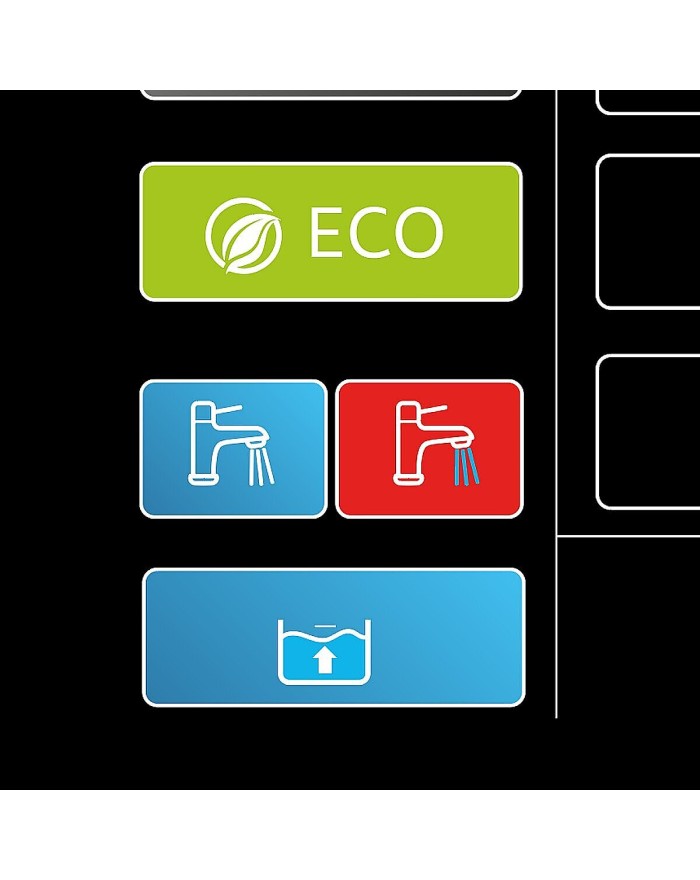

Possibility of hot or cold water loading

QT90PF/ED100-T4W
CR1018099T4W

Data sheet

Model
QT90PF/ED100-T4W
Code
CR1018099T4W
Material type
ZPF
Definition
QT90PF/ED100-T4W PENT.EL. M80 DIR.100 LT
Width
800mm
Height
870mm
Depth
900mm
Volume
0.626m3
Electrical power
12Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
1140
Net weight
129.8Kg
Gross weight
145Kg
Capacity
100 litri
IP grade
IPX5
Certified model
Q90PF/ED100
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Packaging height
1300
Packaging length
860
Alimentazione
ELETTRICA
Commercial code
QT90PF/ED100-T4W
Production start year
2022
