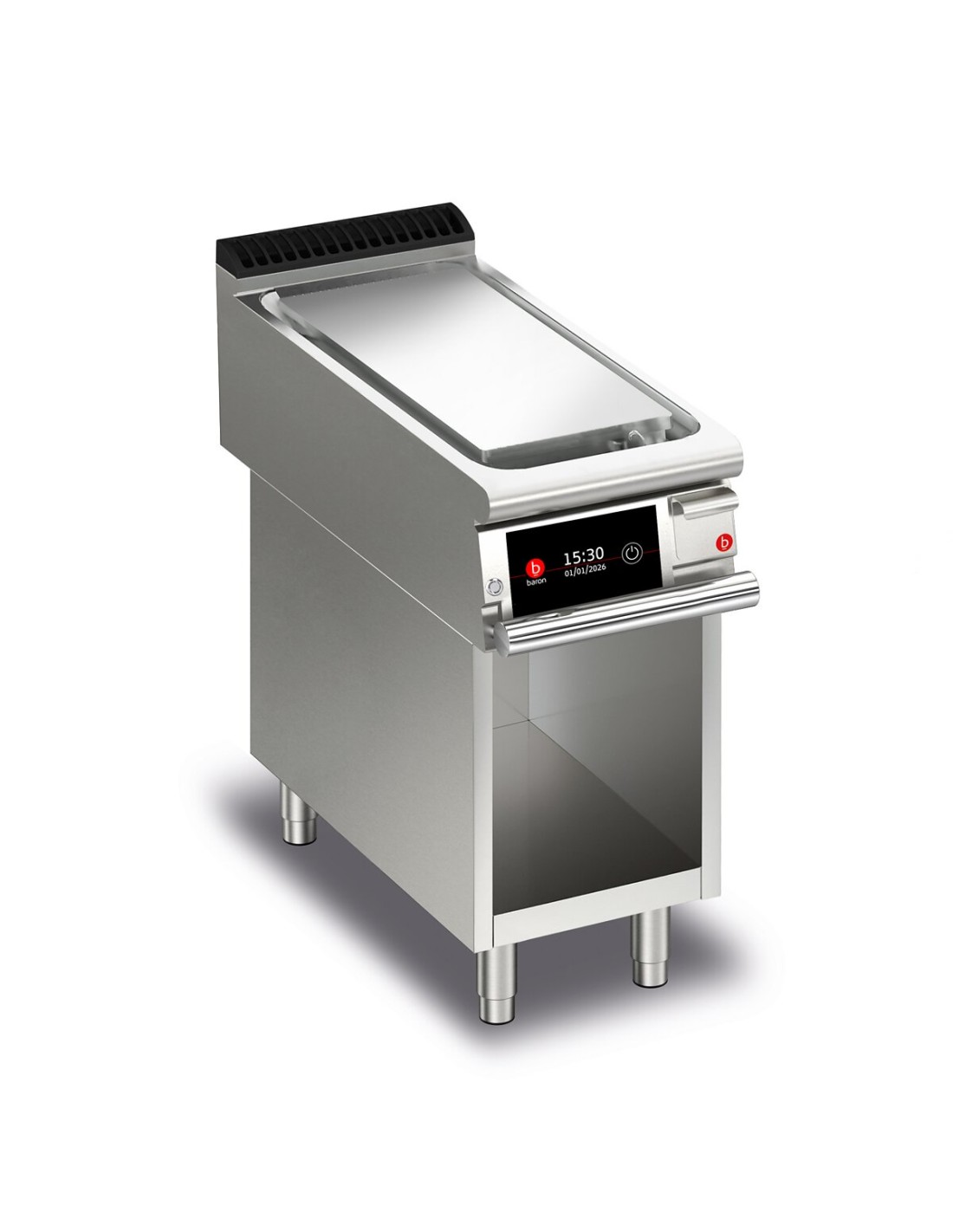

FRY TOP S Electric M40 AISI plate - smooth - on thermostat compartment
Data Sheet
DWG-3D
Pictures
Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Baking plate 15 mm thick totally independent of the top.
Large floodable channel around the perimeter of the hotplate for collecting cooking residues, sloping towards the front for draining liquids into the large drawer.

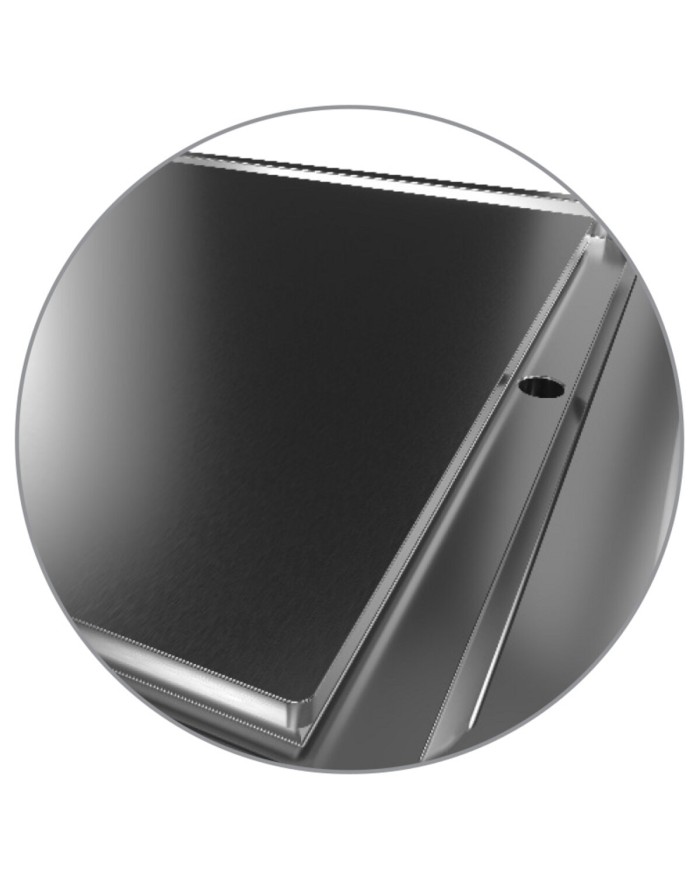

Cooking plates made with satin-finished surface and surface coated with soft iron, AISI430 steel or polished hard chrome, all available in smooth
mixed or ribbed.
Large grease collection drawer.
Module sizes: 40,60,80
In the 120-width modules, the cooking plate is lowered from the top by 40 mm and tilted 10 mm toward the front of the machine.
Electric version: heating by incoloy armored heating elements.
Cooking temperature controlled
thermostatically and adjustable from 110 to 280°C.
Safety thermostat.

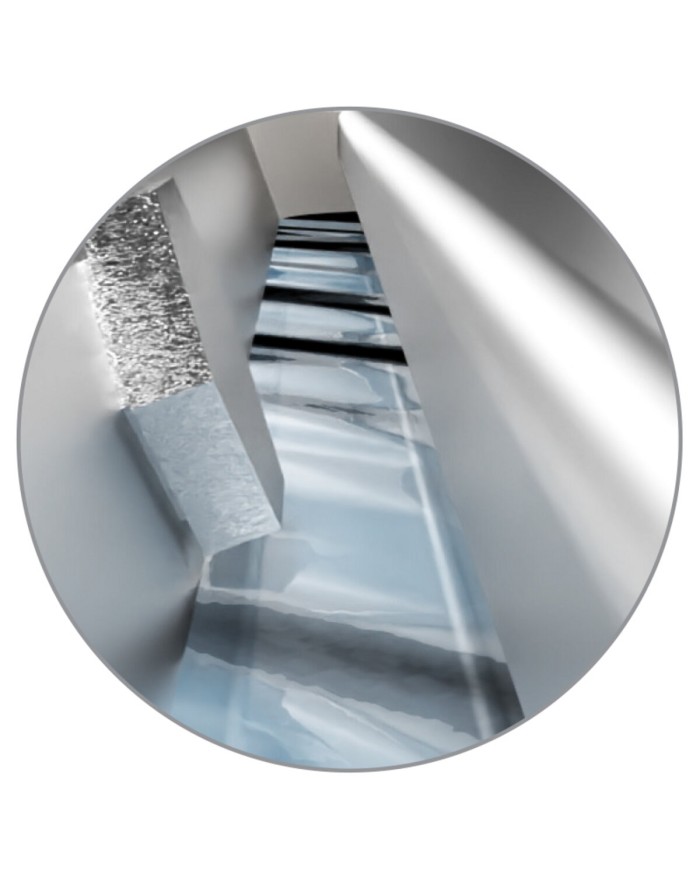

Large fat collection drawer with capacity of the entire volume of the perimeter channel Grooved plate design ensures cleanliness right to the end of the plate Plate not welded to the machine bed with optimisation of structural points under thermal stress Plate not welded to the machine bed with optimisation of structural points under thermal stress Thermal cutting that facilitates the user and adjacent machinery. Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen. Water dispenser kit available as an accessory
Industry 4.0 ready version.

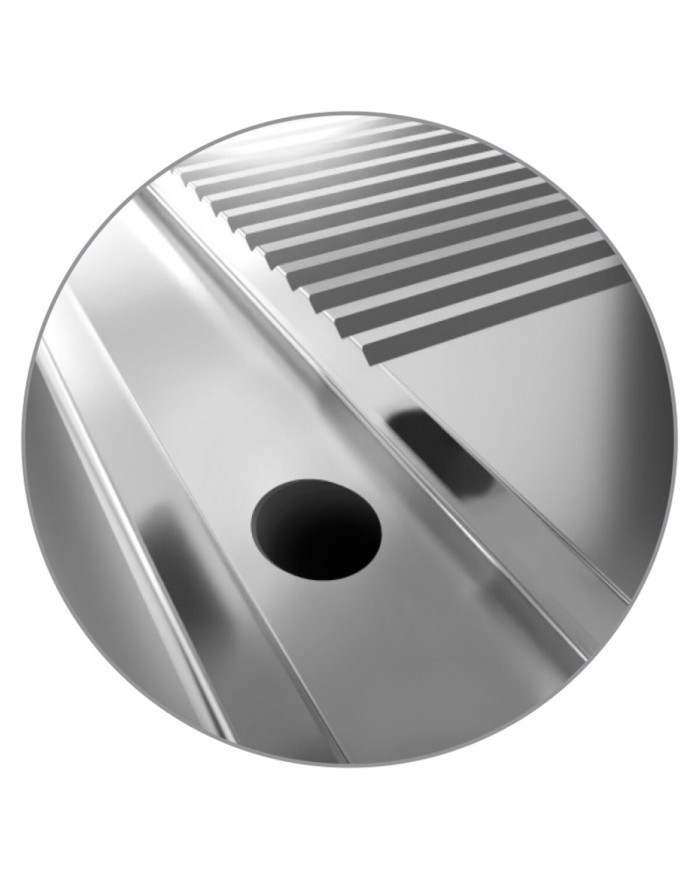

Grooved plate design ensures cleanliness right to the end of the plate
Non-welded plate to speed up maintenance and possible replacement in utilities.

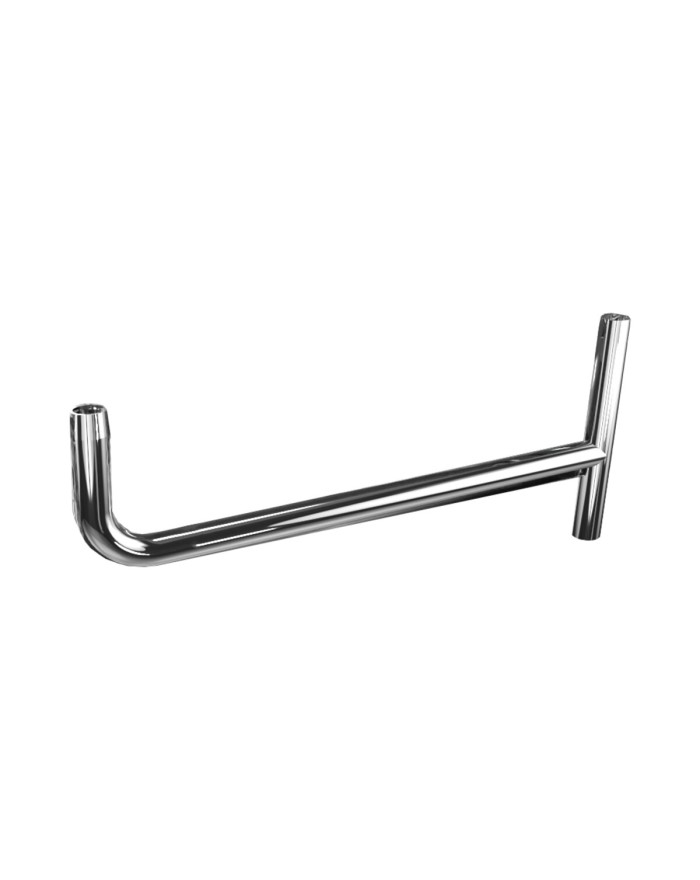

Available as an accessory, the continuous discharge tube allows waste to be disposed of in an external receptacle.

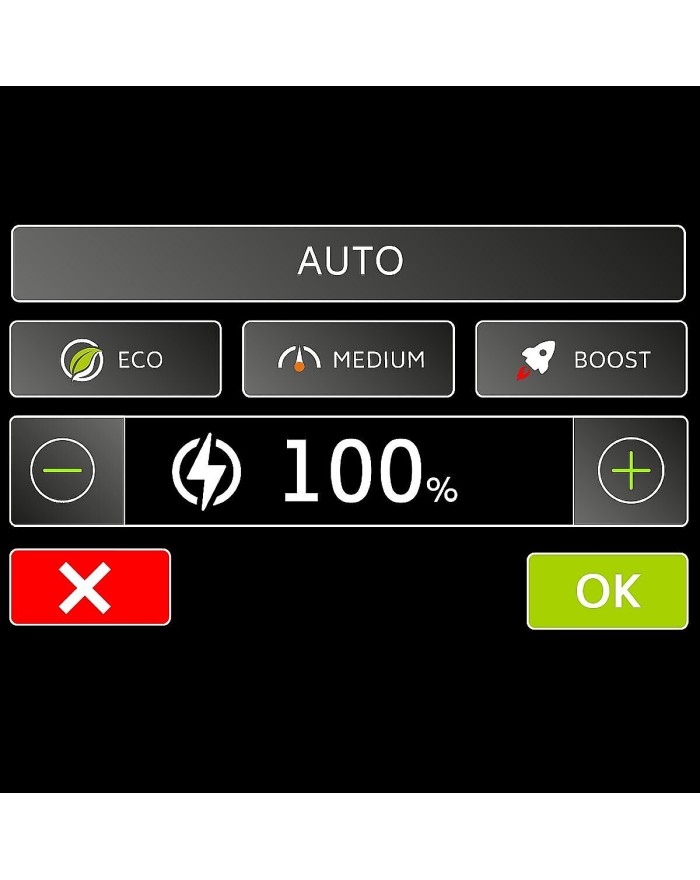

Power level control via touch screen and adjustment with ergonomic knob

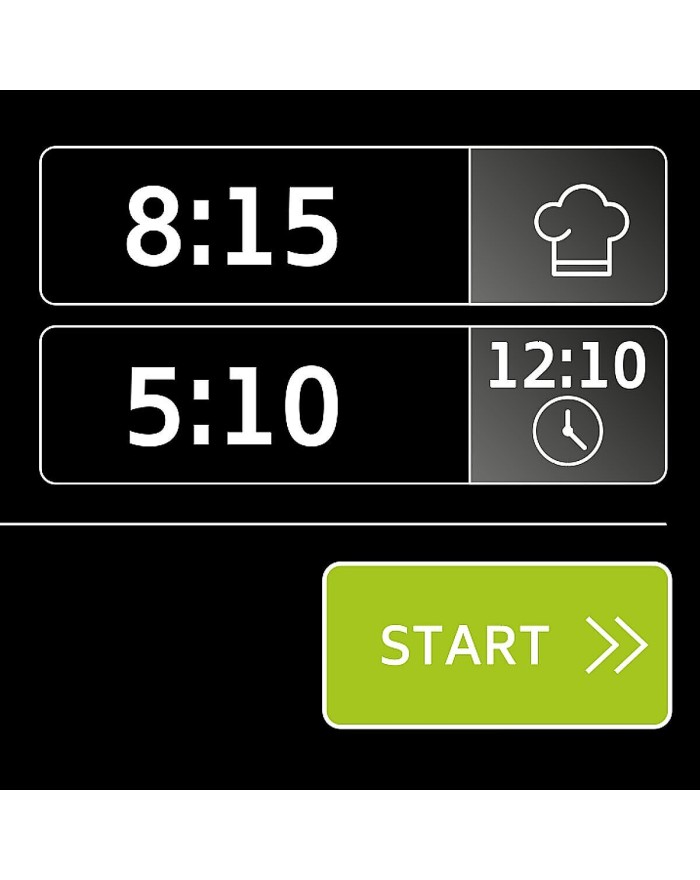

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

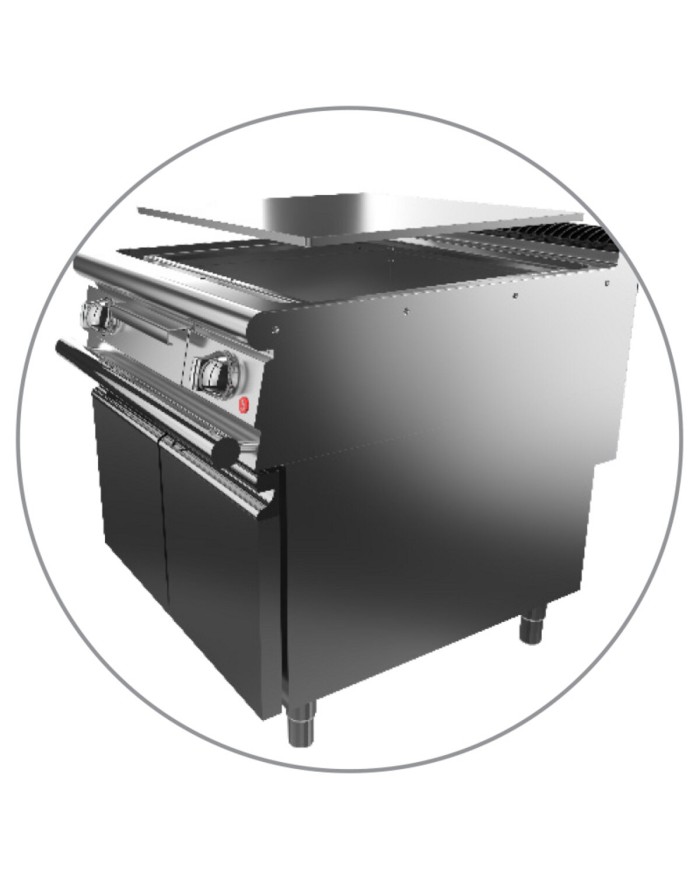

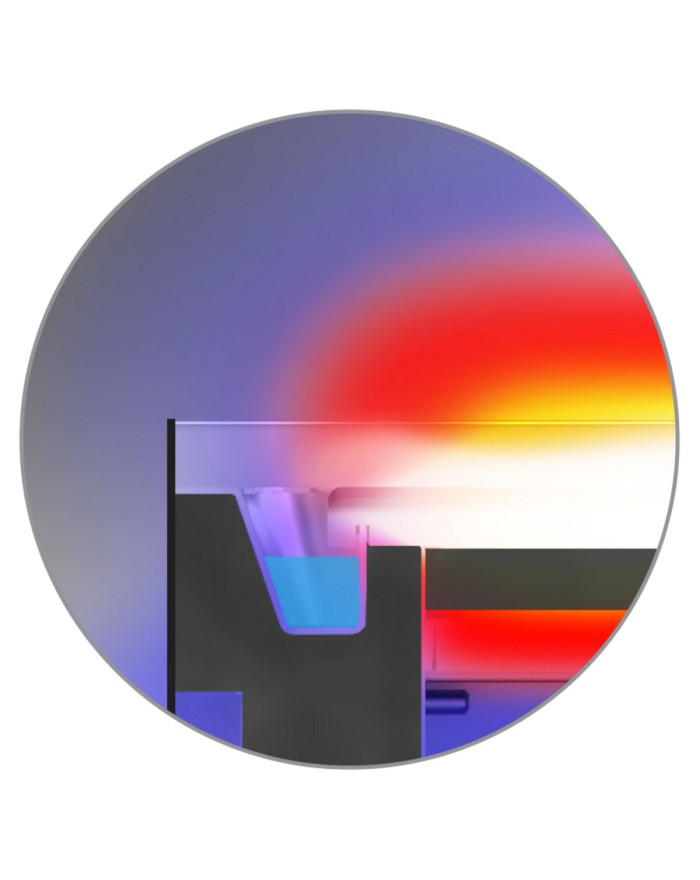

Thermal cutting that facilitates the user and adjacent machinery.
Water dispenser kit available as an accessory

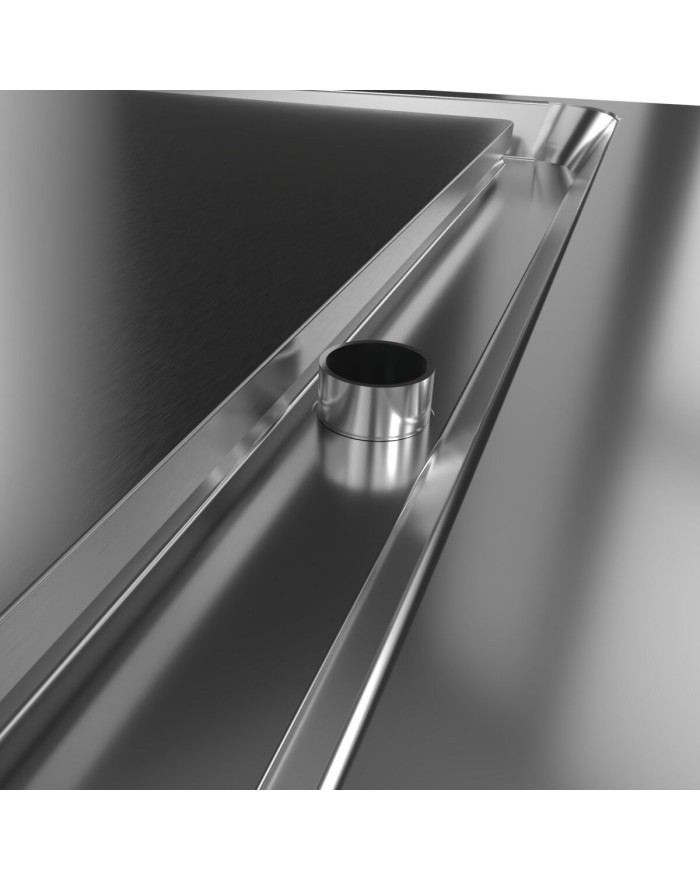

Stainless steel overflow plug provided as standard for gutter flooding management.

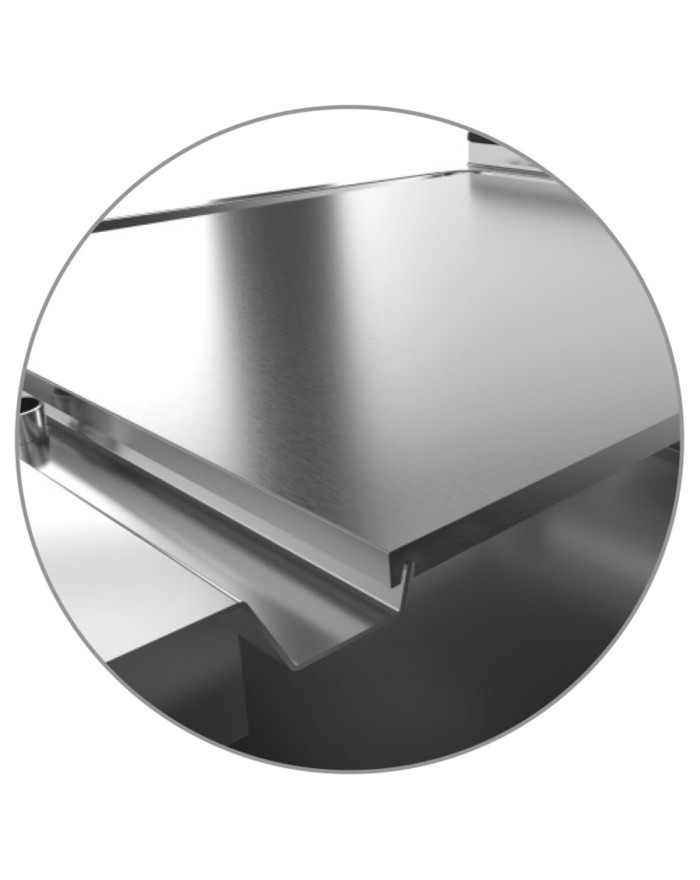

Plate not welded to the machine table with optimization of structural points subjected to thermal stress.
Floodable gutter for collecting cooking residue all around the perimeter of the plate easier cleaning, and better moisture retention of cooking food.

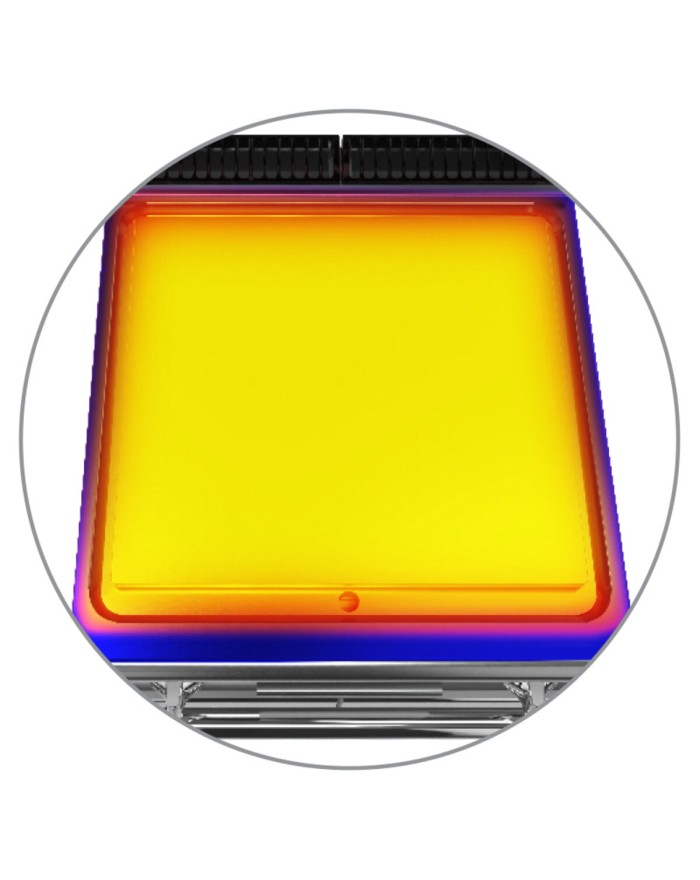

Uniform cooking temperature across the entire plate. Optimising heat in the cooking area and increasing operator comfort in the kitchen.

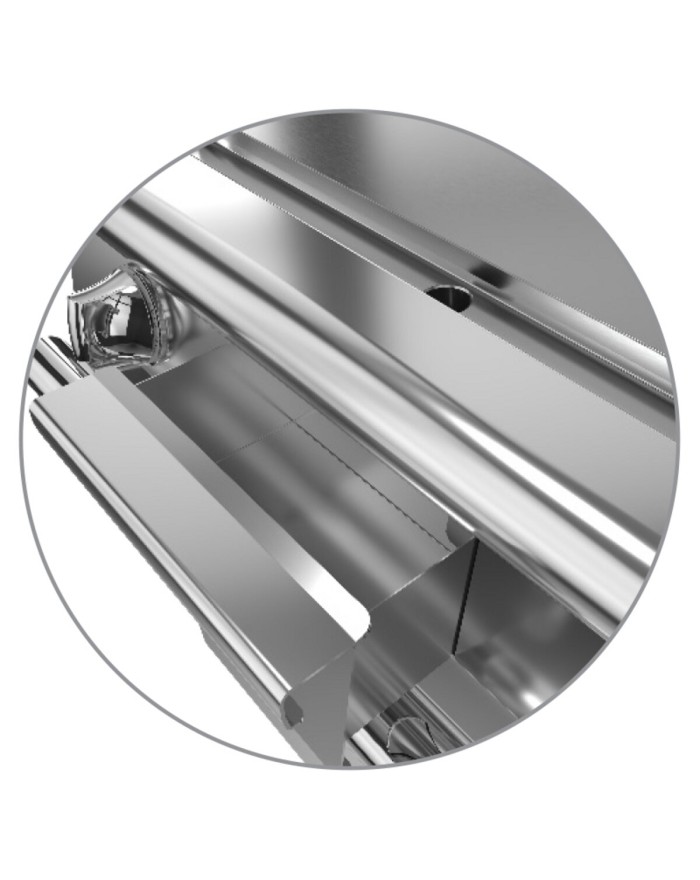

Capacious grease collection drawer with capacity of the entire volume of the perimeter channel.

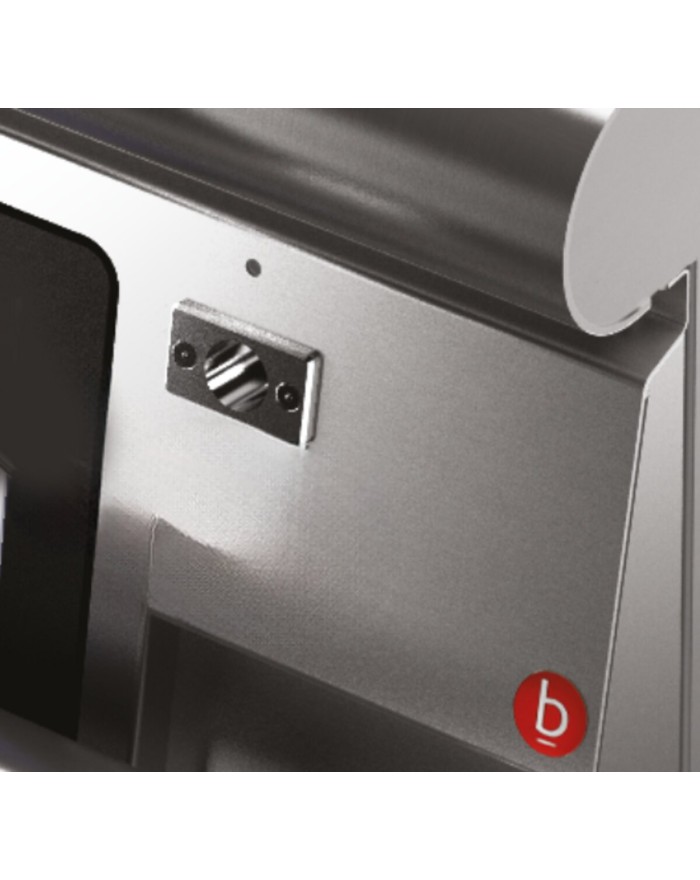

Predisposition for core probe, for even greater cooking control. Reaching the set core temperature is signalled by an acoustic signal.
QT90SFTV/E403-T4W
CR1655089T4W
Data sheet
- Model
- QT90SFTV/E403-T4W
- Code
- CR1655089T4W
- Material type
- ZPF
- Definition
- QT90SFTV/E403-T4W FTE LISCIO 430 M40 A/G
- Width
- 400mm
- Height
- 870mm
- Depth
- 900mm
- Volume
- 0.313m3
- Electrical power
- 5Kw
380-415V 3N - Frequency
- 50-60 HzHz
- Gross volume
- 0435
- Net weight
- 22Kg
- Gross weight
- 29Kg
- IP grade
- IPX5
- Certified model
- Q90SFTV/E403
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 850
- Packaging height
- 1160
- Packaging length
- 440
- Alimentazione
- ELETTRICA
- Commercial code
- QT90SFTV/E403-T4W
- Production site
- BELLUNO
- Production start year
- 2022
- Product variant
- PIASTRA LISCIA
- Tipo piastra
- SMOOTH
- Materiale Piastra
- AISI430
