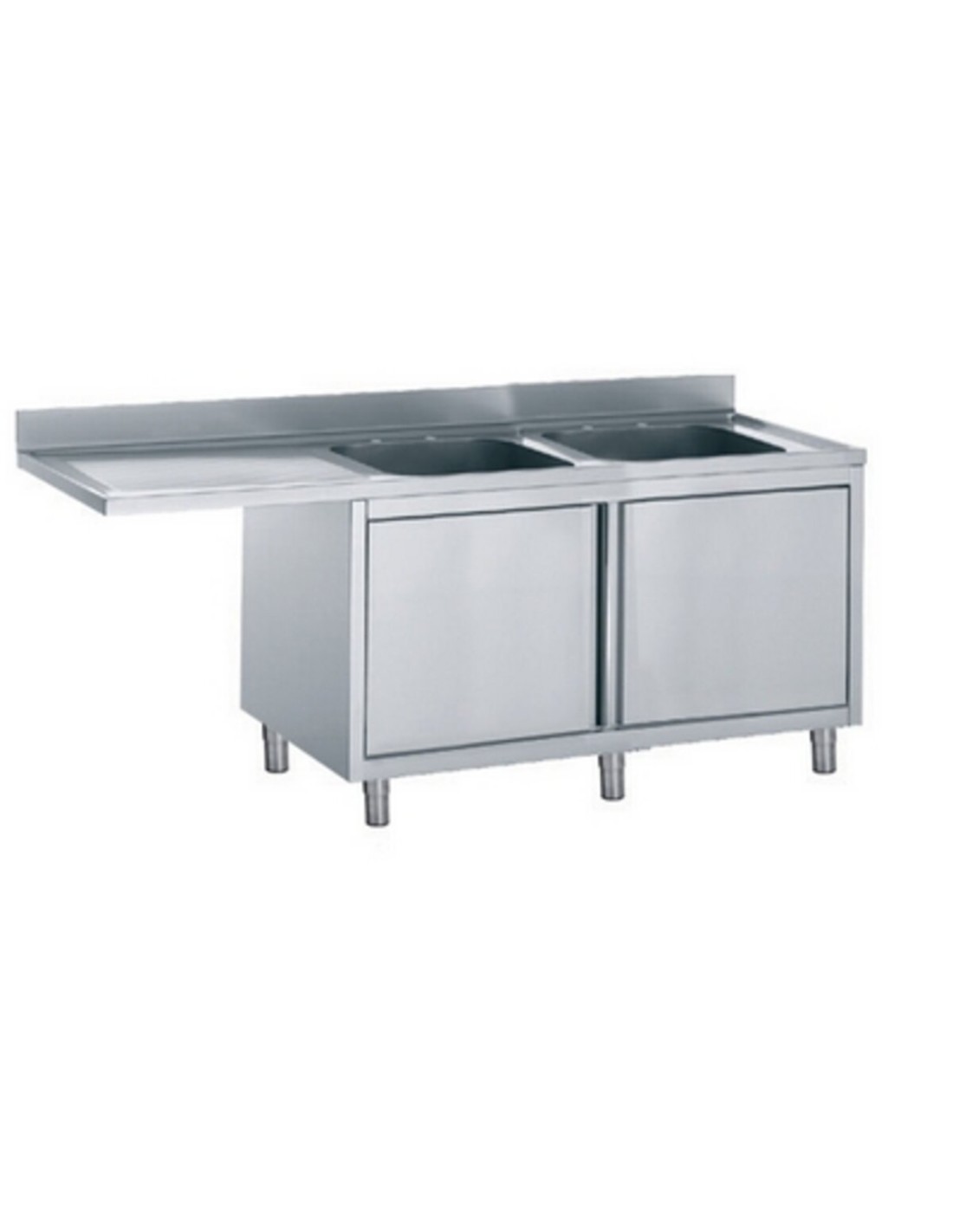

ARMOURED WASHBASINS WITH DISHWASHER INSERTION

Execution in Scotch-Brite stainless steel.Worktop with moulded tray. Rear riser h 100 mm. Soundproofed tank. Soundproofed hinged or two sliding doors. Adjustable round feet. Supplied with drain and overflow pipe. Can be fitted with false bottom.
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow FRAME Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band FEET Squares with leveler, adjustable with 30 mm range Execution in Scotch-Brite stainless steel.Worktop with moulded tray. Rear riser h 100 mm. Soundproofed tank. Soundproofed hinged or two sliding doors. Adjustable round feet. Supplied with drain and overflow pipe. Can be fitted with false bottom.
NLL7162S
BNN63704161

Data sheet

Model
NLL7162S
Code
BNN63704161
Material type
ZPF
Definition
LAVATOIO ARMADIO R10 LAVASTOV. SLL7162S
Width
1600mm
Height
900mm
Depth
700mm
Volume
1.35m3
Gross volume
1350
Net weight
48Kg
Gross weight
66Kg
Certified model
SLL7162S
CE-certified
-
Company
0230
Packaging width
740
Packaging height
1100
Packaging length
1650
Alimentazione
NESSUNA
Commercial code
SLL7162S
