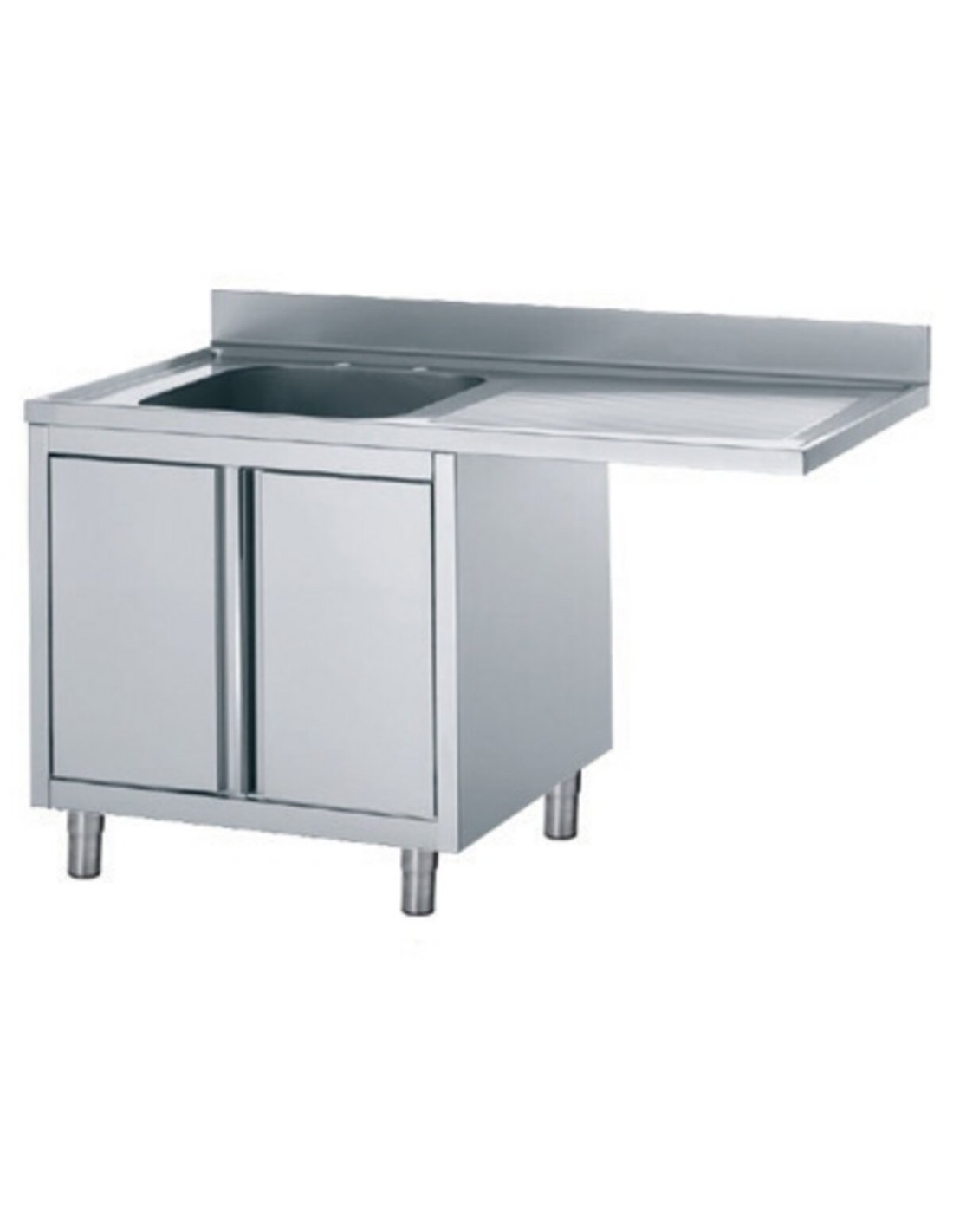

ARMOURED WASHBASINS WITH DISHWASHER INSERTION
Data Sheet
DWG-3D
Pictures
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow
FRAME
Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band
FEET
Squares with leveler, adjustable with 30 mm range
Execution in Scotch-Brite stainless steel.Worktop with moulded tray. Rear riser h
100 mm.
Soundproofed tank. Soundproofed hinged or two sliding doors. Adjustable round feet.
Supplied with drain and overflow pipe. Can be fitted with false bottom.
NLL7121D
BNN63705120
Data sheet
- Model
- NLL7121D
- Code
- BNN63705120
- Material type
- ZPF
- Definition
- LAVATOIO ARMADIO R10 LAVASTOV. SLL7121D
- Width
- 1200mm
- Height
- 900mm
- Depth
- 700mm
- Volume
- 1.051m3
- Gross volume
- 1051
- Net weight
- 36Kg
- Gross weight
- 49Kg
- Certified model
- SLL7121D
- CE-certified
- -
- Company
- 0230
- Packaging width
- 750
- Packaging height
- 1130
- Packaging length
- 1240
- Alimentazione
- NESSUNA
- Commercial code
- SLL7121D
