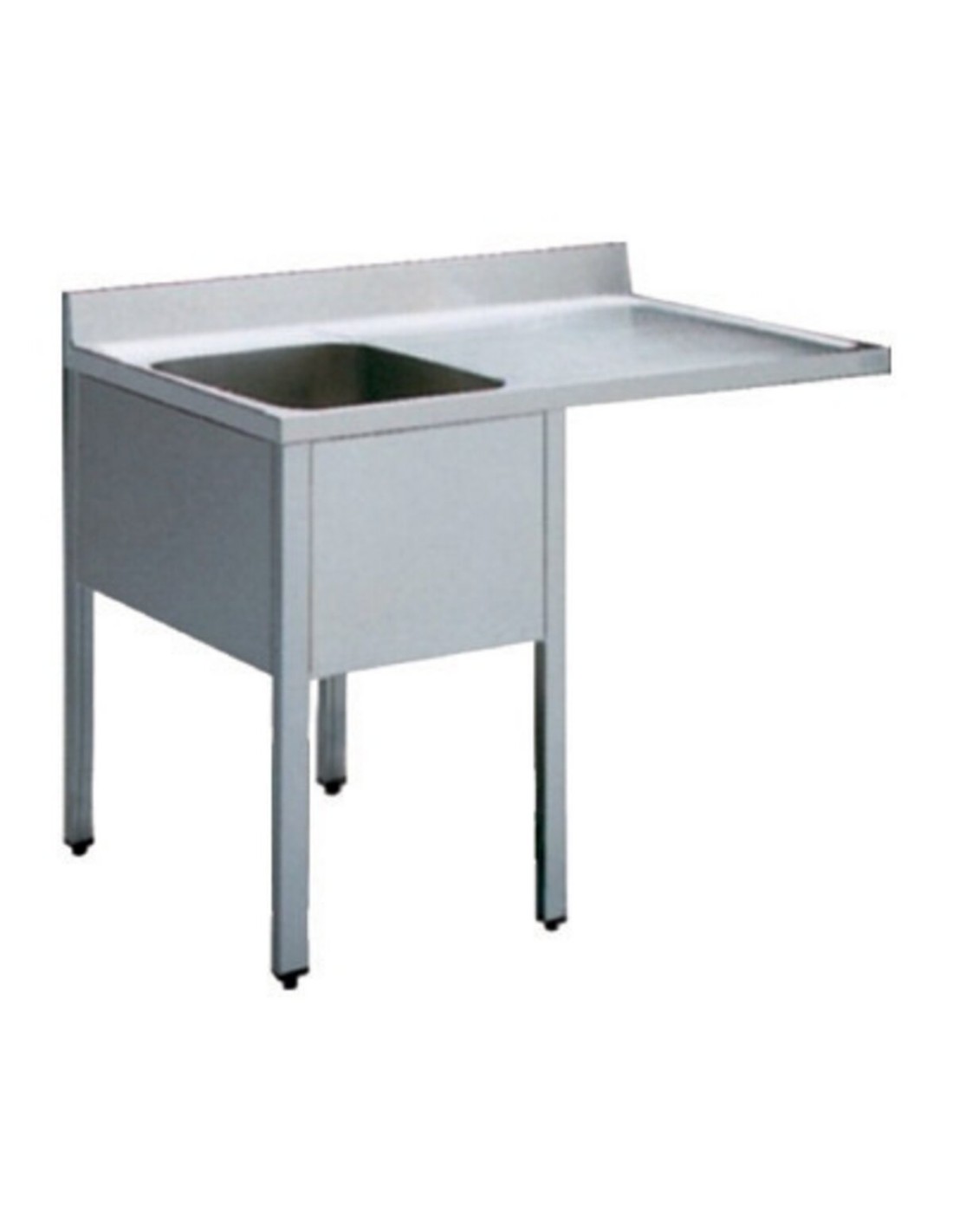

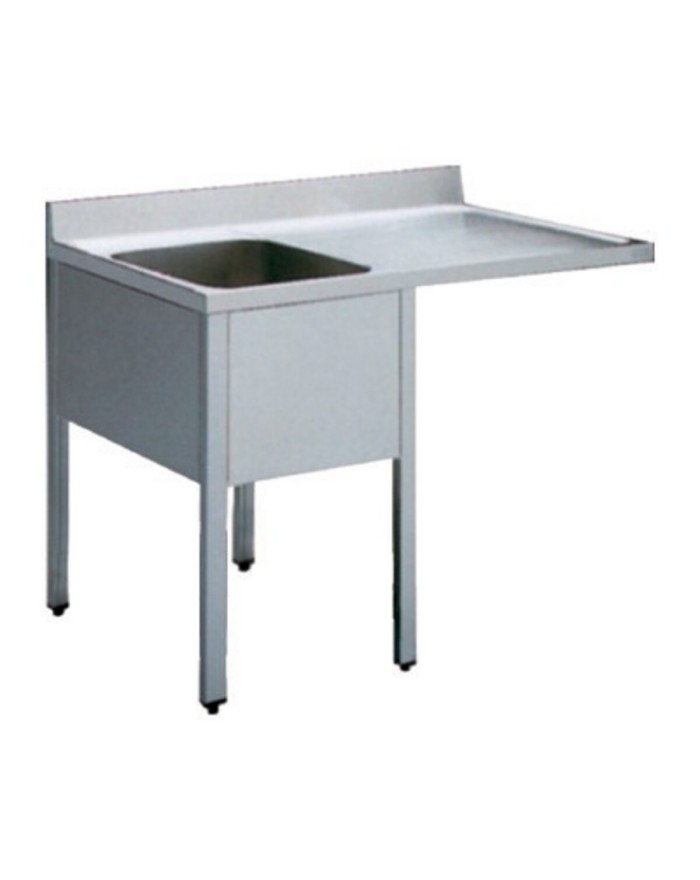

LEG-WASHERS WITH DISHWASHER INSERTION

Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow FRAME Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band FEET Squares with leveler, adjustable with 30 mm range Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
NLI7121D
BNN70805120

Data sheet

Model
NLI7121D
Code
BNN70805120
Material type
ZPF
Definition
LAVATOIO INSER.LAV.700 LI7121D/FS
Width
1200mm
Height
850mm
Depth
700mm
Volume
0.714m3
Gross volume
1051
Net weight
40Kg
Gross weight
55Kg
Certified model
SLI7121D
CE-certified
-
Product type
SPECIAL
Company
0230
Packaging width
750
Packaging height
1130
Packaging length
1240
Alimentazione
NESSUNA
Commercial code
LI7121D/FS
Production site
BELLUNO

Download

BNN70805120_it.pdf

Download (251.86KB)

BNN70805120_de.pdf

Download (254.37KB)

BNN70805120_en.pdf

Download (251.31KB)

BNN70805120_es.pdf

Download (251.38KB)

BNN70805120_fr.pdf

Download (253.71KB)
