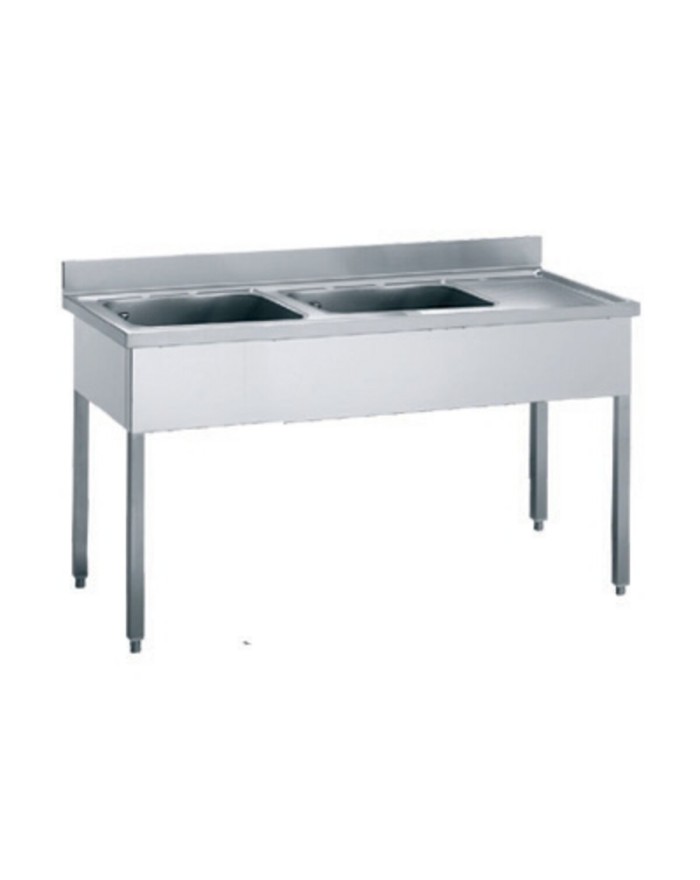

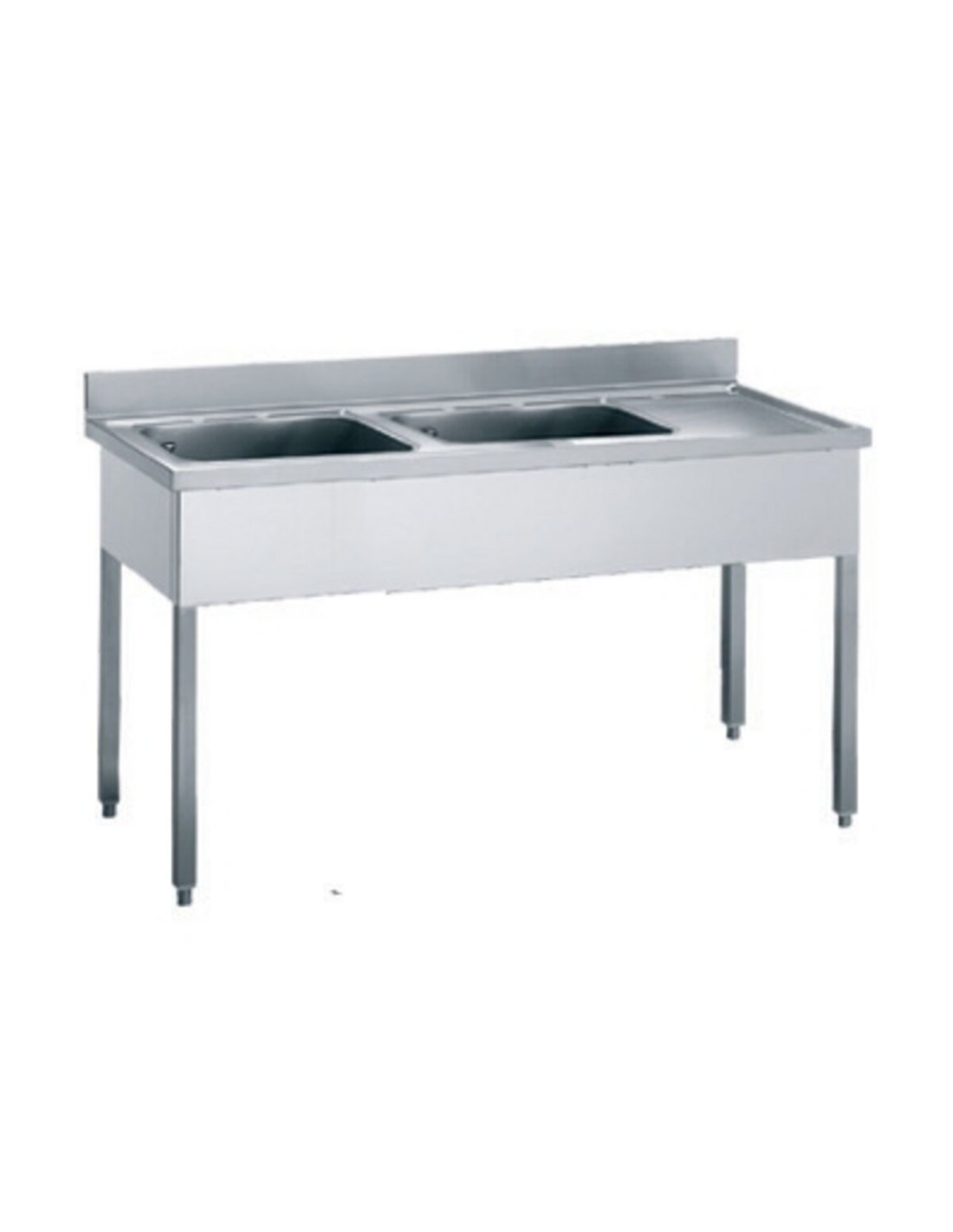

SINK ON LEGS

Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
Print
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow FRAME Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band FEET Squares with leveler, adjustable with 30 mm range Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
NLT7182D
BNN68805180

Data sheet

Model
NLT7182D
Code
BNN68805180
Material type
ZPF
Definition
LAVATOIO SU GAMBE DA 700 LT7182D/FS
Width
1800mm
Height
850mm
Depth
700mm
Volume
1.071m3
Gross volume
1429
Net weight
65Kg
Gross weight
75Kg
Certified model
SLT7182D
CE-certified
-
Product type
SPECIAL
Company
0230
Packaging width
750
Packaging height
1030
Packaging length
1850
Alimentazione
NESSUNA
Commercial code
LT7182D/FS
Production site
BELLUNO

Download

BNN68805180_it.pdf

Download (347.62KB)

BNN68805180_de.pdf

Download (349.7KB)

BNN68805180_en.pdf

Download (347.24KB)

BNN68805180_es.pdf

Download (346.94KB)

BNN68805180_fr.pdf

Download (349.08KB)
