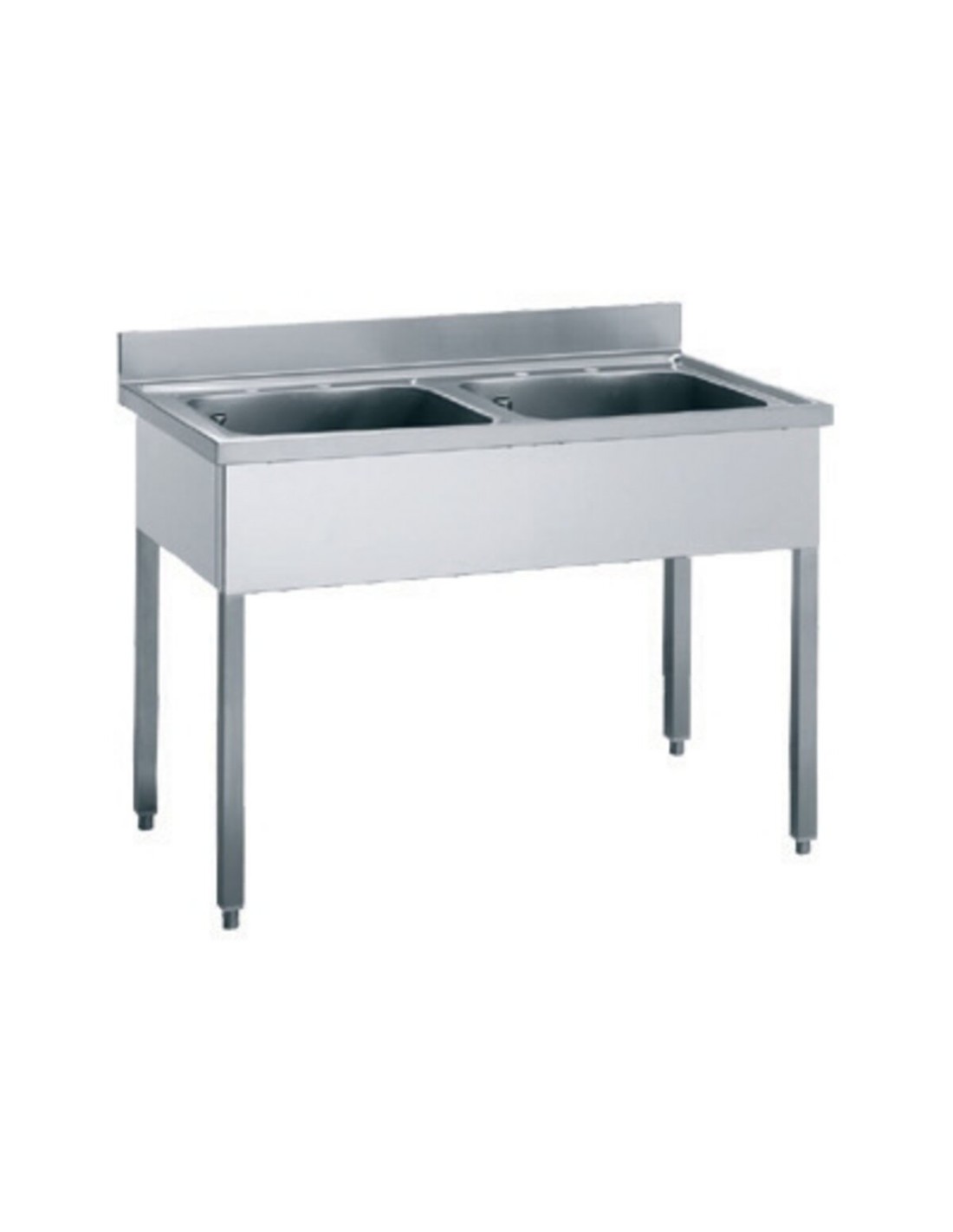

SINK ON LEGS

Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
Print
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow FRAME Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band FEET Squares with leveler, adjustable with 30 mm range Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
NLT7162V
BNN68826160

Data sheet

Model
NLT7162V
Code
BNN68826160
Material type
ZPF
Definition
LAVATOIO 2 VASCHE LT7162V/FS
Width
1600mm
Height
850mm
Depth
700mm
Volume
0.952m3
Gross volume
1400
Net weight
45Kg
Gross weight
55Kg
Certified model
SLT7162V
CE-certified
-
Product type
SPECIAL
Company
0230
Packaging width
740
Packaging height
1140
Packaging length
1640
Alimentazione
NESSUNA
Commercial code
LT7162V/FS
Production site
BELLUNO

Download

BNN68826160_it.pdf

Download (348.29KB)

BNN68826160_de.pdf

Download (350.37KB)

BNN68826160_en.pdf

Download (347.59KB)

BNN68826160_es.pdf

Download (347.68KB)

BNN68826160_fr.pdf

Download (349.75KB)
