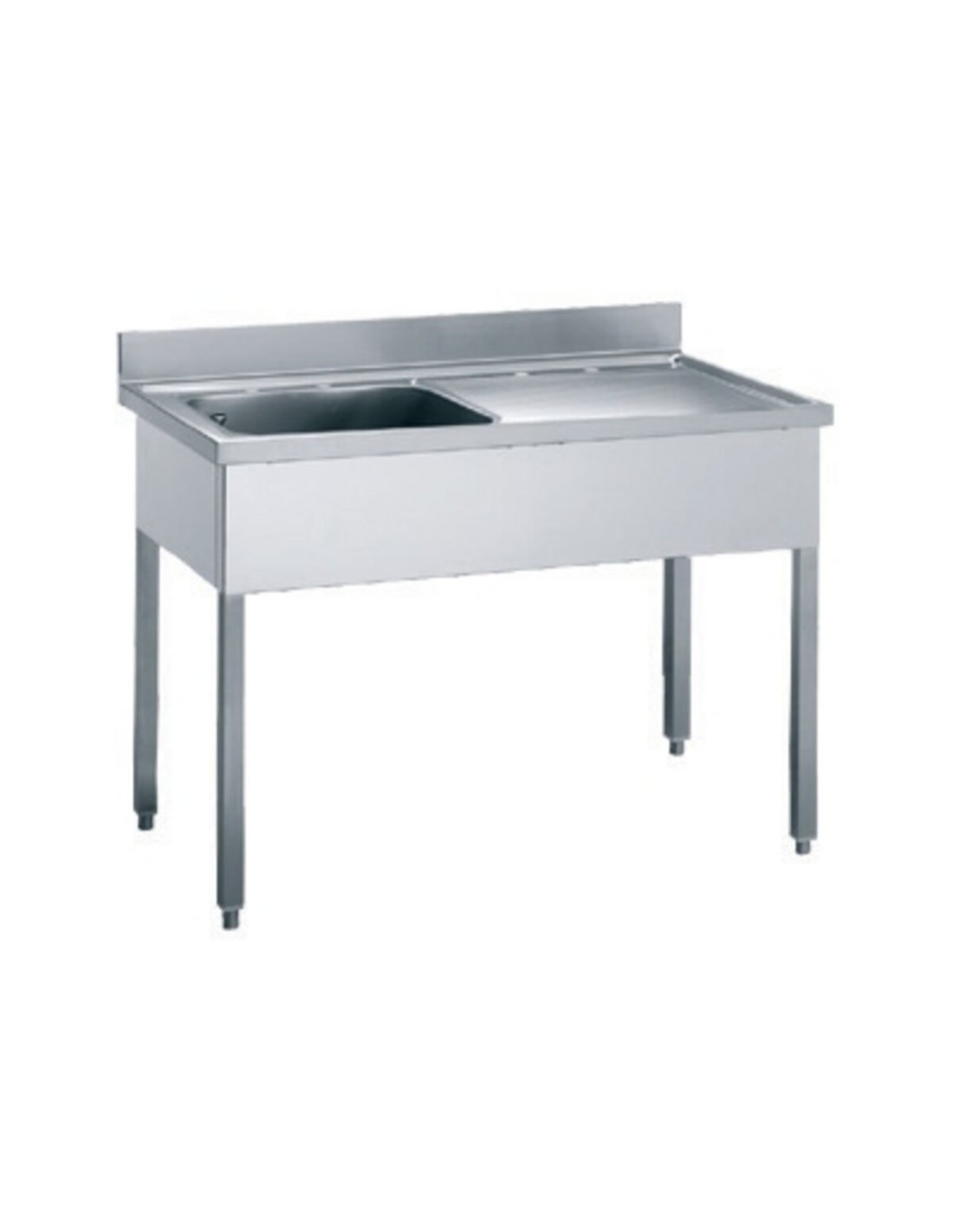

SINK ON LEGS

Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
Print
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow FRAME Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band FEET Squares with leveler, adjustable with 30 mm range Scotch-Brite stainless steel execution. Moulded worktop. Rear riser h 100 mm. Soundproofed tank. Panelling on three sides with hand-safe folds. Square tube legs 40x40 mm with adjustable feet. Supplied with drain and overflow pipe. Can be fitted with false bottom, bottom shelves and frame on three sides.
NLT7141D
BNN66806140

Data sheet

Model
NLT7141D
Code
BNN66806140
Material type
ZPF
Definition
LAVATOIO SU GAMBE P700 LT7141D/FS
Width
1400mm
Height
850mm
Depth
600mm
Volume
0.714m3
Gross volume
1120
Net weight
45Kg
Gross weight
55Kg
Certified model
SLT7141D
CE-certified
-
Product type
SPECIAL
Company
0230
Packaging width
750
Packaging height
1030
Packaging length
1450
Alimentazione
NESSUNA
Commercial code
LT7141D/FS
Production site
BELLUNO

Download

BNN66806140_it.pdf

Download (347.35KB)

BNN66806140_de.pdf

Download (349.42KB)

BNN66806140_en.pdf

Download (346.97KB)

BNN66806140_es.pdf

Download (346.68KB)

BNN66806140_fr.pdf

Download (348.82KB)
