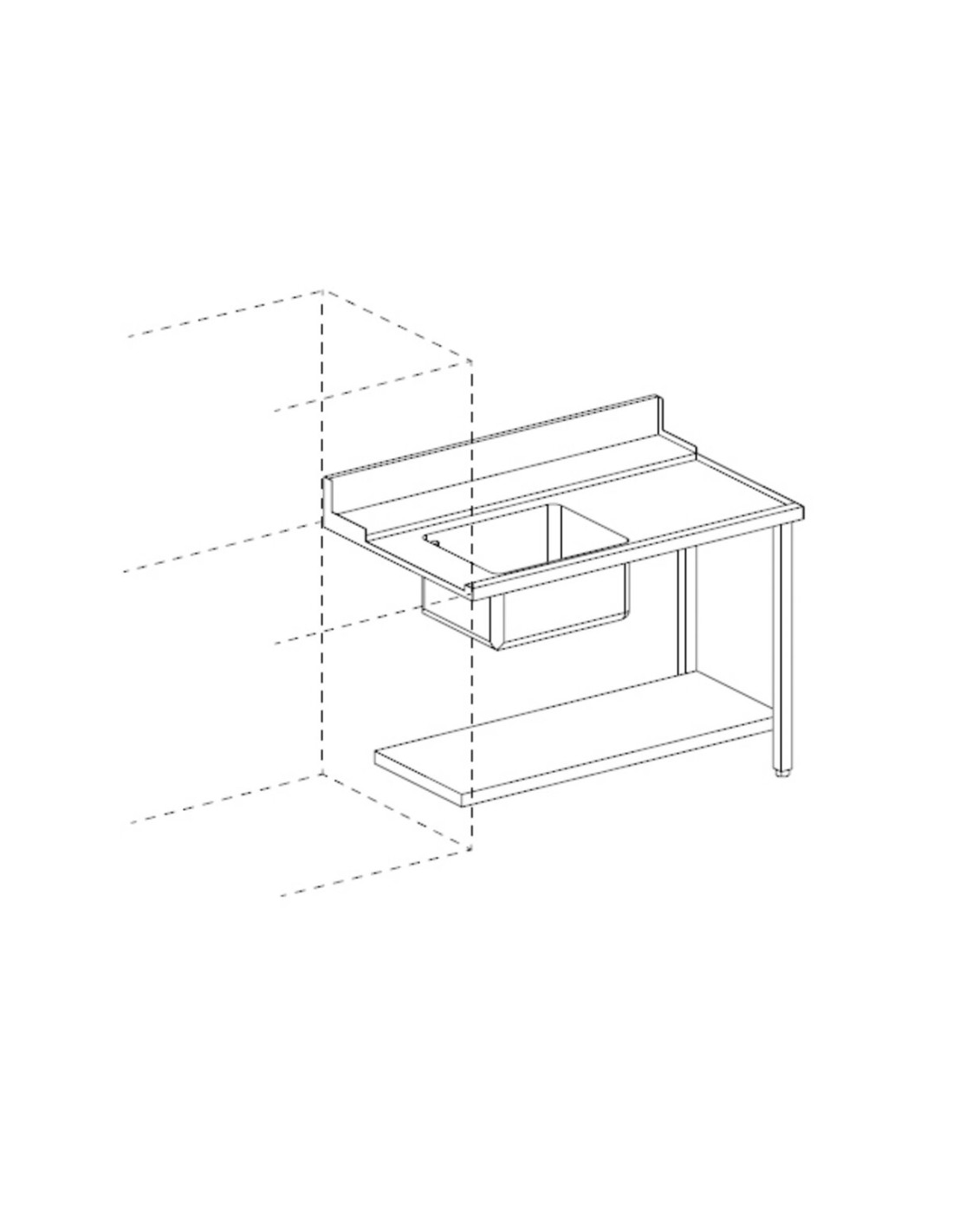

RIGHT HAND PREWASH TABLE WITH BOTTOM SURFACE AND BASIN
Prewash table to be mounted to the right of the dishwasher, with lower shelf, tank (50x40x30 cm), overflow and drain, made entirely of Aisi 304 stainless steel.
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow
FRAME
Tubular 40x40 brushed 18/10 AISI 304 stainless steel brushed dimensions recessed 20 mm on the 4 sides of the top,bowl cover band
FEET
Squares with leveler, adjustable with 30 mm range
Prewash table to be mounted to the right of the dishwasher, with lower shelf, tank (50x40x30 cm), overflow and drain, made entirely of Aisi 304 stainless steel.
TEUVD2G12
BNN62210120
Data sheet
- Model
- TEUVD2G12
- Code
- BNN62210120
- Material type
- ZCOM
- Definition
- TEUVD2G12 TAV.PREL.DX C/V.RIP.120X75X87H
- Width
- 1200mm
- Height
- 870mm
- Depth
- 730mm
- Gross volume
- 0900
- Company
- 0230
- Packaging width
- 800
- Packaging height
- 900
- Packaging length
- 1250
- Commercial code
- TEUVD2G 12
