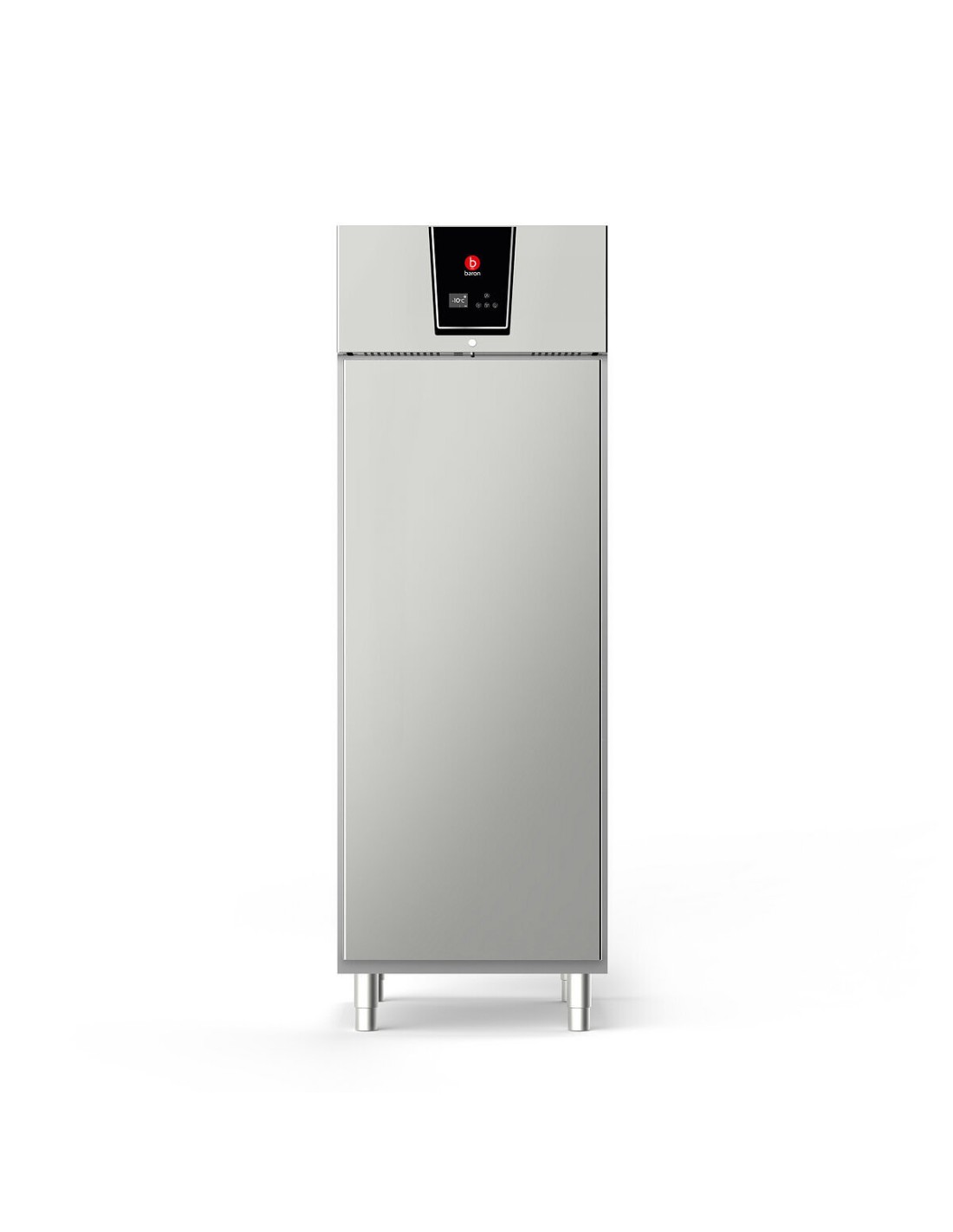

REFRIGERATED CABINET RIME YOGA TEMP -2/+8°C - 24 x GN 2/1 - 1 DOOR

excellencein thekitchen The new RIME YOGA cabinet by offers a new concept of professional cooling cabinet that can follow you every step of the way as a result of its customisations for the food sector and increased inner space RIME YOGA Stainless steel inside and outside Moulded sides (no 35/35) 83 mm side insulation with CFC-free polyurethane Openable dashboard for easier periodic maintenance (condenser cleaning) Capacitive control Cell interior with bevelled corners for easy cleaning 150 mm steel feet with adjustable height Automatic defrosting with heater and dissipation of condensed water with hot gas Self-locking hinged doors Standard-supplied cell light and lock For positioning on plinth External single-block buffer unit with forced top down ventilation


Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.

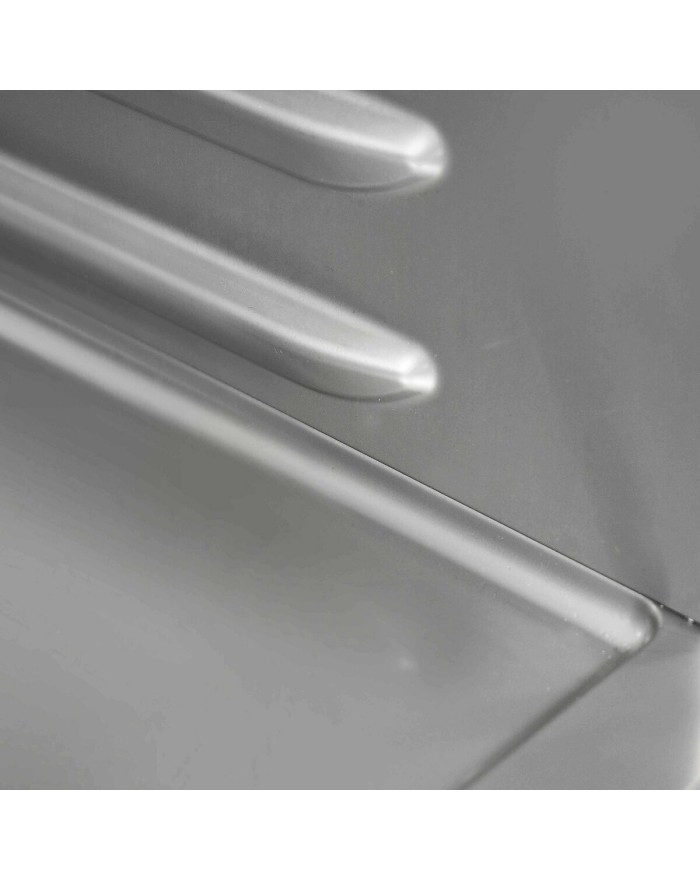

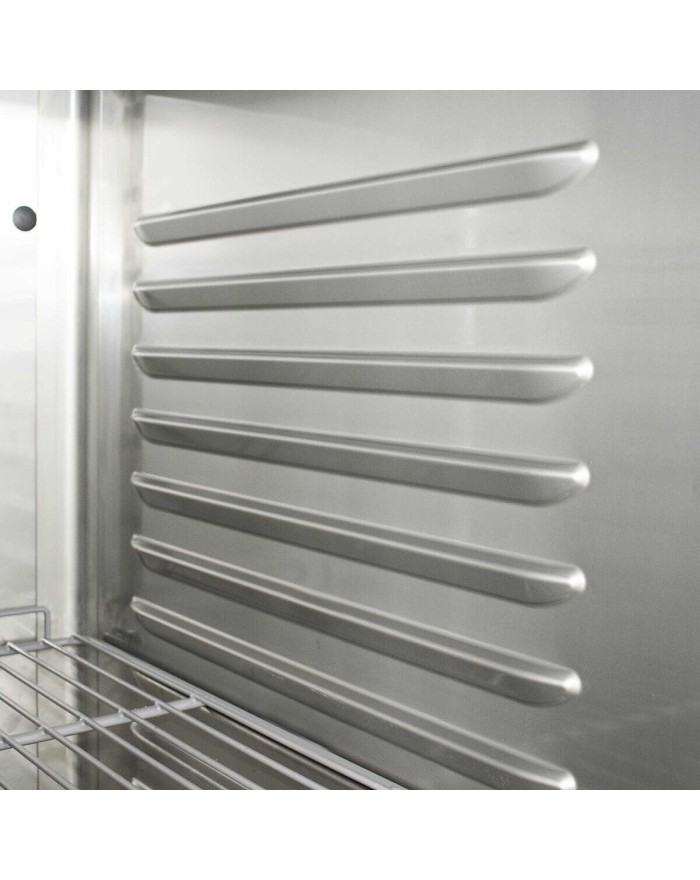

Grid rails molded on the sides, ensuring easy cleanability.

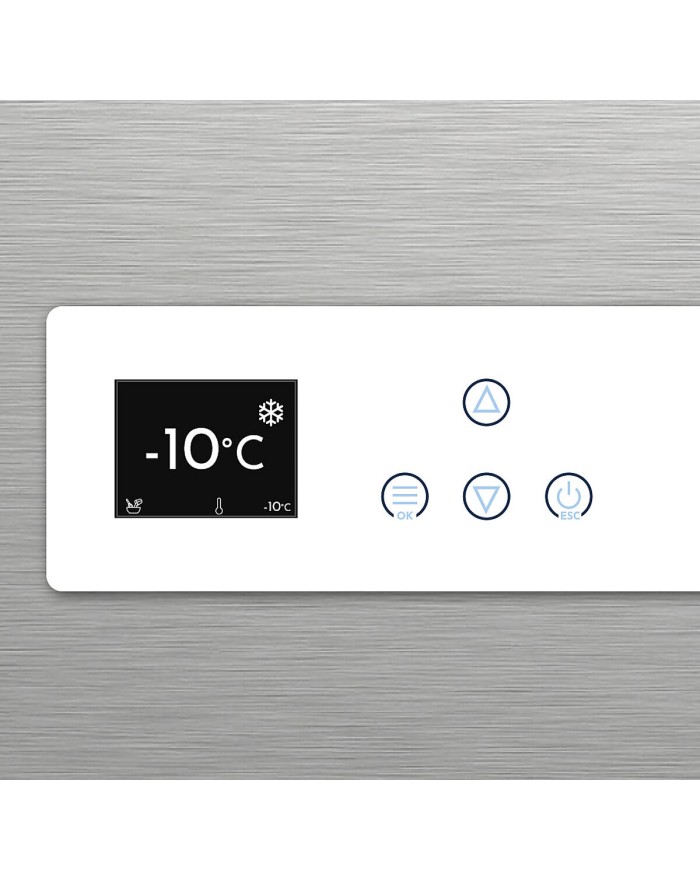

Thanks to an innovative and user-friendly control system, temperature and operating parameters are easy to monitor and adjust.



Axial fans ensure optimal ventilation inside the cell, guaranteeing uniform temperature distribution. Thanks to their efficiency, the temperature differential between the ceiling and the base of the cell is kept below 1°C, preserving the ideal conditions for storing products.



Master Max cabinets can be connected to the Polaris Cloud via the dedicated accessory, enabling real-time remote monitoring of equipment operation and usage from anywhere.



The multifunctional USB port, supplied as standard, enables fast and secure management of operations, supporting firmware updates, import and export of parameters, recipes and languages. It also provides efficient downloading of HACCP data (including temperatures, alarms and events), ensuring traceability and full regulatory compliance.



Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.



Fully radiused cell bottom.

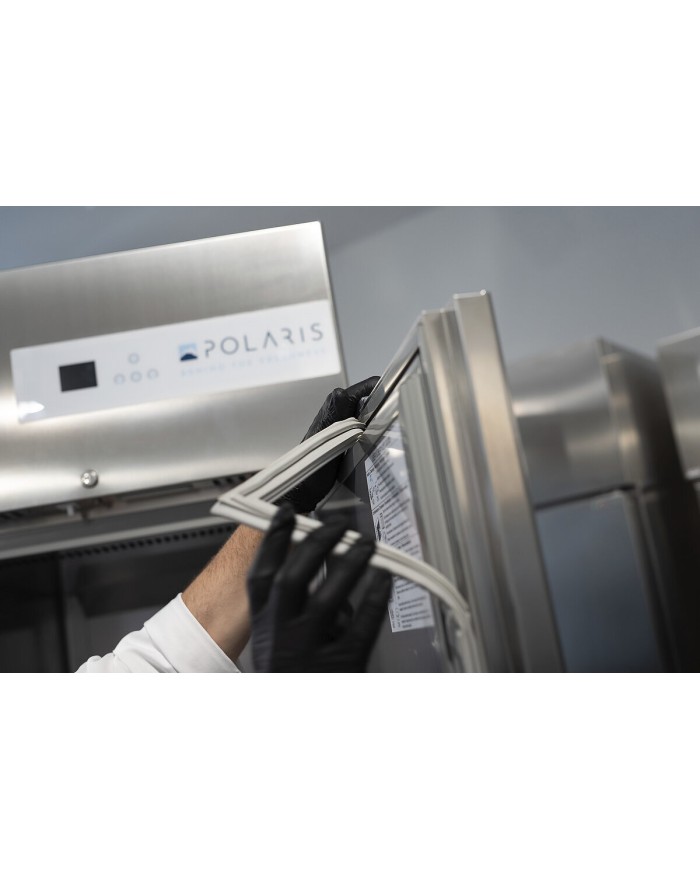

Innovative patented 7-chamber magnetic seals, combined with an increased door thickness of 65 mm, provide optimal thermal insulation. This advanced solution minimises temperature dispersion, ensuring maximum energy efficiency and consistent performance, even under intensive use.

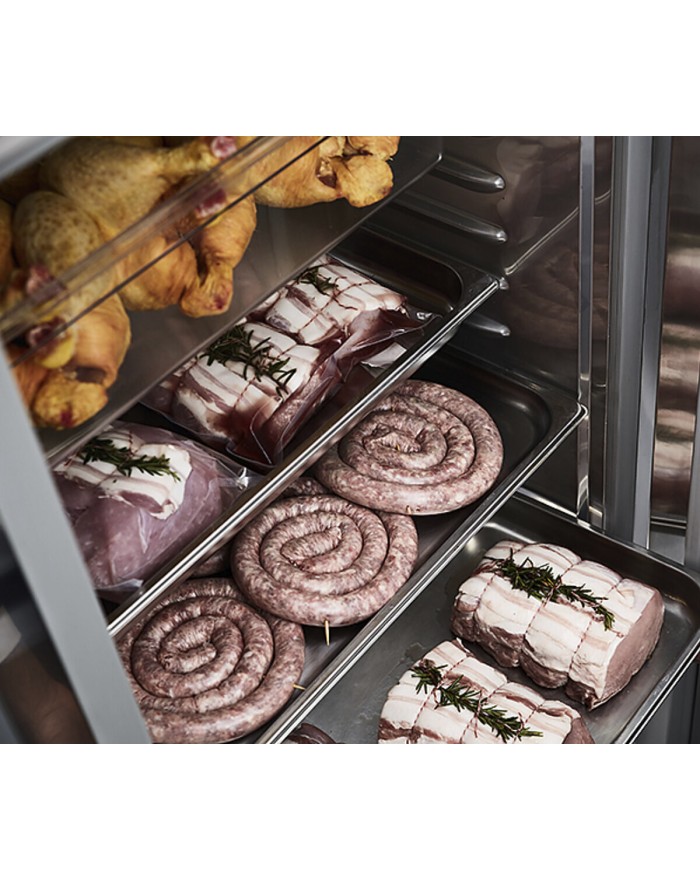

The refrigeration system with a monoblock outside the cell frees up internal space, optimising storage capacity and ensuring efficient use of every available inch.

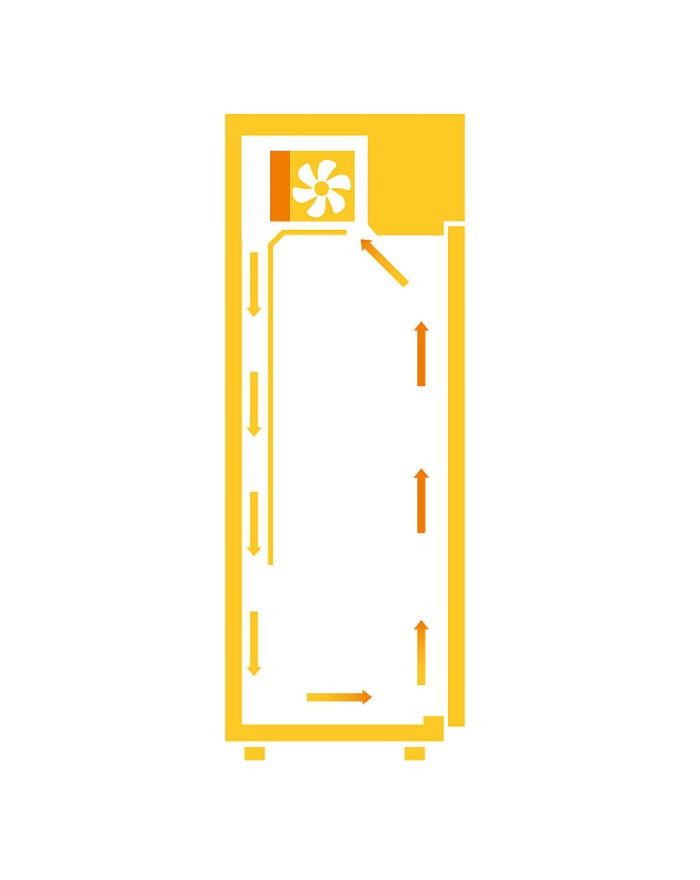

Thanks to the in-cell evaporator and rear ducting, excellent and efficient performance is always guaranteed.

BY70TNN
BN20SC01BO35 - Standard Standard

Data sheet

Model
BY70TNN
Temperature Range
-2 / +8°C°C
CODE
BN20SC01BO35
Material type
ZPF
Definition
BY70TNN AR.F.ST. R290 BAR
Height
2080mm
Width
700mm
Depth
830mm
Gross volume
1606
Net weight
104.8Kg
Gross weight
114.8Kg
Packaging width
900
Packaging height
2230
Packaging length
800
Capacity
562
Capacita GN
GN21
Gas/refrigerant type
R290
Total absorption
1.1
Cell dimensions
535X710X1480
Energy label
B
INSULATION THICKNESS
83mm
CLIMATE CLASS
5
Pow. Func.
295W
Noise level
46db(A)

Specific References

mpn
BY70TNN
