REFRIGERATED CABINET RIME TOUCH TEMP -2/+8°C - 24 x GN 2/1 - 2 DOORS

Refrigeration circuit designed with an integrated front air curtain that ensures uniform and effective cooling throughout the chamber. The even airflow reaches every corner of the chamber, maintaining consistent temperatures

Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.

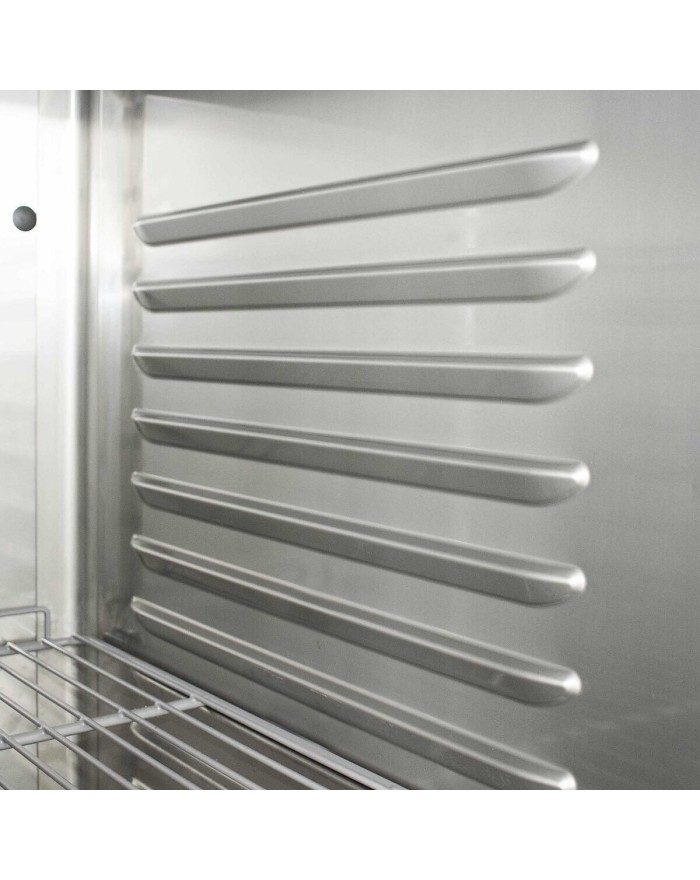

Grid rails molded on the sides, ensuring easy cleanability.

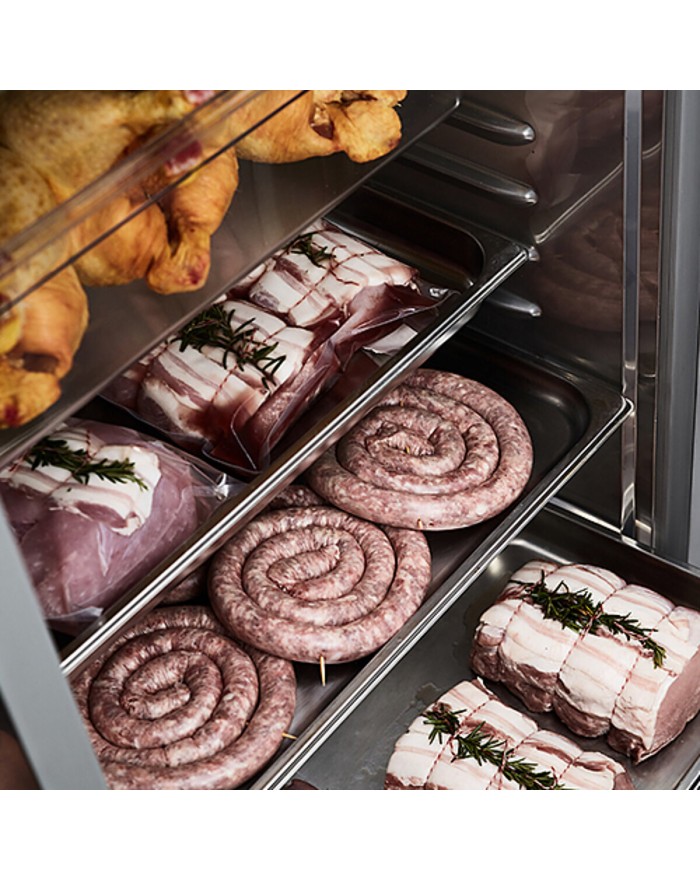

The refrigeration system with a monoblock outside the cell frees up internal space, optimising storage capacity and ensuring efficient use of every available inch.

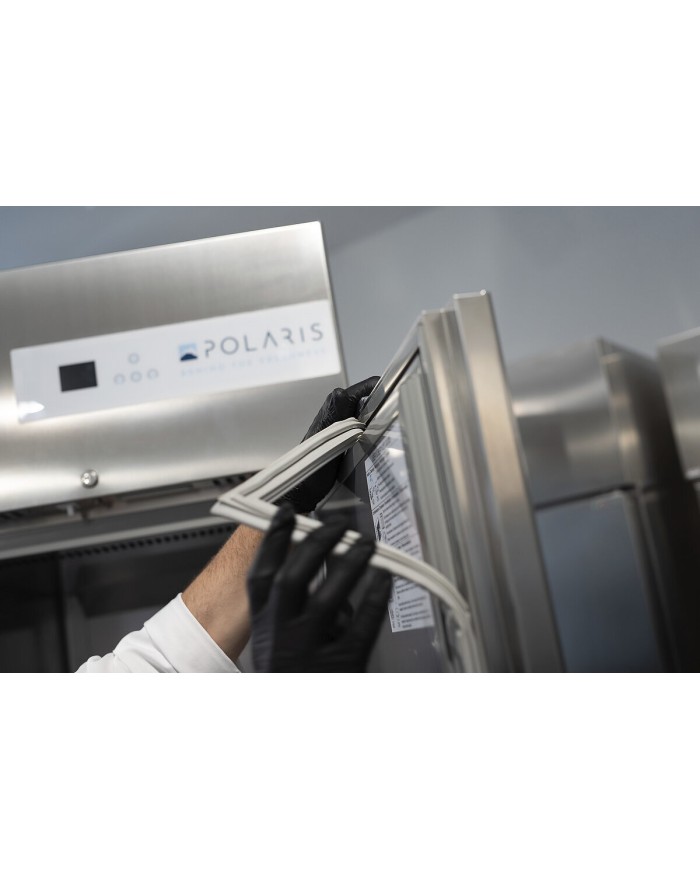

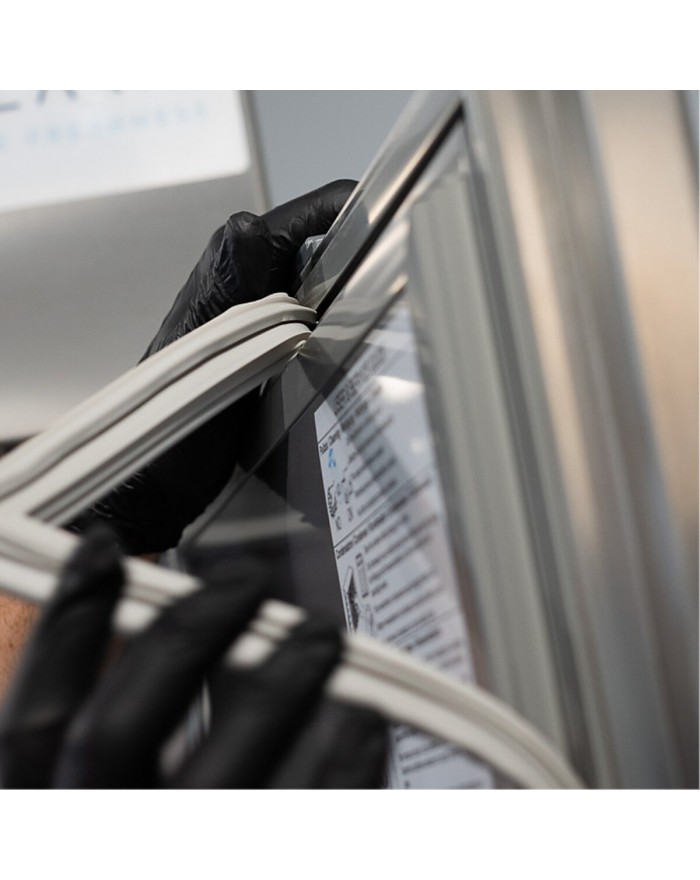

The innovative, patented 7-chamber magnetic gaskets, combined with the increased door thickness of 65 mm, ensure optimal thermal insulation. This advanced solution minimizes heat loss.

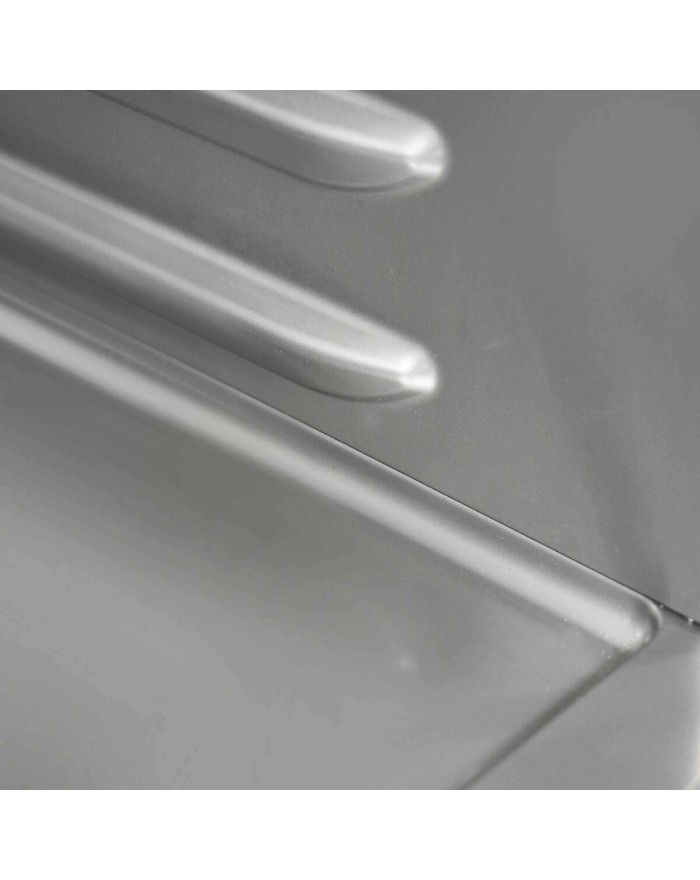

Fully radiused cell bottom.

The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.

Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.

Internal and external construction completely in AISI304 stainless steel.

Axial fans ensure optimal ventilation inside the cell, guaranteeing uniform temperature distribution. Thanks to their efficiency, the temperature differential between the ceiling and the base of the cell is kept below 1°C, preserving the ideal conditions for storing products.

Master Max cabinets can be connected to the Polaris Cloud via the dedicated accessory, enabling real-time remote monitoring of equipment operation and usage from anywhere.

The defrosting water evaporation system utilises the heat generated by the refrigeration unit, ensuring an efficient and environmentally friendly process. This solution eliminates water quickly and automatically, optimising the performance of the appliance without additional energy consumption.

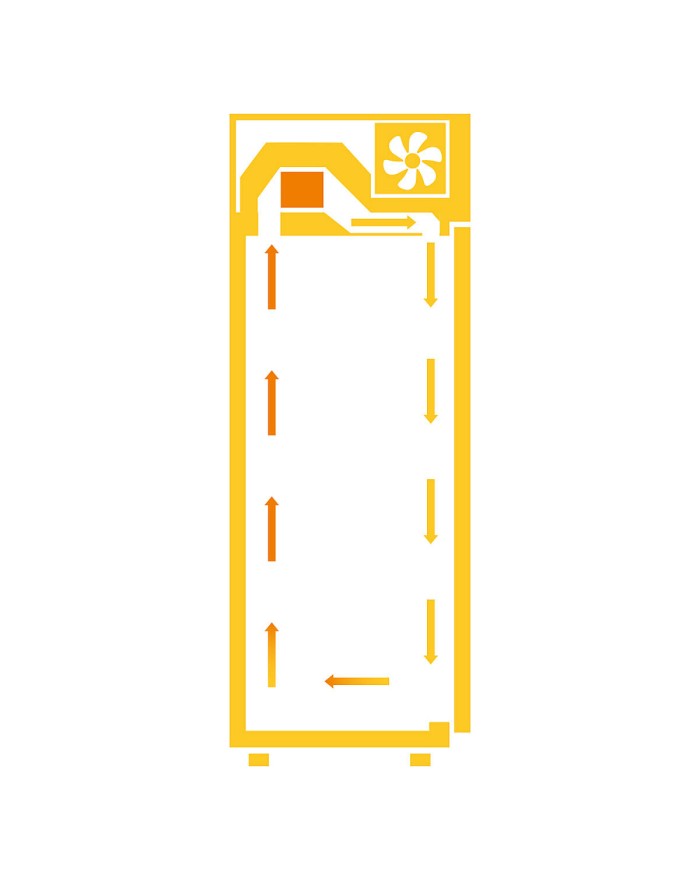

Indirect ventilation, supported by a full-height ducting system, ensures a uniform air flow on every level of the cabinet. This innovative solution enables even temperature distribution.
Data sheet
- Cell dimensions
- 550X710X1480
- Energy label
- A
- INSULATION THICKNESS
- 83mm
- CLIMATE CLASS
- 5
- Temperature Range
- -2 / +8°C
- Pow. Func.
- 295W
- Classe energetica
- Class A
- Model
- BMM72TNN
- CODE
- BN20SM11BS35
- Depth
- 850mm
- Height
- 2080mm
- Width
- 700mm
- Capacity
- 490
- Electrical power
- 220-240 V ~ 50 Hz
- Capacita GN
- GN21
- Gas/refrigerant type
- R290
Specific References
- mpn
- BMM72TNN
