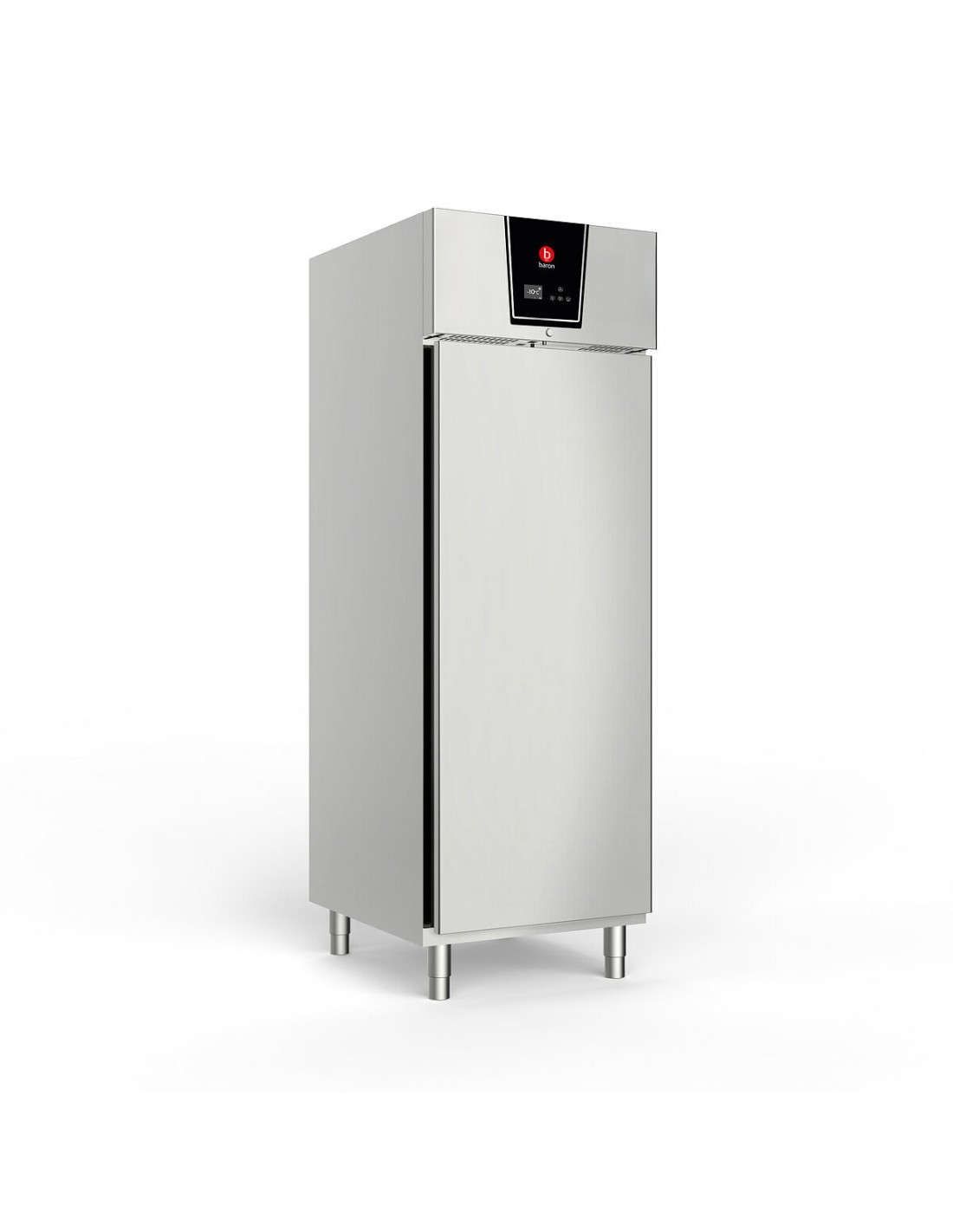

REFRIGERATED CABINET RIME SMALL TEMP -25/-15°C - 1 DOOR
Data Sheet
Pictures
Designed to meet the challenges of intensive use in the kitchen, RIME SAMLL is the refrigerated cabinet that combines functionality and robustness without sacrificing easy maintenance and optimised design.
RIME SAMLL optimises space without compromising performance, making it the perfect solution for professional kitchens that require simplicity, compactness, practicality and reliability.
Stainless steel inside and outside
75 mm side insulation with CFC-free polyurethane
Openable dashboard for easier periodic maintenance (condenser cleaning)
Cell interior with bevelled corners for easy cleaning
150 mm steel feet with adjustable height
Automatic defrosting with dissipation of condensed water with hot gas
Self-locking hinged doors
Standard supplied lock
For positioning on plinth
External single-block buffer unit with forced top down ventilation
USB port for transferring recipes and HACCP records.
Up to 100 customisable recipes
Possibility of manual defrosting.
Always up-to-date alarm log.





The in-cell evaporator guarantees consistently excellent and efficient performance, optimising space without compromising performance, making it the perfect solution for professional kitchens

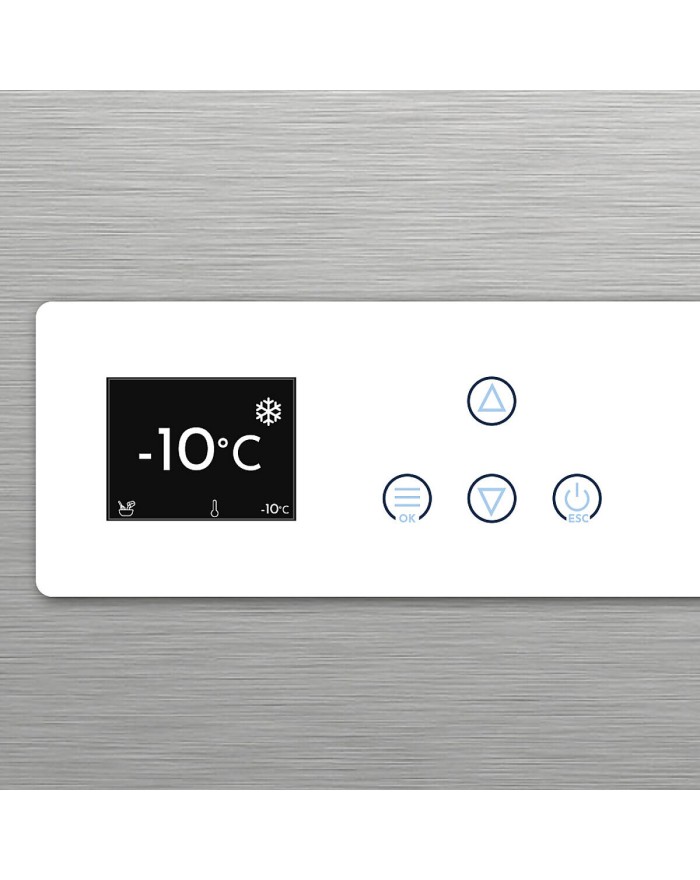

Thanks to an innovative and user-friendly control system, temperature and operating parameters are easy to monitor and adjust.

The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.

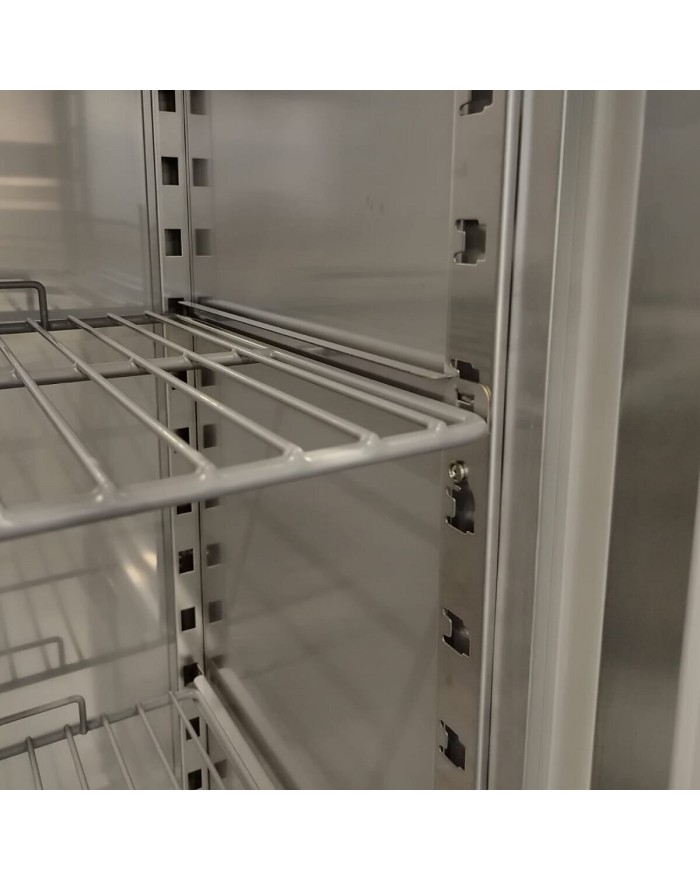

C-shaped guides for grids mounted on 21-level racks available.
BHPS 60 BT
BN206B02BO35 - Standard Standard
Data sheet
- Depth
- 700mm
- Gas/refrigerant type
- R290
- Height
- 2080mm
- Minimum pressure
- 210
- Gross volume
- 1606
- Maximum pressure
- 2400
- Net weight
- 105Kg
- Total absorption
- 3.25
- Gross weight
- 115Kg
- Cell dimensions
- 535X580X1624
- CE-certified
- X
- Energy label
- D
- Company
- 0231
- CLIMATE CLASS
- 5
- Packaging width
- 900
- Temperature Range
- -25 / -15°C
- Packaging height
- 2230
- Pow. Func.
- 750W
- Classe energetica
- Class D
- Width
- 700mm
- Packaging length
- 800
- Electrical power
- 0.598Kw
220-240 V - Model
- BHPS 60 BT
- Frequency
- 50 HzHz
- CODE
- BN206B02BO35
- Capacity
- 475
- Material type
- ZPF
- Definition
- HPS 60BT AR.REF. R290 POL
- Voltage
- 220-240 V ~ 50 Hz
Specific References
- mpn
- BHPS 60 BT
