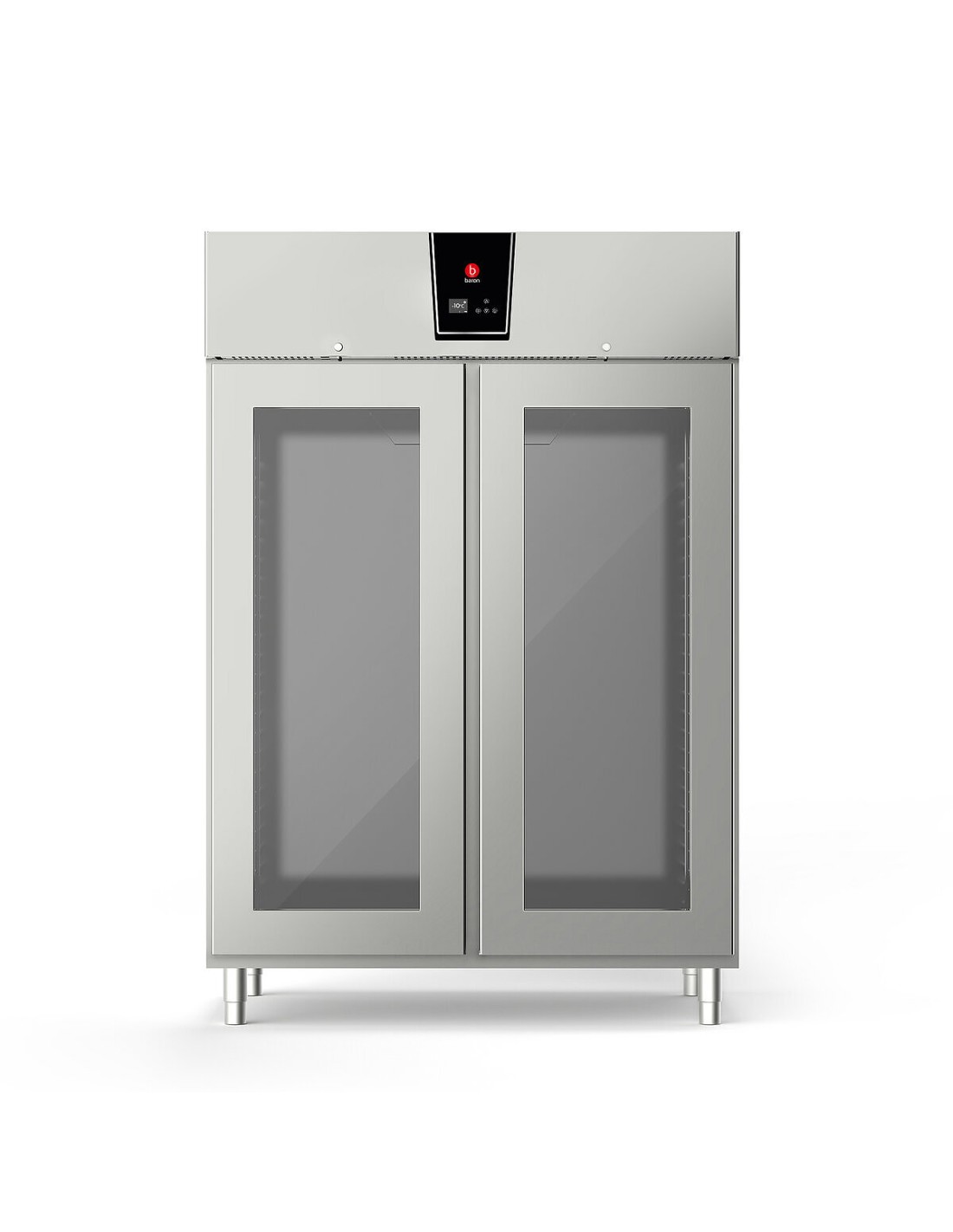

REFRIGERATED CABINET RIME BASIC TEMP -2/+8°C - 24 x GN 2/1 - 2 GLASS DOOR

RIME BASIC refrigerated cabinets designed for uniform temperatures and consistent performance. Ideal for those looking for an effective solution to maintain food freshness. The 85 mm insulation with CFC-free polyurethane is designed to maximise energy yield, reducing consumption and maintaining a constant internal temperature. Ventilated Refrigeration Technology Uniform cold distribution ensures constant temperature maintenance Indirect ventilation, supported by a full-height ducting system The use of the R290 refrigerant gas, which complies with the latest environmental regulations, ensures a reduced environmental impact, promoting sustainability and respect for the ecosystem. USB port for transferring recipes and HACCP records. Up to 100 customisable recipes Softwere updated via USB port.

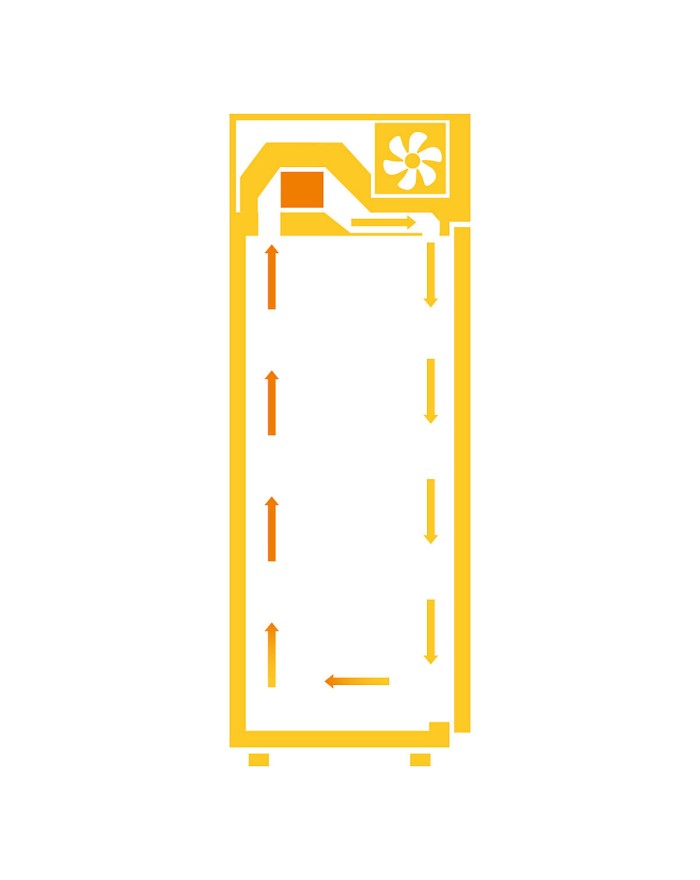

Refrigeration circuit designed with an integrated front air curtain that ensures uniform and effective cooling throughout the chamber. The even airflow reaches every corner of the chamber, maintaining consistent temperatures

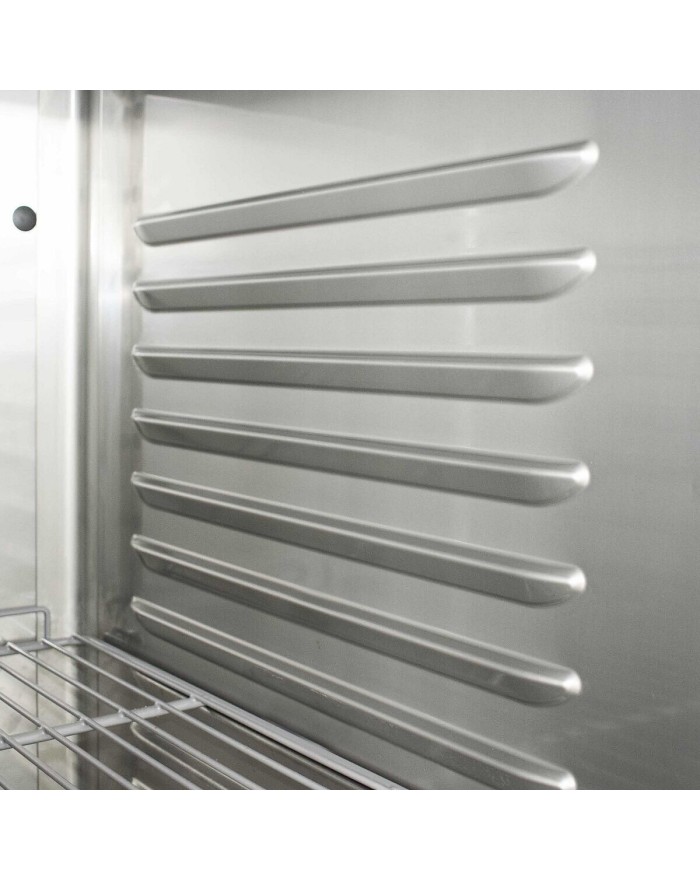

Grid rails molded on the sides, ensuring easy cleanability.

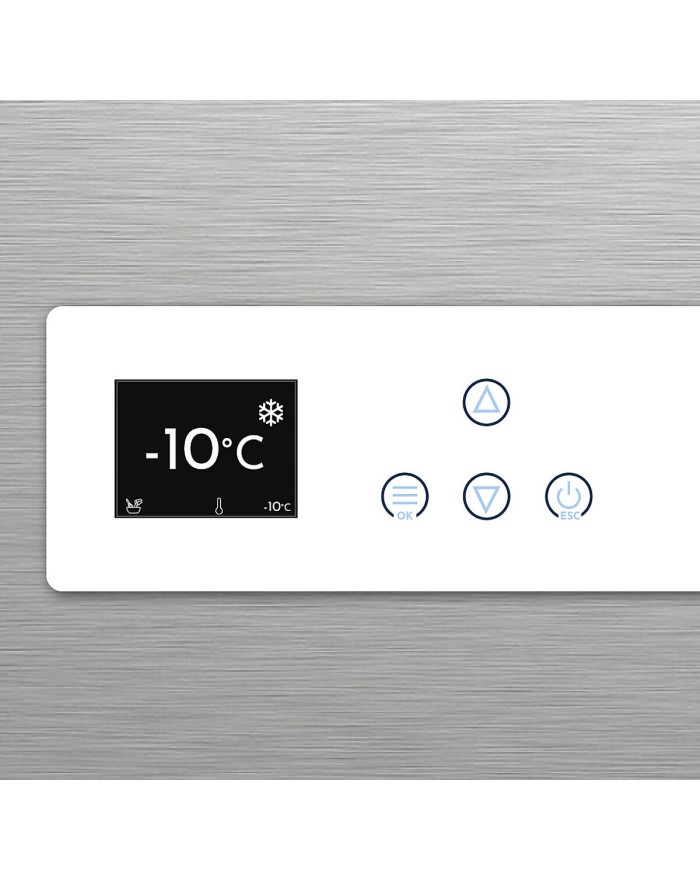

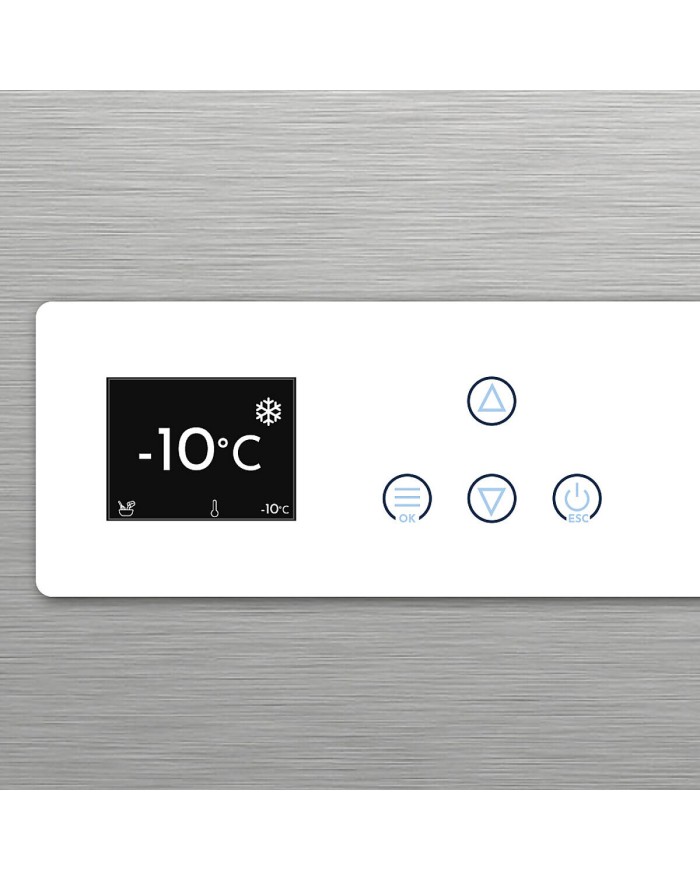

Thanks to an innovative and user-friendly control system, temperature and operating parameters are easy to monitor and adjust.



The refrigeration system with a monoblock outside the cell frees up internal space, optimising storage capacity and ensuring efficient use of every available inch.

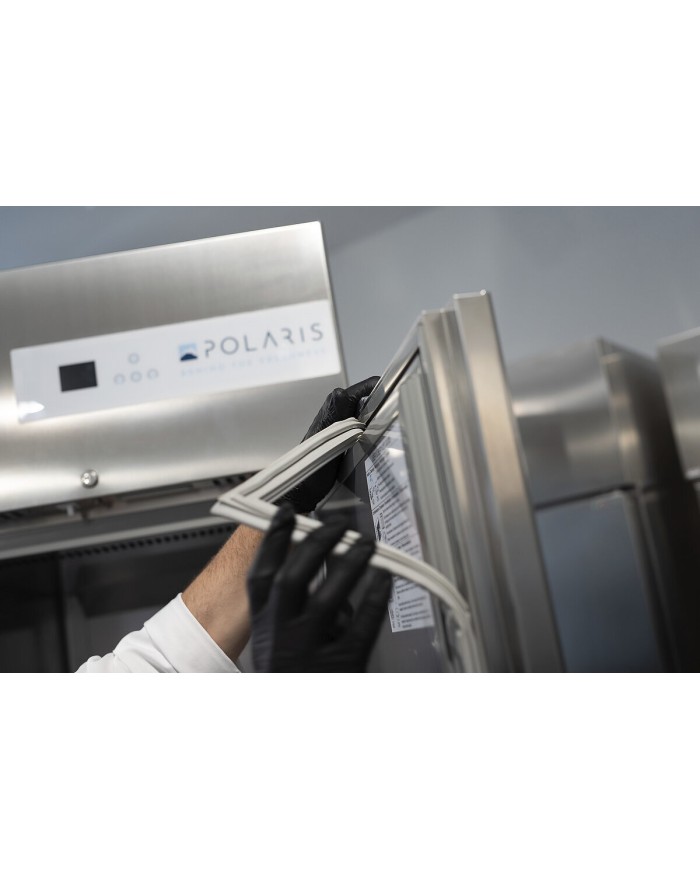

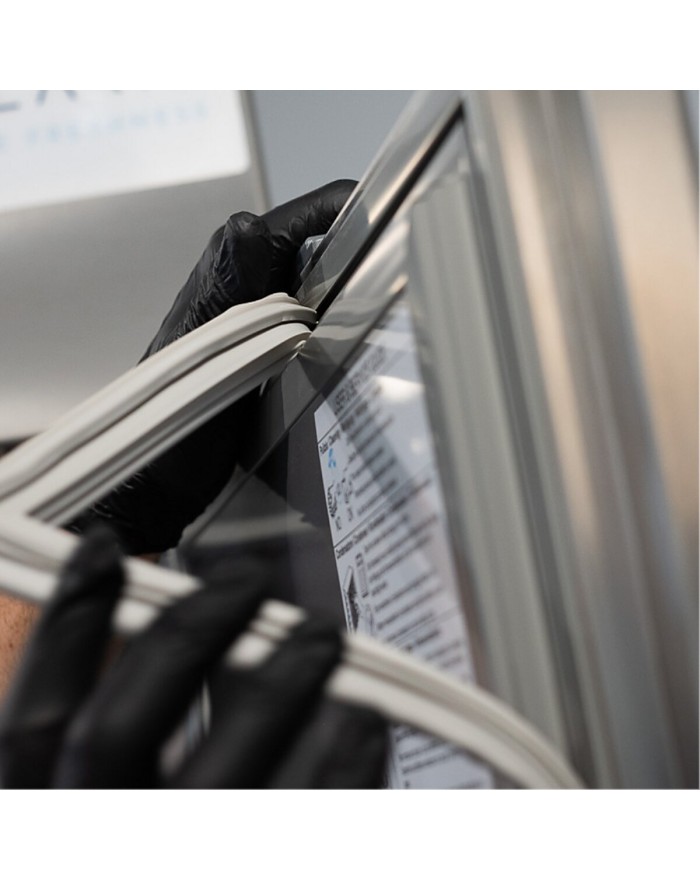

The innovative, patented 7-chamber magnetic gaskets, combined with the increased door thickness of 65 mm, ensure optimal thermal insulation. This advanced solution minimizes heat loss.



Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.



The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.



Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.



Axial fans ensure optimal ventilation inside the cell, guaranteeing uniform temperature distribution. Thanks to their efficiency, the temperature differential between the ceiling and the base of the cell is kept below 1°C, preserving the ideal conditions for storing products.



Indirect ventilation, supported by a full-height ducting system, ensures a uniform air flow on every level of the cabinet. This innovative solution enables even temperature distribution.

BR140TNNV
BN20SM25BO35 - Standard Standard

Data sheet

Depth
830mm
Height
2080mm
Width
1400mm
Capacity
1085
Electrical power
220-240 V ~ 50 Hz
Capacita GN
GN21
Gas/refrigerant type
R290
Cell dimensions
1250X710X1480
Energy label
D
INSULATION THICKNESS
83mm
CLIMATE CLASS
5
Temperature Range
-2 / +8°C
Pow. Func.
470W
Classe energetica
Class D
Model
BR140TNNV
CODE
BN20SM25BO35

Specific References

mpn
BR140TNNV
