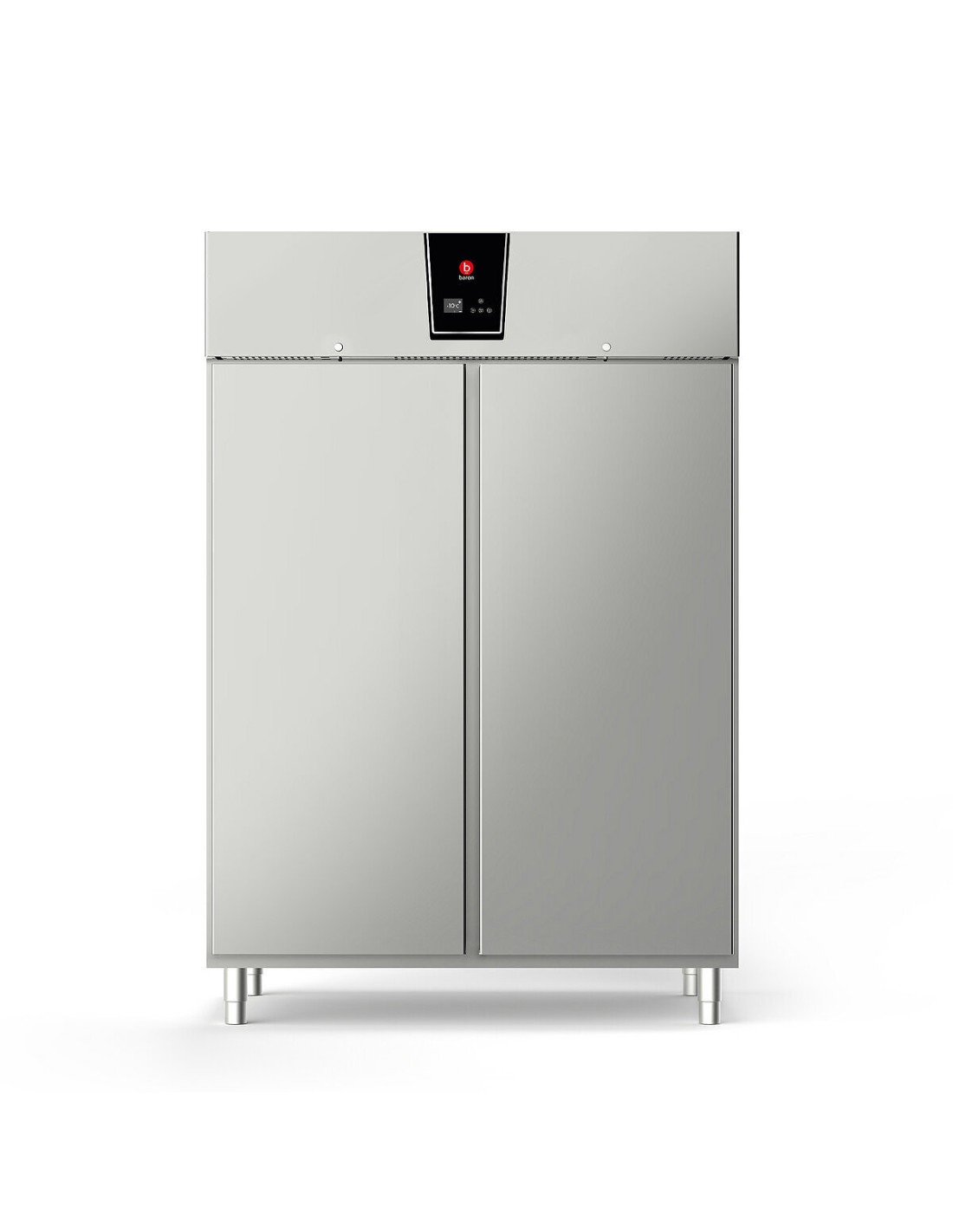

REFRIGERATED CABINET RIME BASIC TEMP -2/+8°C - 24 x GN 2/1 - 2 DOORS

Refrigeration circuit designed with an integrated front air curtain that ensures uniform and effective cooling throughout the chamber. The even airflow reaches every corner of the chamber, maintaining consistent temperatures

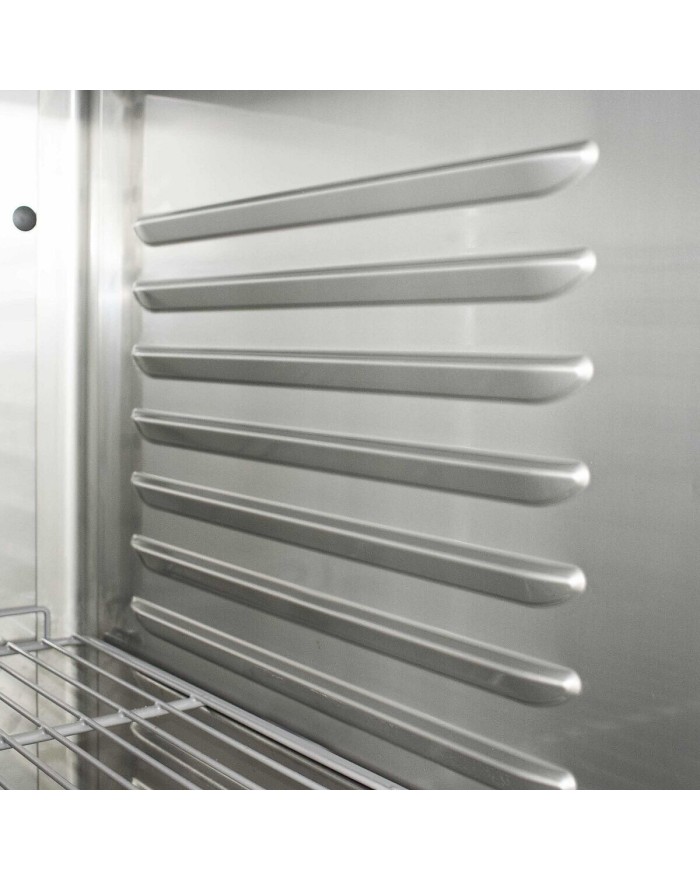

Grid rails molded on the sides, ensuring easy cleanability.

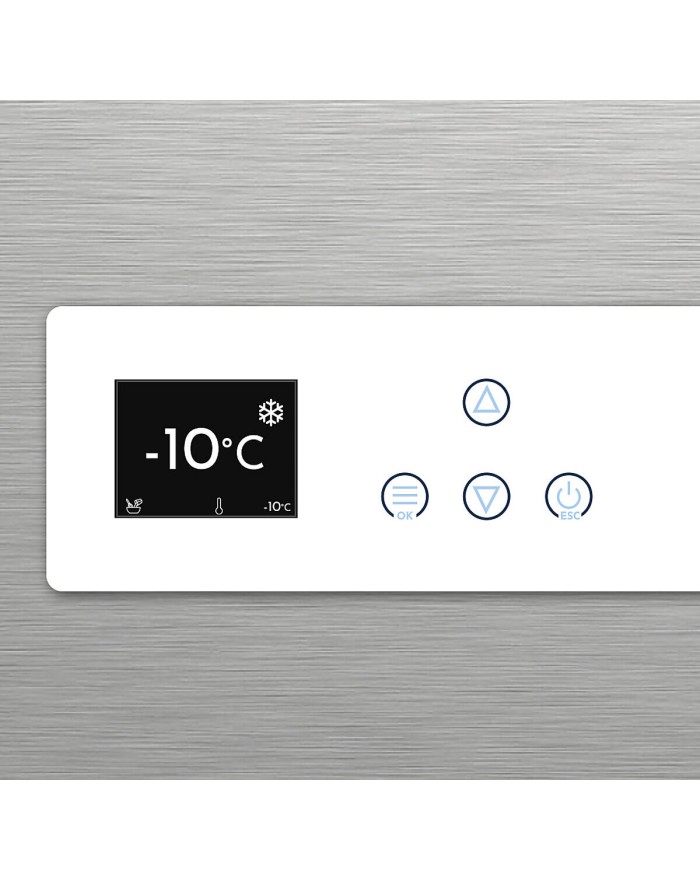

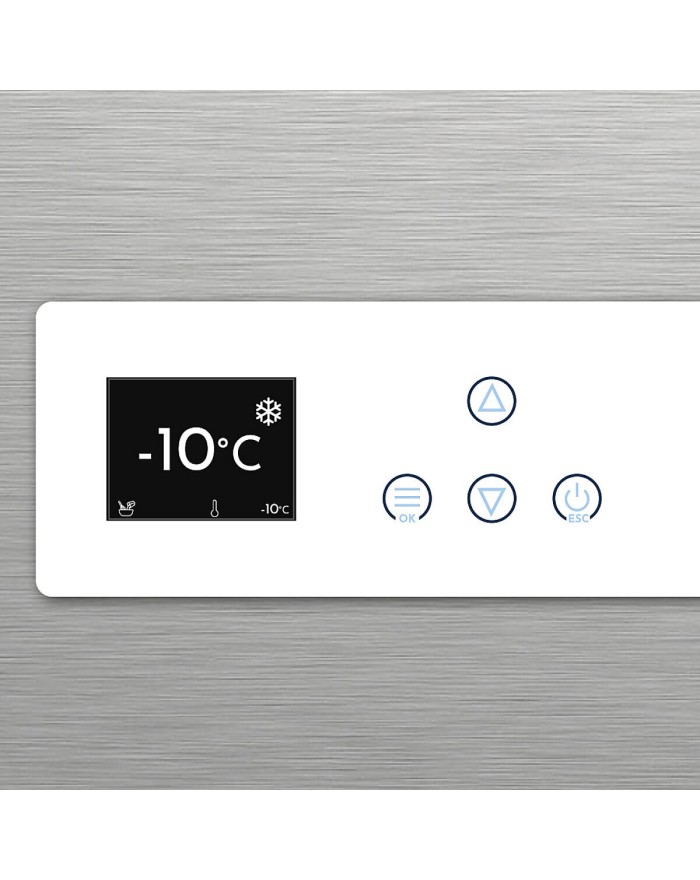

Thanks to an innovative and user-friendly control system, temperature and operating parameters are easy to monitor and adjust.

The refrigeration system with a monoblock outside the cell frees up internal space, optimising storage capacity and ensuring efficient use of every available inch.

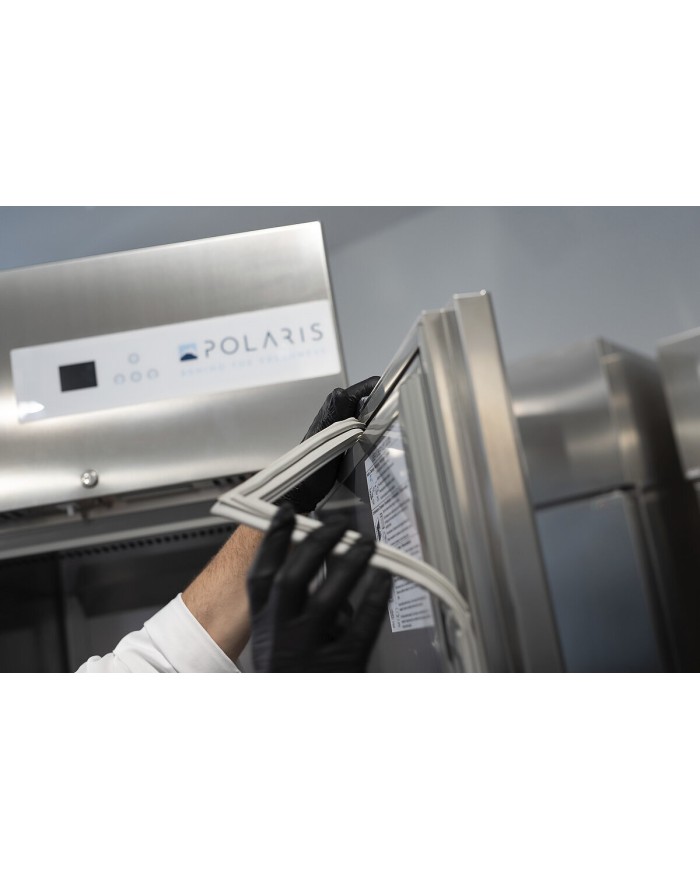

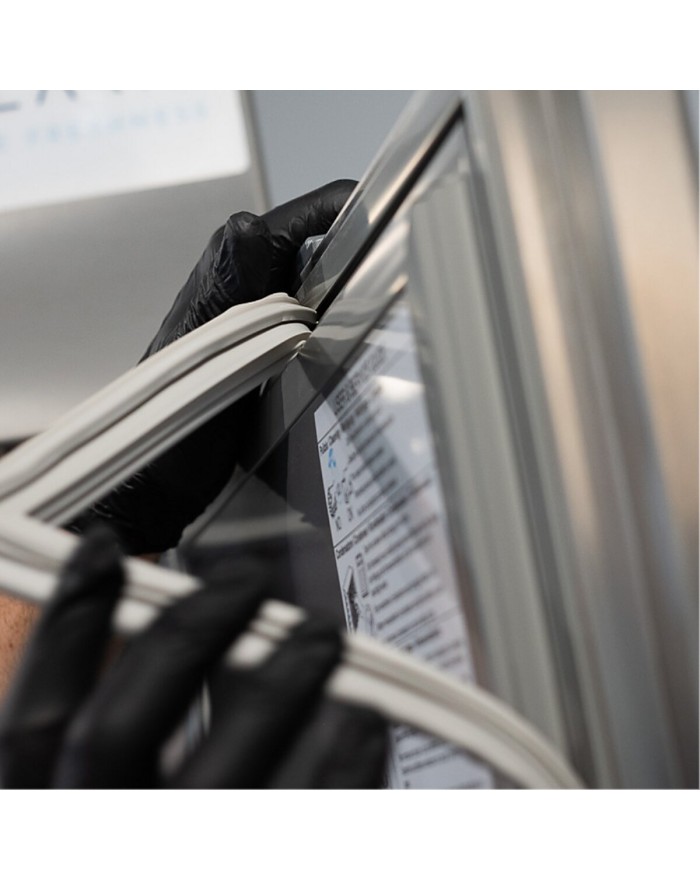

The innovative, patented 7-chamber magnetic gaskets, combined with the increased door thickness of 65 mm, ensure optimal thermal insulation. This advanced solution minimizes heat loss.

Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.

The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.

Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.

Axial fans ensure optimal ventilation inside the cell, guaranteeing uniform temperature distribution. Thanks to their efficiency, the temperature differential between the ceiling and the base of the cell is kept below 1°C, preserving the ideal conditions for storing products.

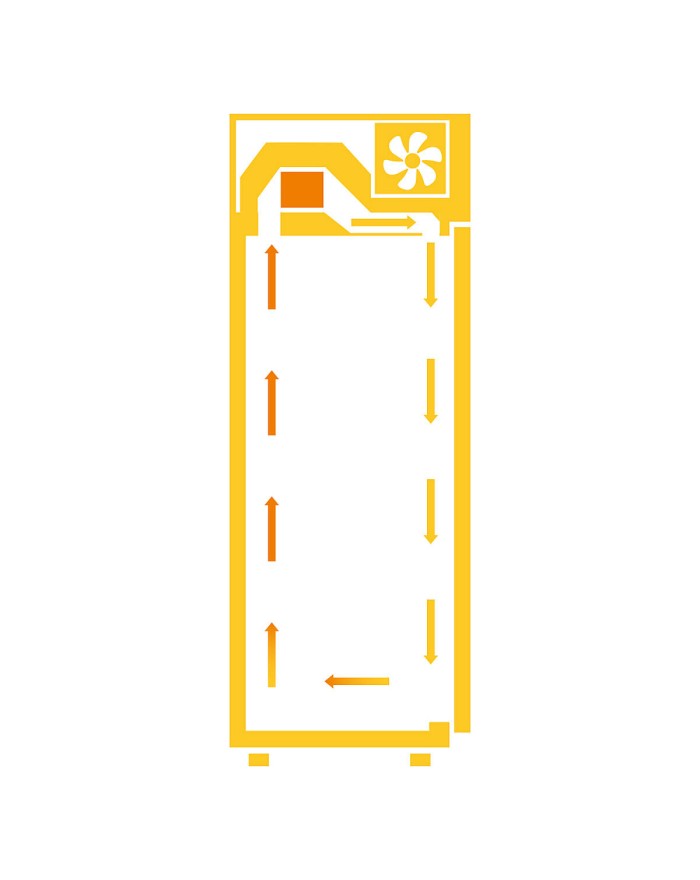

Indirect ventilation, supported by a full-height ducting system, ensures a uniform air flow on every level of the cabinet. This innovative solution enables even temperature distribution.
Data sheet
- Pow. Func.
- 470W
- Packaging height
- 2230
- Classe energetica
- Class B
- Width
- 1400mm
- Packaging length
- 1460
- Electrical power
- 0.262Kw
220-240 V ~ 50 Hz - Capacity
- 1298
- Model
- BR140TNN
- Voltage
- 220-240 V ~ 50 Hz
- CODE
- BN20SM21BO35
- Capacita GN
- GN21
- Material type
- ZPF
- Gas/refrigerant type
- R290
- Total absorption
- 1.80
- Definition
- BR140TNN AR.MST24 CLB R290 BAR
- Cell dimensions
- 542X710X1480
- Depth
- 830mm
- Energy label
- B
- Height
- 2080mm
- Cooling power
- 484 @Tevap-10°C Tcond+45°CW
- Gross volume
- 2930
- INSULATION THICKNESS
- 83mm
- Net weight
- 179.4Kg
- CLIMATE CLASS
- 5
- Gross weight
- 189.4Kg
- Temperature Range
- -2 / +8°C
- Packaging width
- 900
Specific References
- mpn
- BR140TNN
