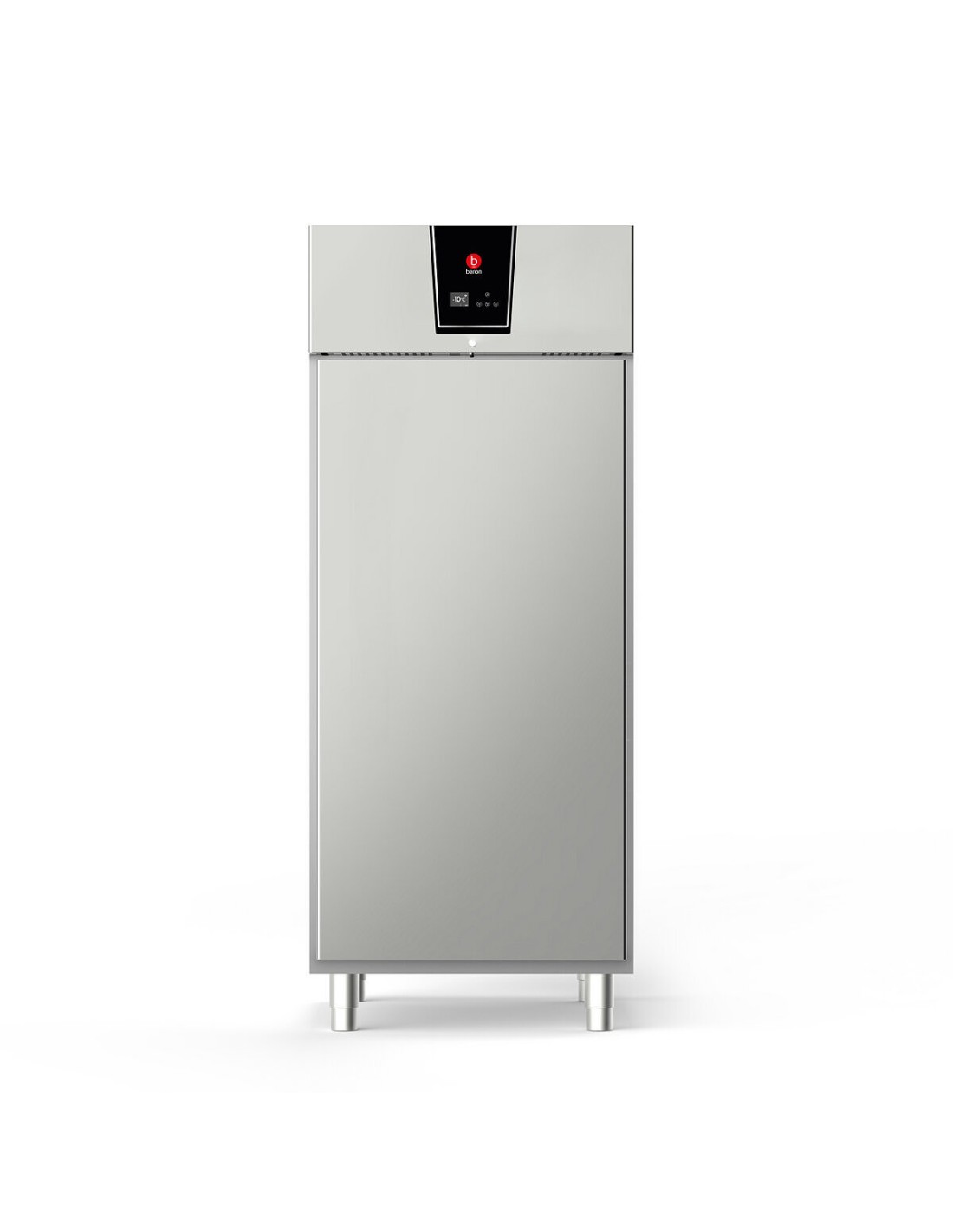

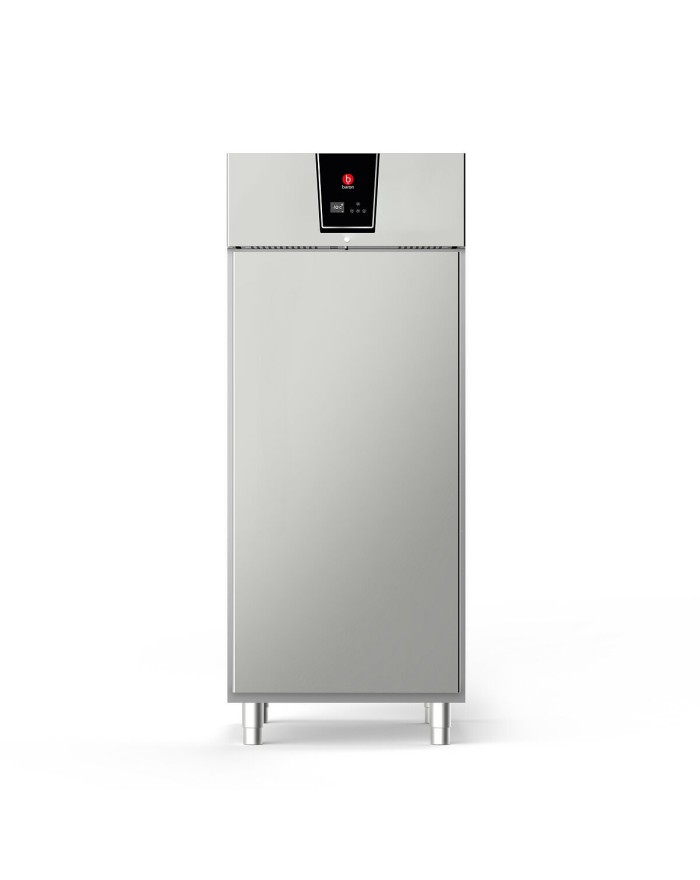

REFRIGERATED CABINET PATIS TEMP -25/-15°C - 1 DOOR - TRAY CAPACITY EN 60X40 - REMOTE CONDENSING UNIT OPTIONAL

The PATIS line represents an evolved version of the refrigerated storage cabinet used in pastry and ice cream parlours: presents the evolution of the storage cabinet in confectionery and ice cream laboratories with the new PATIS Line. Technology at the service of cooling, for optimal performance always under safe conditions. monocoque construction Standard lock and key Feet (Ø 2”) with adjustable height in AISI 304 18/10 steel Self-closing doors with 100° opening lock and reversibility with accessory kit Stainless steel rack supports and uprights Use of low consumption electronic fans with modulated speed Foamed motor compartment sides for improved sturdiness Up to 100 customisable recipes Door light switching also in manual mode. USB port for transferring recipes and HACCP records. Possibility of manual defrosting. CONFECTIONERY CABINET EN1 1D -25/-15 Without condesing unit


Thanks to an innovative and user-friendly control system, temperature and operating parameters are easy to monitor and adjust.

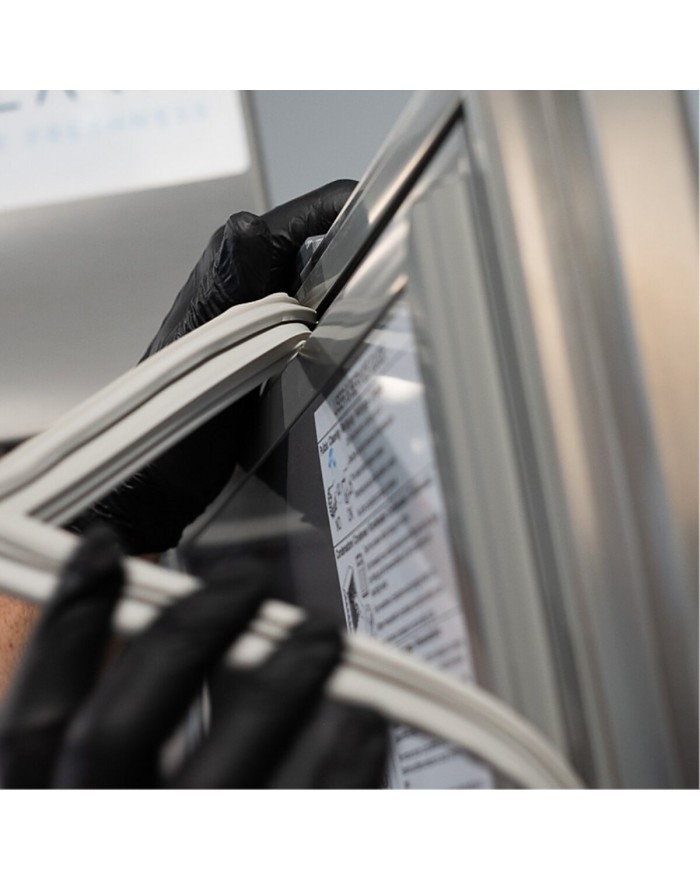

The innovative, patented 7-chamber magnetic gaskets, combined with the increased door thickness of 65 mm, ensure optimal thermal insulation. This advanced solution minimizes heat loss.

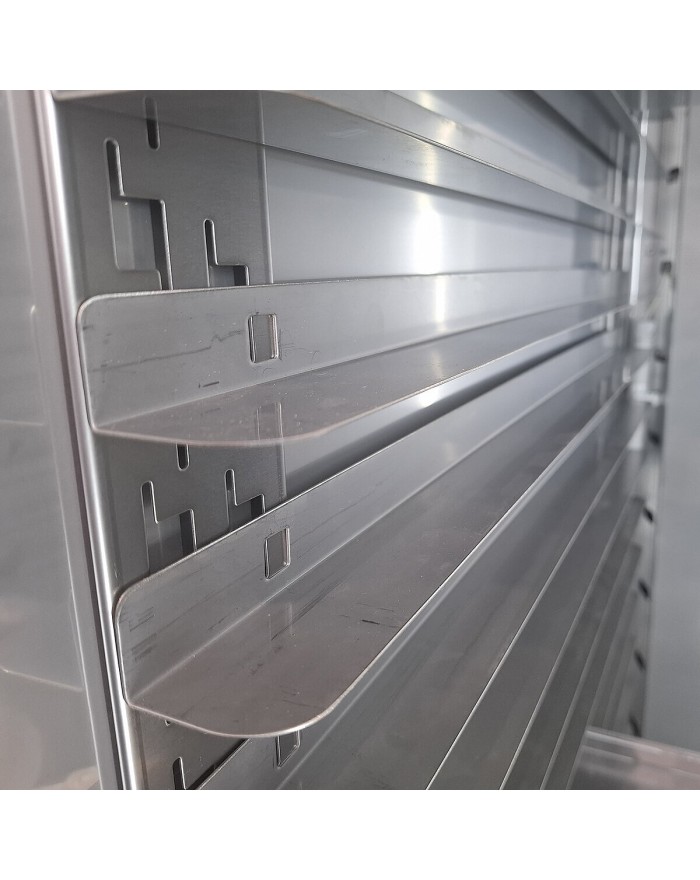

Locker with rack supports for versatile and customisable organisation, complete with L-shaped supports for greater stability and practicality.



Thanks to the R290 gas supplied as standard for all available versions, Olis guarantees care and sustainability in all aspects of its product development.



The USB port, included as standard, enables quick and secure operation management, supporting firmware updates, as well as the import and export of parameters, recipes, languages, and HACCP data.



Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.

BCP41BT PRED
BN20ET12BO12 - Standard Standard

Data sheet

Packaging length
790
Capacity
422
Electrical power
220-240 V ~ 50 Hz
Voltage
220-240 V ~ 50 Hz
Gas/refrigerant type
R452/R404/R448/R449
Cell dimensions
620X540X1510
CLIMATE CLASS
5
Model
BCP41BT PRED
Temperature Range
-25 / -15°C
CODE
BN20ET12BO12
Pow. Func.
622W
Depth
750mm
Height
2110mm
Gross volume
1420
Gross weight
161Kg
Packaging width
810
Packaging height
2220
Width
790mm

Specific References

mpn
BCP41BT PRED
