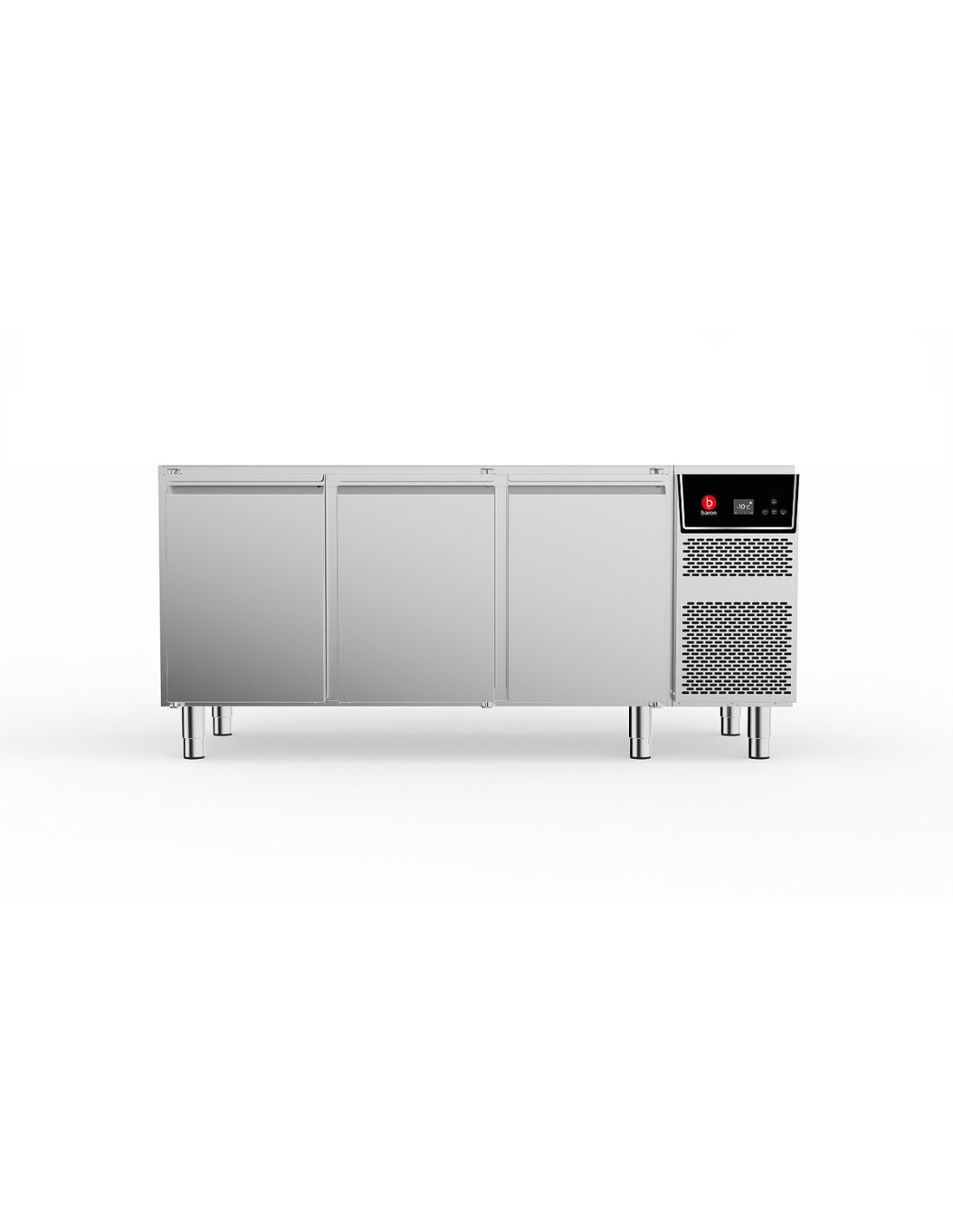

Tavoli refrigerati pasticceria 3 PORTE


Data Sheet
DWG-3D
Pictures

Tipo Alimentazione
Promo
Print
a RIME LARGE range of solutions The line of Pastry Tables provides a RIME LARGE range of solutions, with positive and negative temperatures, and motorised tables with the motor mounted on the right or left side. The insulation of the counters made of expanded CFC-free polyurethane with water as a blowing agent, is 50 mm thick allowing to work well even at room temperatures of +43°C. PASTRY TABLES Holding table for pastry 4.3'' full touch screen Gas R290 monocoque construction, capacity EN PU, HCFC free insulation, thickness 50 mm, density 42 kg/m3 The PASTRY series refrigerated tables with electronic control, ventilated, are built internally and externally in AISI 304 18/10 stainless steel Automatic defrost and condensed water dissipation without the need for any electricity Power supply voltage 230V / 1Ph / 50Hz Large storage capacity cabinets featuring rounded corners for easy cleaning Ergonomic handles and magnetic seals on 4 sides Feet (Ø 2”) with adjustable height 150 ÷ 200 mm in AISI 304 18/10 steel Self-closing doors with 100° opening lock and reversibility with accessory kit Snap-on stainless steel rack supports and uprights, that can be extracted with no need to use tools for easier cleaning Standard Ethernet cable connection Optional: Wi-Fi 3x rilsan grids 600*400mm and 8x pairs of L-shaped guides pitch 55m (per door)
BCP83 TNN S
BN2TED00221BO76 - Standard Standard

Data sheet

Width
1947mm
Packaging length
1320
Capacity
510
Electrical power
220-240 V ~ 50 Hz
Voltage
220-240 V ~ 50 Hz
Gas/refrigerant type
R290
Total absorption
1.46
Cell dimensions
437X670X600
Energy label
A
Model
BCP83 TNN S
Cooling power
555W
CODE
BN2TED00221BO76
CLIMATE CLASS
5
Depth
790mm
Temperature Range
-2 / +8°C
Height
800mm
Classe energetica
Class A
Gross volume
1049
Finitura
without plan
Gross weight
274Kg
Packaging width
750
Packaging height
1060

Specific References

mpn
BCP83 TNN S
