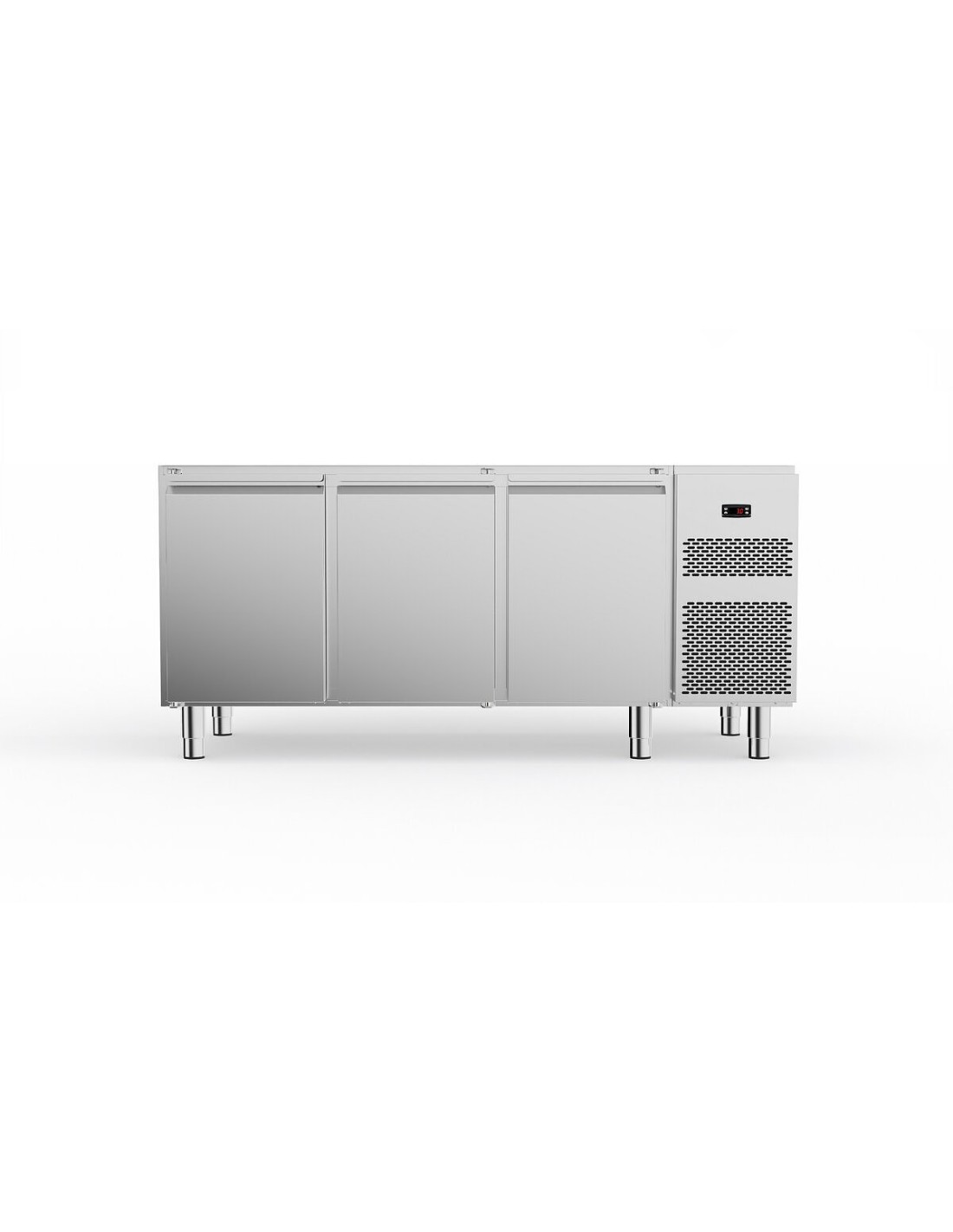

REFRIGERATED COUNTER BT 3 COMPARTEMENTS - 3 DOORS - WITHOUT TOP - COOLING UNIT ON BOARD

The refrigerated tables, available in two heights (650 or 700), are made entirely of stainless steel and feature fully extendable doors or drawers, rounded corners, and removable grill supports that allow for complete cleaning and flexible loading. Ideal for any type of professional kitchen, they stand out for their ventilated refrigeration system equipped with a completely removable filter and, in particular, for their free evaporation system in the chamber, which allows for improved air circulation. BODY DEPTH = 650 mm HEIGHT = 700 mm Evaporator unit mounted on the upright of the first on open cabinet Easy access to electric and electronic components Automatic defrostingdevic and condensed water dissipation via hot gas


Molded cell bottom with rounded edges and removable grid supports for maximum hygiene and loading flexibility.

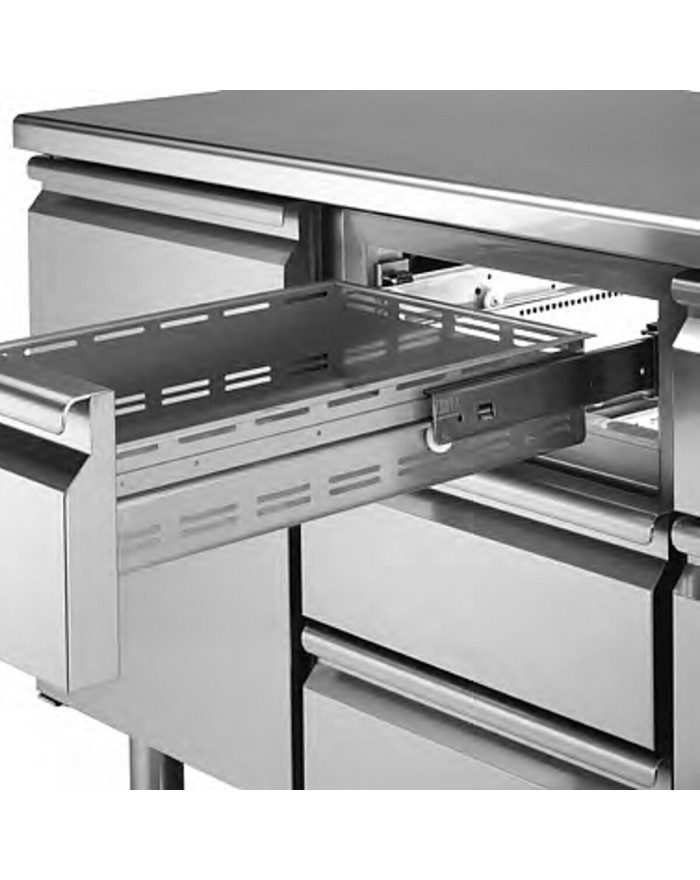

Full extension drawers with special Fulterer stainless steel telescopic slides

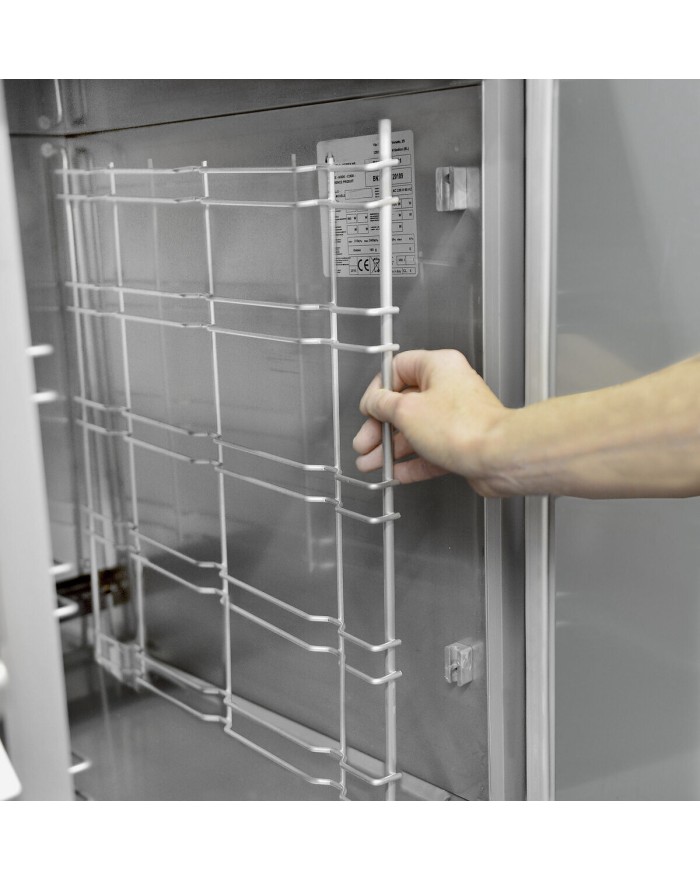

Flush rack structure, with 5 positions, easily removable for cleaning.

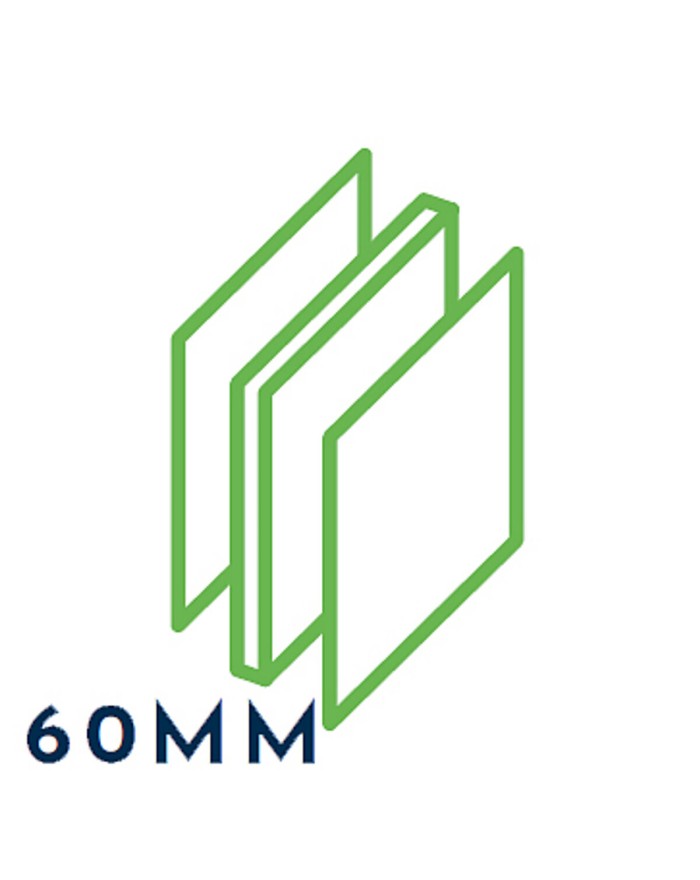

The CFC-free, water-expanding polyurethane foam insulation of the tables has a thickness of 60 mm, enabling the tables to work optimally even at ambient temperatures of +40 °C.



Guaranteed performance even under extreme conditions (up to +40 °C with a relative air humidity of 40 %) thanks to tropicalisation. Refrigerated cabinets operate perfectly even in high temperature environments. Ideal for professional kitchen environments.

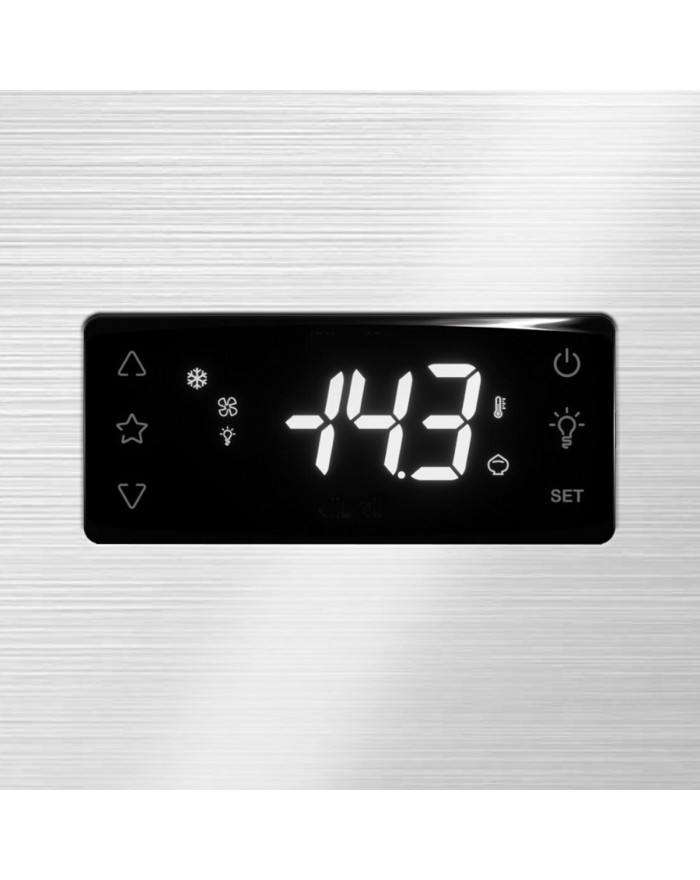

The temperature is constantly adjusted and controlled through the simple and intuitive Digital Display.

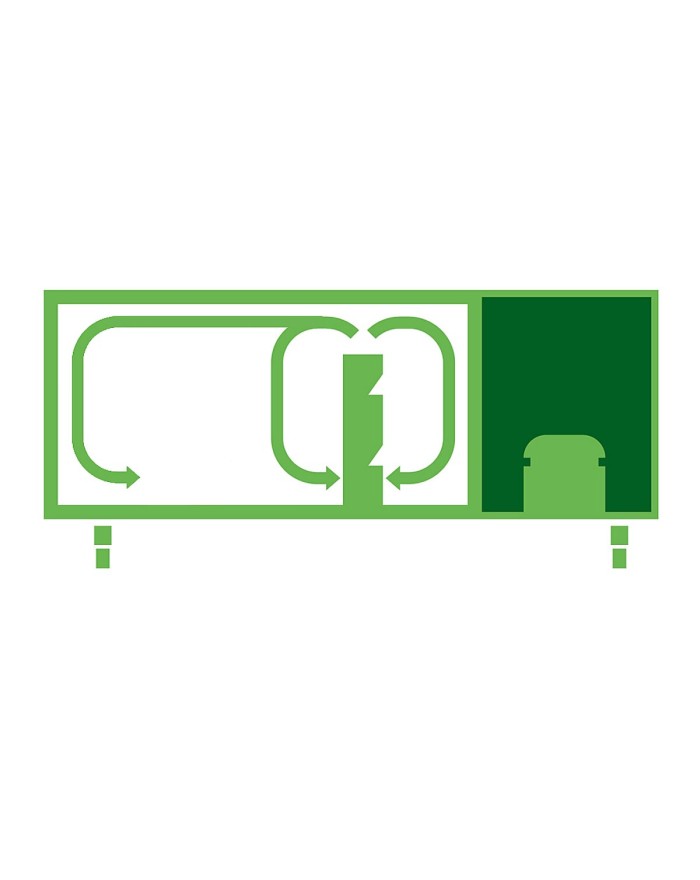

Evaporator installed inside the door pillar, in the chamber, to ensure even distribution of cold air

BJ-03BTH650S
BN26KI50221BE76 - Standard Standard

Data sheet

Energy label
D
Model
BJ-03BTH650S
Cooling power
445W ( Te-30 / Tc+45 EN12900 )W
CODE
BN26KI50221BE76
RATED CURRENT
3.16(A)
Depth
690mm
INSULATION THICKNESS
60mm
Height
800mm
CLIMATE CLASS
4
Gross volume
1.2282
Temperature Range
-20 / -15°C
Net weight
105Kg
Classe energetica
Class D
Gross weight
122Kg
Motore
WITH MOTOR
Packaging width
1780
Finitura
without plan
Packaging height
1100
Width
1730mm
Packaging length
750
Electrical power
0,646Kw
220-240 V ~ 50 Hz
Capacity
260
Gas/refrigerant type
R290

Specific References

mpn
BJ-03BTH650S
