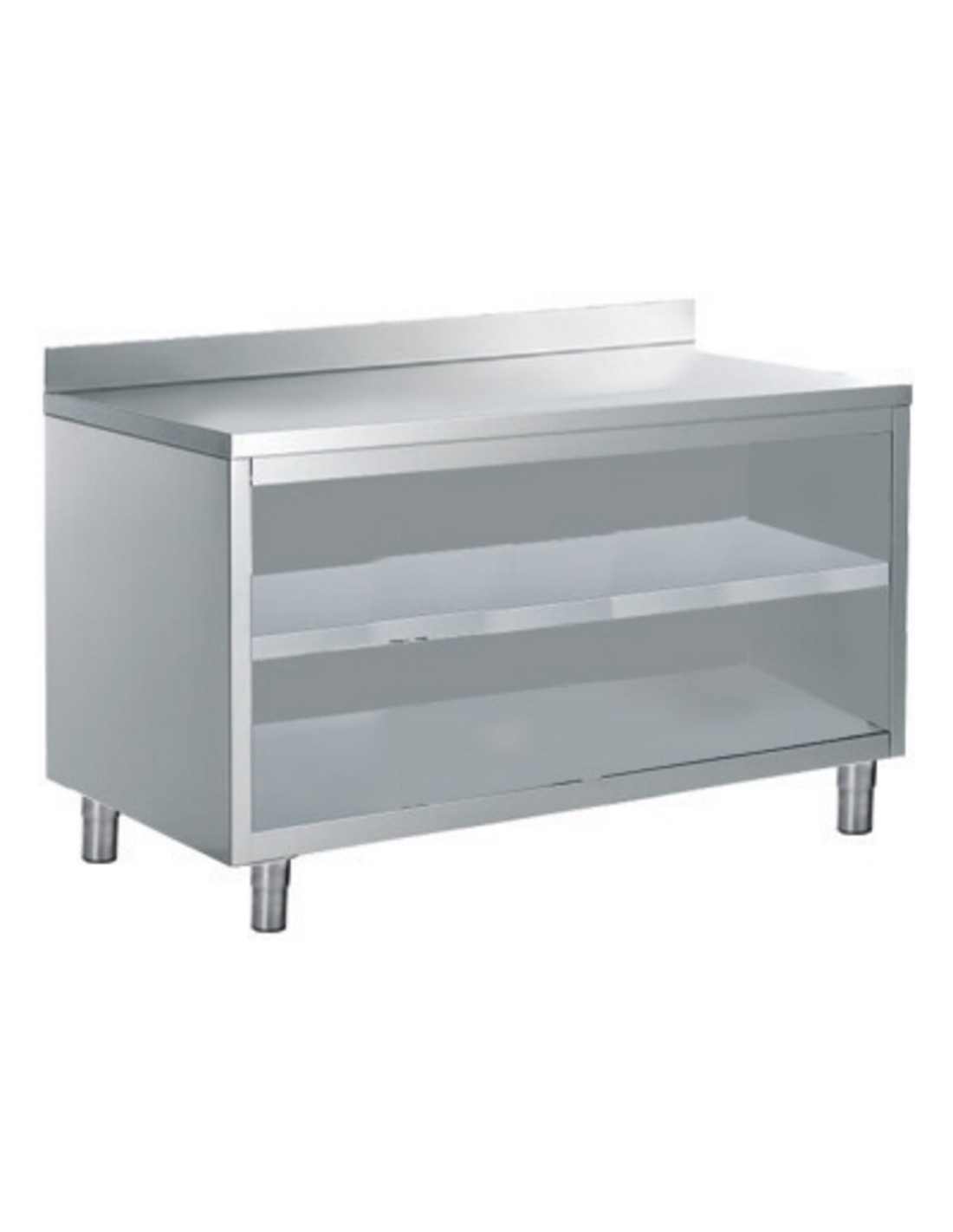

OPEN CUPBOARD TABLES AND AN INTERMEDIATE SHELF WITH SPLASHBACK

Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
Print
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
NAG719PA
BNN53071190

Data sheet

Model
NAG719PA
Code
BNN53071190
Material type
ZPF
Definition
TAVOLO ARMADIO R10 A GIORNO SAG719PA
Width
1900mm
Height
900mm
Depth
700mm
Gross volume
0000
Net weight
73Kg
Gross weight
103Kg
Certified model
SAG719PA
CE-certified
-
Company
0230
Alimentazione
NESSUNA

Download

BNN53071190_it.pdf

Download (314.87KB)

BNN53071190_de.pdf

Download (316.89KB)

BNN53071190_en.pdf

Download (314.76KB)

BNN53071190_es.pdf

Download (314.82KB)

BNN53071190_fr.pdf

Download (316.96KB)
