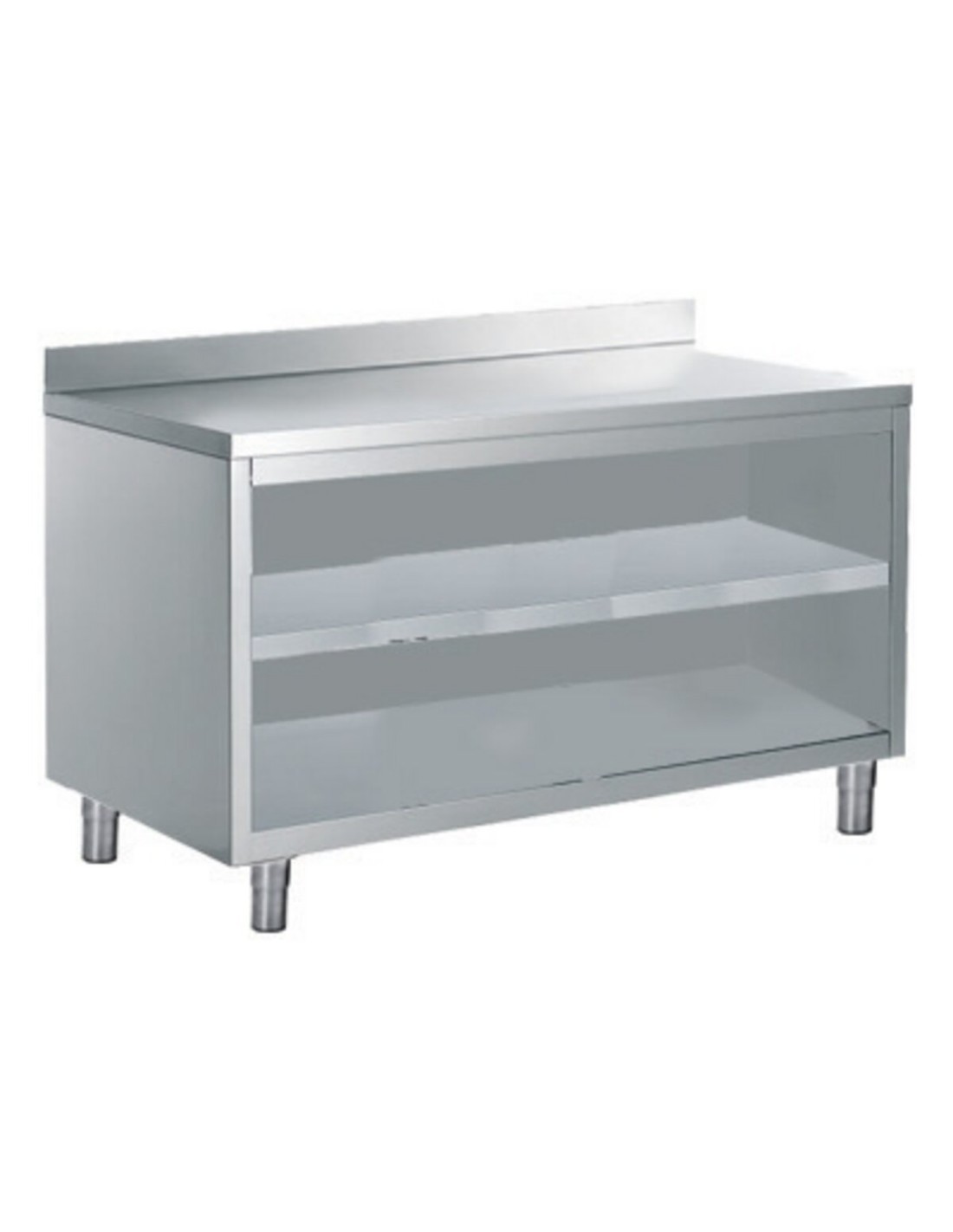

OPEN CUPBOARD TABLES AND AN INTERMEDIATE SHELF WITH SPLASHBACK

Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
Print
Home , NEUTRAL , PREPARATION , OPEN CABINET TABLE
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
NAG716PA
BNN53071160

Data sheet

Model
NAG716PA
Code
BNN53071160
Material type
ZPF
Definition
TAVOLO ARMADIO R10 A GIORNO SAG716PA
Width
1600mm
Height
900mm
Depth
700mm
Volume
1.267m3
Gross volume
1267
Net weight
79Kg
Gross weight
89Kg
Certified model
SAG716PA
CE-certified
-
Company
0230
Packaging width
750
Packaging height
1030
Packaging length
1640
Alimentazione
NESSUNA
Commercial code
SAG716PA
