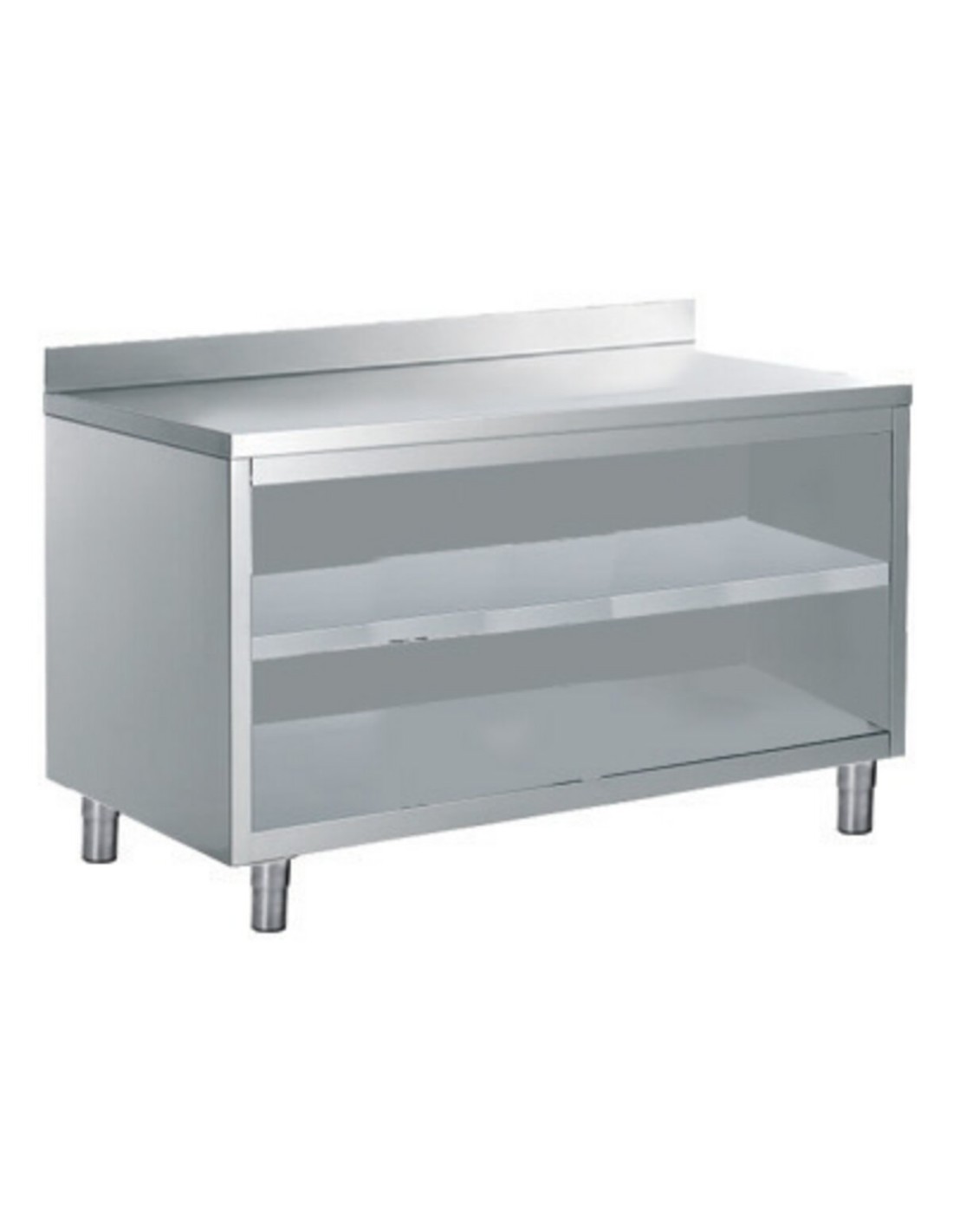

OPEN CUPBOARD TABLES AND AN INTERMEDIATE SHELF WITH SPLASHBACK

Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
Print
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
NAG708PA
BNN53071080

Data sheet

Model
NAG708PA
Code
BNN53071080
Material type
ZPF
Definition
TAVOLO ARMADIO R10 A GIORNO SAG708PA
Width
800mm
Height
900mm
Depth
700mm
Volume
0.7m3
Gross volume
0700
Net weight
29Kg
Gross weight
50Kg
Certified model
SAG708PA
CE-certified
-
Company
0230
Packaging width
840
Packaging height
1130
Packaging length
740
Alimentazione
NESSUNA

Download

BNN53071080_it.pdf

Download (317.87KB)

BNN53071080_de.pdf

Download (319.91KB)

BNN53071080_en.pdf

Download (317.49KB)

BNN53071080_es.pdf

Download (317.81KB)

BNN53071080_fr.pdf

Download (319.68KB)
