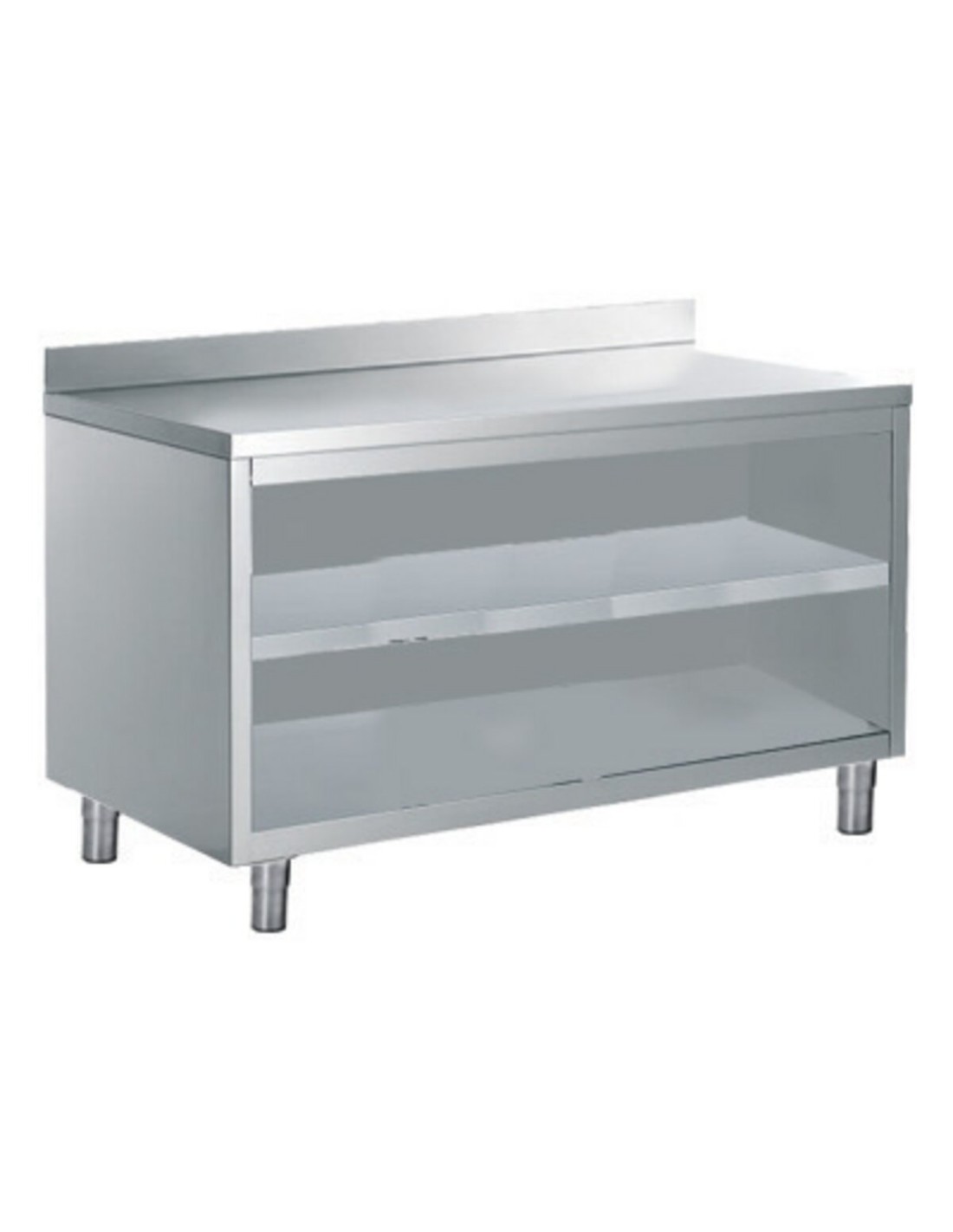

OPEN CUPBOARD TABLES AND AN INTERMEDIATE SHELF WITH SPLASHBACK

Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
Print
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler Scotch-Brite stainless steel execution. Worktop. Rear riser h 100 mm. Water-repellent and sound-absorbing sub-top. Height-adjustable intermediate shelf. Adjustable round feet. Can be fitted with castors.
NAG621PA
BNN53061210

Data sheet

Model
NAG621PA
Code
BNN53061210
Material type
ZPF
Definition
TAVOLO ARMADIO R10 A GIORNO SAG621PA
Width
2100mm
Height
900mm
Depth
600mm
Gross volume
0000
Net weight
64Kg
Gross weight
94Kg
Certified model
SAG621PA
CE-certified
-
Company
0230
Alimentazione
NESSUNA

Download

BNN53061210_it.pdf

Download (315.44KB)

BNN53061210_de.pdf

Download (317.47KB)

BNN53061210_en.pdf

Download (315.33KB)

BNN53061210_es.pdf

Download (315.38KB)

BNN53061210_fr.pdf

Download (317.53KB)
