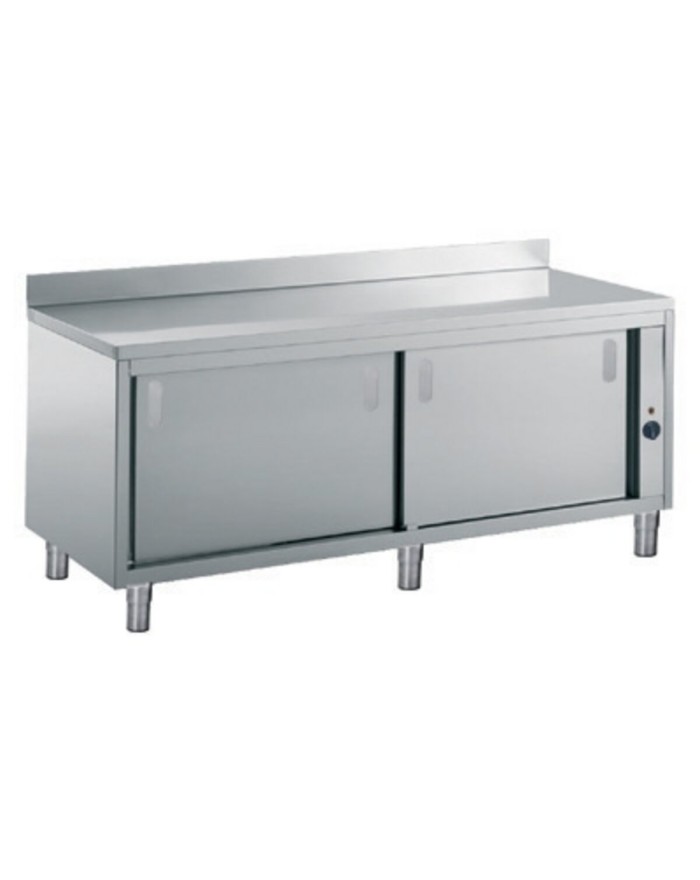

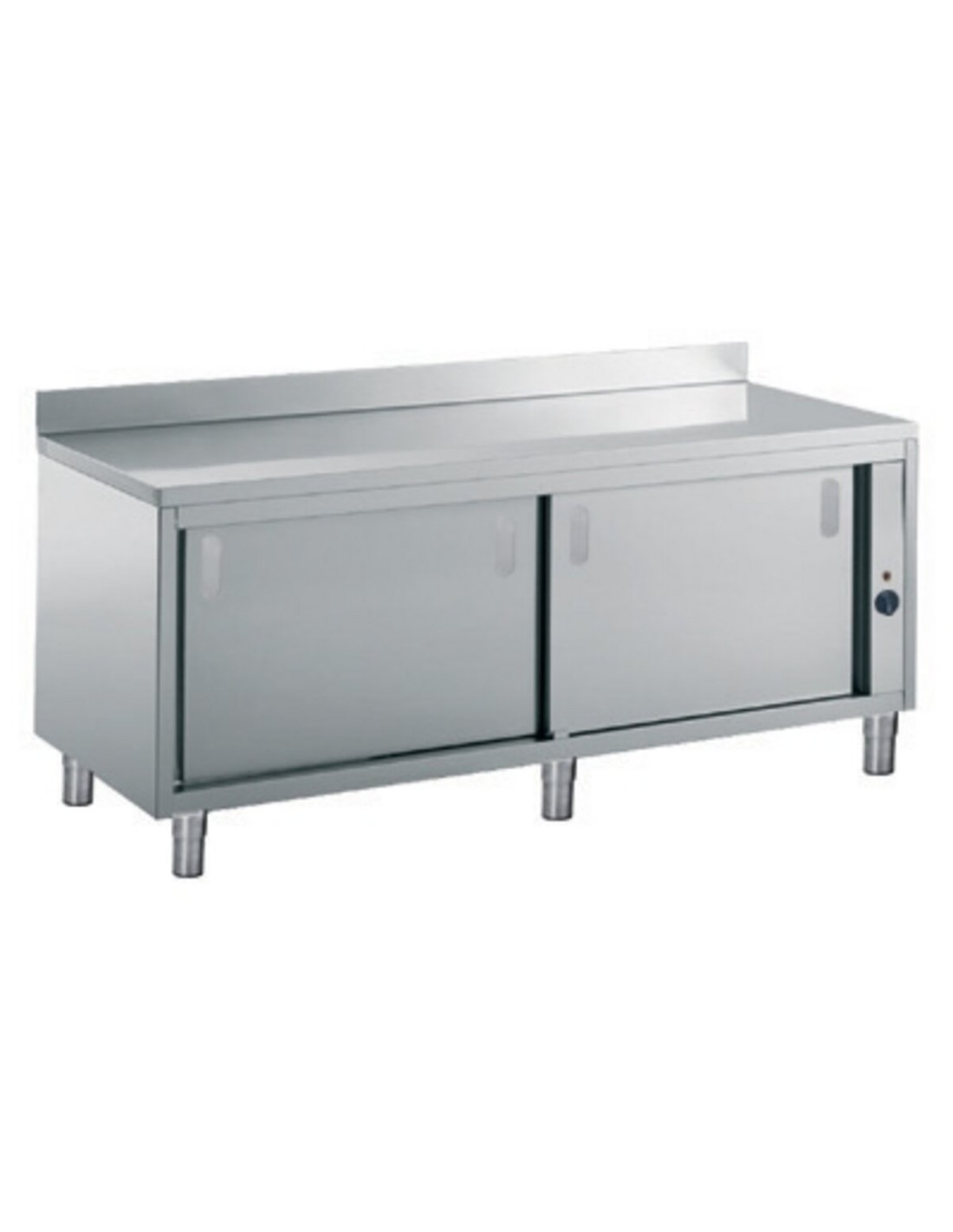

WARM CUPBOARD TABLE WITH SPLASHBACK -2 SLIDING DOORS AND LOWER SHELF

Scotch-Brite stainless steel execution. Ventilated heating. Rear splashback h 100 mm Water-repellent and sound-absorbing underfloor. Soundproof sliding doors, adjustable feet, can be fitted with castors 230V 1+N; 50/60 Hz; 2.4 Kw
Print
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler TEMPERATURE SET Working range (°C): 30°-70° Scotch-Brite stainless steel execution. Ventilated heating. Rear splashback h 100 mm Water-repellent and sound-absorbing underfloor. Soundproof sliding doors, adjustable feet, can be fitted with castors 230V 1+N; 50/60 Hz; 2.4 Kw
NAR614PA
BNN55160140

Data sheet

Model
NAR614PA
Code
BNN55160140
Material type
ZPF
Definition
TAVOLO ARMADIO R10 CALDO SAR614PA
Width
1400mm
Height
900mm
Depth
600mm
Volume
1.277m3
Electrical power
2.5Kw
220-240V 1N
Frequency
50-60 HzHz
Gross volume
1277
Net weight
88Kg
Gross weight
98Kg
IP grade
IPX4
Certified model
SAR614PA
CE-certified
-
Company
0230
Packaging width
750
Packaging height
1150
Packaging length
1480
Alimentazione
ELETTRICA
Production site
BELLUNO
