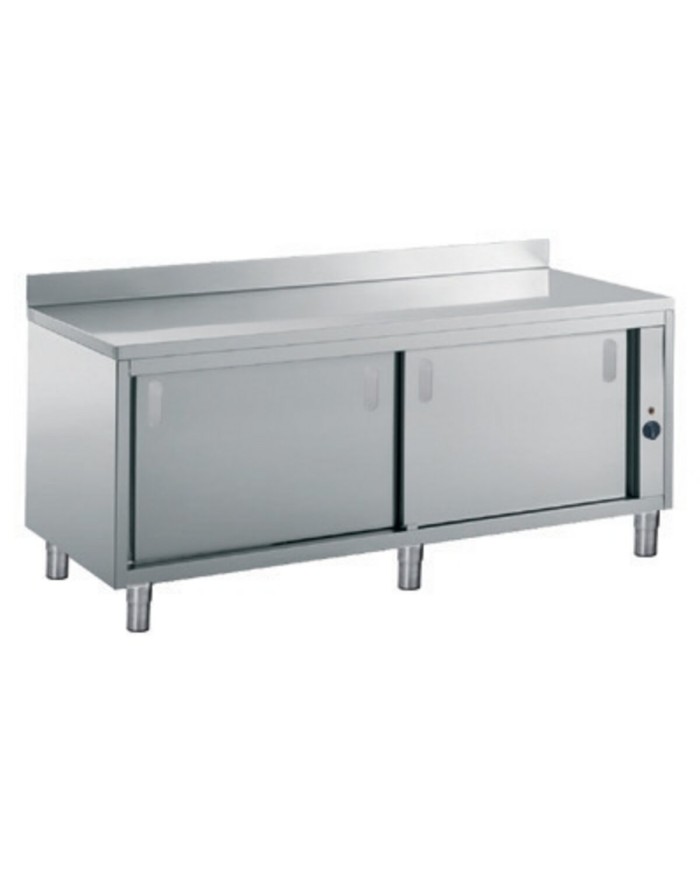

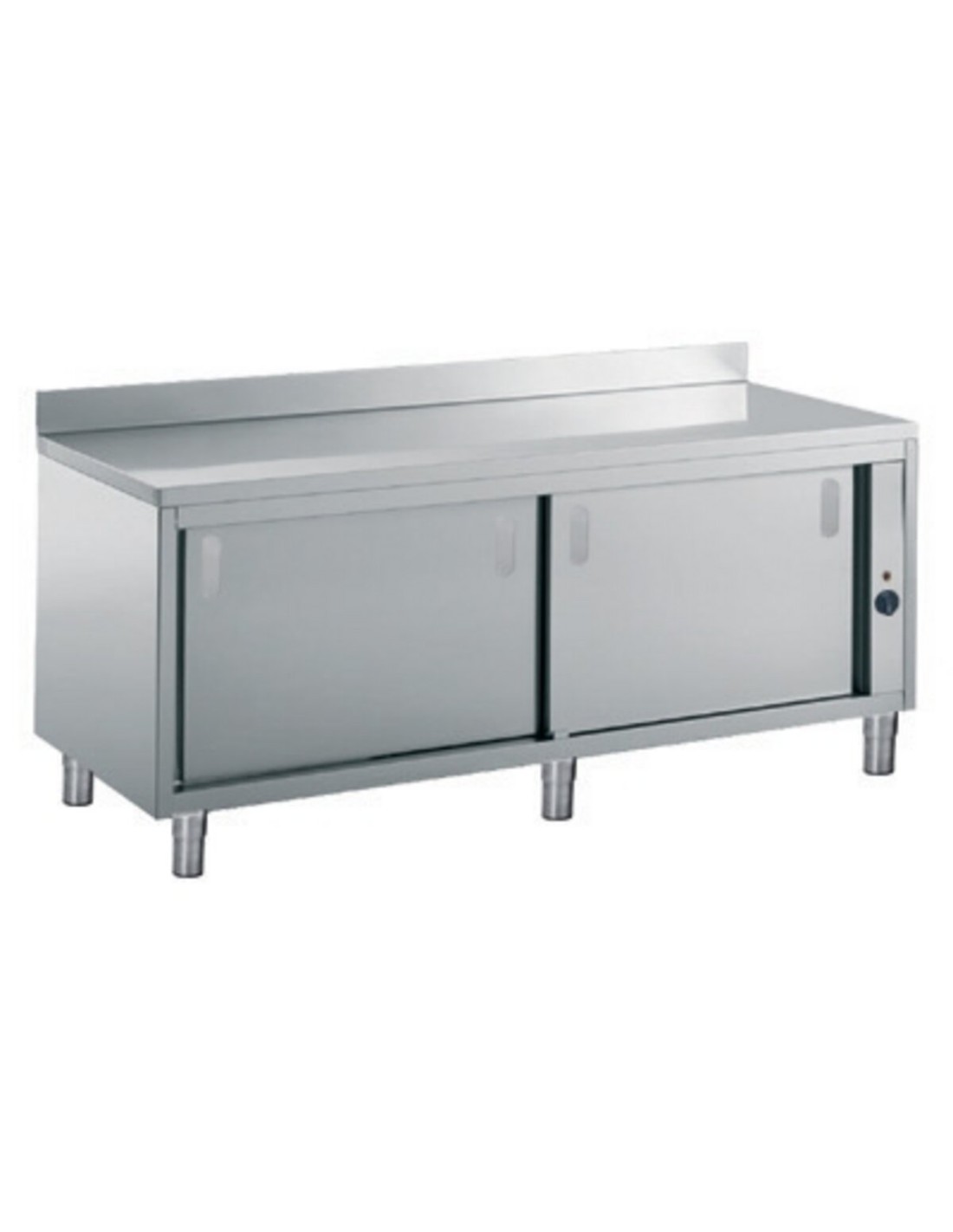

WARM CUPBOARD TABLE WITH SPLASHBACK -2 SLIDING DOORS AND LOWER SHELF
Scotch-Brite stainless steel execution.
Ventilated heating. Rear splashback h 100 mm
Water-repellent and sound-absorbing underfloor.
Soundproof sliding doors, adjustable feet, can be fitted with castors
230V 1+N; 50/60 Hz; 2.4 Kw
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm
18/10 AISI 304 STAINLESS STEEL SHELL
Recessed with respect to the top by 20 mm at the front, flush at the rear
18/10 AISI 304 STAINLESS STEEL SHELF
Longitudinal reinforcement at center of shelf adjustable in height on racks
18/10 AISI 304 STAINLESS STEEL DOORS
Front with recessed handle with inside counter door
SLIDES
Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides
SHUTTER
Closure with magnets and rotary opening
FEET
Round foot made of 18/10 AISI 304 stainless steel, with leveler
TEMPERATURE SET
Working range (°C): 30°-70°
Scotch-Brite stainless steel execution.
Ventilated heating. Rear splashback h 100 mm
Water-repellent and sound-absorbing underfloor.
Soundproof sliding doors, adjustable feet, can be fitted with castors
230V 1+N; 50/60 Hz; 2.4 Kw
NAR613PA
BNN55160130
Data sheet
- Model
- NAR613PA
- Code
- BNN55160130
- Material type
- ZPF
- Definition
- TAVOLO ARMADIO R10 CALDO SAR613PA
- Width
- 1300mm
- Height
- 900mm
- Depth
- 600mm
- Electrical power
- 2.5Kw
220-240V 1N - Frequency
- 50-60 HzHz
- Gross volume
- 0000
- IP grade
- IPX4
- Certified model
- SAR613PA
- CE-certified
- -
- Company
- 0230
- Alimentazione
- ELETTRICA
- Production site
- BELLUNO
