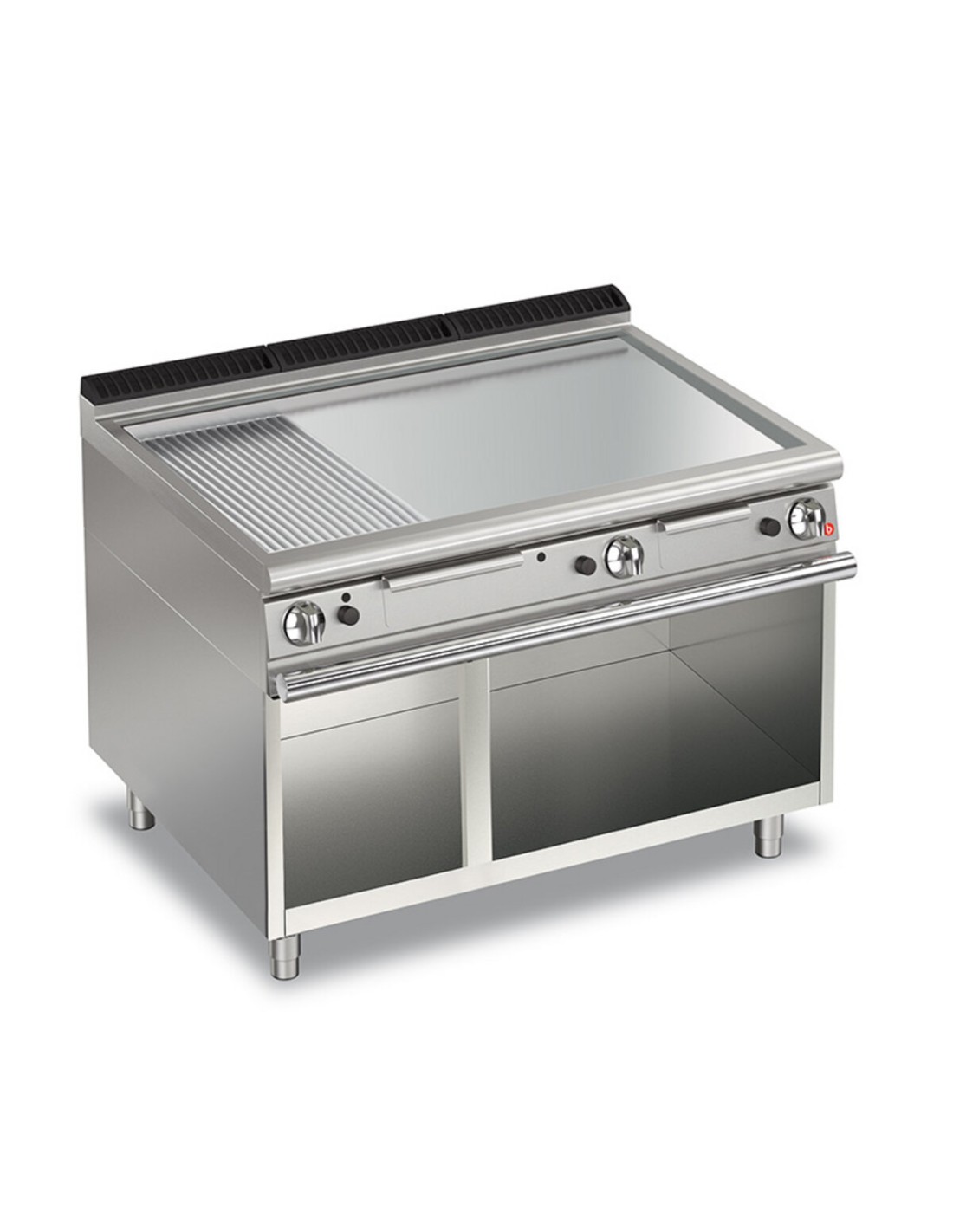

GAS FRY TOP 2/3 SMOOTH 1/3 RIBBED AISI 430 PLATE ON OPEN COMPARTMENT - THERMOSTAT-CONTROLLED
Data Sheet
DWG-3D
Pictures
Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage.
Tops with 2 mm thickness
Plates inclined by 10mm towards the front of the machine.
Large grease collection drawer.
Electric version: heating by incoloy armored heating elements.
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Even heat distribution thanks to several burners under the hotplate. AISI430 plate. Temperature regulation from 100°c to 280°c Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

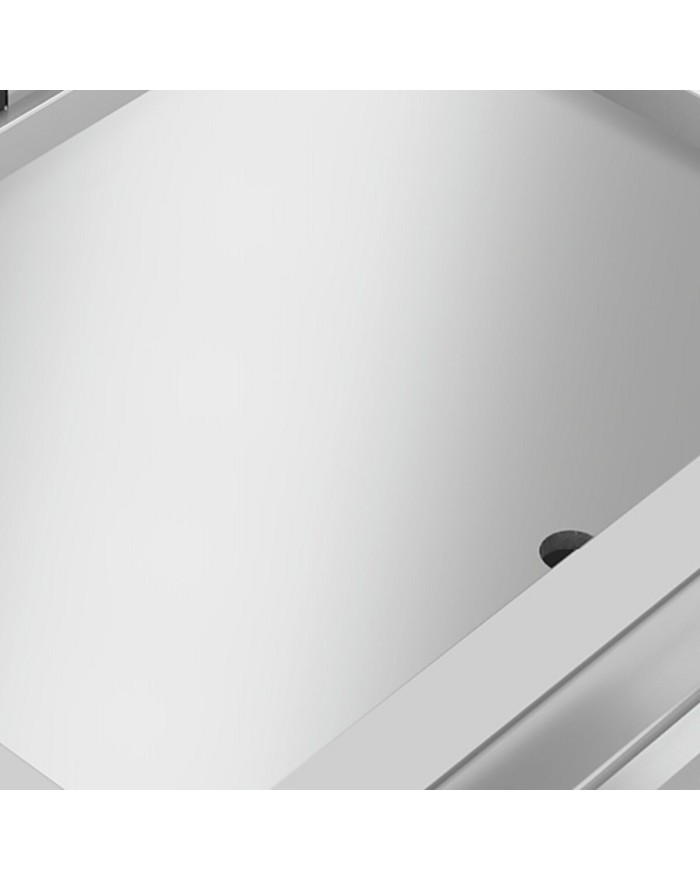

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

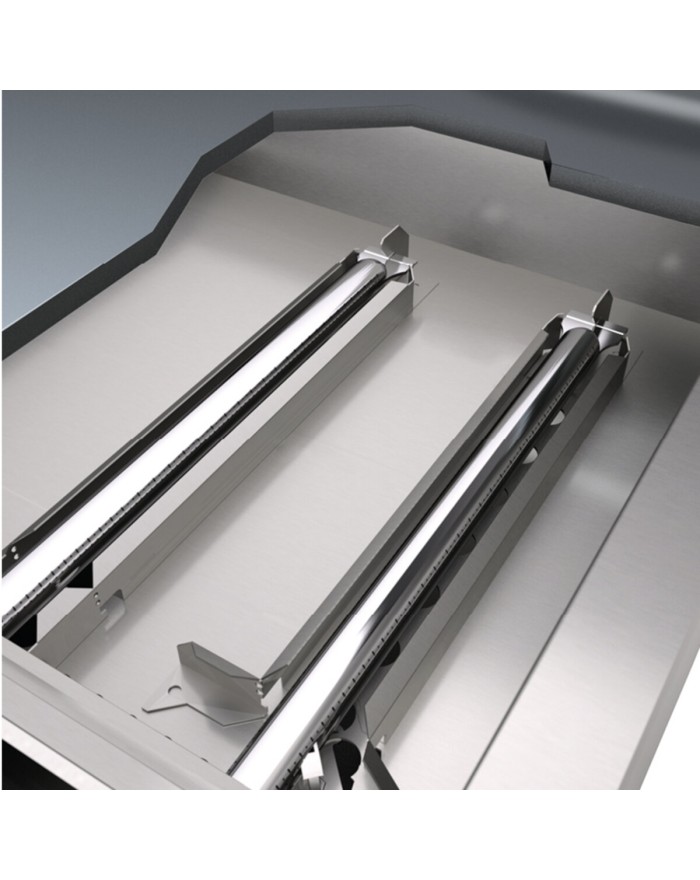

Even heat distribution thanks to several burners under the hotplate.
Q70FTTV/G1223
CR1019669 - Standard Standard
Data sheet
- Commercial Line
- QUEEN
- Depth
- 700mm
- Packaging width
- 980
- Height
- 870mm
- Packaging height
- 500
- Volume
- 0.731m3
- Width
- 1200mm
- Gas power Kw
- 19,50Kw
- Packaging length
- 440
- Gas power (G25.3/25 mbar)
- 18,75Kw
- Alimentazione
- GAS
- Gas power Kcal
- 16125Kcal
- Gross volume
- 0960
- Tipo piastra
- 1/3RIBBED
- Net weight
- 133Kg
- Materiale Piastra
- AISI430
- Gross weight
- 148Kg
- III1a2H3B-P
- DK
- Production site
- BELLUNO
- Controllo
- THERMOSTATATE
- Product variant
- PIASTRA LISCIA /RIGATA
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Chimney type
- A1
- Model
- Q70FTTV/G1223
- Certified model
- Q70FTTV/G1223
- CODE
- CR1019669
- CE-certified
- CE-0085BU0308
- Commercial code
- Q70FTTV/G1223
- Product type
- STANDARD
- Material type
- ZPF
- Company
- 0232
- Definition
- Q70FTTV/G1223 FTG 1/3 RIG. M120 430 A/G
Specific References
- mpn
- Q70FTTV/G1223
