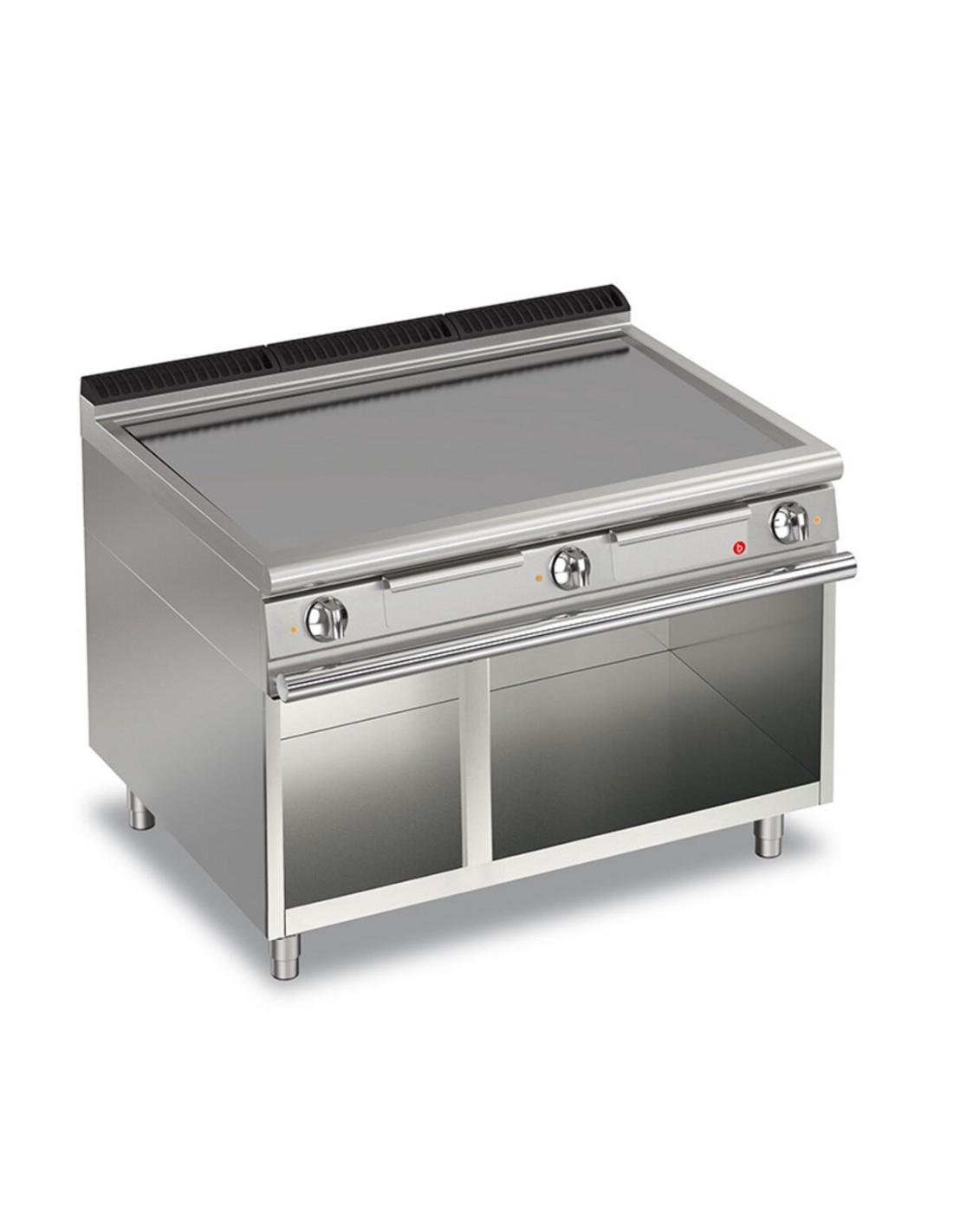

ELECTRIC FRY TOP SMOOTH PLATE ON OPEN COMPARTMENT

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Mild steel plate (for non-EU markets). Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Print
Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Mild steel plate (for non-EU markets). Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

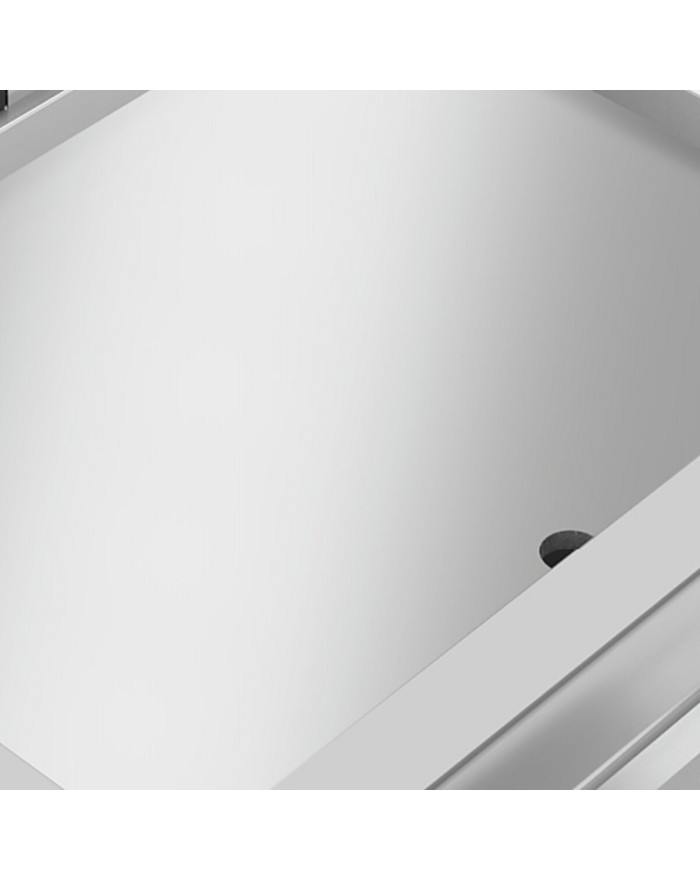

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

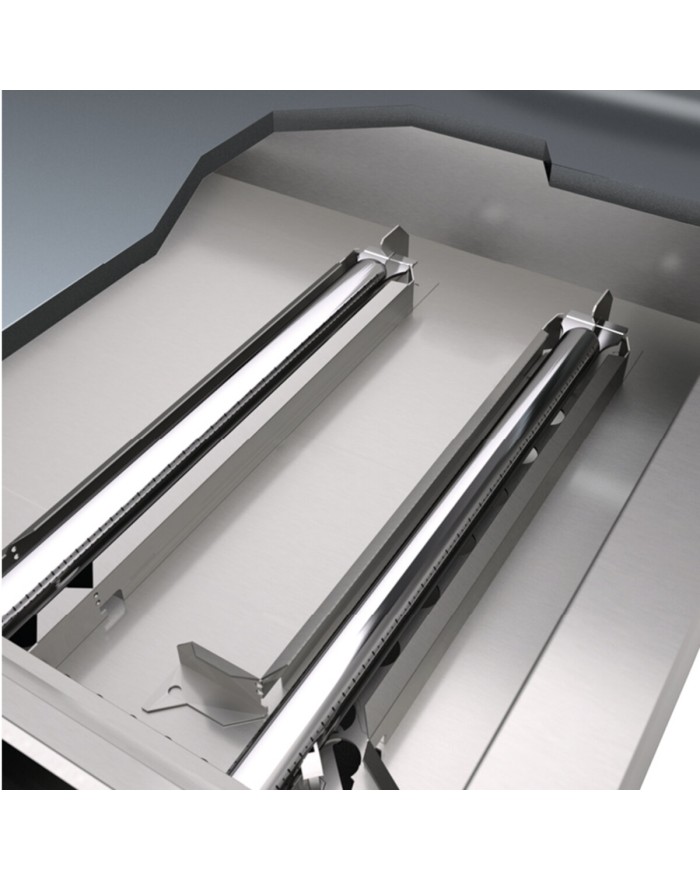

Even heat distribution thanks to several burners under the hotplate.

Q70FTV/E1200
CR1014469

Data sheet

Model
Q70FTV/E1200
Code
CR1014469
Material type
ZPF
Definition
Q70FTV/E1200 FTE LISCIO M120 A/G
Width
1200mm
Height
870mm
Depth
700mm
Volume
0.731m3
Electrical power
16.2Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0980
Net weight
129Kg
Gross weight
143Kg
IP grade
IPX4
Certified model
Q70FTV/E1200
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
980
Packaging height
500
Packaging length
440
Alimentazione
ELETTRICA
Commercial code
Q70FTV/E1200
Production site
BELLUNO
Product variant
PIASTRA LISCIA

Download

CR1014469_it.pdf

Download (868.83KB)

CR1014469_de.pdf

Download (870.95KB)

CR1014469_en.pdf

Download (868.06KB)

CR1014469_es.pdf

Download (868.69KB)

CR1014469_fr.pdf

Download (870.96KB)
