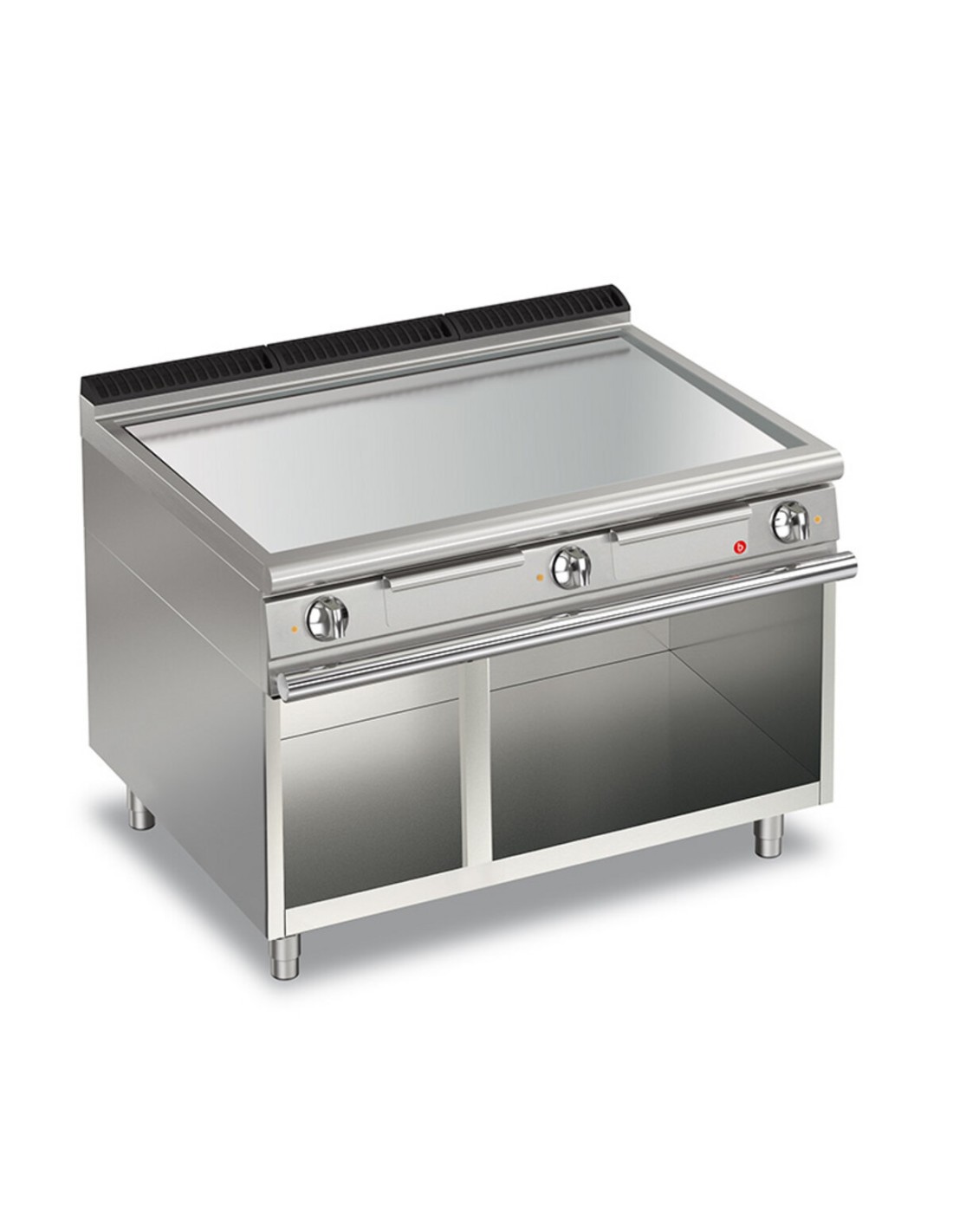

ELECTRIC FRY TOP SMOOTH CHROME PLATE ON OPEN COMPARTMENT

Cooking plate lowered from the plane by 4 cm and tilted 1 cm toward the front of the machine for grease drainage. Tops with 2 mm thickness Plates inclined by 10mm towards the front of the machine. Large grease collection drawer. Tubular burner with self-stabilising flame with great uniformity of heat distribution. Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas. Plate with armoured incoloy heating elements placed under the bottom for cooking with temperature uniformity. Chrome-plated plate. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


A 10-mm tilt of the plates toward the front of the machine allows for optimal grease outflow to the grease pan.

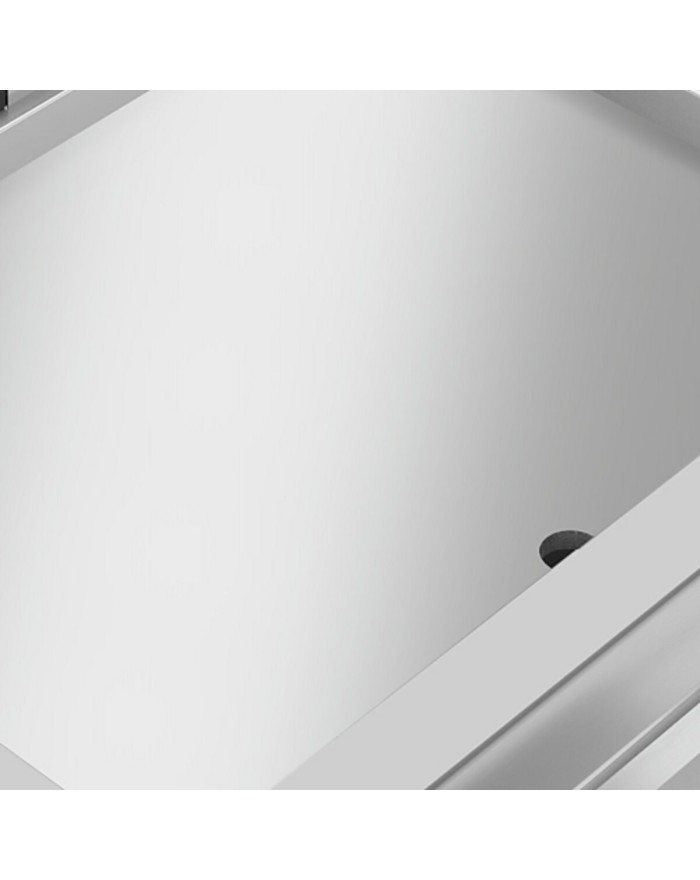

Plate welded to the hob that provides a larger cooking zone and eliminates dirt accumulation areas.

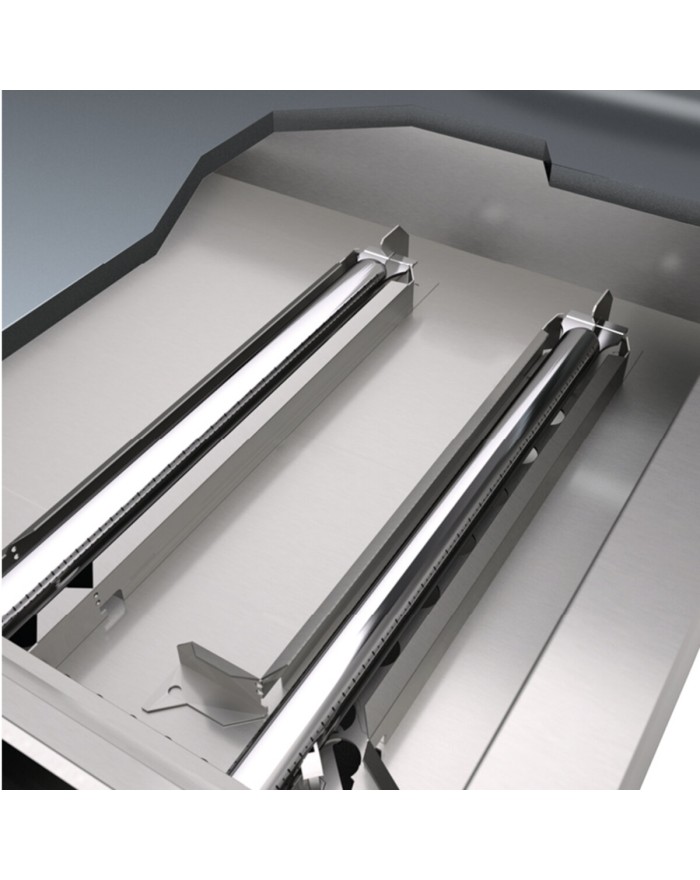

Even heat distribution thanks to several burners under the hotplate.

Q70FTV/E1205
CR1014489 - Standard Standard

Data sheet

Company
0232
Model
Q70FTV/E1205
Commercial Line
QUEEN
CODE
CR1014489
Packaging width
850
Commercial code
Q70FTV/E1205
Packaging height
1150
Material type
ZPF
Width
1200mm
Definition
Q70FTV/E1205 FTE LISCIO CROMATO M120 A/G
Packaging length
1260
Depth
700mm
Alimentazione
ELETTRICA
Height
870mm
Tipo piastra
SMOOTH
Volume
0.731m3
Electrical power
16,200Kw
380-415V 3N
Gross volume
1232
Frequency
50-60 HzHz
Net weight
135.6Kg
Gross weight
156Kg
IP grade
IPX4
Production site
BELLUNO
Materiale Piastra
CHROME
Product variant
PIASTRA LISCIA CROMATA
Controllo
RUBINET
Certified model
Q70FTV/E1205
Product type
STANDARD

Specific References

mpn
Q70FTV/E1205
