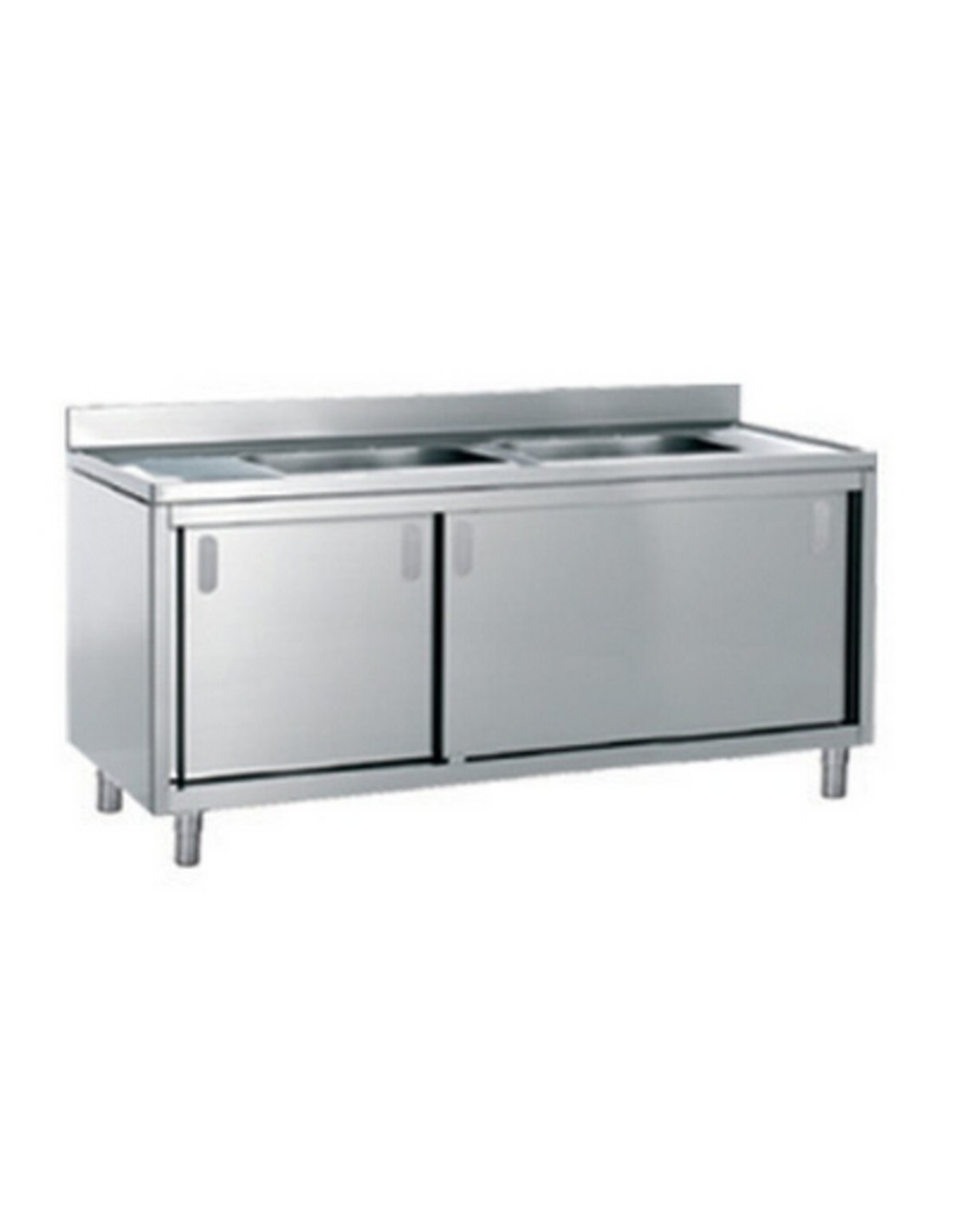

CUPBOARD SINK

Execution in Scotch-Brite stainless steel.Worktop with moulded tray. Rear riser h 100 mm. Soundproofed tank. Soundproofed hinged or two sliding doors. Adjustable round feet. Supplied with drain and overflow pipe. Can be fitted with false bottom.
Print
STAINLESS STEEL TOP 18/10 AISI 304 SB Height 40 mm Backsplash 100x15 mm Built-in with molded drip tray, sinks welded to the top, with drain hole, strainer, and overflow STAINLESS STEEL BODY AISI 430 Set back from the top 20 mm at the front, no back, no inner shelf STAINLESS STEEL DOORS AISI 430 Front with recessed handle with internal counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Square, made of 40x40 tube of 18/10 AISI 304 stainless steel, with leveler Execution in Scotch-Brite stainless steel.Worktop with moulded tray. Rear riser h 100 mm. Soundproofed tank. Soundproofed hinged or two sliding doors. Adjustable round feet. Supplied with drain and overflow pipe. Can be fitted with false bottom.
NLA7242C
BNN26240260

Data sheet

Model
NLA7242C
Code
BNN26240260
Material type
ZPF
Definition
LAVATOIO ARMADIO R10 SLA7242C
Width
2400mm
Height
900mm
Depth
700mm
Volume
2m3
Gross volume
2000
Net weight
89Kg
Gross weight
99Kg
Certified model
SLA7242C
CE-certified
-
Company
0230
Packaging width
750
Packaging height
1100
Packaging length
2450
Alimentazione
NESSUNA

Download

BNN26240260_it.pdf

Download (352.36KB)

BNN26240260_de.pdf

Download (354.67KB)

BNN26240260_en.pdf

Download (352.17KB)

BNN26240260_es.pdf

Download (352.37KB)

BNN26240260_fr.pdf

Download (354.34KB)
