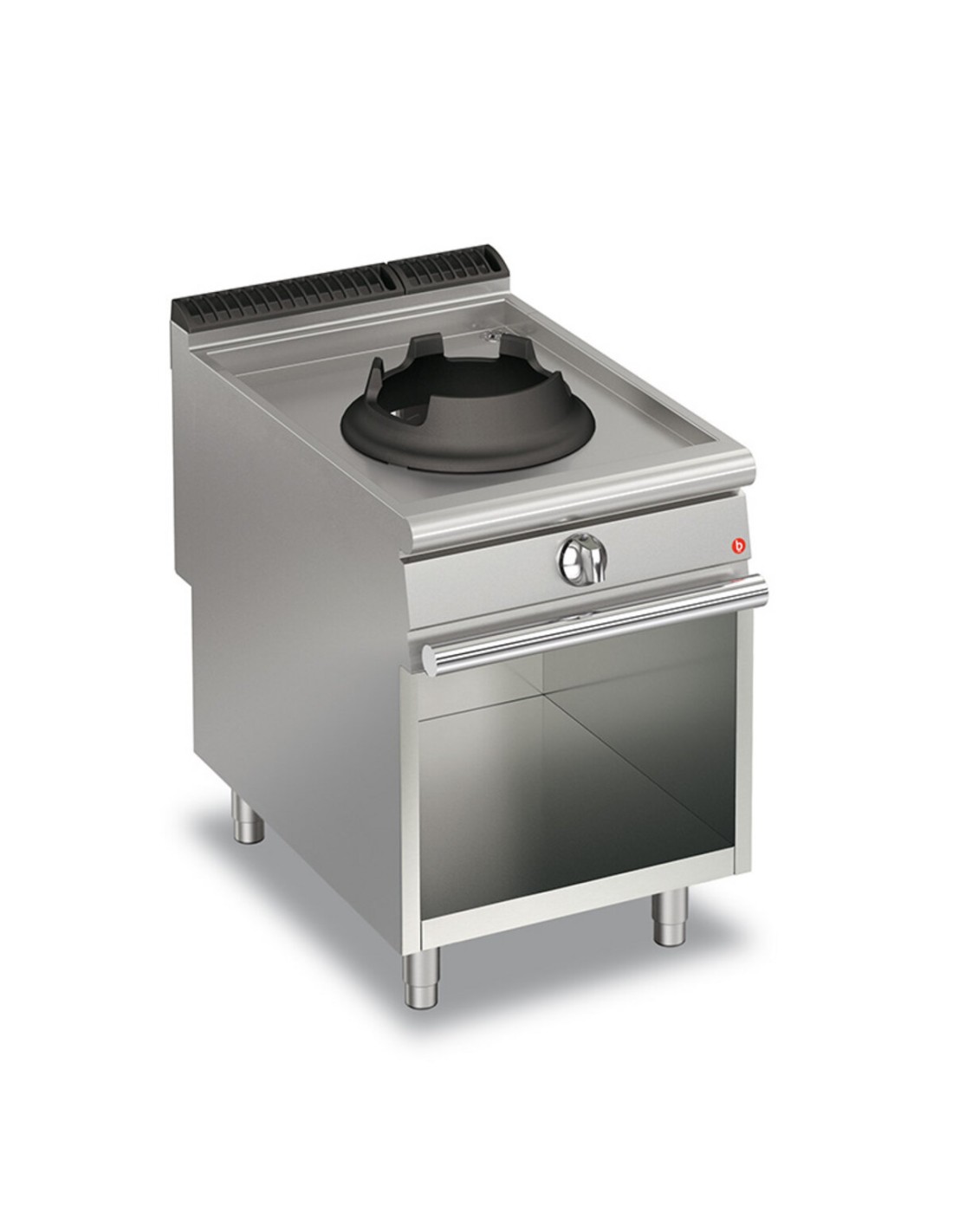

WOK 1 GAS FIRE 14KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , WOK GAS
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

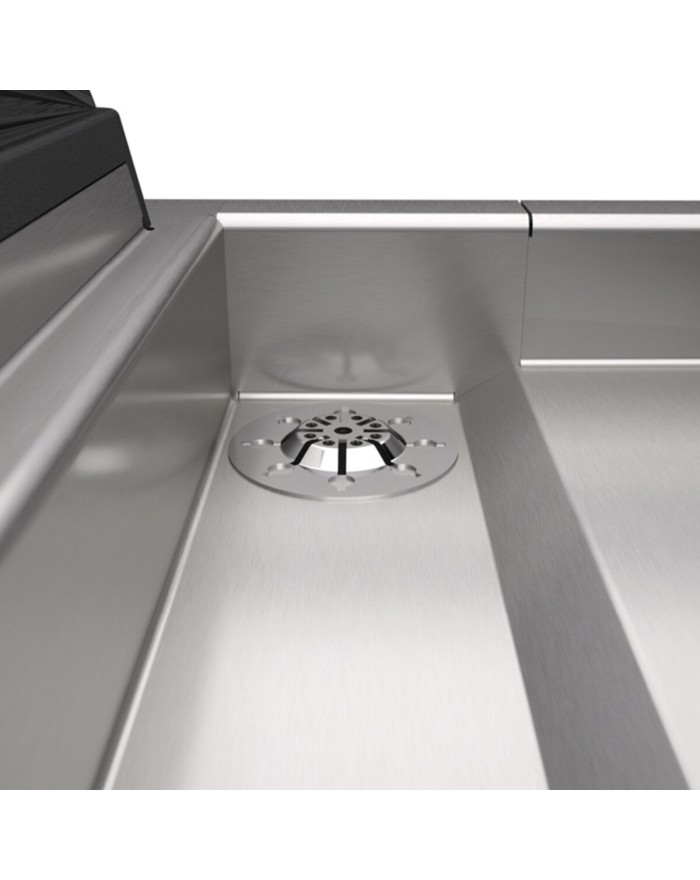

Table top with standardised tank and liquid drainage in the rear right-hand corner.

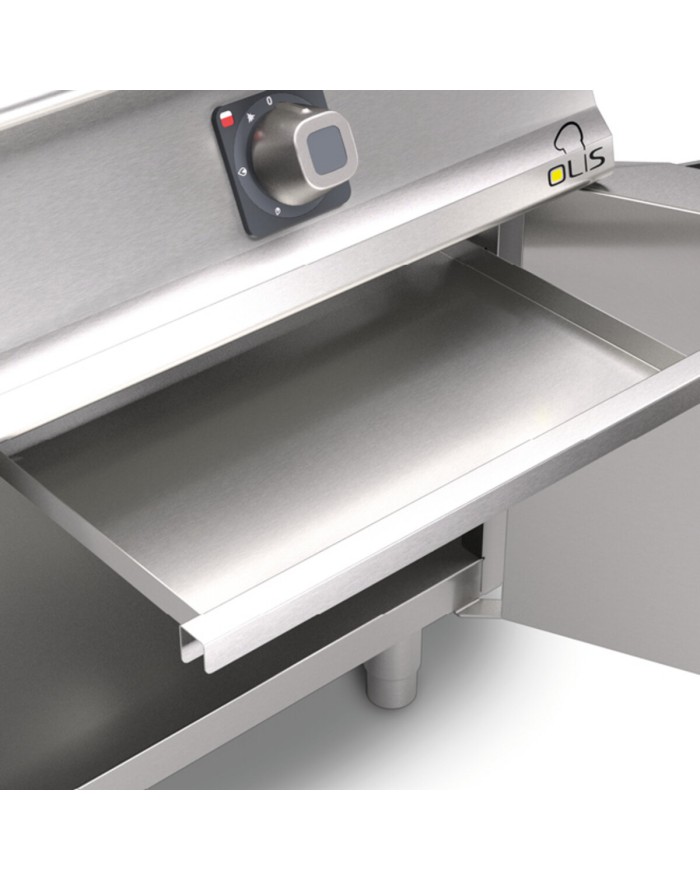

Tray for collecting overflow liquids.

Q90PCV/WG614
CR1015869 - Standard Standard

Data sheet

Packaging height
1150000
Height
870mm
Width
600mm
Volume
0.47m3
Packaging length
660
Gas power Kw
14,00Kw
Alimentazione
GAS
Gas power (G25.3/25 mbar)
13,30Kw
Modulo
M60
Gas power Kcal
11438Kcal
Gross volume
0774
Net weight
77.6Kg
Gross weight
90Kg
Production site
BELLUNO
Chimney type
A1
II2H3+
ES/GB/GR/IE/IT/PT/SK
Certified model
Q90PCV/WG6
Model
Q90PCV/WG614
CE-certified
CE-0085CR0044
CODE
CR1015869
Product type
STANDARD
Commercial code
Q90PCV/WG614
Company
0232
Material type
ZPF
Commercial Line
QUEEN
Definition
Q90PCV/WG614 WOK GAS M60 14KW A/G
Packaging width
1020
Depth
900mm

Specific References

mpn
Q90PCV/WG614
