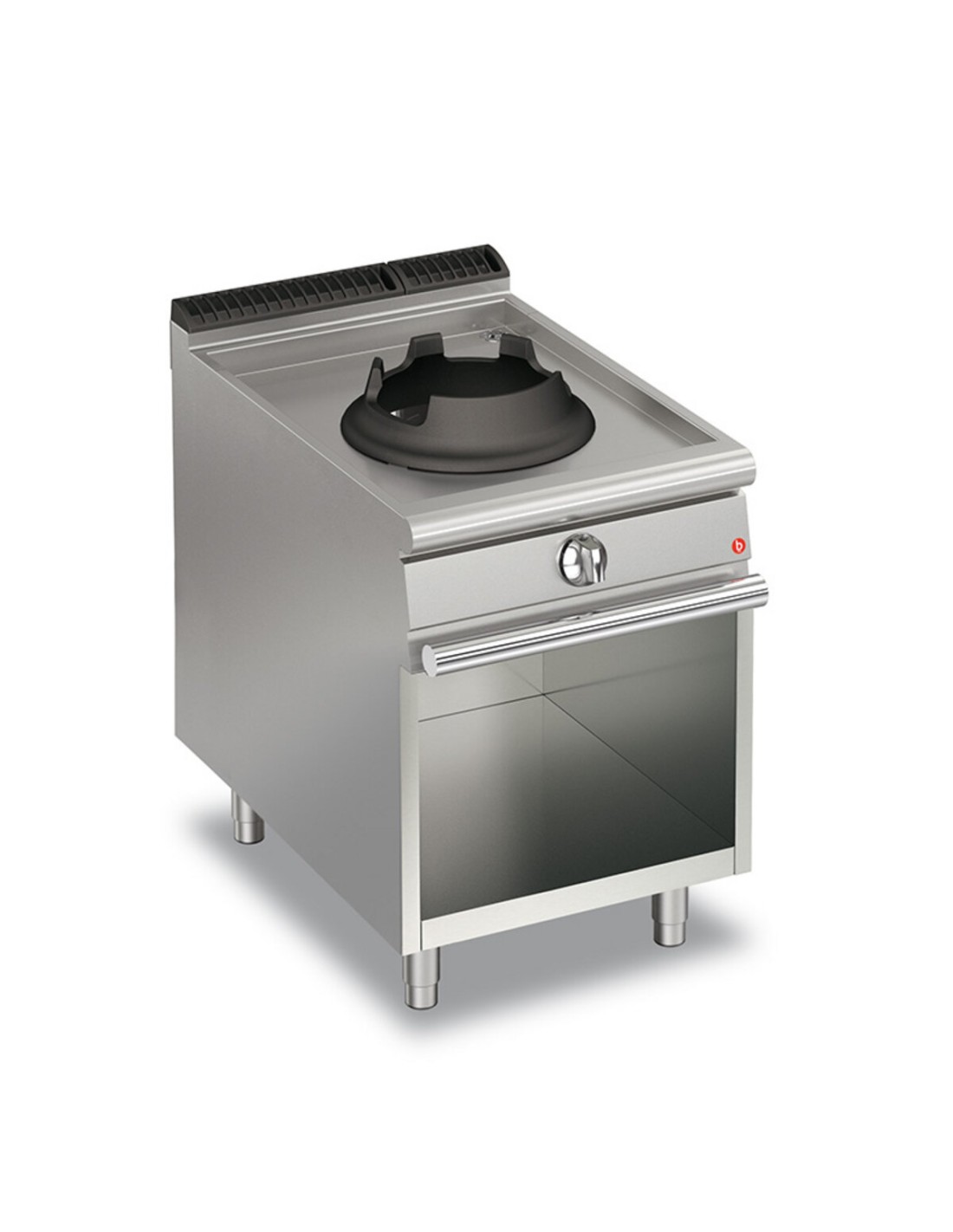

WOK 1 GAS FIRE 10KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Promo
Tipo Alimentazione
Print
Home , COOKING , QUEEN 7 , WOK GAS
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

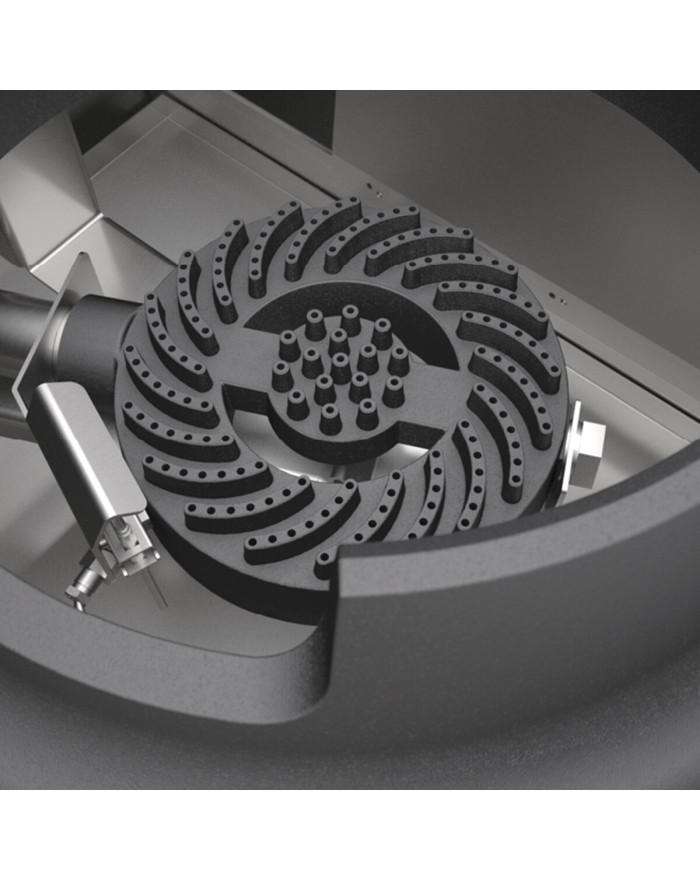

10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

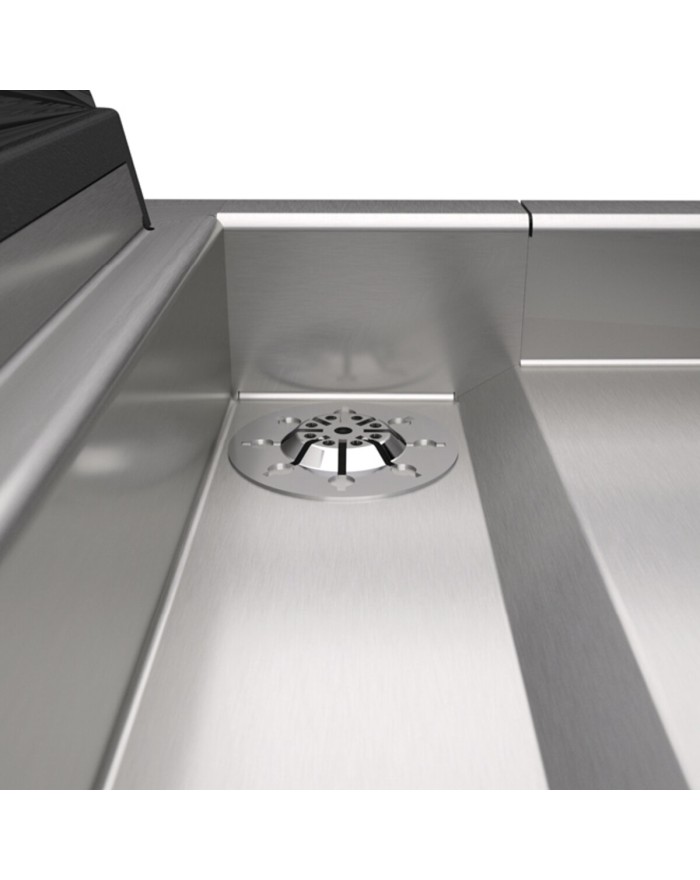

Table top with standardised tank and liquid drainage in the rear right-hand corner.

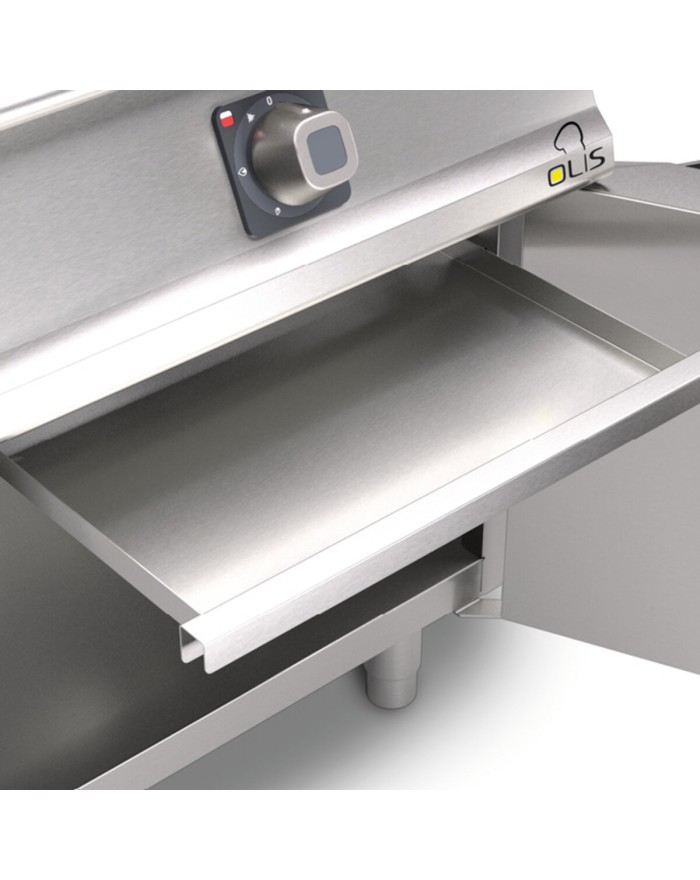

Tray for collecting overflow liquids.

Q70PCV/WG610
CR1012779 - Standard Standard

Data sheet

Gross volume
0645
Net weight
57.8Kg
Gross weight
70Kg
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1
Model
Q70PCV/WG610
Certified model
Q70PCV/WG6
CODE
CR1012779
CE-certified
CE-0085CR0044
Commercial code
Q70PCV/WG610
Product type
STANDARD
Material type
ZPF
Company
0232
Definition
Q70PCV/WG610 WOK GAS M60 10KW A/G
Commercial Line
QUEEN
Depth
700mm
Packaging width
850
Height
870mm
Packaging height
1150
Volume
0.365m3
Width
600mm
Gas power Kw
10,00Kw
Packaging length
660
Gas power (G25.3/25 mbar)
9,70Kw
Alimentazione
GAS
Gas power Kcal
8342Kcal
Modulo
M60

Specific References

mpn
Q70PCV/WG610
