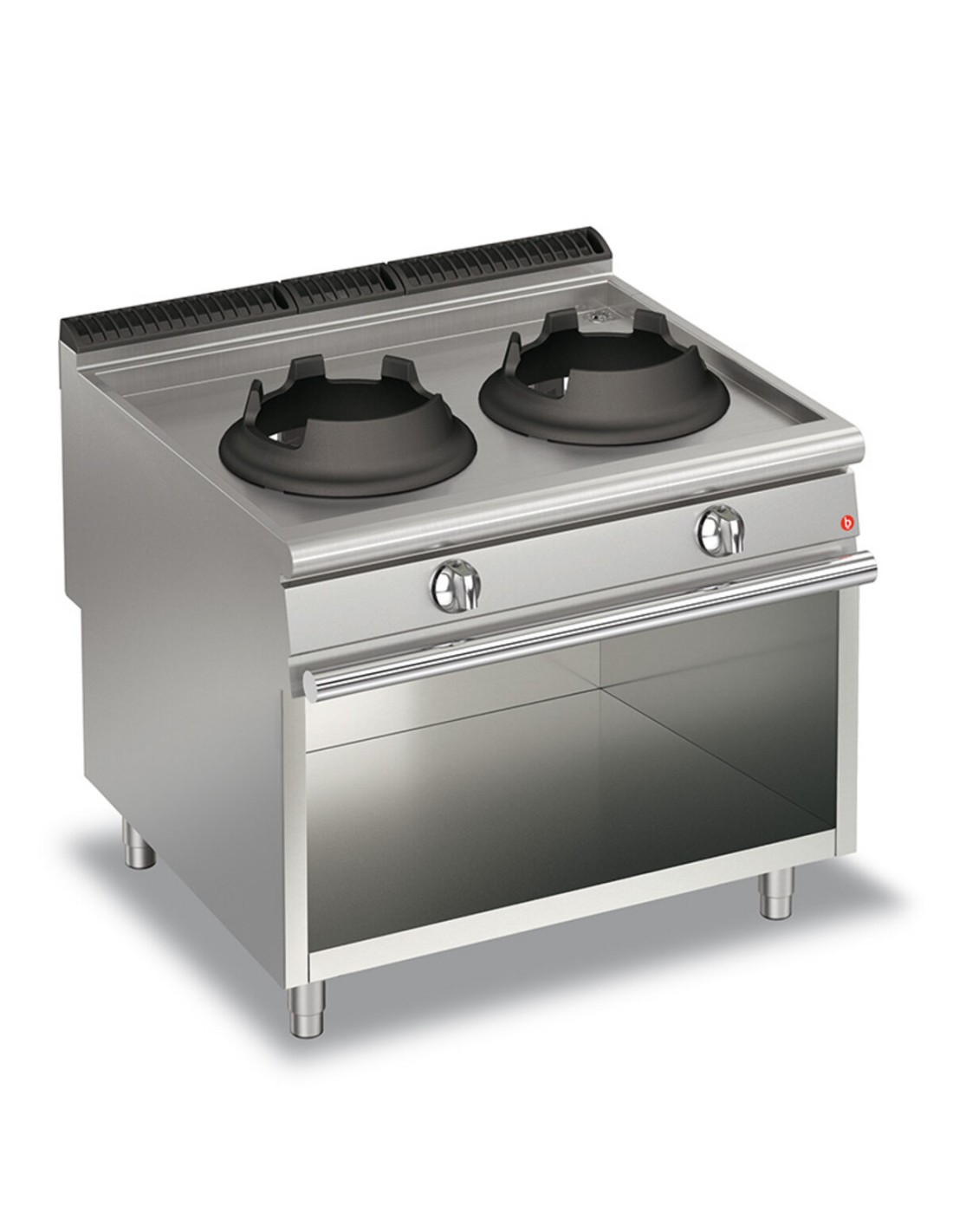

WOK 2 BURNER GAS 10KW ON OPEN COMPARTMENT

Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , WOK GAS
Gas Wok: Sturdy 20/10 plates with a large reservoir, standard reservoir plate with liquid drainage at the rear right corner, tray for collecting overflow liquids.Stainless steel outer coverings and feet. Available with 10 kw or 14 kw burners. Fireplace for heat venting. Tops with 20/10 thickness with 550x520 mm or 950x520 mm potting. Right rear exhaust 22 mm in diameter, prepared for ground connection. Available in compartment or with doors: for the 60-m module, 2 m 30 doors; for the 100-m module, 2 m 50 doors. In the compartment area, full-width tray for collecting overflow liquids. Table top with standardised tank and liquid drainage in the rear right-hand corner. Tray for collecting overflow liquids. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


10 kW or 14 kW enameled cast-iron burners removable for easy cleaning.

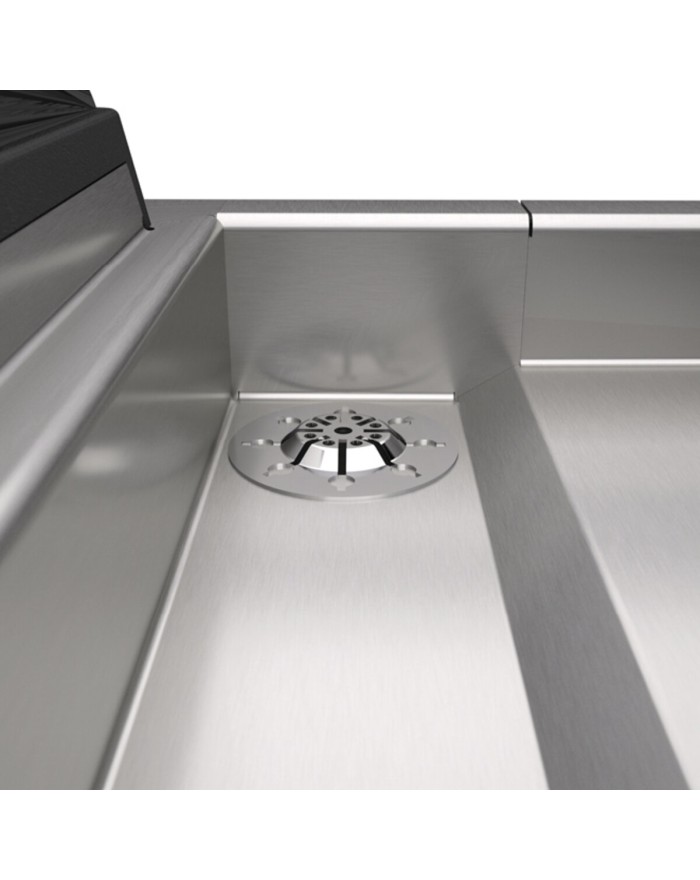

Table top with standardised tank and liquid drainage in the rear right-hand corner.

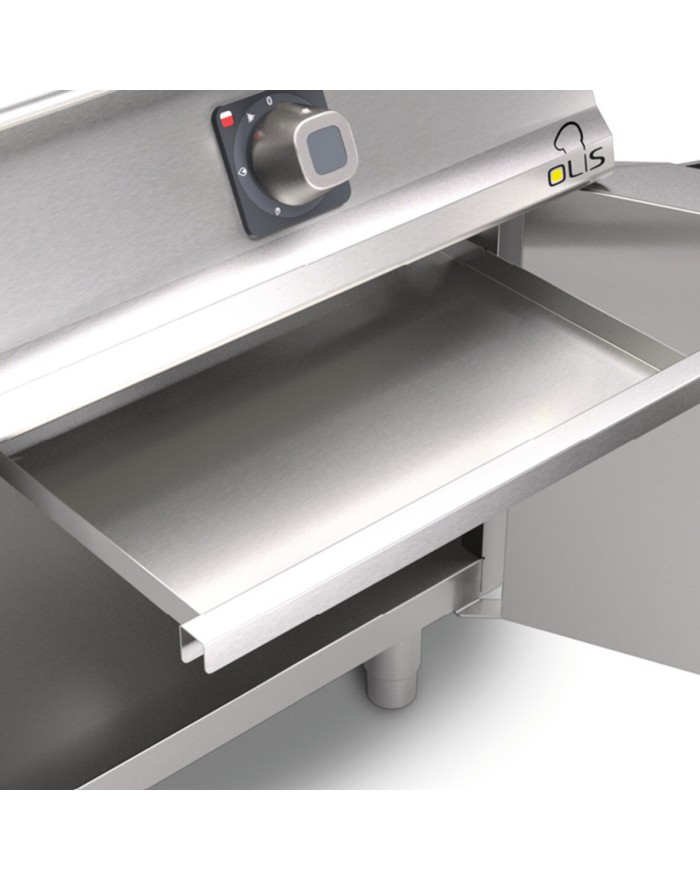

Tray for collecting overflow liquids.

Q90PCV/WG1020
CR1015889 - Standard Standard

Data sheet

Material type
ZPF
Company
0232
Definition
Q90PCV/WG1020 WOK GAS M100 10KW A/G
Commercial Line
QUEEN
Depth
900mm
Packaging width
1080
Height
870mm
Packaging height
1100000
Volume
0.783m3
Width
1000mm
Gas power Kw
2024,00Kw
Packaging length
960
Gas power (G25.3/25 mbar)
19,40Kw
Alimentazione
GAS
Gas power Kcal
16684Kcal
Modulo
M100
Gross volume
1140
N. Fires/Plates
DUE FUOCHI
Net weight
72Kg
Gross weight
85Kg
Production site
BELLUNO
II2H3+
ES/GB/GR/IE/IT/PT/SK
Chimney type
A1
Model
Q90PCV/WG1020
Certified model
Q90PCV/WG10
CODE
CR1015889
CE-certified
CE-0085CR0044
Commercial code
Q90PCV/WG1020
Product type
STANDARD

Specific References

mpn
Q90PCV/WG1020
