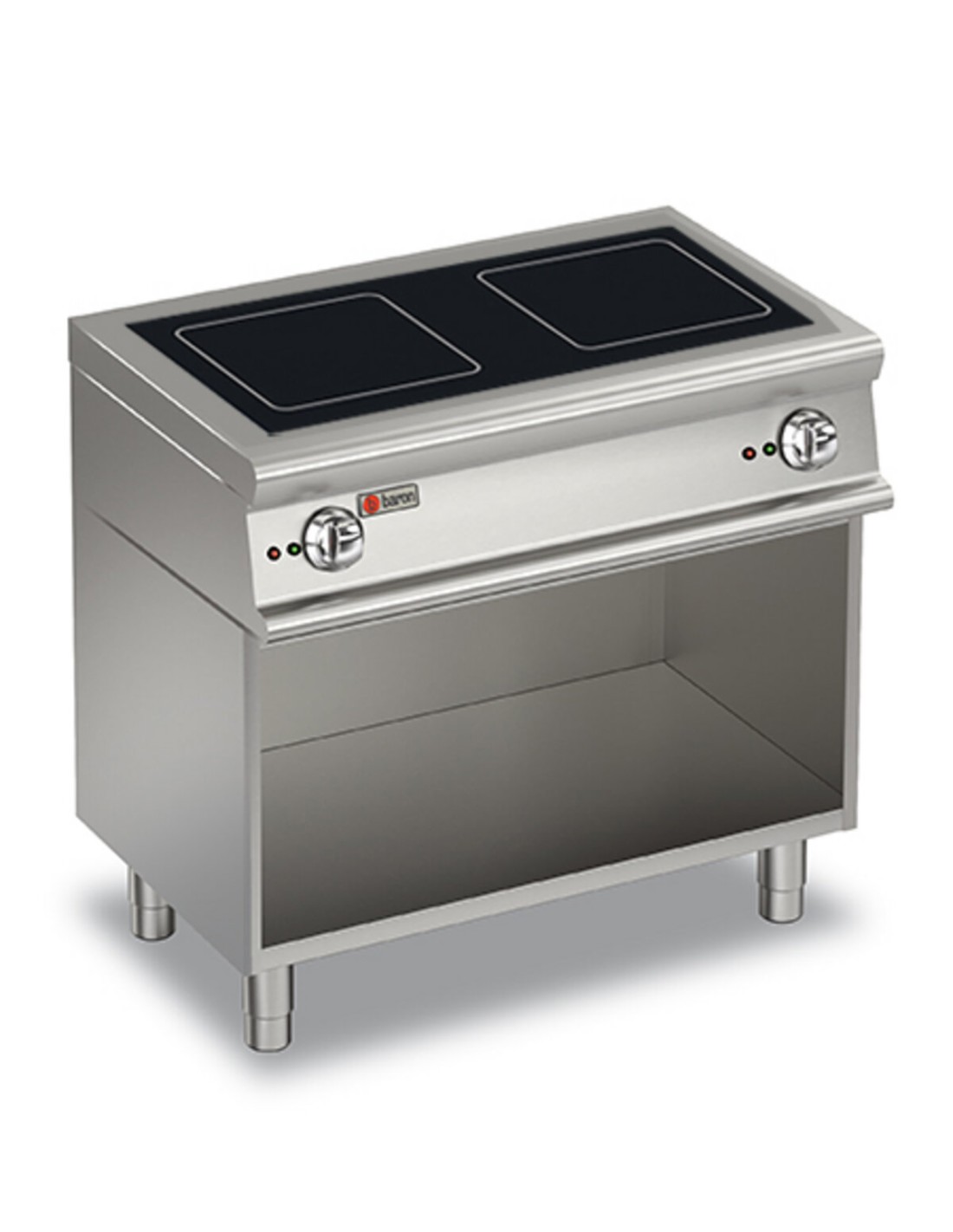

2-ZONE GLASS-CERAMIC COOKER - ON CABINET


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Unbreakable watertight glass-ceramic top. Cooking zone (27x27 cm) marked with square silkscreen printing, indicating the size of the idal vessel to be used. The power of each individual zone is 4 kW. Temperature adjustable by thermostat from 70 to 450°C. Heating activation indicator light and residual heat indicator light on the top.
N550PCV/VCE900
CR1011879

Data sheet

Model
N550PCV/VCE900
Code
CR1011879
Material type
ZPF
Definition
N550PCV/VCE900 VETROCERAMICA M90 A/G
Width
900mm
Height
870mm
Depth
550mm
Volume
0.431m3
Electrical power
8Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0000
IP grade
IPX4
Certified model
N550PCV/VCE900
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Alimentazione
ELETTRICA
Commercial code
N550PCV/VCE900
Production site
BELLUNO
