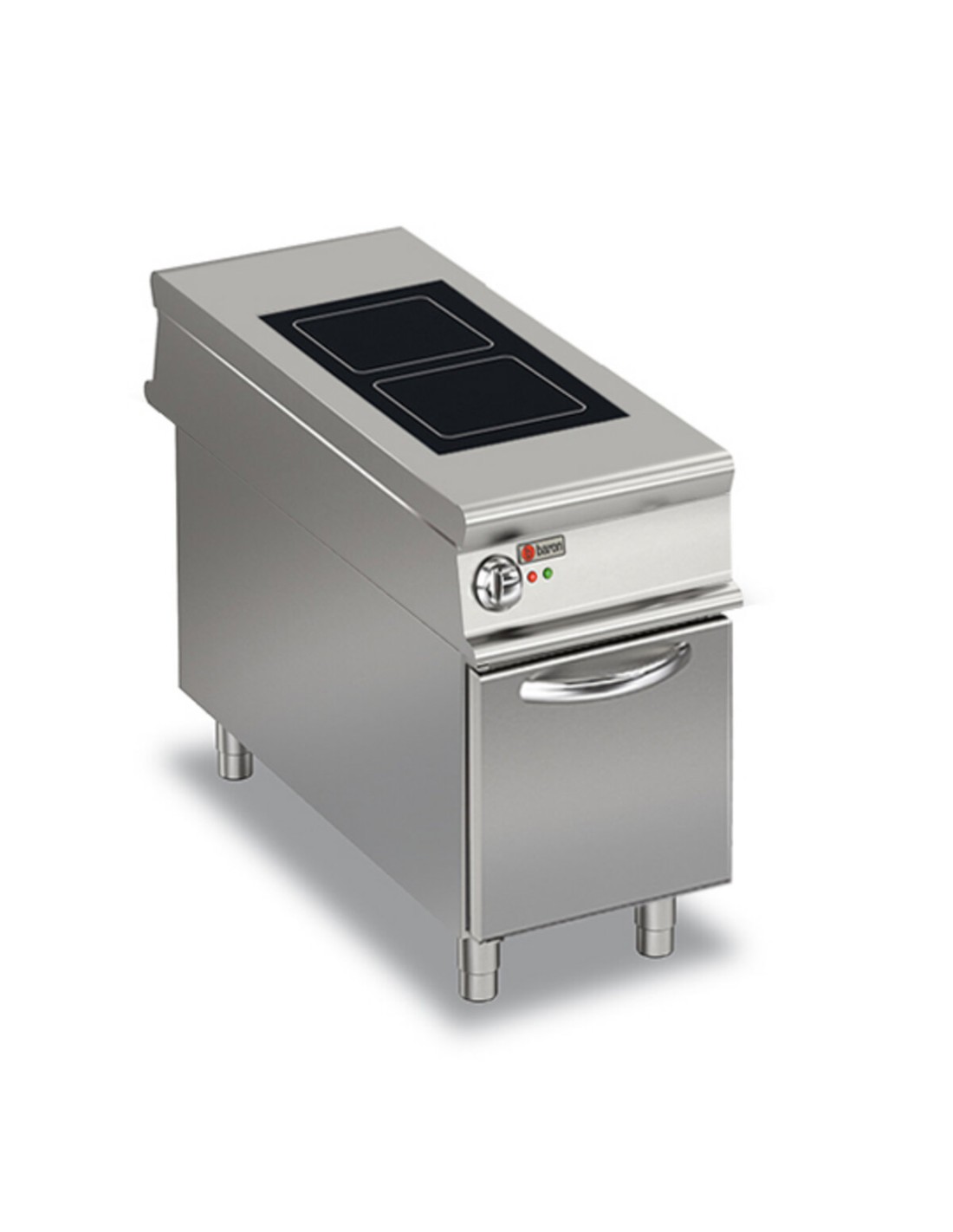

2-ZONE PASS-THROUGH GLASS-CERAMIC COOKER - ON CABINET WITH DOORS


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Unbreakable watertight glass-ceramic top. Cooking zone (27x27 cm) marked with square silkscreen printing, indicating the size of the idal vessel to be used. The power of each individual zone is 4 kW. Temperature adjustable by thermostat from 70 to 450°C. Heating activation indicator light and residual heat indicator light on the top.
N1100PCVP/VCE450
CR1010479

Data sheet

Model
N1100PCVP/VCE450
Code
CR1010479
Material type
ZPF
Definition
N1100PCVP/VCE450 VETROCERAM. M45 A/G C/P
Width
450mm
Height
870mm
Depth
1100mm
Volume
0.431m3
Electrical power
8Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0751
Net weight
48Kg
Gross weight
70Kg
IP grade
IPX4
Certified model
N1100PCVP/VCE450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1280
Packaging height
1150
Packaging length
510
Alimentazione
ELETTRICA
Commercial code
N1100PCVP/VCE450
Production site
BELLUNO
