4-ZONE GLASS-CERAMIC COOKER - TOP VERSION


Print

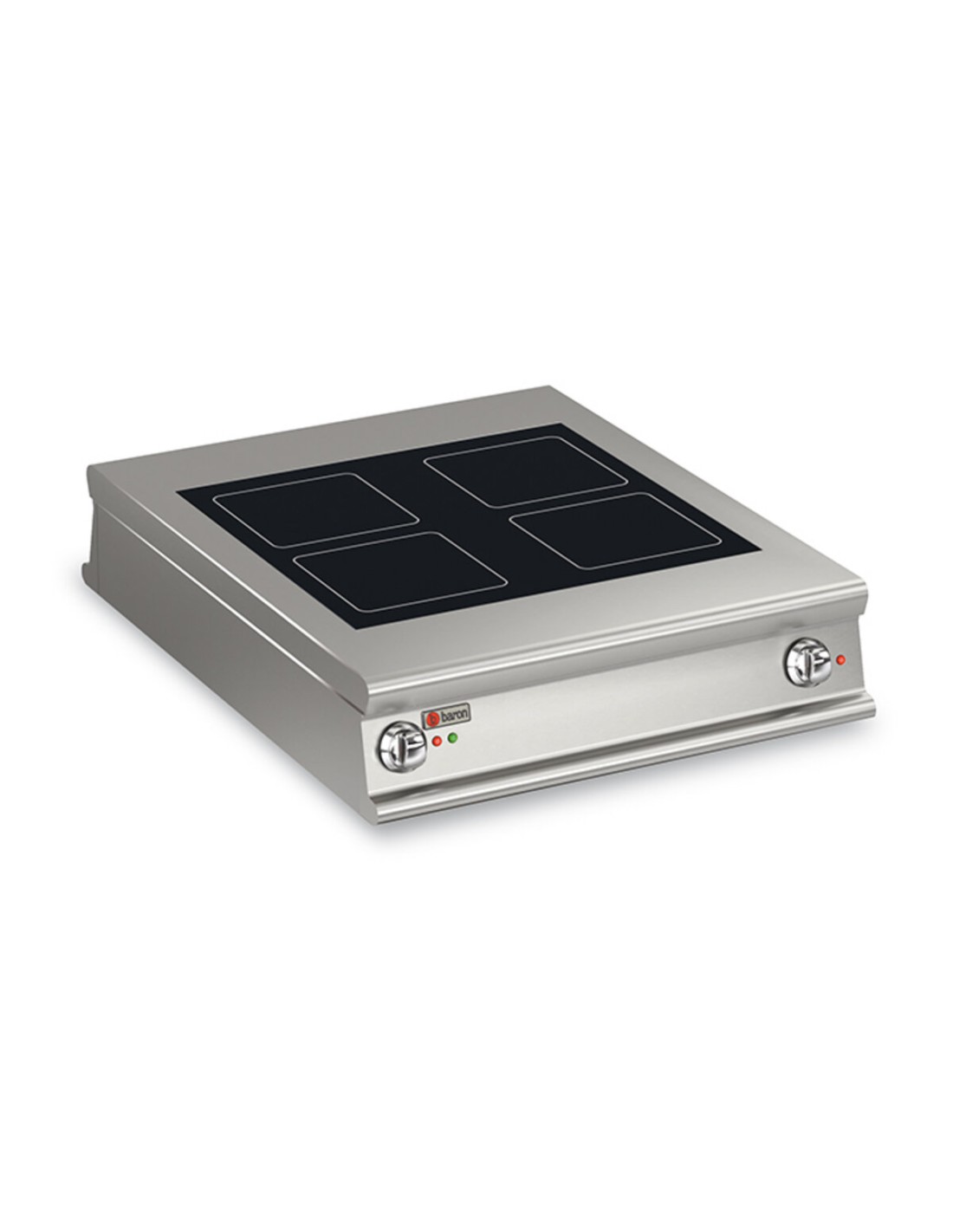

Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Unbreakable watertight glass-ceramic top. Cooking zone (27x27 cm) marked with square silkscreen printing, indicating the size of the idal vessel to be used. The power of each individual zone is 4 kW. Temperature adjustable by thermostat from 70 to 450°C. Heating activation indicator light and residual heat indicator light on the top.
N1100PC/VCE900
CR1010459

Data sheet

Model
N1100PC/VCE900
Code
CR1010459
Material type
ZPF
Definition
N1100PC/VCE900 VETROCERAMICA M90 TOP
Width
900mm
Height
280mm
Depth
1100mm
Volume
0.277m3
Electrical power
16Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0726
Net weight
81Kg
Gross weight
91Kg
IP grade
IPX4
Certified model
N1100PC/VCE900
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Packaging width
1300
Packaging height
570
Packaging length
980
Alimentazione
ELETTRICA
Commercial code
N1100PC/VCE900
Production site
BELLUNO
