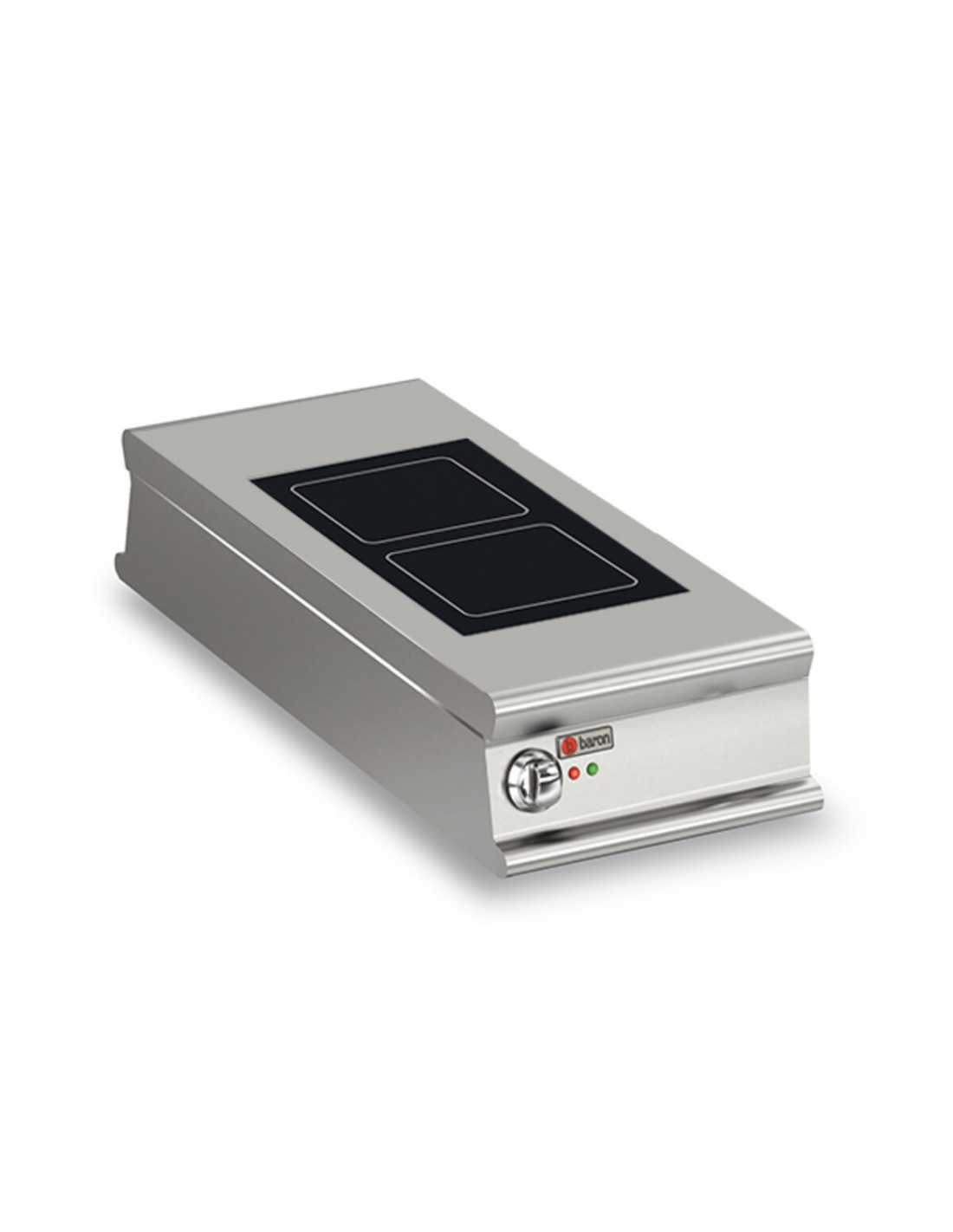

2-ZONE GLASS-CERAMIC COOKER - TOP VERSION


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Unbreakable watertight glass-ceramic top. Cooking zone (27x27 cm) marked with square silkscreen printing, indicating the size of the idal vessel to be used. The power of each individual zone is 4 kW. Temperature adjustable by thermostat from 70 to 450°C. Heating activation indicator light and residual heat indicator light on the top.
N1100PC/VCE450
CR1010449

Data sheet

Model
N1100PC/VCE450
Code
CR1010449
Material type
ZPF
Definition
N1100PC/VCE450 VETROCERAMICA M45 TOP
Width
450mm
Height
280mm
Depth
1100mm
Volume
0.139m3
Electrical power
8Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0000
Capacity
26 litri
Voltage
400
IP grade
IPX4
Certified model
N1100PC/VCE450
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Alimentazione
ELETTRICA
Commercial code
N1100PC/VCE450
Production site
BELLUNO
