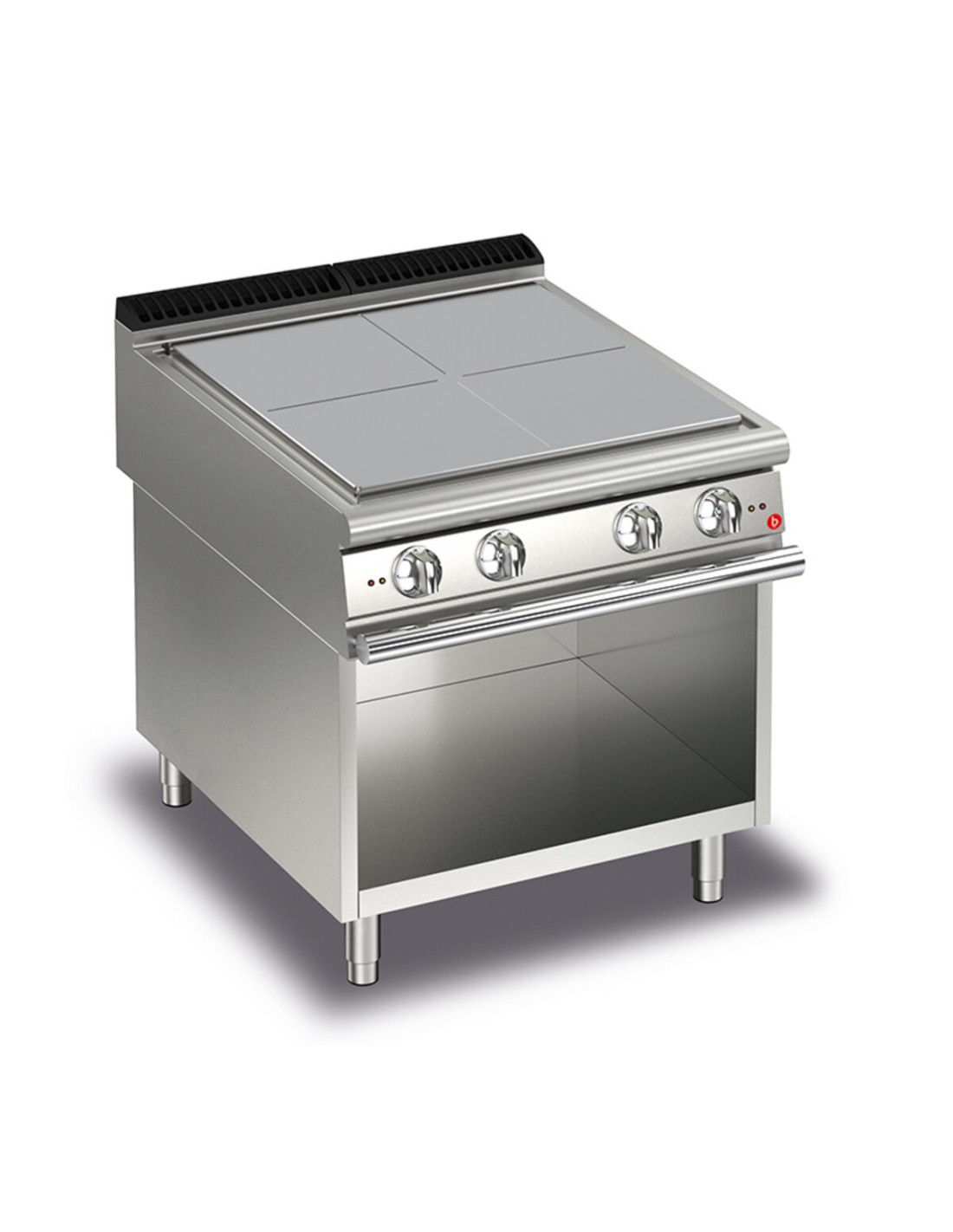

ELECTRIC SOLID TOP ON OPEN BASE

Electric Full Plate: Plate heating via 4 resistors of 4 kW each, with temperature adjustment from 50 to 400°C. Overhanging plate with perimeter grease collection channel and drainage hole. Water jet resistance (IPX5). Equipment certified under the Low Voltage Directive 2014/35/EU according to the international CB scheme.
Tipo Alimentazione
Promo
Print

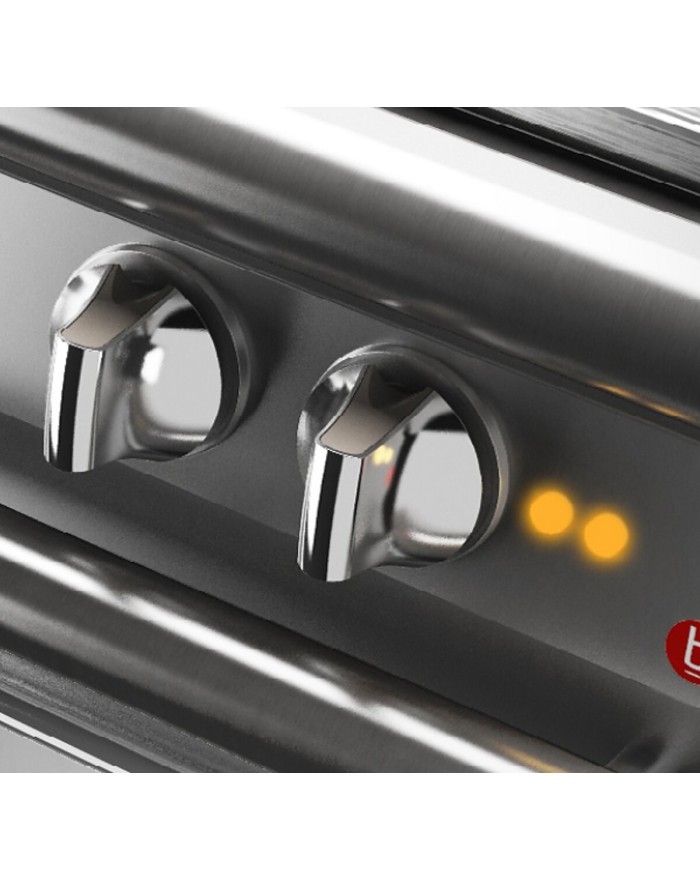

Electric Full Plate: Plate heating via 4 resistors of 4 kW each, with temperature adjustment from 50 to 400°C. Overhanging plate with perimeter grease collection channel and drainage hole. Water jet resistance (IPX5). Equipment certified under the Low Voltage Directive 2014/35/EU according to the international CB scheme.Chrome molybdenum polished steel cooking plate 1.8 cm thick that is crushproof at high temperatures and also suitable for direct cooking. Perimeter grease collection gutter with drain hole. Plate heating (4 zones) by means of 4 kw heating elements. Temperature control of heating elements by thermostat, operated by means of ergonomic recessed and inclined knobs. Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°c to 300°c. Various connection possibilities. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. 4 independent cooking zones. Adjustable temperature Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

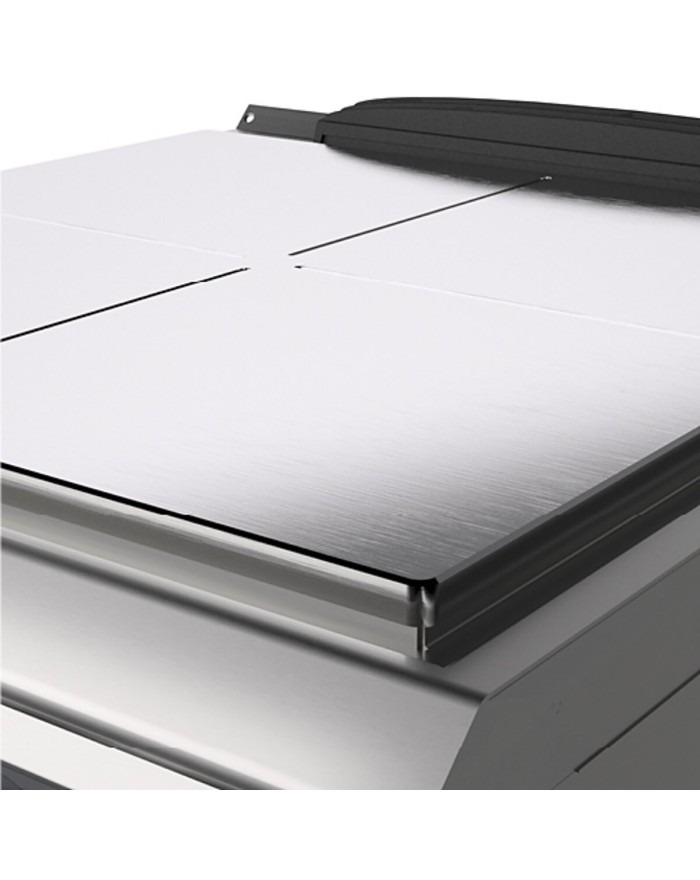

Cantilevered plate with perimeter grease trough with drain hole.



4 independent cooking zones.



Temperature regulation from 50 to 400 °C

Q90TPV/E800
CR1016179 - Standard Standard

Data sheet

Packaging width
1020
Packaging height
1170
Model
Q90TPV/E800
Width
800mm
CODE
CR1016179
Packaging length
840
Commercial code
Q90TPV/E800
Alimentazione
ELETTRICA
Material type
ZPF
Electrical power
16,000Kw
380-415V 3N
Definition
Q90TPV/E800  TUTTAPIASTRA ELETTRICO A/G
Frequency
50-60 HzHz
Depth
900mm
Height
870mm
IP grade
IPX5
Volume
0.626m3
Configurazione
4PLANCHES
Gross volume
0396
Net weight
141Kg
Gross weight
156Kg
Certified model
Q90TPV/E800
CE-certified
-
Company
0232
Commercial Line
QUEEN

Specific References

mpn
Q90TPV/E800
