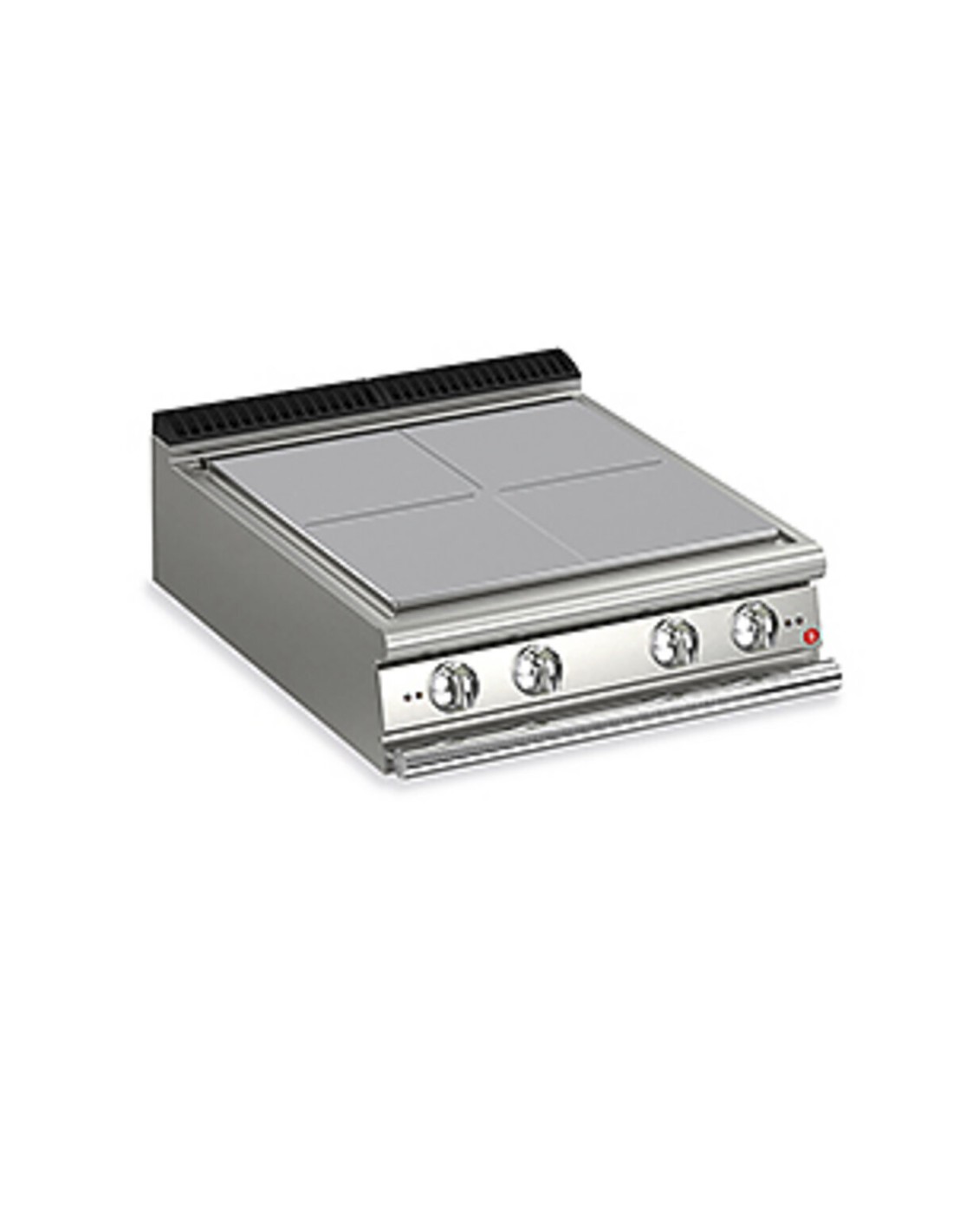

ELECTRIC SOLID TOP - TOP VERSION

Electric Full Plate: Plate heating via 4 resistors of 4 kW each, with temperature adjustment from 50 to 400°C. Overhanging plate with perimeter grease collection channel and drainage hole. Water jet resistance (IPX5). Equipment certified under the Low Voltage Directive 2014/35/EU according to the international CB scheme.
Tipo Alimentazione
Promo
Print

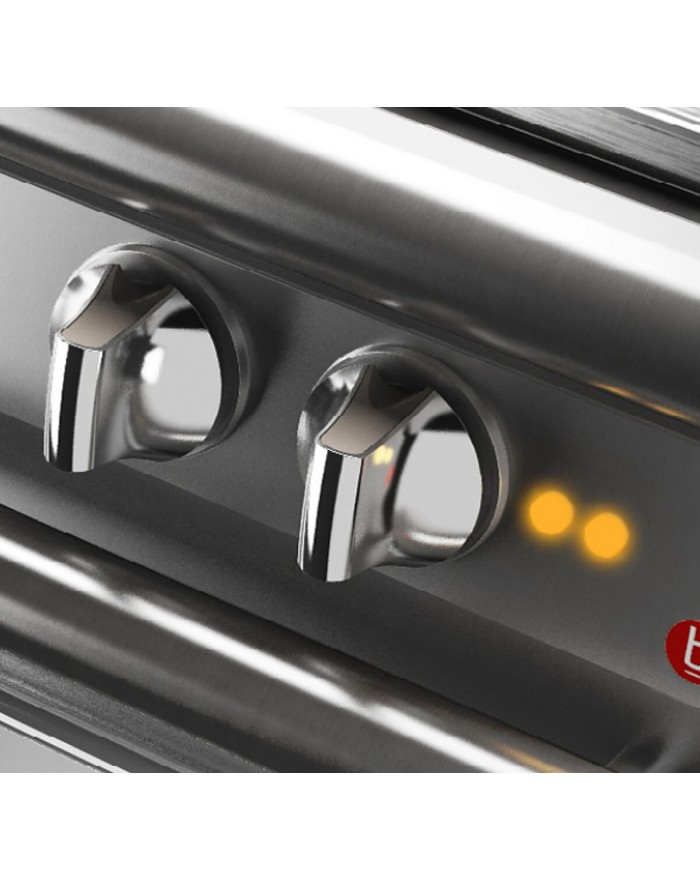

Electric Full Plate: Plate heating via 4 resistors of 4 kW each, with temperature adjustment from 50 to 400°C. Overhanging plate with perimeter grease collection channel and drainage hole. Water jet resistance (IPX5). Equipment certified under the Low Voltage Directive 2014/35/EU according to the international CB scheme.Chrome molybdenum polished steel cooking plate 1.8 cm thick that is crushproof at high temperatures and also suitable for direct cooking. Perimeter grease collection gutter with drain hole. Plate heating (4 zones) by means of 4 kw heating elements. Temperature control of heating elements by thermostat, operated by means of ergonomic recessed and inclined knobs. Electric oven Groups of stainless steel heating elements placed on the ceiling and under the sole of the firing chamber. Thermostatic temperature control in the chamber from 100°c to 300°c. Various connection possibilities. Warning light indicating "equipment under voltage." Indicator light indicating that the set temperature has been reached. 4 independent cooking zones. Adjustable temperature Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

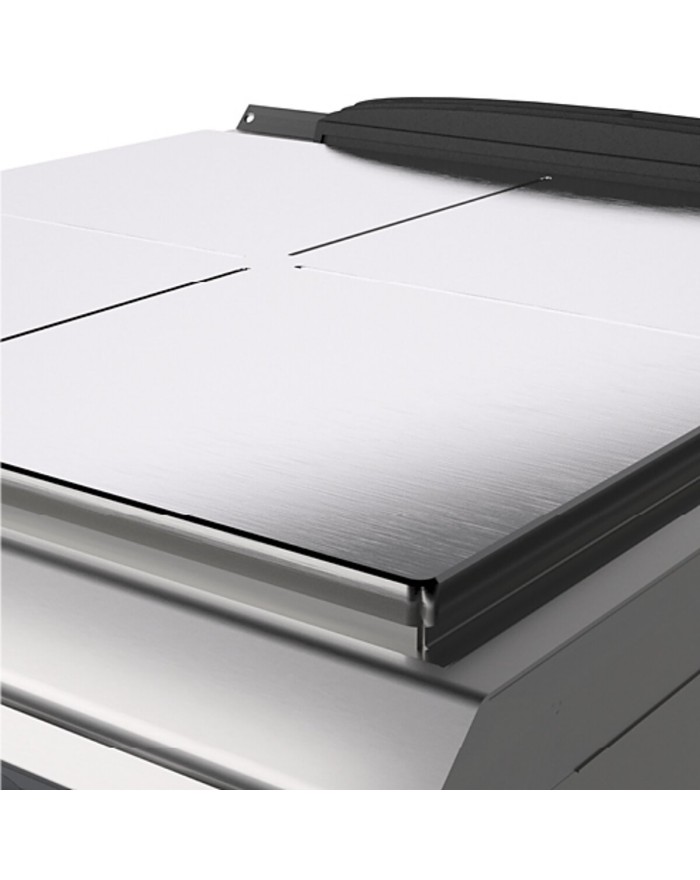

Cantilevered plate with perimeter grease trough with drain hole.



4 independent cooking zones.



Temperature regulation from 50 to 400 °C

Q90TP/E800
CR1016099 - Standard Standard

Data sheet

Definition
Q90TP/E800 TUTTAPIASTRA ELETTRICO TOP
Alimentazione
ELETTRICA
Depth
900mm
Electrical power
16,000Kw
380-415V 3N
Height
250mm
Frequency
50-60 HzHz
Volume
0.18m3
Gross volume
0488
IP grade
IPX5
Net weight
125Kg
Configurazione
4PLANCHES
Gross weight
132Kg
Certified model
Q90TP/E800
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
Q90TP/E800
Packaging width
840
CODE
CR1016099
Packaging height
570
Commercial code
Q90TP/E800
Width
800mm
Material type
ZPF
Packaging length
1020

Specific References

mpn
Q90TP/E800
