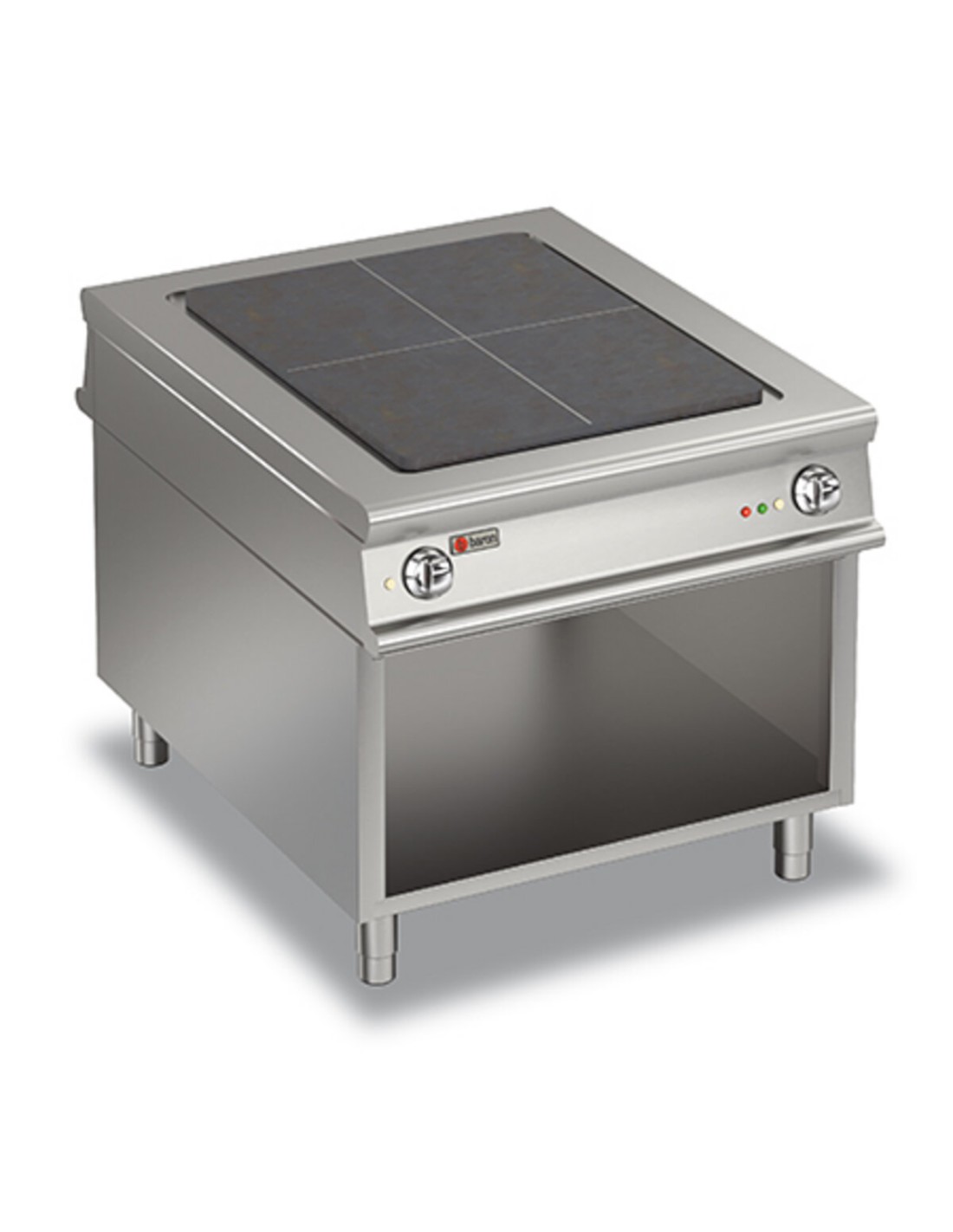

ELECTRIC PASS-THROUGH SOLID TOP - ON OPEN BASE


Print
Stainless steel outer coatings and Scotch Brite finish. Tops with a thickness of 2 mm. Contoured dashboards with controls angled toward the operator. Polished steel cooking plate. Plate heating (4 zones) by means of 4 kW heating elements. Temperature regulation of heating elements from 50 to 400°C by thermostat. Heating activity indicator light.
N1100TPV/E900
CR0993059

Data sheet

Model
N1100TPV/E900
Code
CR0993059
Material type
ZPF
Definition
N1100TPV/E900 TUTTAPIASTRA EL. M90 A/G
Width
900mm
Height
860mm
Depth
1100mm
Volume
0.861m3
Electrical power
16Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0000
IP grade
IPX5
Certified model
N1100TPV/E900
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 1100
Alimentazione
ELETTRICA
Commercial code
N1100TPV/E900
Production site
BELLUNO
