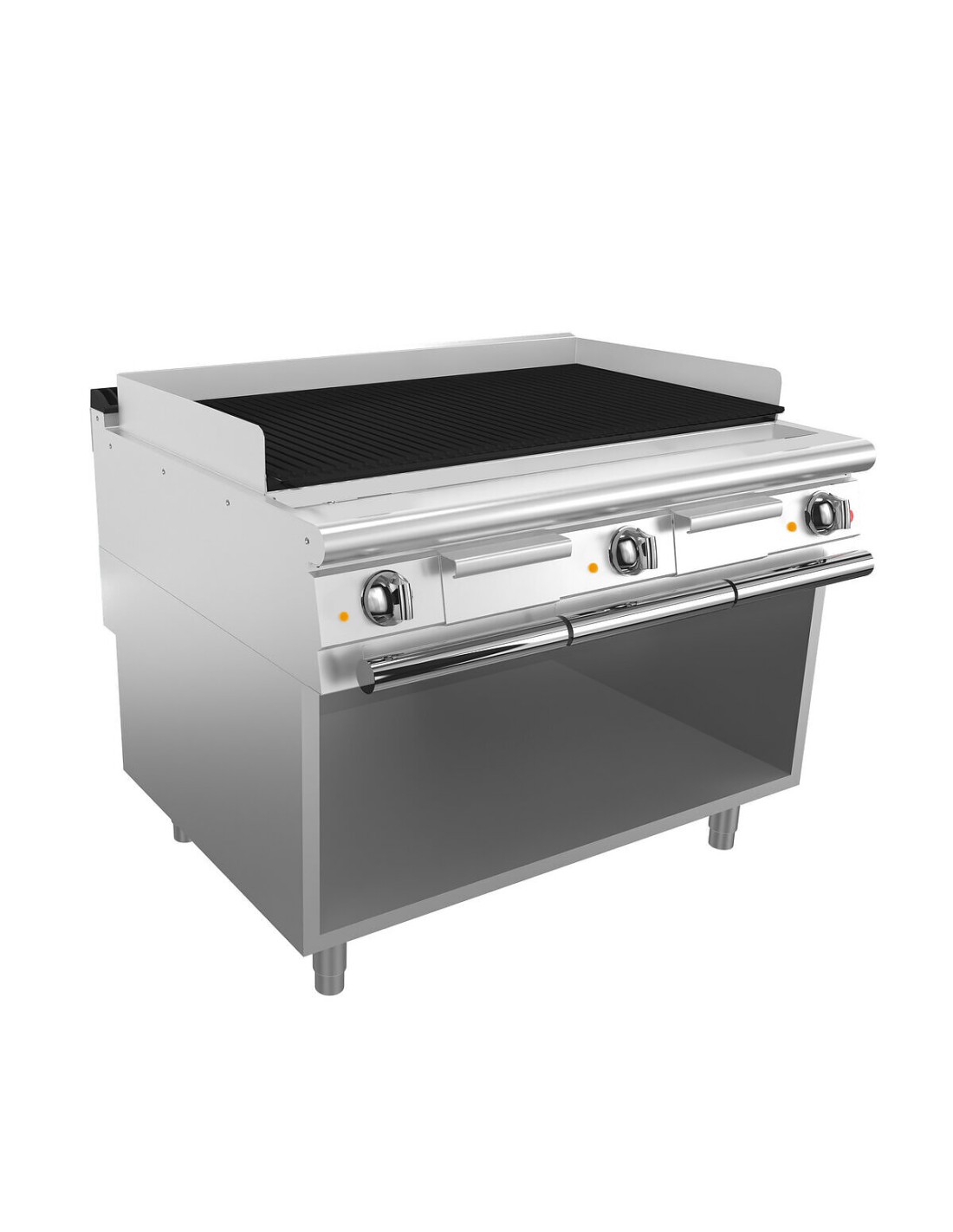

Super Electric Grill M120 - Cast Iron Grill - M120 on compartment
Professional Electric Grills: Device for adjusting the height of the grills on two levels. Channel with a drain hole and a removable grease and residue collection drawer. Internal drawer for residue collection. 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. GRILL ACCESSORIES, HUMIDIFIER, SMOKER.
Data Sheet
DWG-3D
Pictures

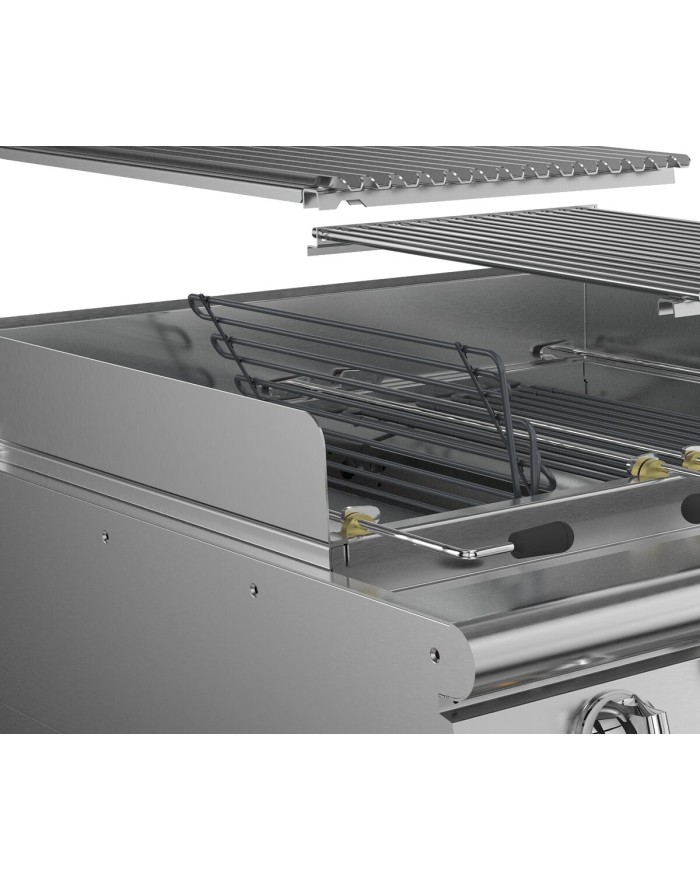

Professional Electric Grills: Device for adjusting the height of the grills on two levels. Channel with a drain hole and a removable grease and residue collection drawer. Internal drawer for residue collection. 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. GRILL ACCESSORIES, HUMIDIFIER, SMOKER.Grid height adjustment device on two levels.
Canal with drainage hole and removable grease and residue collection.
Internal drawer for collecting residues.
4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version
GRILL, HUMIDIFIER, SMOKER ACCESSORIES: Always available as accessories for all versions.
Changing the type of cooking also in the utility GAS Grill / lava stone, with dedicated accessories
In gas versions, the power is regulated by a continuously variable tap to adapt the heat of the hotplate to the type of cooking
Larger, recessed grease trough on the worktop, easier to clean and more capacious HUMIDIFIER accessory for optimal management of several types of cooking. Grill height adjustment for handling different types of cooking 4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version Electric version with tilting heating elements to facilitate the cleaning process

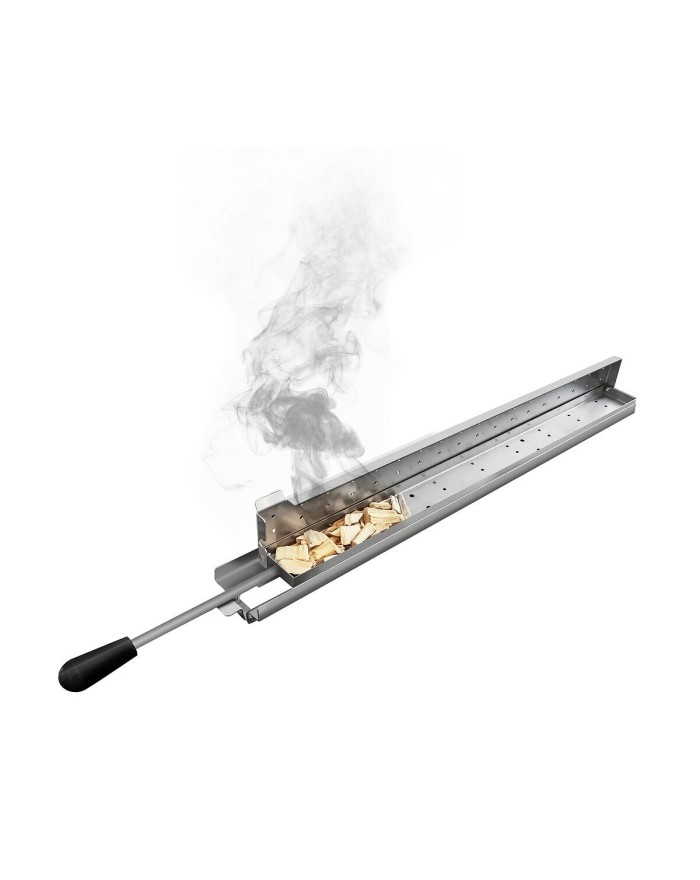

Smoker that can be installed on models M40-M80 - M120 for a barbecue flavour menu. Made of AISI304 stainless steel. Kit equipped with a guide for sliding the smoker box.
HUMIDIFIER accessory for optimal management of several types of cooking.

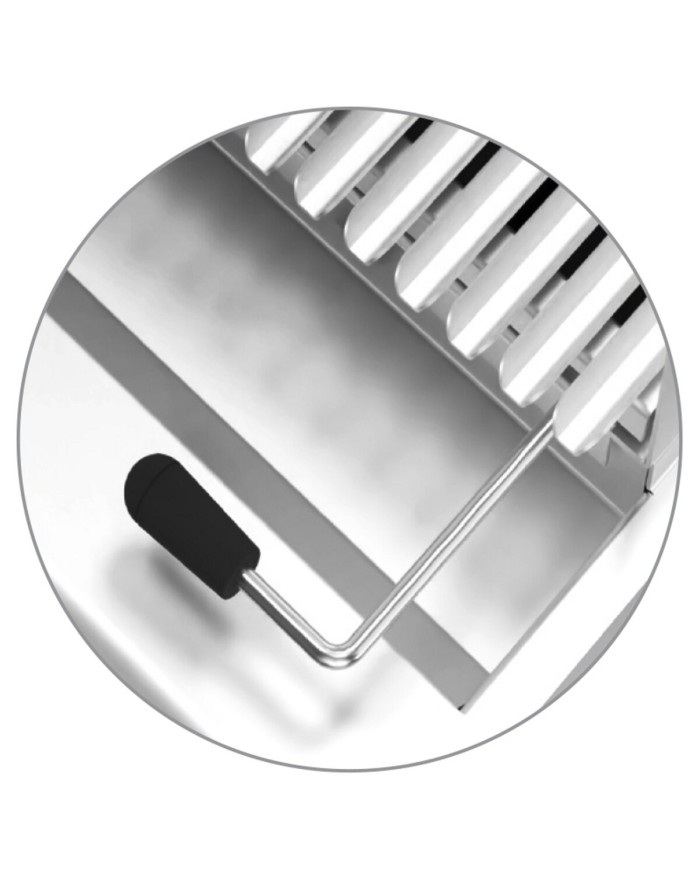

Grill height adjustment for handling different types of cooking
4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version
4 Types Grills available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

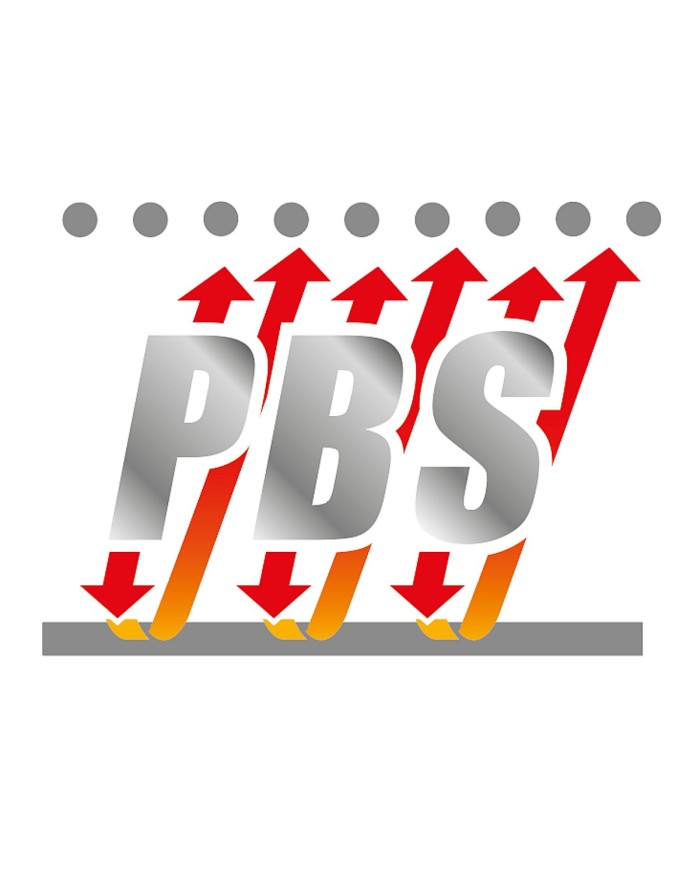

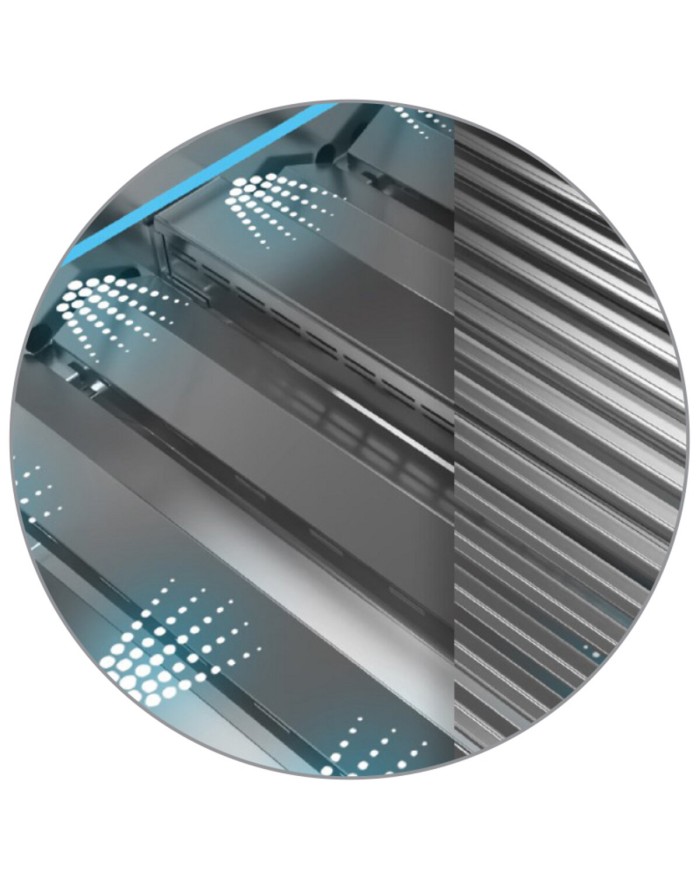

Exclusive stainless steel power-boosting system (PBS) that optimizes and channels the heat generated by the heating elements to the cooking zone.
Electric version with fold-down heating elements to facilitate the cleaning process.
Q90SGV/E123P
CR1772589 - Standard Standard
Data sheet
- IP grade
- IPX4
- CE-certified
- -
- Cottura
- INDIRECT EL
- Production start year
- 2025
- RATED CURRENT
- 29,63(A)
- Model
- Q90SGV/E123P
- Product type
- STANDARD
- CODE
- CR1772589
- Company
- 0232
- Commercial code
- Q90SGV/E123P
- Commercial Line
- QUEEN
- Material type
- ZPF
- Packaging width
- 1020
- Definition
- Q90SGV/E123P GRIGLIA ELE. GHISA M120 A/G
- Packaging height
- 1130
- Depth
- 900mm
- Width
- 1200mm
- Packaging length
- 1240
- Height
- 870mm
- AGA Certificate
- SI
- Volume
- 0.94m3
- Alimentazione
- ELETTRICA
- Gross volume
- 1430
- Tipo piastra
- EXTRA EU Cast iron
- Net weight
- 0.5Kg
- Modulo
- M120
- Gross weight
- 1Kg
- Electrical power
- 25,200Kw
380-415V 3N - Production site
- BELLUNO
- Frequency
- 50-60 HzHz
- Product variant
- P.LAVICA CON GRIGLIA MISTA
- Certified model
- Q90SGV/E123P
Specific References
- mpn
- Q90SGV/E123P
