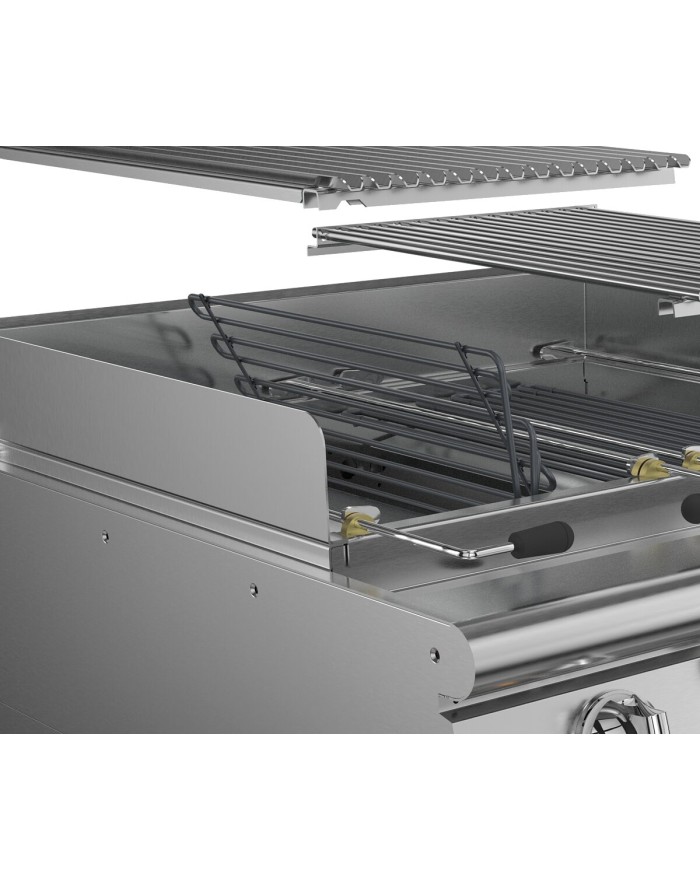

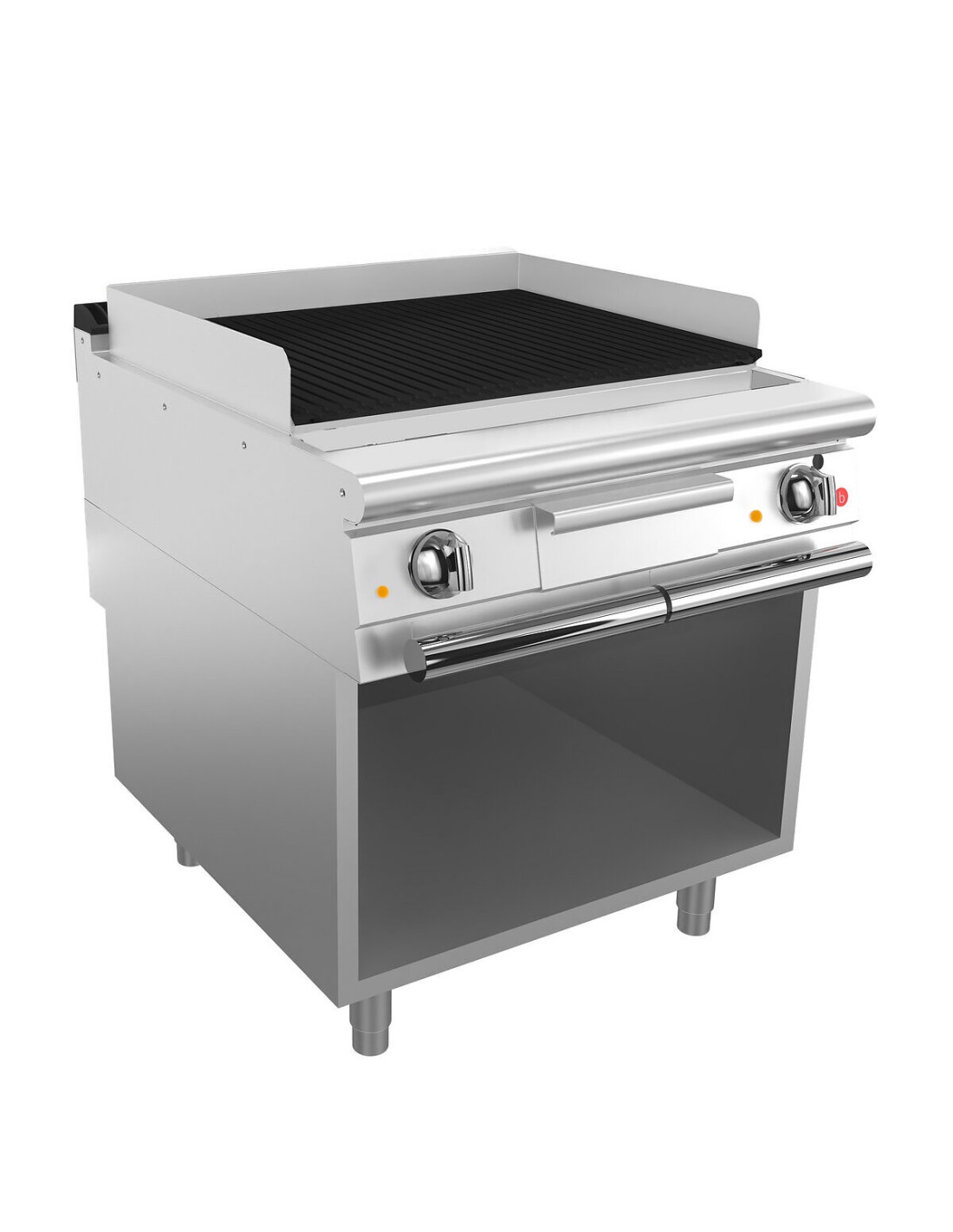

Super Electric Grill M80 - Cast Iron Grill - M80 on compartment

Smoker that can be installed on models M40-M80 - M120 for a barbecue flavour menu. Made of AISI304 stainless steel. Kit equipped with a guide for sliding the smoker box.

HUMIDIFIER accessory for optimal management of several types of cooking.

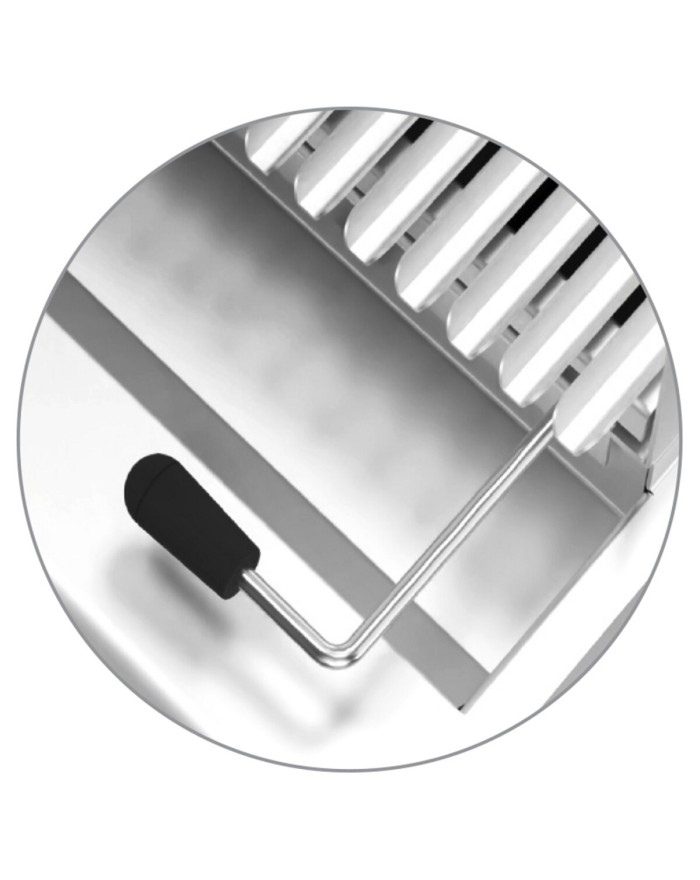

Grill height adjustment for handling different types of cooking

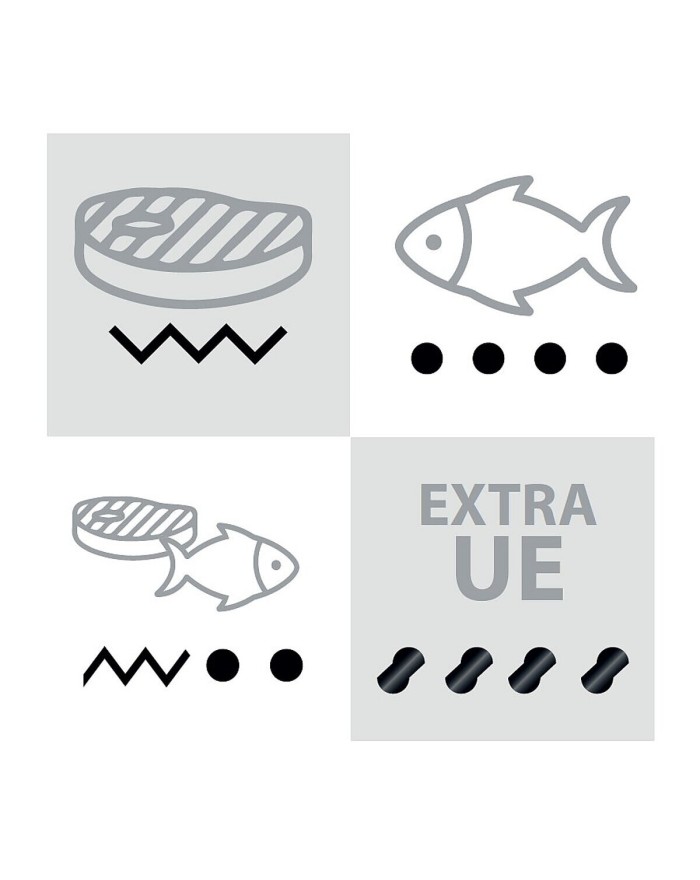

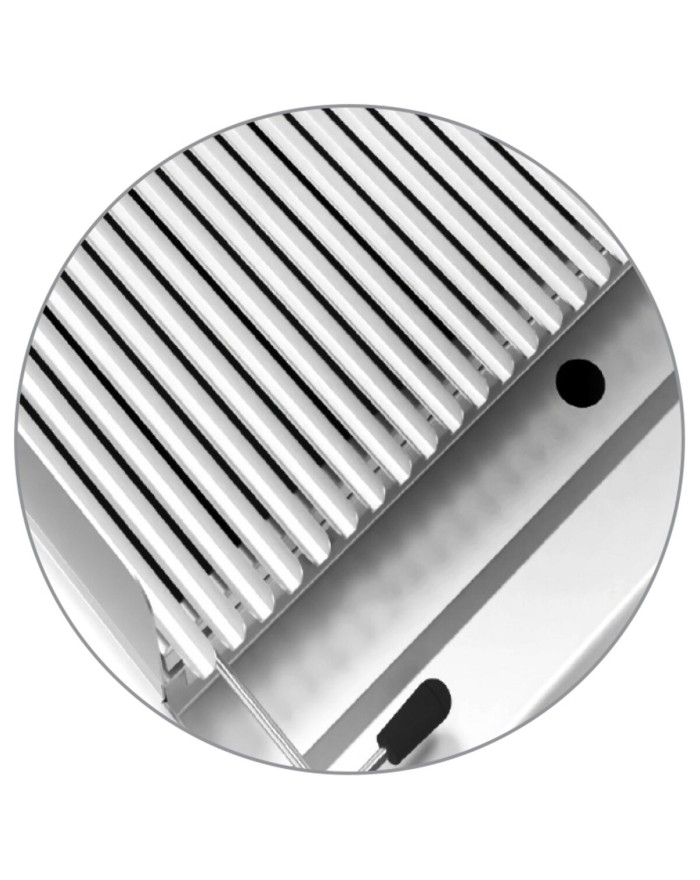

4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

4 Types Grills available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

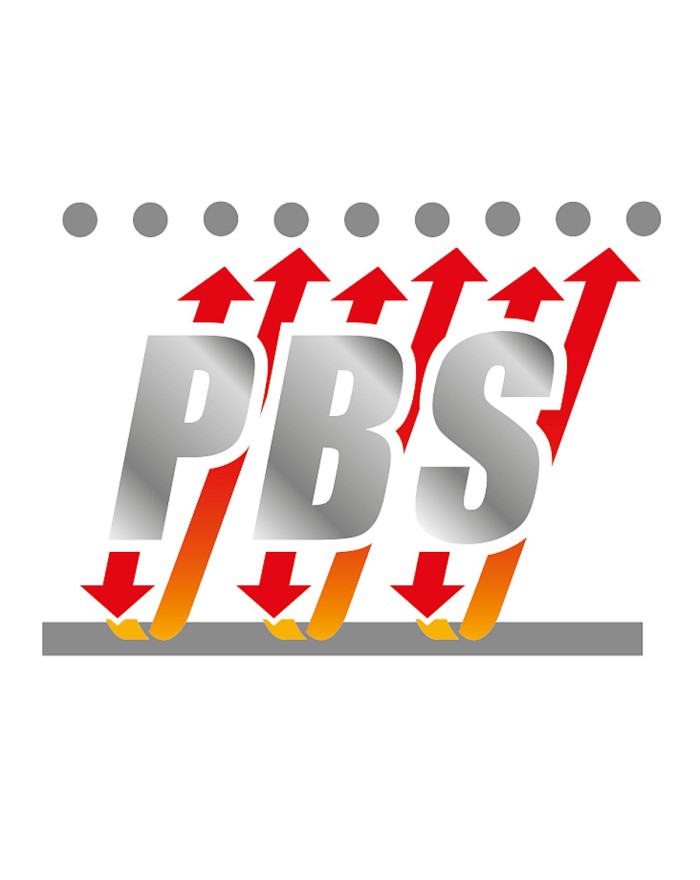

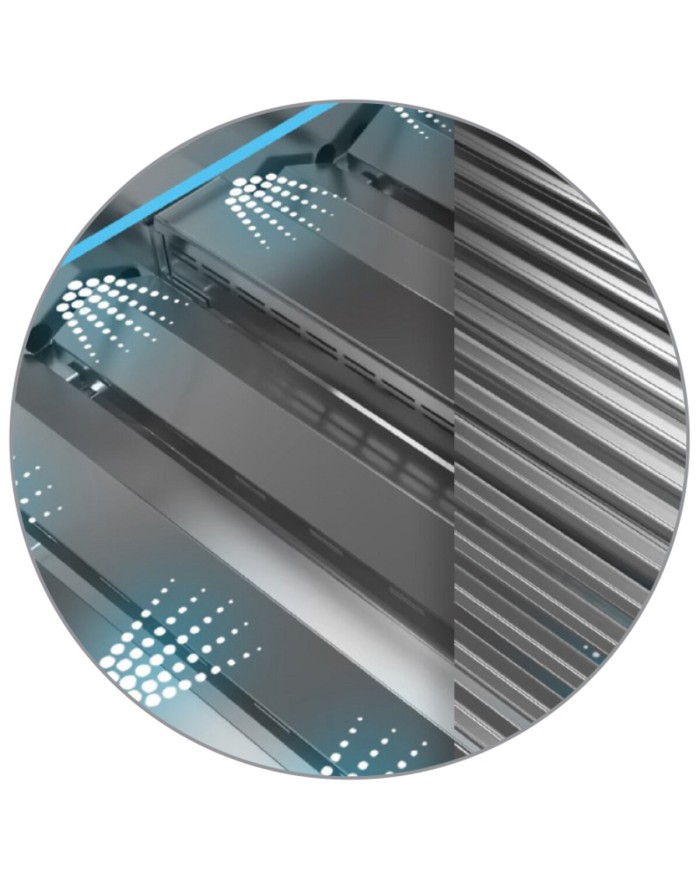

Exclusive stainless steel power-boosting system (PBS) that optimizes and channels the heat generated by the heating elements to the cooking zone.

Electric version with fold-down heating elements to facilitate the cleaning process.
Data sheet
- Certified model
- Q90SGV/E803P
- Electrical power
- 16,800Kw
380-415V 3N - CE-certified
- -
- IP grade
- IPX4
- Production start year
- 2025
- Cottura
- INDIRECT EL
- Model
- Q90SGV/E803P
- Product type
- STANDARD
- RATED CURRENT
- 19,76(A)
- CODE
- CR1772549
- Company
- 0232
- Commercial code
- Q90SGV/E803P
- Commercial Line
- QUEEN
- Material type
- ZPF
- Packaging width
- 1020
- Definition
- Q90SGV/E803P GRIGLIA ELE. GHISA M80 A/G
- Packaging height
- 1170
- Depth
- 900mm
- Width
- 800mm
- Height
- 870mm
- Packaging length
- 840000
- Volume
- 0.626m3
- AGA Certificate
- SI
- Gross volume
- 1003
- Alimentazione
- ELETTRICA
- Net weight
- 128.6Kg
- Tipo piastra
- EXTRA EU Cast iron
- Gross weight
- 138.6Kg
- Modulo
- M80
- Production site
- BELLUNO
- Product variant
- P.LAVICA CON GRIGLIA MISTA
- Frequency
- 50-60 HzHz
Specific References
- mpn
- Q90SGV/E803P
