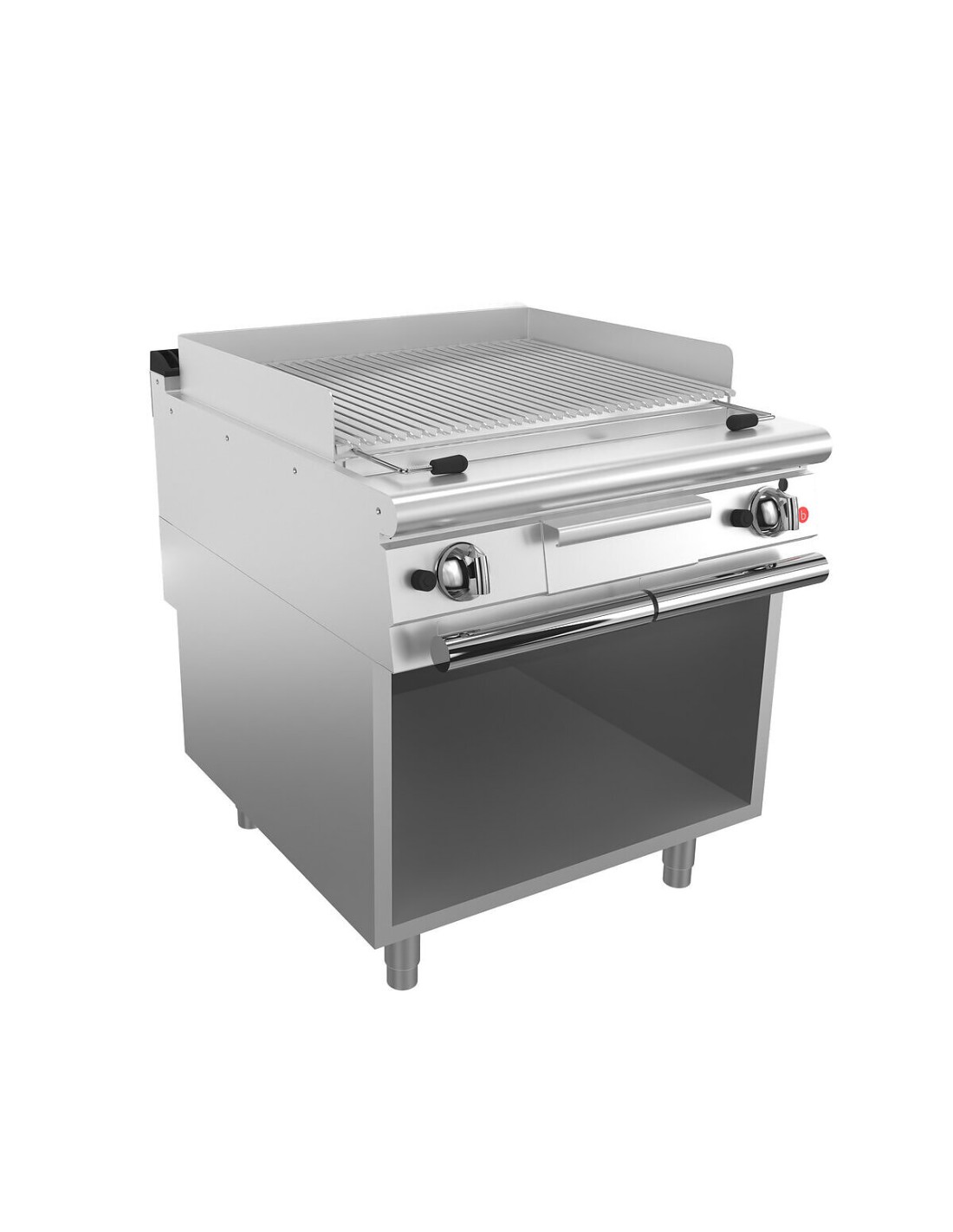

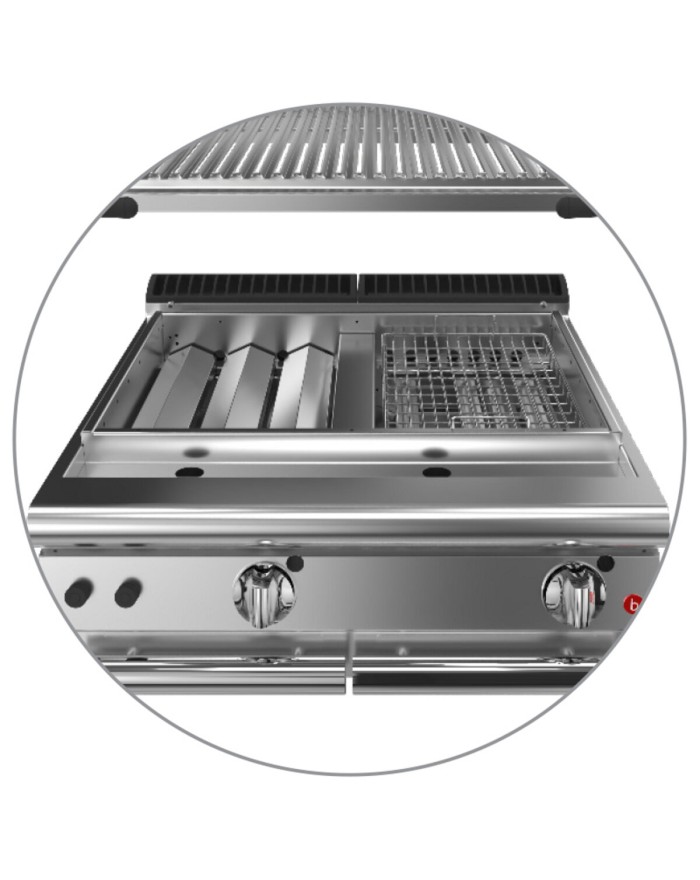

Lava Stone Grill GAS M80 - Mixed Meat/Fish Grill - M80 on compartment
Lava Stone Grills: 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. Adjustable grill height for managing different types of cooking. Easier to clean and more spacious. Perimeter splash guard raised edges. Channel with a drain hole and a removable grease and residue collection drawer. Wider grease collection channel, welded to the surface. Internal drawer for collecting carbonized residues. Adjustable temperature up to 350°C. Power regulation is controlled by a continuous operation modulating tap to adjust the plate heat according to the cooking type. HUMIDIFIER accessory for optimal management of different cooking types.
Data Sheet
DWG-3D
Pictures
Lava Stone Grills: 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. Adjustable grill height for managing different types of cooking. Easier to clean and more spacious. Perimeter splash guard raised edges. Channel with a drain hole and a removable grease and residue collection drawer. Wider grease collection channel, welded to the surface. Internal drawer for collecting carbonized residues. Adjustable temperature up to 350°C. Power regulation is controlled by a continuous operation modulating tap to adjust the plate heat according to the cooking type. HUMIDIFIER accessory for optimal management of different cooking types.Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Aisi 304 steel burner controlled by
safety valve and thermocouple.
Piezo ignition.
Adjustable temperature up to 350°C.
Device for adjusting the height of the
grids on two levels.
Perimeter splash guard risers (h max=12mm).
Canal with drainage hole and removable grease and residue collection.
Internal drawer for collecting residual
carbonaceous.
Larger, recessed grease trough on the worktop, easier to clean and more capacious HUMIDIFIER accessory for optimal management of several types of cooking. Grill height adjustment for handling different types of cooking 4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version Changing the type of cooking also in the utility GAS Grill / lava stone, with dedicated accessories In gas versions, the power is regulated by a continuously variable tap to adapt the heat of the hotplate to the type of cooking

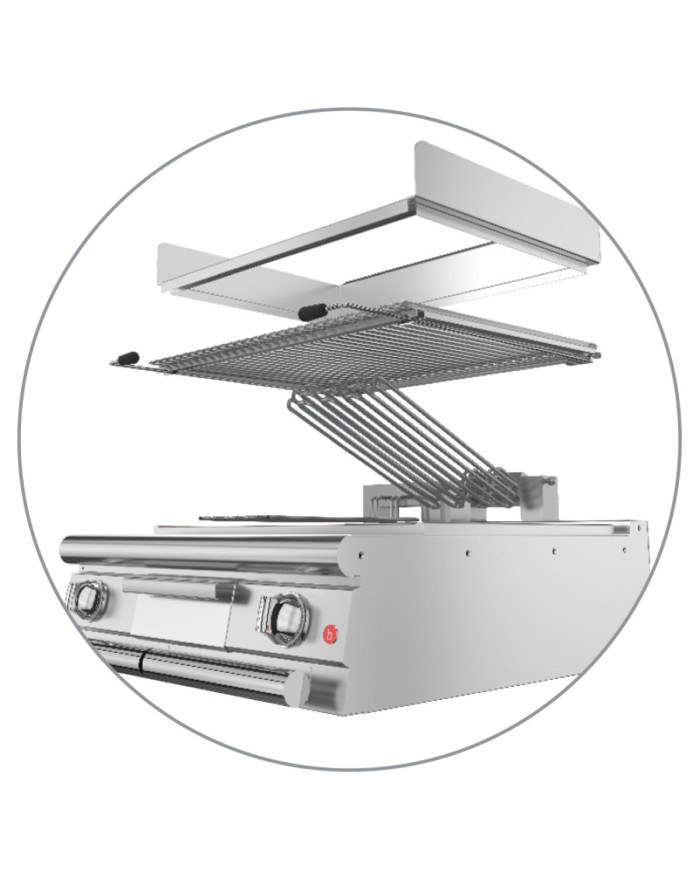

Smoker that can be installed on the M80 - M120 models for a barbecue-flavoured menu
Changing the type of cooking also in the utility GAS Grill / lava stone, with dedicated accessories
In gas versions, the power is regulated by a continuously variable tap to adapt the heat of the hotplate to the type of cooking

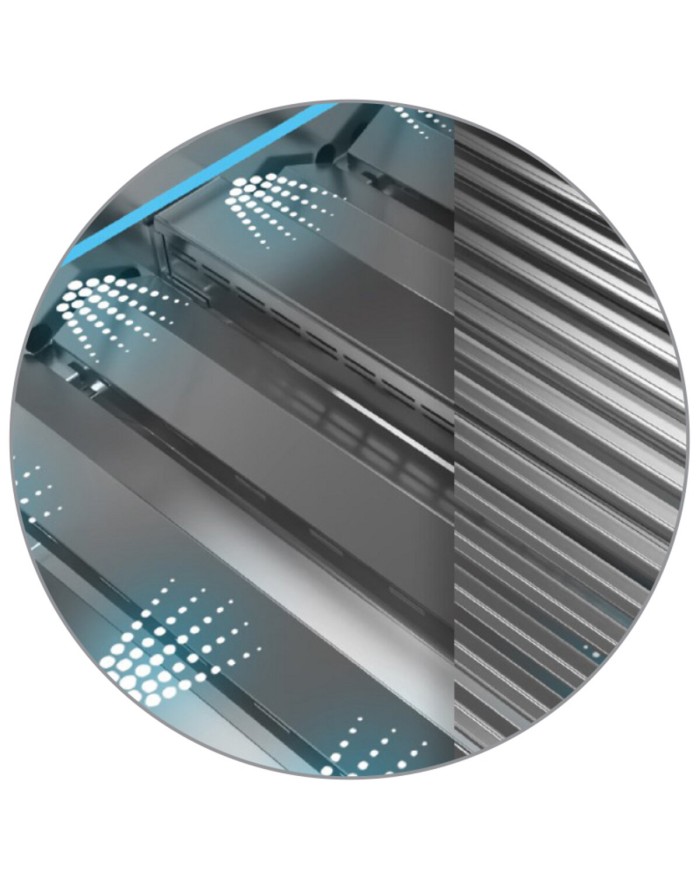

HUMIDIFIER accessory for optimal management of several types of cooking.

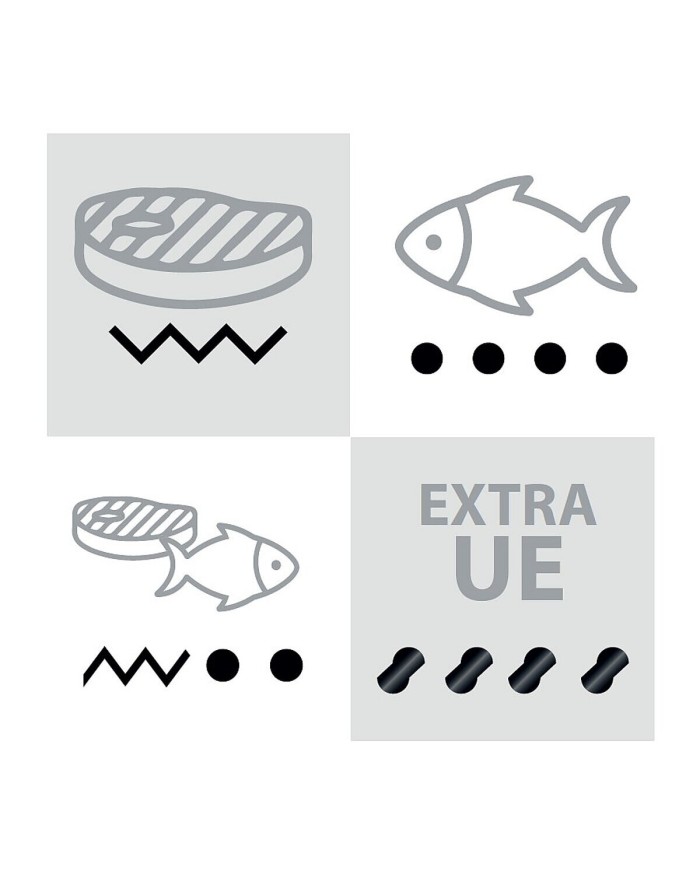

4 Types Grills available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

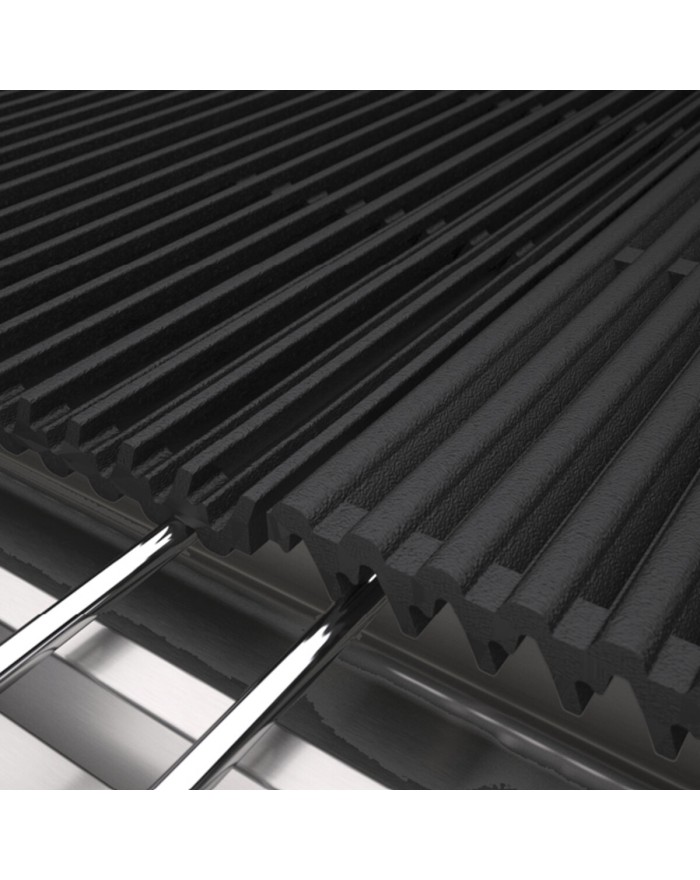

Cast iron cooking grill for meat and fish.

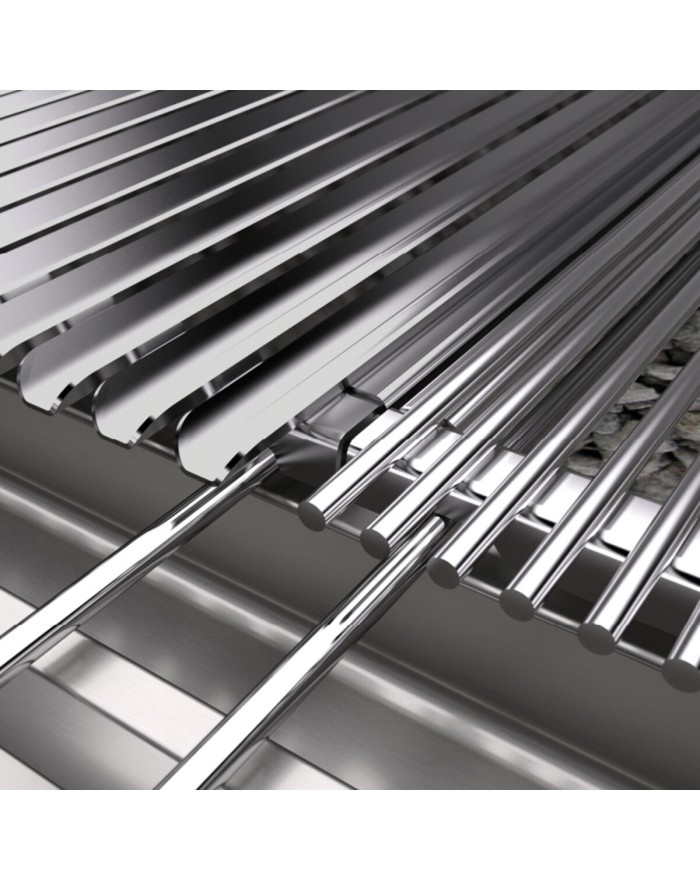

Steel cooking grill in meat and fish versions.

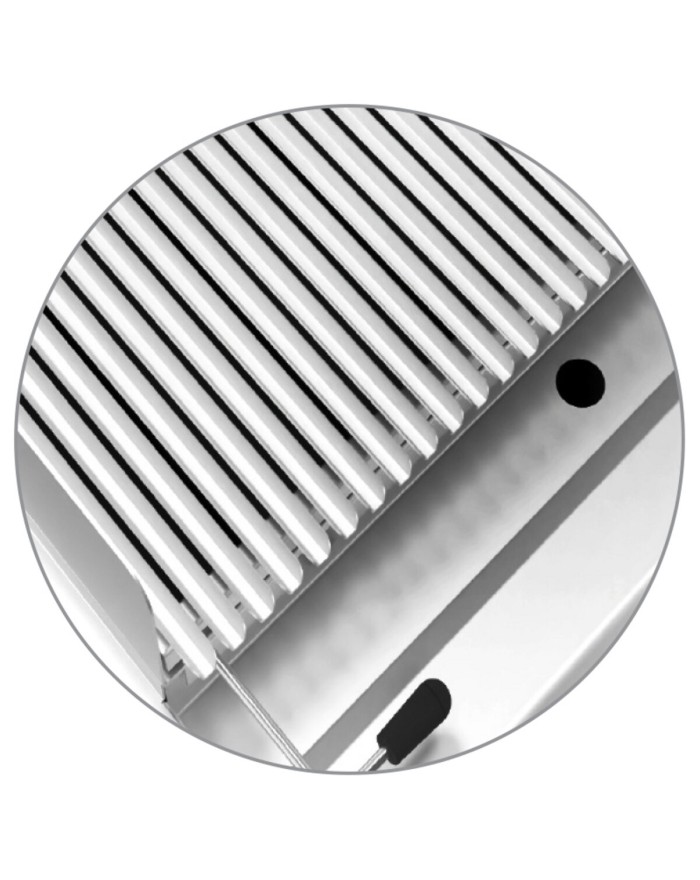

Larger, recessed grease trough on the worktop, easier to clean and more capacious

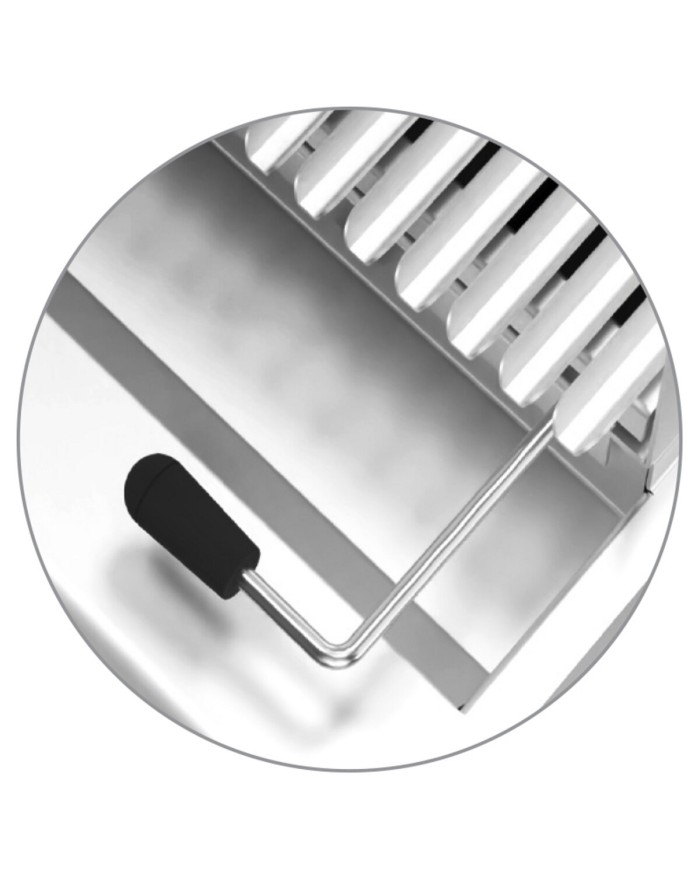

Grill height adjustment for handling different types of cooking
Electric version with fold-down heating elements to facilitate the cleaning process.
Q70SGLV/G802
CR1657189 - Standard Standard
Data sheet
- Net weight
- 93.4Kg
- Alimentazione
- GAS
- Gross weight
- 103.4Kg
- Tipo piastra
- LAVA ROCK
MEAT FISH STAINLESS STEEL 304 - Production site
- BELLUNO
- Product variant
- P.LAVICA CON GRIGLIA MISTA
- Modulo
- M80
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Chimney type
- A1
- Model
- Q70SGLV/G802
- Certified model
- Q70SGLV/G8
- CODE
- CR1657189
- CE-certified
- CE-0051DN5101
- Commercial code
- Q70SGLV/G802
- Production start year
- 2022
- Material type
- ZPF
- Product type
- STANDARD
- Definition
- Q70SGLV/G802 PIETRALAV.GAS MISTA M80 A/G
- Company
- 0232
- Depth
- 700mm
- Commercial Line
- QUEEN
- Height
- 870mm
- Packaging width
- 850
- Volume
- 0.487m3
- Packaging height
- 1170
- Gas power Kw
- 20,00Kw
- Gas power (G25.3/25 mbar)
- 19,00Kw
- Width
- 800mm
- Gas power Kcal
- 16340Kcal
- Packaging length
- 840
- Gross volume
- 0836
- AGA Certificate
- SI
Specific References
- mpn
- Q70SGLV/G802
