Welcome to Stark Store
Another one. A major key, never panic. Don’t panic, when it gets crazy and rough, don’t panic, stay calm. The key is to drink coconut, fresh coconut, trust me. They key is to have every key, the key to open every door. We the best. Find peace, life is like a water fall

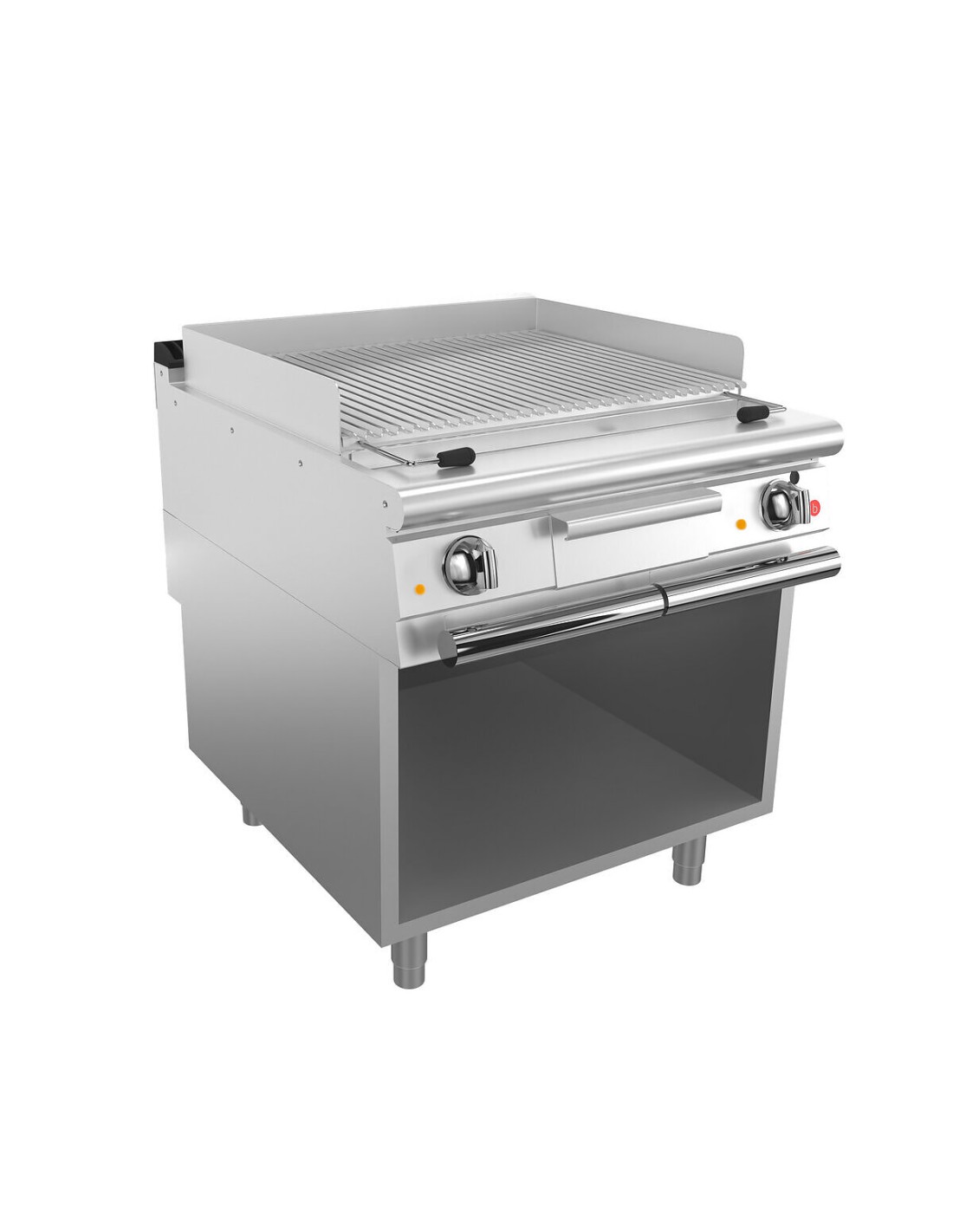

Super Electric Grill M80 - Stainless Steel Rod Grill - M80 on compartment
Professional Electric Grills: Device for adjusting the height of the grills on two levels. Channel with a drain hole and a removable grease and residue collection drawer. Internal drawer for residue collection. 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. GRILL ACCESSORIES, HUMIDIFIER, SMOKER.
DWG-3D
Pictures
Professional Electric Grills: Device for adjusting the height of the grills on two levels. Channel with a drain hole and a removable grease and residue collection drawer. Internal drawer for residue collection. 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. GRILL ACCESSORIES, HUMIDIFIER, SMOKER.Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Aisi 304 steel burner controlled by
safety valve and thermocouple.
Piezo ignition.
Adjustable temperature up to 350°C.
Device for adjusting the height of the
grids on two levels.
Perimeter splash guard risers (h max=12mm).
Canal with drainage hole and removable grease and residue collection.
Internal drawer for collecting residual
carbonaceous.
Larger, recessed grease trough on the worktop, easier to clean and more capacious HUMIDIFIER accessory for optimal management of several types of cooking. Grill height adjustment for handling different types of cooking 4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version Electric version with tilting heating elements to facilitate the cleaning process
Smoker that can be installed on models M40-M80 - M120 for a barbecue flavour menu. Made of AISI304 stainless steel. Kit equipped with a guide for sliding the smoker box.
HUMIDIFIER accessory for optimal management of several types of cooking.

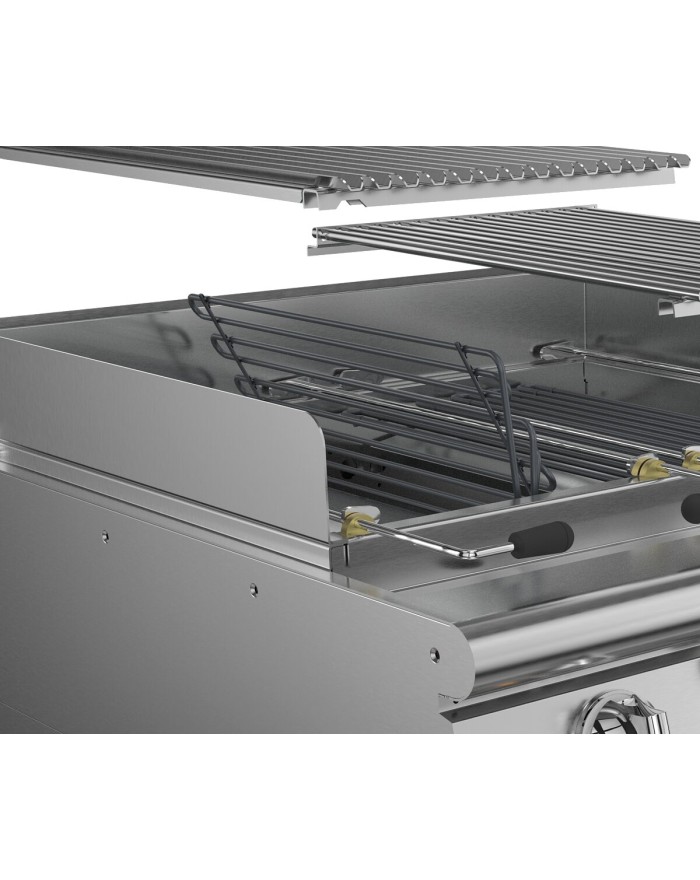

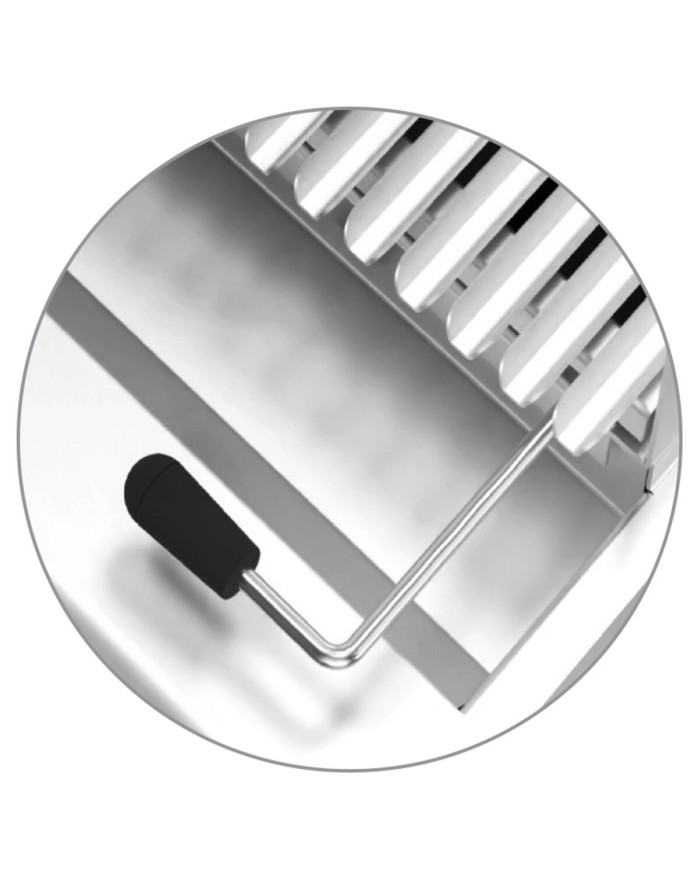

Grill height adjustment for handling different types of cooking

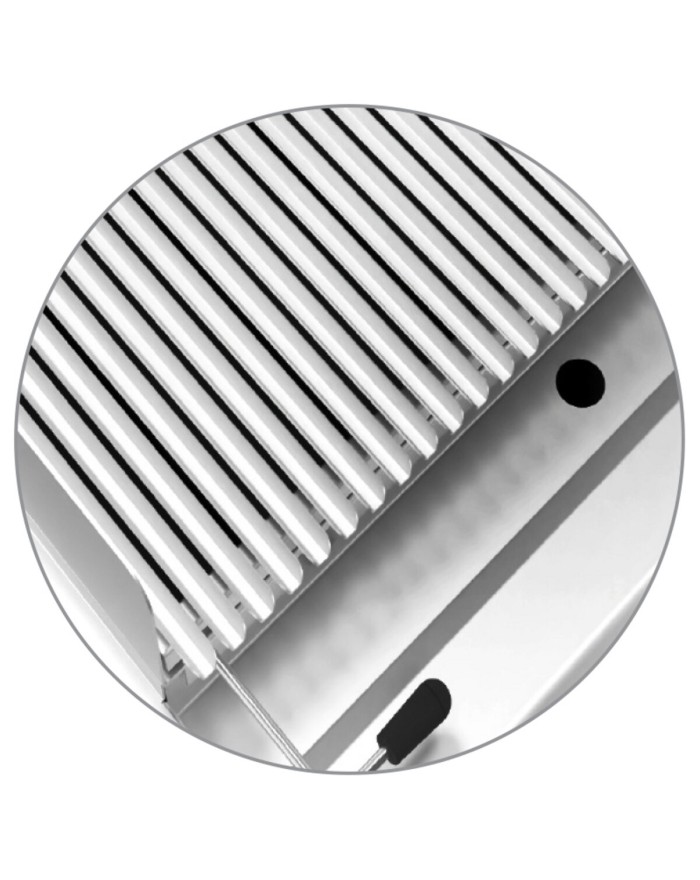

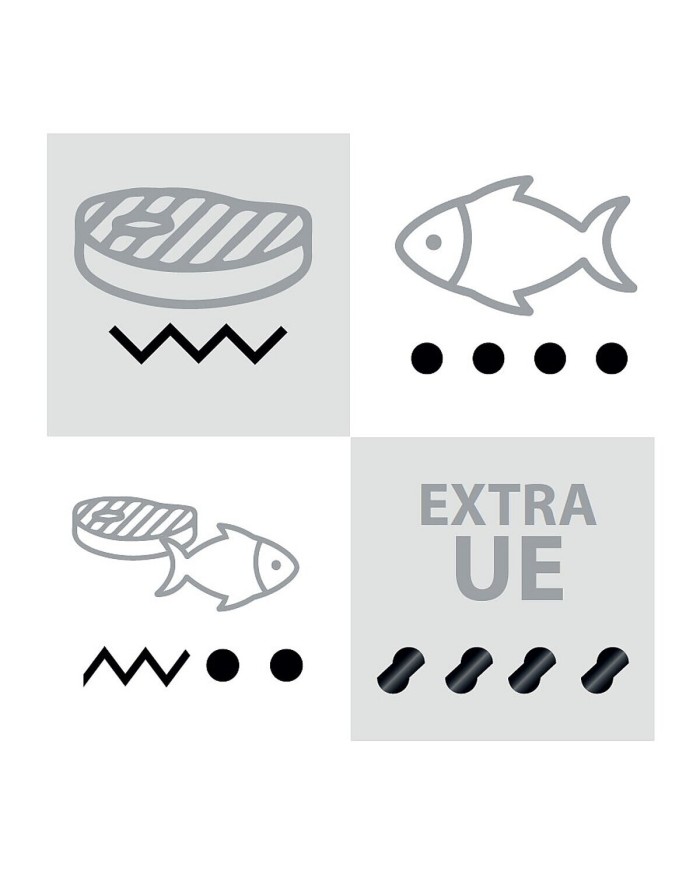

4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version
4 Types Grills available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

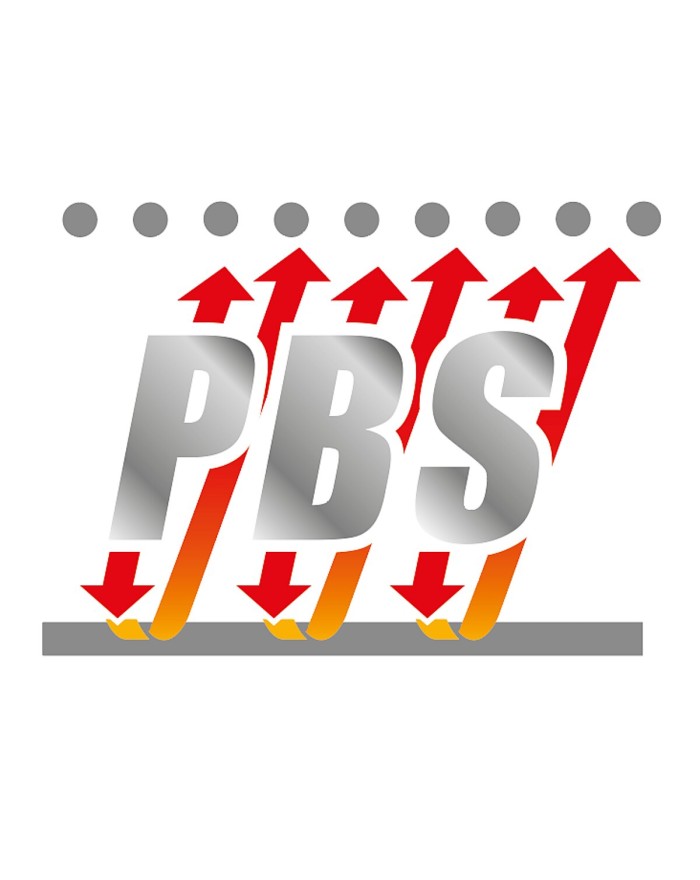

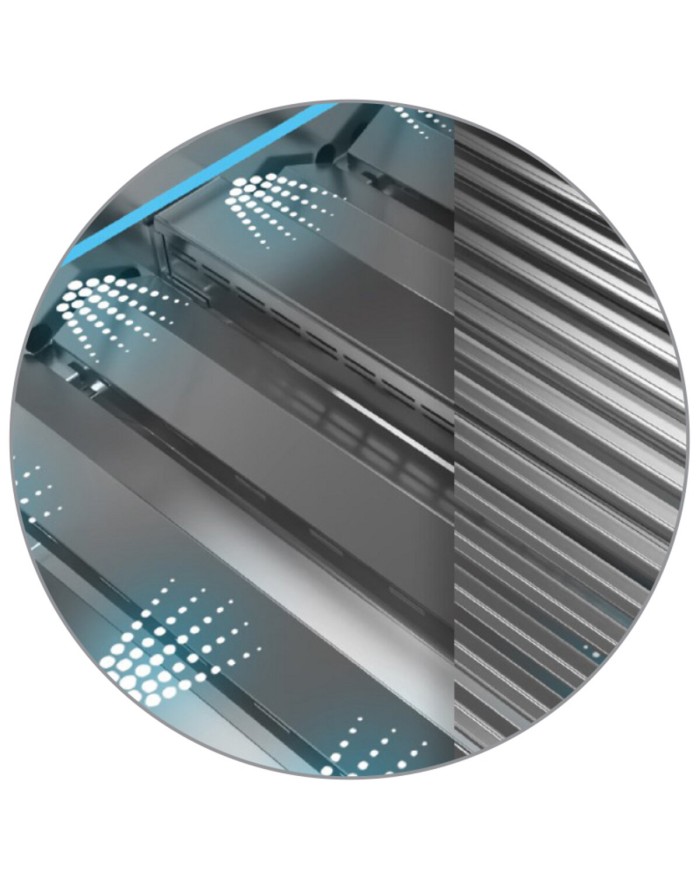

Exclusive stainless steel power-boosting system (PBS) that optimizes and channels the heat generated by the heating elements to the cooking zone.
Electric version with fold-down heating elements to facilitate the cleaning process.
Q70SGV/E801P
CR1772309 - Standard Standard
Data sheet
- Model
- Q70SGV/E801P
- CODE
- CR1772309
- Commercial code
- Q70SGV/E801P
- Material type
- ZPF
- Definition
- Q70SGV/E801P GRIGLIA ELE. PESCE M80 A/G
- Height
- 870mm
- Width
- 800mm
- Depth
- 700mm
- Volume
- 0.487m3
- Gross volume
- 0836
- Net weight
- 0.5Kg
- Gross weight
- 1Kg
- Production site
- BELLUNO
- Product variant
- P.LAVICA CON GRIGLIA PESCE
- Certified model
- Q70SGV/E801P
- CE-certified
- -
- Production start year
- 2025
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 850
- Packaging height
- 1170
- Packaging length
- 840
- AGA Certificate
- SI
- Alimentazione
- ELETTRICA
- Tipo piastra
- FISH STAINLESS STEEL 304
- Modulo
- M80
- Electrical power
- 10,400Kw
380-415V 3N - Frequency
- 50-60 HzHz
- IP grade
- IPX5
- Cottura
- INDIRECT EL
- RATED CURRENT
- 12,16(A)
Specific References
- mpn
- Q70SGV/E801P
