MULTIPLE MONOBLOC WITH 21 L TANK - L600


Print

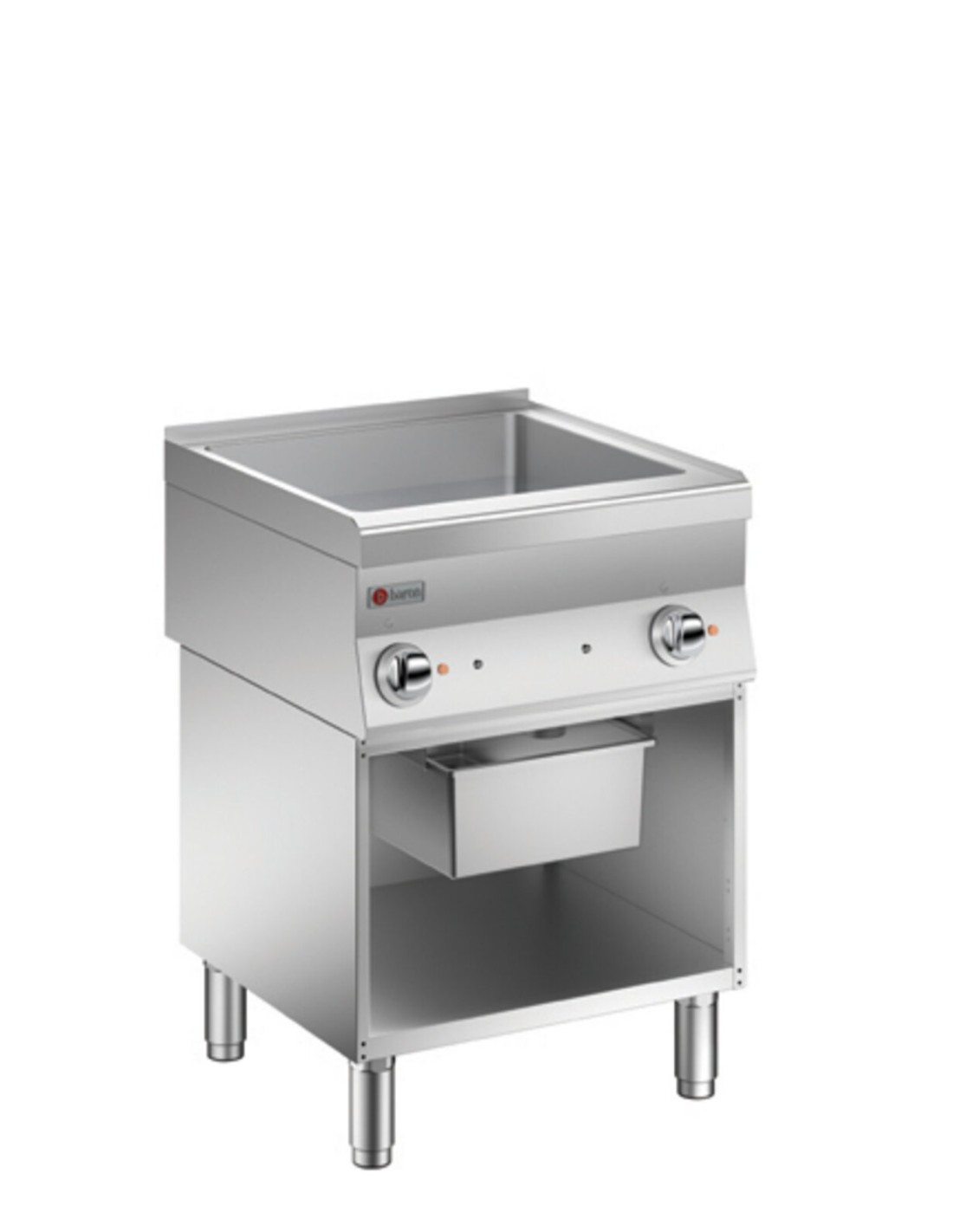

The multifunction braising pan is the ideal equipment to be used as both a fry-top and a braising pan and is equipped with an AISI 304 stainless steel tank. Heating is by electric heating element with safety thermostat and operation indicator light. Drainage of the tank is by means of drain hole of appropriate diameter closed by a stainless steel plug.
6NBF/E600
CR0856179

Data sheet

Model
6NBF/E600
Code
CR0856179
Material type
ZPF
Definition
MULTIPLA EL.60 M60 6NBF/E600
Width
600mm
Height
870mm
Depth
600mm
Volume
0.313m3
Electrical power
8.1Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0500
Net weight
81.7Kg
Gross weight
89Kg
Capacity
21
IP grade
IPX4
Certified model
6NBF/E600
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
690
Packaging height
1050
Packaging length
690
Alimentazione
ELETTRICA
Commercial code
6NBF/E600
