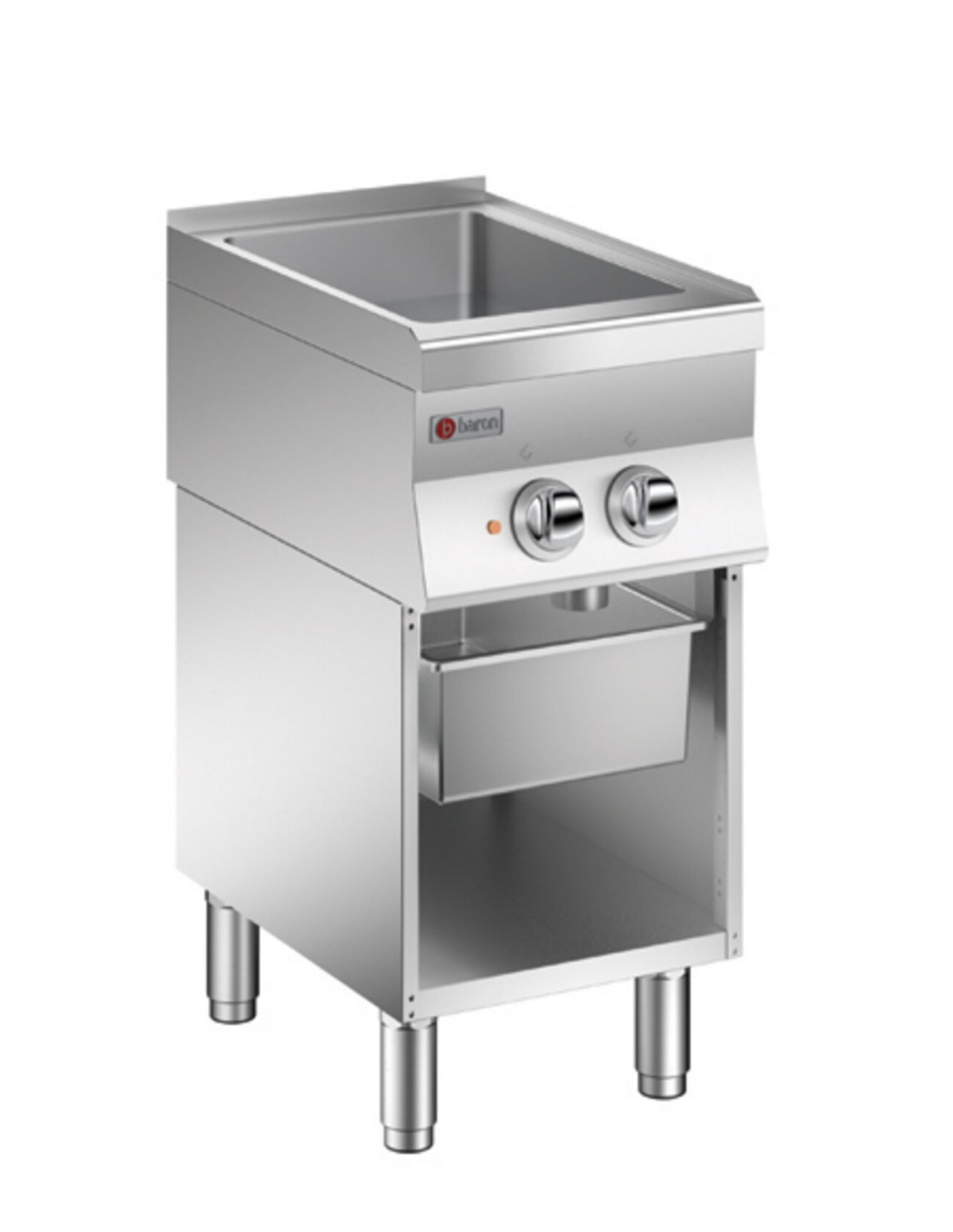

MULTIPLE MONOBLOC WITH 13 L TANK - L400


Print
The multifunction braising pan is the ideal equipment to be used as both a fry-top and a braising pan and is equipped with an AISI 304 stainless steel tank. Heating is by electric heating element with safety thermostat and operation indicator light. Drainage of the tank is by means of drain hole of appropriate diameter closed by a stainless steel plug.
6NBF/E400
CR0856169

Data sheet

Model
6NBF/E400
Code
CR0856169
Material type
ZPF
Definition
MULTIPLA EL.60 M40 6NBF/E400
Width
400mm
Height
870mm
Depth
600mm
Volume
0.209m3
Electrical power
4.05Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0500
Net weight
60.4Kg
Gross weight
66Kg
Capacity
13
IP grade
IPX4
Certified model
6NBF/E400
CE-certified
-
Company
0232
Commercial Line
SERIE 600
Packaging width
690
Packaging height
1050
Packaging length
690
Alimentazione
ELETTRICA
Commercial code
6NBF/E400
