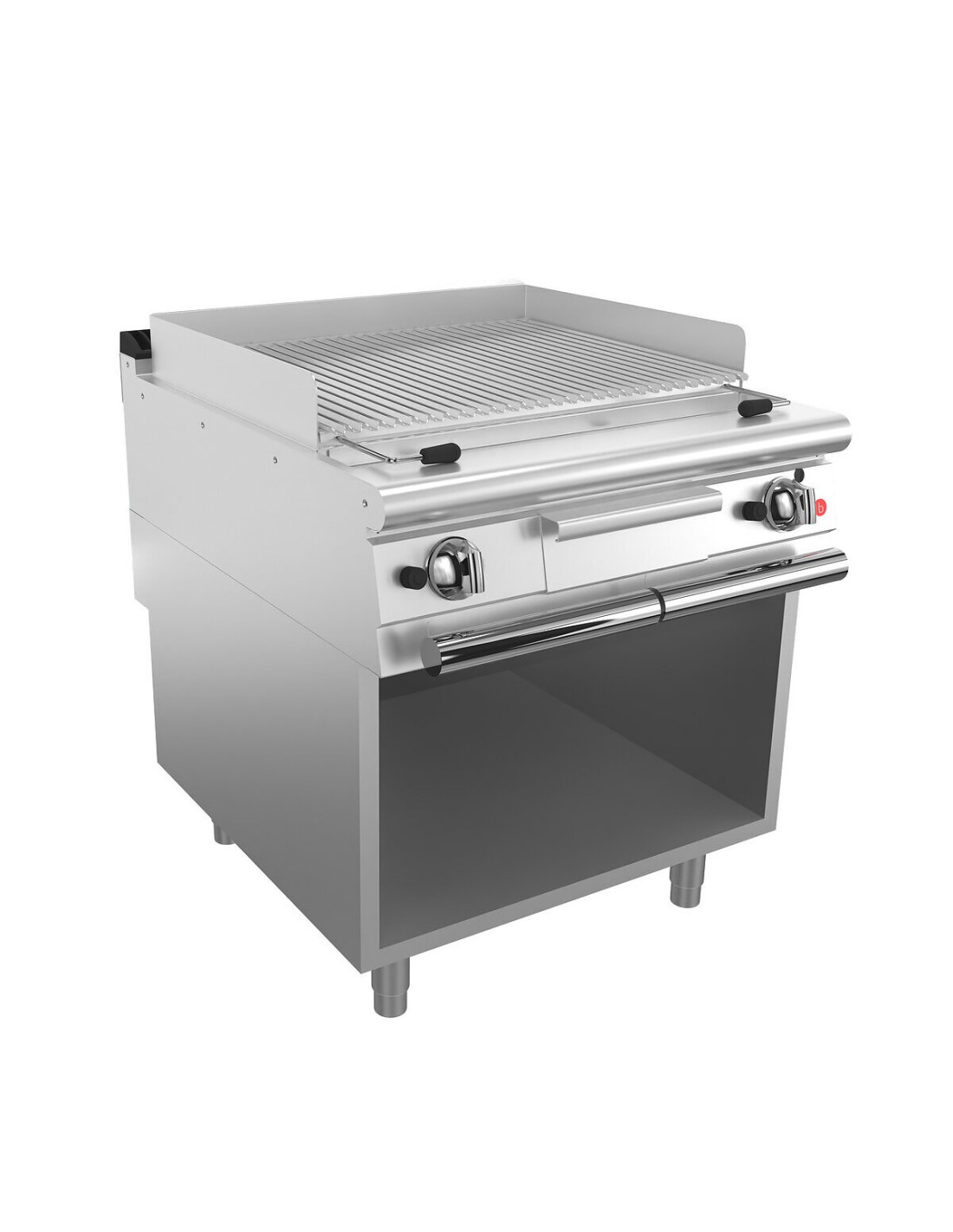

Lava stone grill GAS M80 - Stainless steel grill - M80 on compartment

Lava Stone Grills: 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. Adjustable grill height for managing different types of cooking. Easier to clean and more spacious. Perimeter splash guard raised edges. Channel with a drain hole and a removable grease and residue collection drawer. Wider grease collection channel, welded to the surface. Internal drawer for collecting carbonized residues. Adjustable temperature up to 350°C. Power regulation is controlled by a continuous operation modulating tap to adjust the plate heat according to the cooking type. HUMIDIFIER accessory for optimal management of different cooking types.
Tipo Alimentazione
Promo
Print
Lava Stone Grills: 4 types of grills available: stainless steel for meat, fish, mixed, and a reversible cast iron version for meat/fish. Adjustable grill height for managing different types of cooking. Easier to clean and more spacious. Perimeter splash guard raised edges. Channel with a drain hole and a removable grease and residue collection drawer. Wider grease collection channel, welded to the surface. Internal drawer for collecting carbonized residues. Adjustable temperature up to 350°C. Power regulation is controlled by a continuous operation modulating tap to adjust the plate heat according to the cooking type. HUMIDIFIER accessory for optimal management of different cooking types.Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. Aisi 304 steel burner controlled by safety valve and thermocouple. Piezo ignition. Adjustable temperature up to 350°C. Device for adjusting the height of the grids on two levels. Perimeter splash guard risers (h max=12mm). Canal with drainage hole and removable grease and residue collection. Internal drawer for collecting carbon residue. Larger, recessed grease trough on the worktop, easier to clean and more capacious HUMIDIFIER accessory for optimal management of several types of cooking. Grill height adjustment for handling different types of cooking 4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version Changing the type of cooking also in the utility GAS Grill / lava stone, with dedicated accessories In gas versions, the power is regulated by a continuously variable tap to adapt the heat of the hotplate to the type of cooking

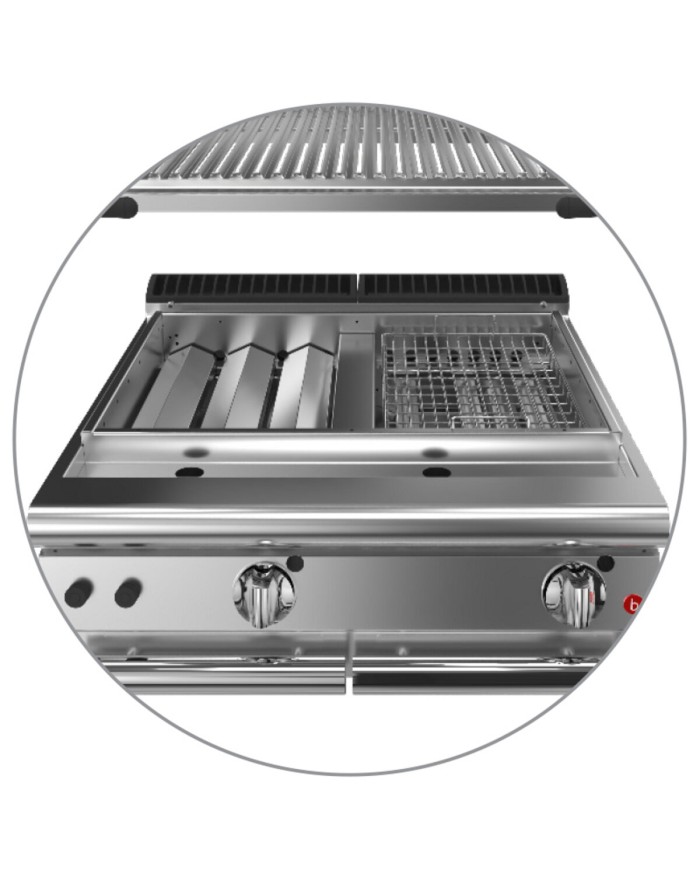

Smoker that can be installed on models M40-M80 - M120 for a barbecue flavour menu. Made of AISI304 stainless steel. Kit equipped with a guide for sliding the smoker box.



HUMIDIFIER accessory for optimal management of several types of cooking.

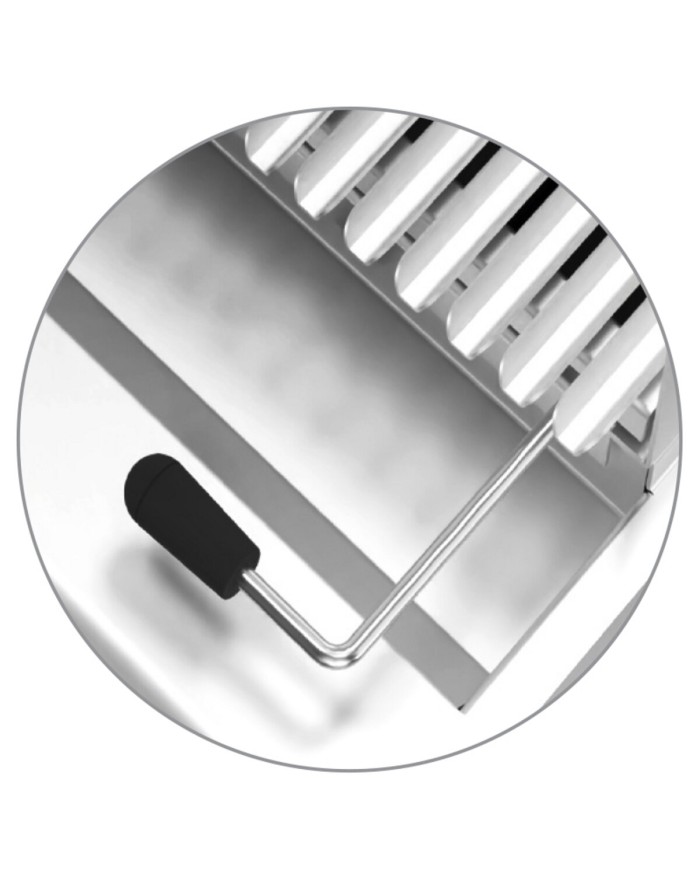

Grill height adjustment for handling different types of cooking

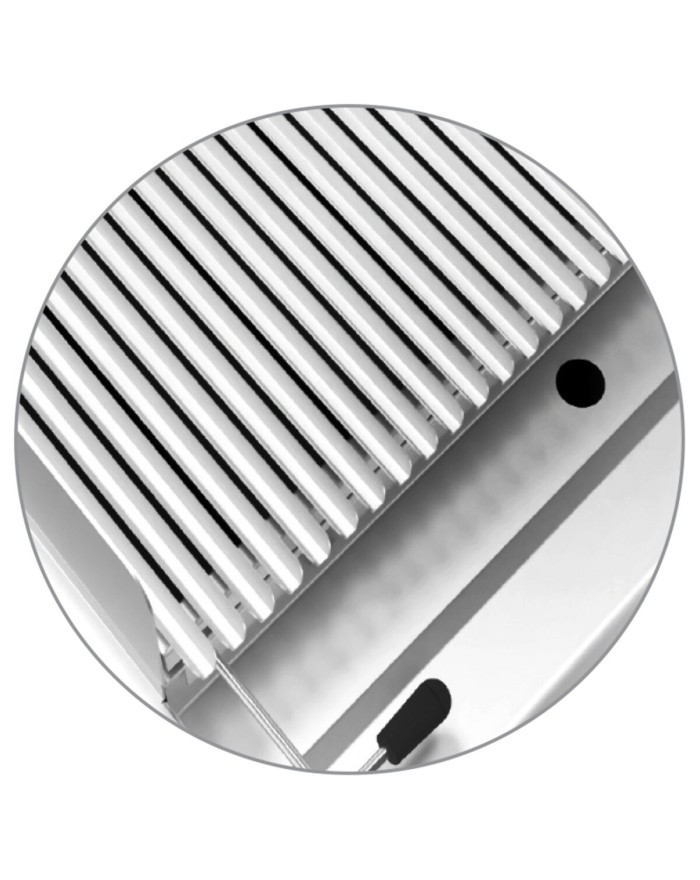

4 Grill types available: meat, fish, mixed stainless steel and reversible cast iron meat/fish version

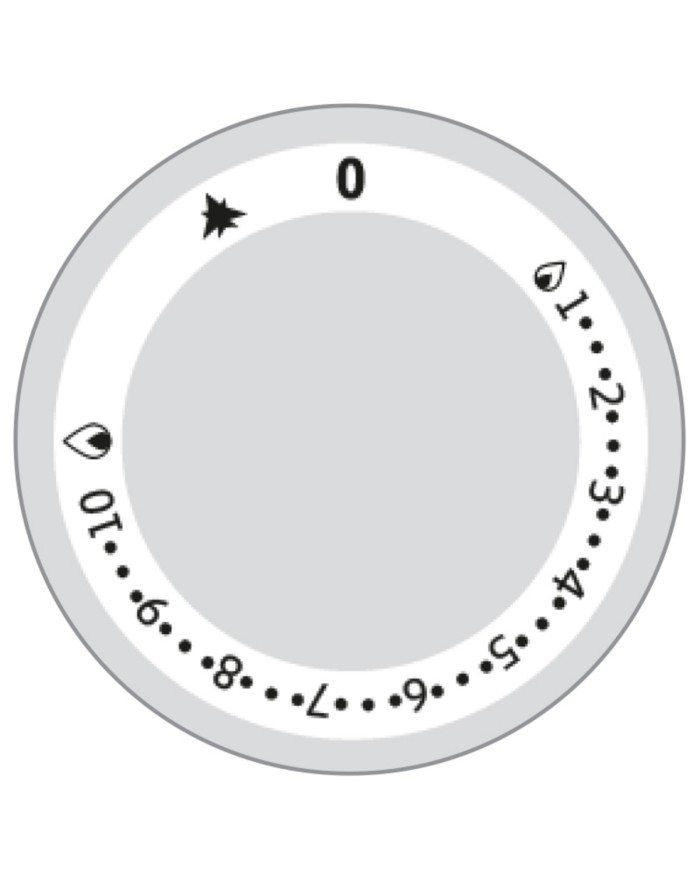

In gas versions, the power is regulated by a continuously variable tap to adapt the heat of the hotplate to the type of cooking



In the tap versions, the power is regulated by a Type 22PP enhanced flow tap that can be modulated for continuous operation to adapt the heat of the hotplate according to the type of cooking.

Q90SGLV/G800
CR1657829 - Standard Standard

Data sheet

Gas power Kw
25,00Kw
Packaging height
1170
Gas power (G25.3/25 mbar)
24,00Kw
Width
800mm
Gas power Kcal
20640Kcal
Packaging length
840
Gross volume
1003
AGA Certificate
SI
Net weight
100Kg
Alimentazione
GAS
Gross weight
115Kg
Tipo piastra
LAVA ROCK
STAINLESS STEEL 304
Production site
BELLUNO
Modulo
M80
II2H3+
ES/GB/GR/IE/IT/PT/SK
Product variant
P.LAVICA CON GRIGLIA CARNE
Model
Q90SGLV/G800
Chimney type
A1
CODE
CR1657829
Certified model
90SGLV/G8
Commercial code
Q90SGLV/G800
CE-certified
CE-0051DN5101
Material type
ZPF
Production start year
2022
Definition
Q90SGLV/G800 PIETRALAV.GAS CARNE M80 A/G
Product type
STANDARD
Depth
900mm
Company
0232
Height
870mm
Commercial Line
QUEEN
Volume
0.626m3
Packaging width
1020

Specific References

mpn
Q90SGLV/G800
