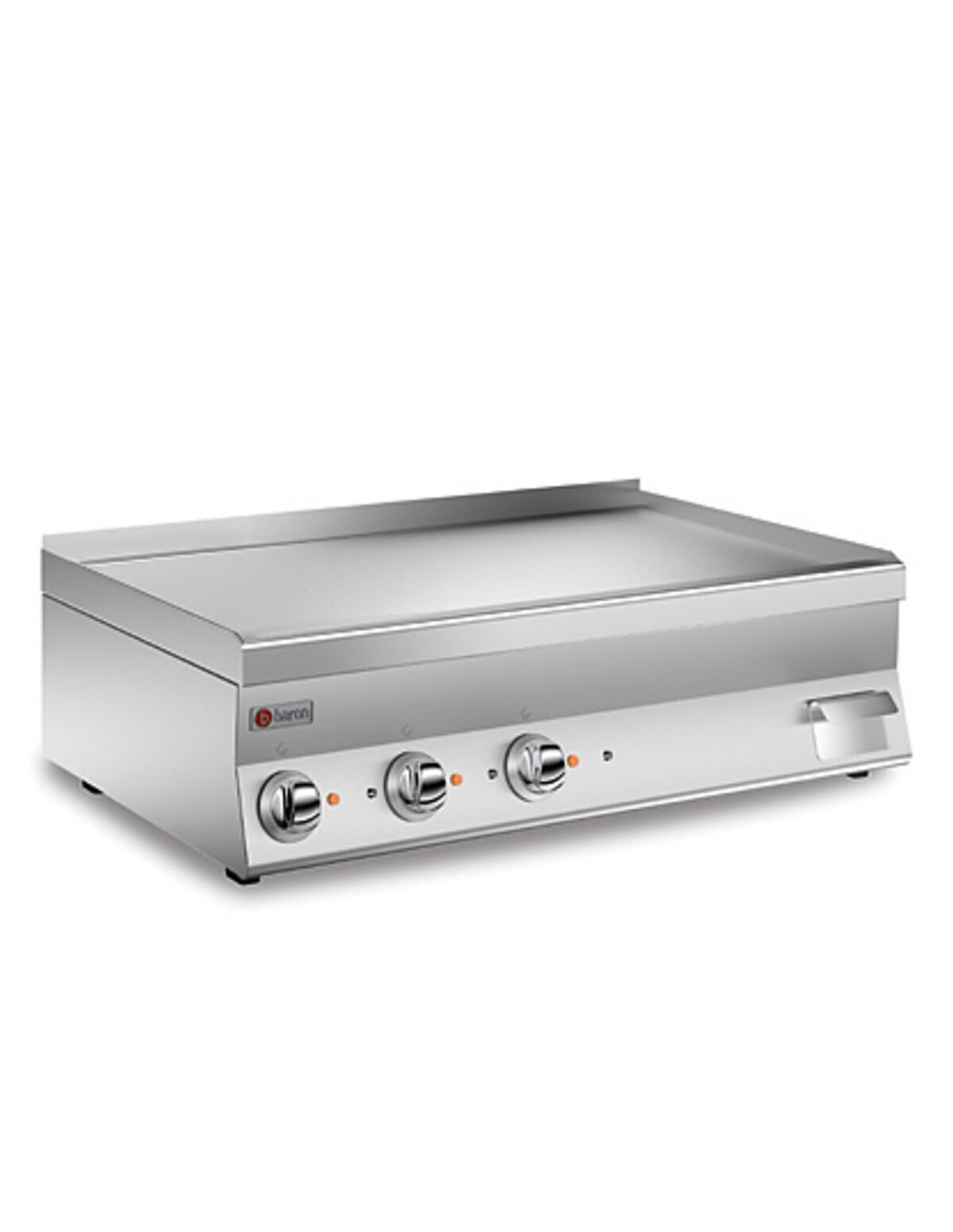

ELECTRIC FRY TOP SMOOTH PLATE AISI430

Print
Home , COOKING , SERIE 600 , ELECTRIC FRY TOP
Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values. For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C. The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface. The worktop is slightly inclined so as to channel sauces, fats and seasonings, into the large-capacity collection drawer. All chrome and electric models, have thermostatic temperature control, safety thermostat and indicator lights.


The fry tops are equipped with a perimeter splash guard and a removable drip tray.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NFT/E1003L
CR1302939

Data sheet

Model
6NFT/E1003L
Code
CR1302939
Material type
ZPF
Definition
FRY-TOP EL.L 60 M100 6NFT/E1000L
Width
1000mm
Height
295mm
Depth
600mm
Volume
0.177m3
Electrical power
11.7Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0515
Net weight
72.9Kg
Gross weight
83Kg
IP grade
IPX4
Certified model
6NFT/E1000L
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
740
Packaging height
670
Packaging length
1040
Alimentazione
ELETTRICA
Commercial code
6NFT/E1000L
Production site
BELLUNO
Tipo piastra
SMOOTH
Materiale Piastra
AISI430
