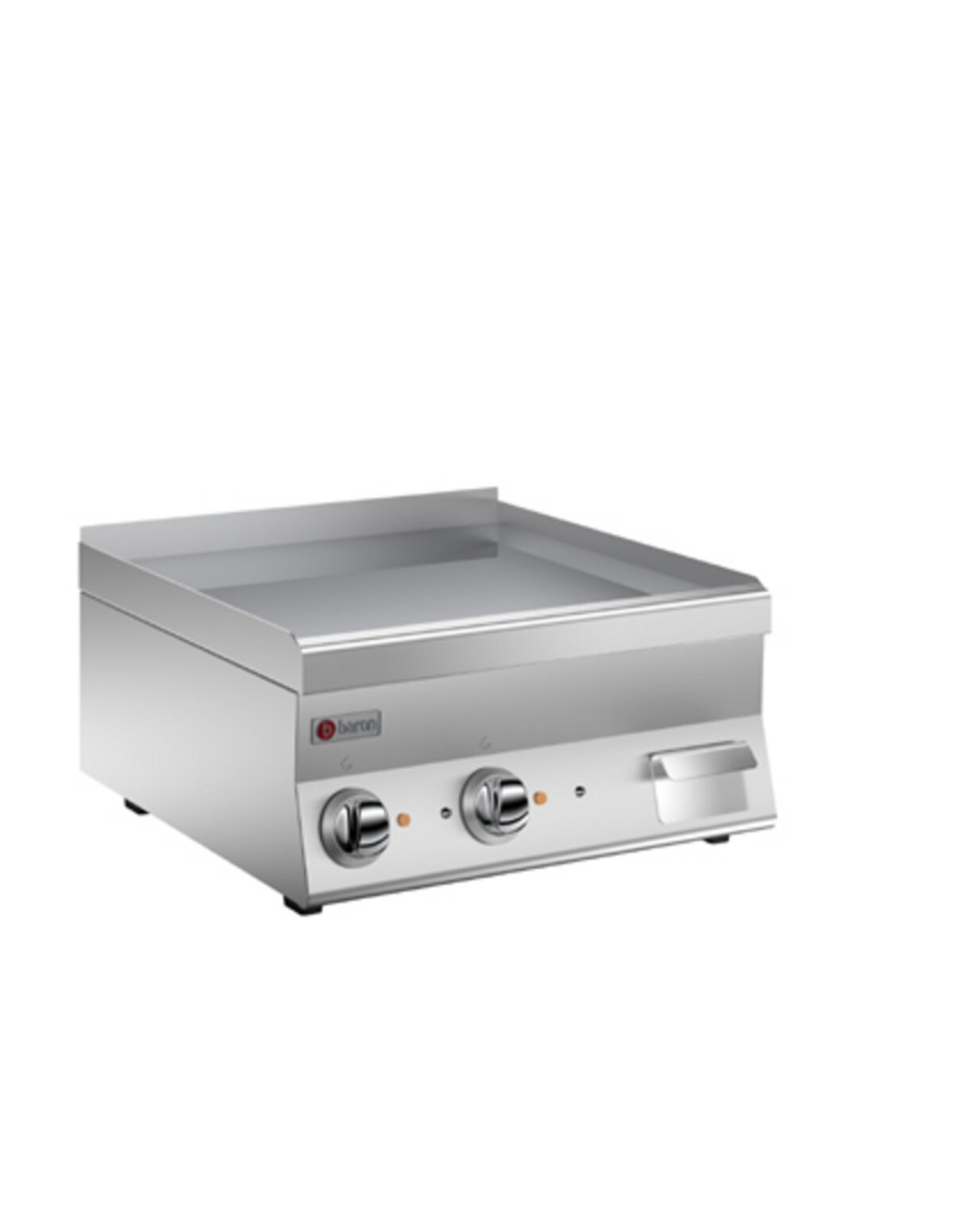

ELECTRIC FRY TOP SMOOTH PLATE AISI430


Print
Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values. For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C. The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface. The worktop is slightly inclined so as to channel sauces, fats and seasonings, into the large-capacity collection drawer. All chrome and electric models, have thermostatic temperature control, safety thermostat and indicator lights.


The fry tops are equipped with a perimeter splash guard and a removable drip tray.



Equipment is certified and compliant with the Low Voltage Directive 2014/35/EU according to the international CB scheme

6NFT/E603L
CR1302919

Data sheet

Model
6NFT/E603L
Code
CR1302919
Material type
ZPF
Definition
6NFT/E600LFRY-TOP EL.L 60 M60
Width
600mm
Height
295mm
Depth
600mm
Volume
0.106m3
Electrical power
7.8Kw
380-415V 3N
Frequency
50-60 HzHz
Gross volume
0313
Net weight
48.7Kg
Gross weight
56Kg
IP grade
IPX4
Certified model
6NFT/E600L
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
SERIE 600
Packaging width
640
Packaging height
670
Packaging length
730
Alimentazione
ELETTRICA
Commercial code
6NFT/E600L

Download

CR1302919_it.pdf

Download (609.87KB)

CR1302919_de.pdf

Download (610.98KB)

CR1302919_en.pdf

Download (608.67KB)

CR1302919_es.pdf

Download (609.49KB)

CR1302919_fr.pdf

Download (611.31KB)
