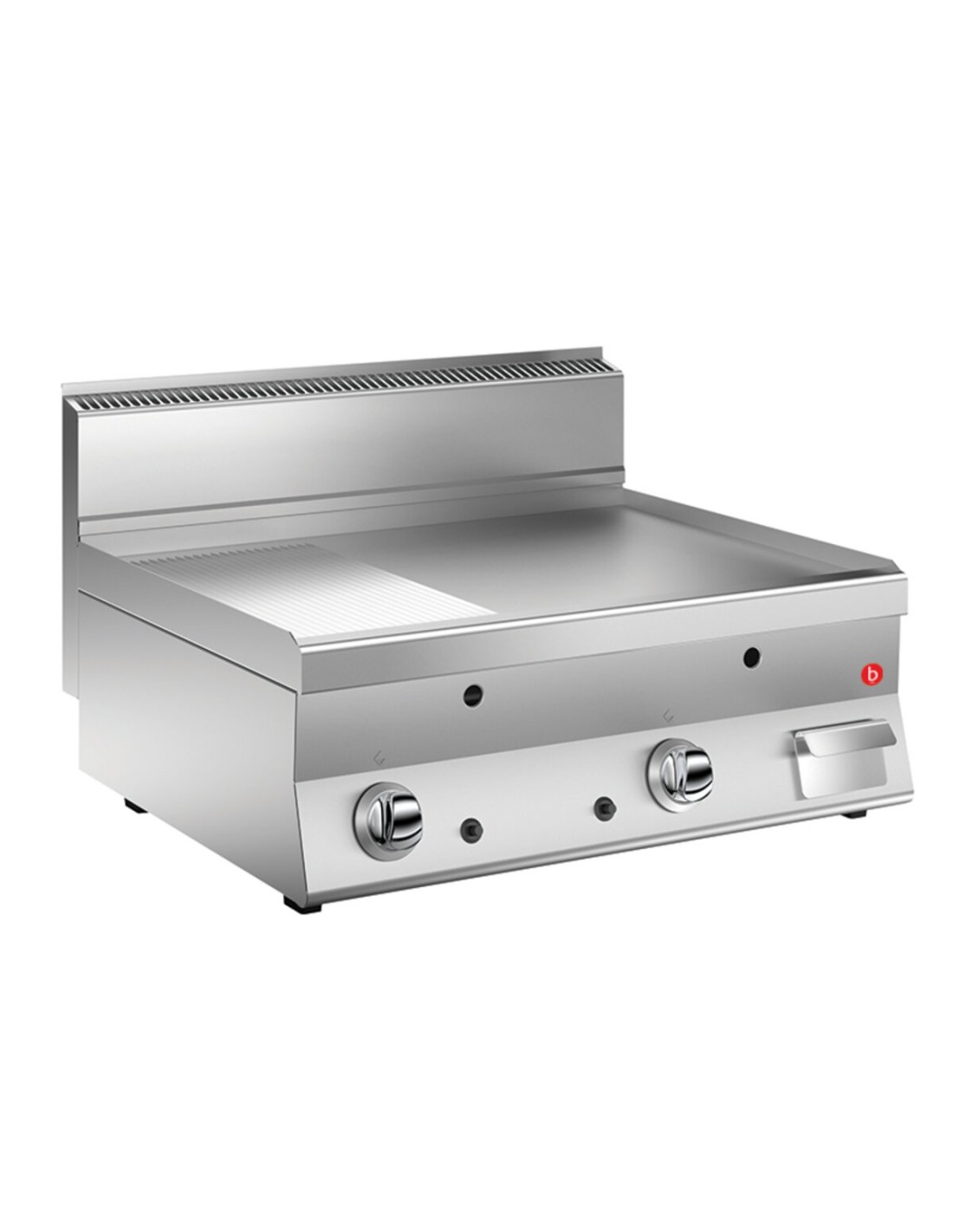

GAS FRY TOP 2/3 SMOOTH 1/2 GROOVED PLATE L800 - THERMOSTAT
DWG-3D
Pictures
Chromed, mild steel (extra EU) and AISI430 cooking plates in various sizes and shapes are heated by gas burners or high-powered electric heating elements, such as to ensure rapid temperature rise and maintenance of the chosen values.
For non-chromed gas models, the temperature is adjustable from 120-280°C, for the chromed version from 90-250°C, and for electric from 0 to 300°C.
The plates are equipped with splash guards so as to ensure perfect cleanliness and hygiene of the cooking surface.
The work surface is slightly inclined so as to channel sauces, fats and condiments, into the large-capacity collection drawer.
Gas models are equipped with piezo ignition, pilot flame, thermocouple and valved faucet to ensure maximum safety.
The fry tops are equipped with a perimeter splash guard and a removable drip tray.

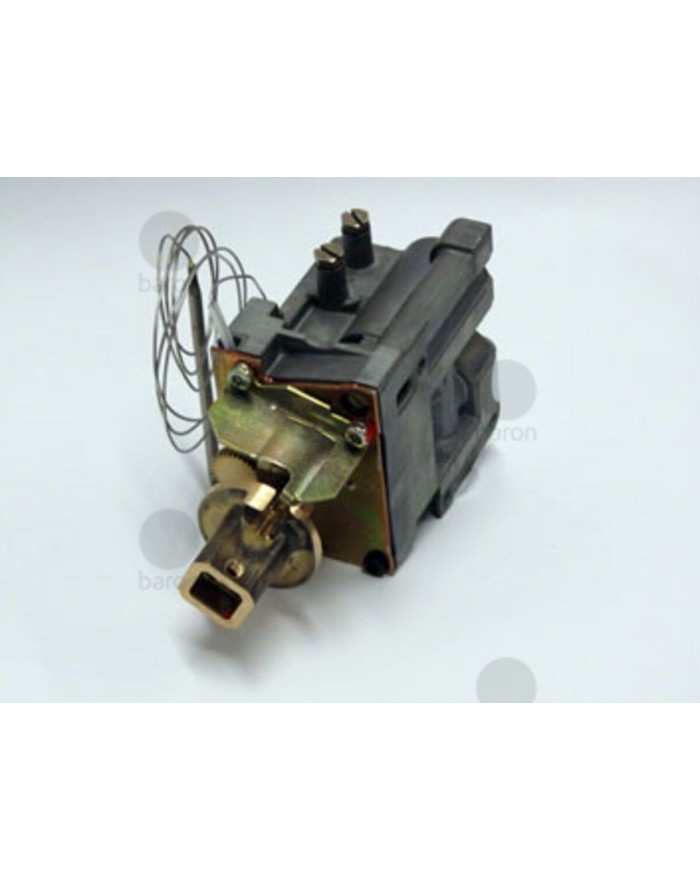

Thermostat gas versions with made-in-Italy regulation valve, which allows precise temperature control 110°C - 280°C , even for the most delicate cooking
N6FTT/G820
CR0999899 - Metano Standard
Data sheet
- Model
- N6FTT/G820
- Code
- CR0999899
- Material type
- ZPF
- Definition
- N6FTT/G820 FTG M 60 M80 TERM.
- Width
- 800mm
- Height
- 295mm
- Depth
- 650mm
- Volume
- 0.153m3
- Gross volume
- 0220
- Certified model
- N6FTT/G820
- CE-certified
- CE-0085DL0171
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- SERIE 600
- Packaging width
- 740
- Packaging height
- 680
- Packaging length
- 440
- Alimentazione
- GAS
- Commercial code
- N6FTT/G820
- Production site
- BELLUNO
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Gas power Kw
- 13Kw
- Gas power (G25.3/25 mbar)
- 12,50Kw
- Gas power Kcal
- 10750Kcal
- Chimney type
- A1
- III1a2H3B-P
- DK/SE
- Production start year
- 2021
- Product variant
- PIASTRA LISCIA /RIGATA
- Tipo piastra
- 1/3RIBBED
- Modulo
- M80
- Materiale Piastra
- IRON
Specific References
- mpn
- N6FTT/G820
